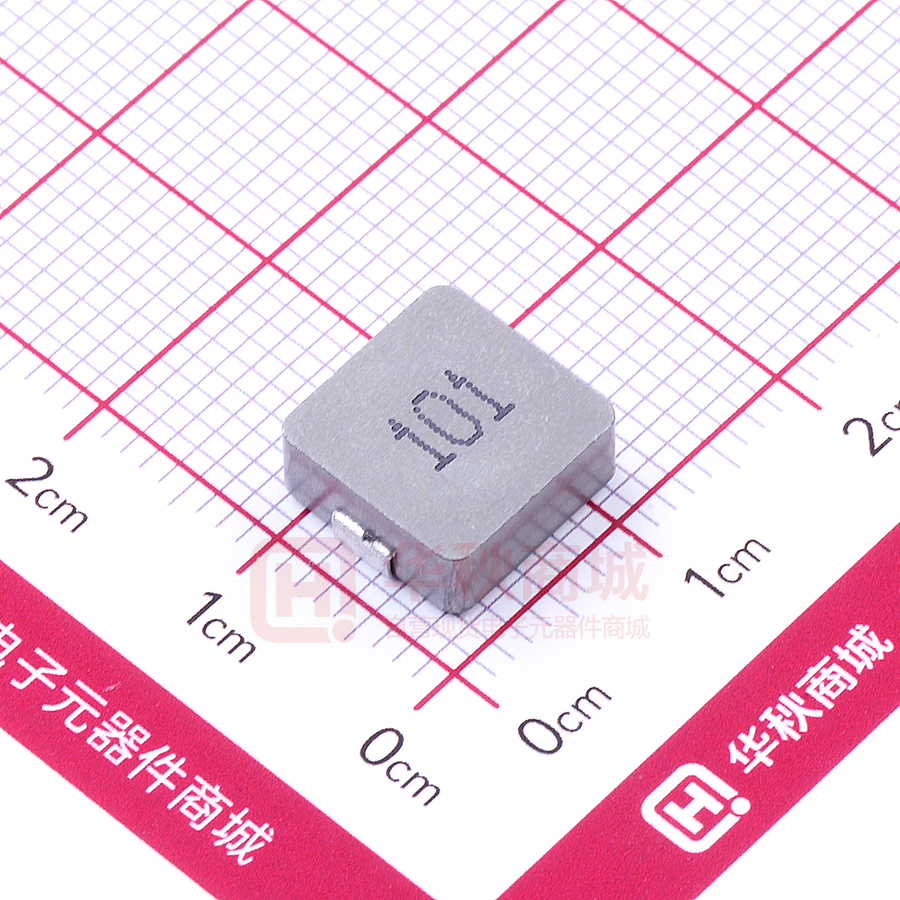

PSPMAC1045H-101M-ANP

PSPMAC1045H-101M-ANP

  • 厂商:

    PROD(谱罗德)

  • 封装:

    SMD,11x10mm

  • 描述:

    功率电感 100μH ±20% 2A 300mΩ SMD,11x10mm

  • 数据手册
  • 价格&库存
PSPMAC1045H-101M-ANP 数据手册
Version: 2.0 SPECIFICATION FOR APPROVAL ITEM P/N PSPMAC1045H-101M-ANP TEST INSTRUMENT Zentech-3305 / Zentech502BC PRODUCT SMD Inductor TEST FREQUENCY 100 kHz / 1.0V CUSTOMER : CUSTOMER P/N : DESCRIPTION : P/N SMD INDUCTOR : PSPMAC1045H-101M-ANP REVISION NO. : Version: 2.0 DATE : 2020-5-28 NOTES : STANDARD DOCUMENTED APPROVED Kevin CHECKED Ben PREPARED Peter CUSTOMER APPROVAL company seals PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan Version: 2.0 SPECIFICATION FOR APPROVAL ITEM P/N PSPMAC1045H-101M-ANP TEST INSTRUMENT Zentech-3305 / Zentech502BC PRODUCT SMD Inductor TEST FREQUENCY 100 kHz / 1.0V Version REVISON ITEM BEFORE REVISON 1.0 First Version 2019-10-9 2.0 Second Version 2020-5-28 PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn AFTER REVISON DATE E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan COIL SPECIFICATION Version: 2.0 ITEM P/N PSPMAC1045H-101M-ANP PRODUCT SMD Inductor TEST INSTRUMENT Zentech-3305 / Zentech502BC TEST FREQUENCY 100 kHz / 1.0V ASSEMBLY   1045 Dimensions A B C D E F G H 10.2±0.3 10.6 ± 1 4.5 MAX 2.0 ± 0.5 3.0 ± 0.5 12.5Ref. 5.50Ref. 4.00Ref. EXPLANATION OF PART NUMBERS P S P M A C 1 Serial Codes 0 4 5 Size H - 1 0 1 M Inductance - A N P Descripti ELECTRICAL CHARACTERISTICS @ 25 ℃ Ambient Temperture ITEM P/N PSPMAC104 5H-101MANP INDUCTANCE Lo (μH) TOLERANCE 100.00 ±20% Irms (A)Max. Isat (A) Max. 2 4 DCR (mΩ) DCR (mΩ) Typical Max. 250.0 300.0 ¥           All test Data is referenced to 25℃ ambient ¥           Typical Heat Rating DC Current would cause an approximately △T of 40℃ ¥           Typical Saturation DC Current would cause Lo to drop approximately 30% ¥           Operation Temperature Range :  -25℃ ~ 125℃ ¥           The Part temperature (ambient + △T) should not exceed 125℃ under worst case operating conditions. ¥           Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all effect the part temperature. Part temperature should be verified in the end application. Page: 1 PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan CHARACTERISTICS Version: 2.0 ITEM P/N PSPMAC1045H-101M-ANP TEST INSTRUMENT Zentech-3305 / Zentech502BC PRODUCT SMD Inductor TEST FREQUENCY 100 kHz / 1.0V CONNECTIONS MARKING ◎ Inductor Contents ONE (1) Set(s) of Coil ◎ DC/AC Currnet Shall Be Introduced By Any One of Two Pads PERFORMANCE CURVES Reflow Solderings ℃        A B C D E 260℃ 230℃ 10 Sec 150℃ 60~240 Sec  Page: 2 PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan CHARACTERISTICS Version: 2.0 ITEM P/N PSPMAC1045H-101M-ANP TEST INSTRUMENT Zentech-3305 / Zentech502BC PRODUCT SMD Inductor TEST FREQUENCY 100 kHz / 1.0V MECHANICAL RELIABILITY TEST Specification & Requirement Solderability Method Used The surface of terminal/pin tested shall Solder heat proof: be covered with new solder by 95% Preheating: 180 ±10℃ 90 seconds Soldering: 255 ±5℃ for 3 ±1 sec Shock Inductance change within ± 5% Without Drop down with 981m/s2 (100G) shock mechanical damage Attitude upon a rubber block method shock  testing machinem, 3 tests. Vibration Inductance change within ± 5% Without Vibration frequency: mechanical damage 10Hz to 55Hz to 10Hz 60 seconds cycle Vibration time: 2 hours ENDURANCE RELIABILITY TEST Specification & Requirement Thermal Shock Heat Resistance Humidity Resistance Low Temp. Storing High Temp. Storing Method Used Inductance change within ± 5% Without -55℃, (30 mins) -> room temp. (5 mins) -> mechanical damage 125℃, (30 mins) -> room temp. (5 mins) 100 cycles Inductance change within ± 5% Without Apply IDC current @ 85℃ ambient mechanical damage Duration: 1000 hrs Inductance change within ± 5% Without Apply IDC current @ 60℃ ambient mechanical damage Humidity: 90~95% Duration: 1000 hrs Inductance change within ± 5% Without Storing Temp. mechanical damage -55 ±2 ℃ for total 1,000 +4/-0 hours Inductance Ben change within ± 5% Without Storing Temp. mechanical damage 125 ±2 ℃ for total 1,000 +4/-0 hours Page: 3 PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan PACKING FOR SMD Version: 2.0 ITEM P/N PSPMAC1045H-101M-ANP TEST INSTRUMENT Zentech-3305 / Zentech502BC PRODUCT SMD Inductor TEST FREQUENCY 100 kHz / 1.0V PACKAGING(unit: mm) A 800 W 24 B 25 Ao 11.0 ± 0.1 Bo 12.6 ± 0.1 Ko 5.1 TYP P 16 Typical Pulling Force: 10 grams Page: 4 PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan TESTING REPORT Version: 2.0 ITEM P/N PSPMAC1045H-101M-ANP TEST INSTRUMENT Zentech-3305 / Zentech502BC PRODUCT SMD Inductor TEST FREQUENCY 100 kHz / 1.0V TEST DATA SPEC A B C D E (mm) (mm) (mm) (mm) (mm) DCR Max( mΩ )L(0) ± 20% 10.2±0.3 10.6 ± 1 4.5 MAX 2.0 ± 0.5 3.0 ± 0.5 No. INDUCTANCE 300 100.00 4 A ≈70% L(0) 1 10.17 11.15 4.24 3.03 2.38 279.00 99.15 PASS 2 10.21 11.23 4.15 3.01 2.36 282.00 98.65 PASS 3 10.16 11.18 4.20 3.04 2.37 269.00 98.74 PASS 4 10.13 11.16 4.22 3.01 2.36 281.00 98.62 PASS 5 10.19 11.23 4.26 3.03 2.34 277.00 101.20 PASS 6 10.23 11.21 4.28 3.01 2.36 265.00 101.40 PASS 7 10.18 11.23 4.25 3.03 2.35 263.00 101.60 PASS 8 10.20 11.18 4.26 3.01 2.34 259.00 95.64 PASS 9 10.23 11.21 4.32 3.02 2.36 283.00 98.67 PASS 10 10.19 11.23 4.29 3.03 2.34 285.00 94.58 PASS X 10.19 11.20 4.25 3.02 2.36 0.00 274.30 98.83 R 0.10 0.08 0.17 0.03 0.04 0.00 26.00 7.02 ¥ All test Data is referenced to 25℃ ambient Page: 5 PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan ANNOUNCEMENTS 产品注意事项 使用本产品时,请注意以下事项 © 产品保存期限为12个月,保存条件:温度5~40℃,湿度10~80%RH以内,超过保存期限可能会使 产品端子电极发生氧化。 © 请勿在极端环境下使用和保存(高盐,强酸,强碱,强辐射等)。 © 产品焊接前,请进行预热;预热温度与焊接温度之间温差建议控制在150℃以内。 © 产品焊接后需重新拆卸焊接修正时,请遵循规格书规定的条件范围;过高的加热温度以及反复的拆 卸可能会导致产品失效。 © 产品焊接到线路板后,请注意不可因线路板整体变形或局部变形而施加给电感剩余应力,这可能 会导致电感发生破裂,脱落,以致失效。 © 产品请勿接触清洗剂,酒精等液体,这会侵蚀产品本体,从而导致产品失效。 © 产品通电后温度会随电流的增大而上升,设计时请务必考虑留有余量。 © 过高的静电会对产品产生永久性损害,请注意静电防护。 © 产品通电过程请勿触摸产品任何部位,防止触电。 © 本产品作为磁性产品,设计时请务必考虑周边元器件与本产品可能产生的相互影响。 © 本产品适用于一般电子设备,如:AV设备,通信设备,家电产品,娱乐设备,计算机设备,个人设备,办公设 备,计测设备,工业机器人等。且该一般电子设备需在常规的操作和使用方法环境下使用。 对于需要高度安全性和可靠性的,或者因本产品失效造成设备故障,误操作,运转不良等危及到人的生命身体 及财产安全,以及对社会产生较大不良影响的特殊用途,设计使用前务必同本公司沟通,设计使用者如在未取 得我司书面同意状况下使用造成任何后果,我司不予承担。特殊用途包含但不限定如下清单: 1 军用设备 8 关系到国防安全的设备 2 运输设备(汽车,轨道交通产品,船舶等) 9 防灾赈灾设备 3 航空,航天设备 10 各种安规设备 4 发电控制设备 11 紧急救护设备 5 核动力相关设备 12 其他被认定为特殊用途的设备 6 爆炸引燃控制设备 7 交通控制设备 Page: 6 PROD TECHNOLOGY CO., LTD. TEL :0755-86667379 http://www.prodtech.cn E-LIVEN TECHNOLOGY CO., LTD. NO.28 ho-cheng RD,bade city,taoyuan, taiwan
