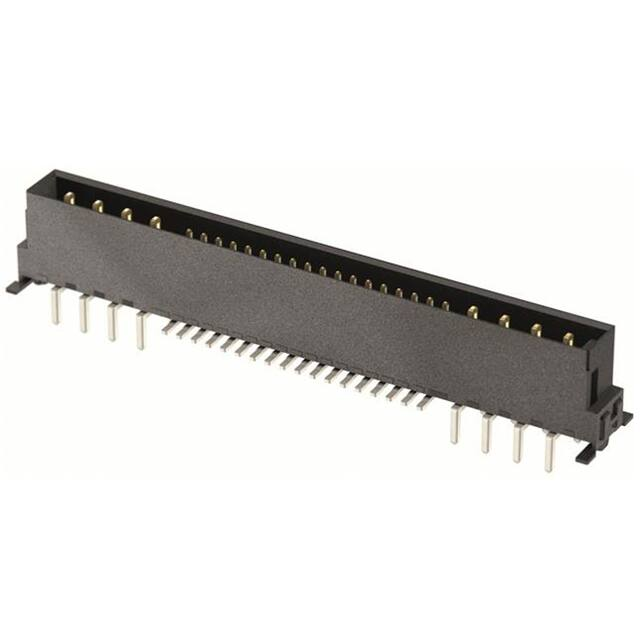

Product data sheet 15 72 836 2601 000 har-flex hy st M 3.25 8+36 SMT PL1 280pc har-flex hy st M 3.25 8+36 SMT PL1 280pc Part number 15 72 836 2601 000 Specification har-flex hy st M 3.25 8+36 SMT PL1 280pc HARTING eCatalogue https://b2b.harting.com/15728362601000 Image is for illustration purposes only. Please refer to product description. Identification Category Connectors Series har-flex® Identification Hybrid Element Male connector Description of the contact Straight Version Termination method Reflow soldering termination (SMT) Connection type Motherboard to daughtercard Mezzanine Number of contacts 44 Signal contacts 36 Power contacts 8 Performance level 1 Pack contents 280 pieces on reel Technical characteristics Contact spacing (mating side) 1.27 mm 2.54 mm Stacking height 3.25 mm Rated voltage acc. to IEC 60664-1 Rated voltage 50 V AC 120 V DC Rated impulse voltage 1.5 kV Page 1 / 3 | Creation date 2020-10-04 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com Product data sheet 15 72 836 2601 000 har-flex hy st M 3.25 8+36 SMT PL1 280pc Technical characteristics Pollution degree 2 Clearance distance ≥0.4 mm Signal contacts ≥1.74 mm Power contacts ≥1.11 mm Signal to power contacts Creepage distance ≥0.4 mm PCB: Signal contacts ≥1.74 mm PCB: Power contacts ≥1.11 mm PCB: Signal to power contacts ≥0.4 mm Connector: Signal contacts ≥1.89 mm Connector: Power contacts ≥1.94 mm Connector: Signal to power contacts Insulation resistance >1010 Ω Contact resistance ≤25 mΩ Limiting temperature -55 ... +125 °C Mating cycles ≥500 Test voltage Ur.m.s. 0.5 kV Signal 1.39 kV Signal / Power 1.39 kV Power / Power Isolation group IIIa (175 ≤ CTI < 400) Moisture Sensitivity Level (MSL) 1 acc. to ECA/IPC/JEDEC J-STD-020D Process Sensitivity Level (PSL) R0 acc. to ECA/IPC/JEDEC J-STD-020D Coplanarity of contacts 0.12 mm Material properties Material (insert) Liquid crystal polymer (LCP) Colour (insert) Black Material (contacts) Copper alloy Surface (contacts) Au over Pd/Ni Mating side Tin plated Termination side Material flammability class acc. to UL 94 V-0 Commercial data Packaging size 1 Country of origin China eCl@ss 27440402 PCB connector Page 2 / 3 | Creation date 2020-10-04 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com Product data sheet 15 72 836 2601 000 har-flex hy st M 3.25 8+36 SMT PL1 280pc Current carrying capacity Operating current (A) The current carrying capacity of the connectors is limited by the thermal load capability of the contact element material including the connections and the insulating parts. The derating curve is therefore valid for currents which flow constantly (nonintermittent) through each contact element of the connector evenly, without exceeding the allowed maximum temperature. Measuring and testing techniques acc. to IEC 60512-5-2 Ambient temperature (°C) Derating curve 80% Page 3 / 3 | Creation date 2020-10-04 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
