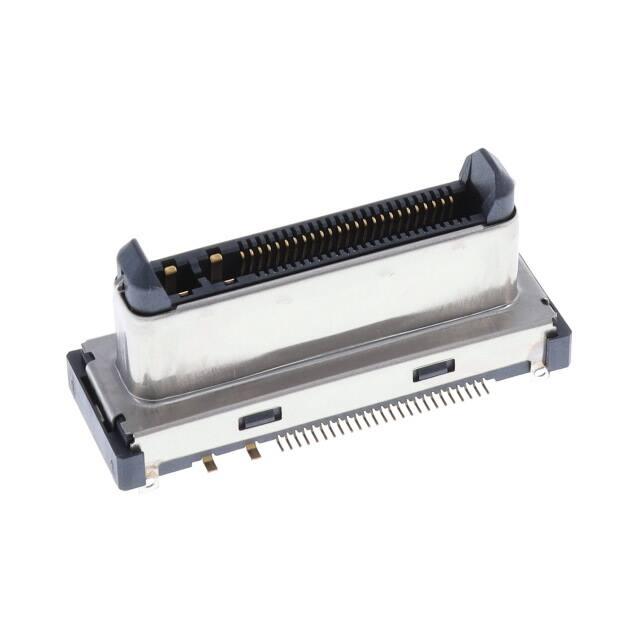

EX80-54P(70)

0.6mm Pitch, Docking Station Connectors Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. EX80 Series Features Input 1. Secure electrical and mechanical connection The signal contacts wipe of 1.5mm and built-in selfalignment assures reliable connection between plug and receptacle. 2. Sequential mating Plug design assures correct contact engagement sequence: ground-signal-power. 3. Reliable ground connection Guide tabs on the metal shell assure correct grounding sequence and high ground connection reliability with the board. Sig Rate : 2.5Gbps Sig Level : 0.5Vp-p X=100ps/div Y=100mV/div Output 4. High-speed data transfer Signals of 2.5 G bps can be transferred (PCI express). 5. Prevention of flux wicking Terminations of the contacts are designed to prevent a possibility of flux wicking into the contact areas. 6. Self alignment The connectors will self-align in X/Y axis within 1.2mm (0.7mm for receptacles with self-opening shutters) 7. Dedicated power supply contacts High electrical conductivity dedicated power contacts are rated 3 A. 8. High durability Bellows contact configuration assures reliable electrical and mechanical connection for 5,000 cycles (mating/un-mating). Applications Docking stations for notebook computers and other applications requiring high reliability, high data transfer sequential mating connections. In cases where the application will demand a high level of reliability, such as automotive, please contact a company representative for further information. 2021.2⑤ 1 EX80 Series●0.6mm Pitch, Docking Station Connectors Product specifications Storage temperature range -55ç to +85ç Voltage rating 125V AC Ratings Current rating Characteristic Signal contact 0.5A Power contact 3A Specification Conditions Signal contact : 70mø max. Power contact : 40mø max. 100m A 2. Insulation resistance 300Mø min. 250V DC 3. Withstanding voltage No flashover or insulation breakdown. 350V AC / 1 minute 1. Contact resistance Materials / Finish Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Receptacles Component Contacts Material Finish Copper alloy Selective gold plated Insulator Shell LCP ----------------- Stainless steel Nickel / Tin plated Plugs Component Contacts Material Finish Copper alloy Selective gold plated Insulator Shell LCP ----------------- Stainless steel Nickel / Tin plated ■Product Number Structure Refer to the chart below when determining the product specifications from the product number. Please select from the product numbers listed in this catalog when placing orders. Receptacles EX 80 − 54(50) S − SH (75) q w e r t Plugs EX 80 − 54(50) P (70) q w e r y y q Series number w Model serial indicator 80 e Number of contacts r Connector types t Receptacle, with shutter y Separate specifications : EX : Vertical SMT type : 54, 100 : 54(50)... 50 contacts mounted in a 54-contact size S : Receptacle connectors (Shell ground tab length 0.9mm) P : Plug connectors (Shell ground tab length 0.9mm) P1 : Plug connectors (Shell ground tab length 2.2mm) SH : Built-in shutters : See the Specifications Sheet of each products. Note: All connectors in this series are designed to be placed on the PCB 1mm min. thick. 2 EX80 Series●0.6mm Pitch, Docking Station Connectors Plugs 100 pos. 45.3 33 30 28.2 NO.2 Power contact 16.6 0.6 (7) 10.9 NO.50 NO.1 Power contact NO.51 Power contact (25) NO.100 15.1 4.5 0.9 (Through hole) 17.5 Shell ground tab (4) 14.9 6.8 9.6 10.7 39 41.1 9.6 11.7 7.8 le) 1.2 2.8(Through hole) 14.9 2- 36.4 39 41.1 .1 +0 0 .5 Ø1 46 No conductive traces ) ole (H Part No. 41.1 2.2 (Ho 17.5 2-Ø1.3 +0.10 (Through hole) Removable vacuum pick-up tape 0.9(Through hole) +0.1 0 33 (32.4) (31.5) 30 28.2 16.6±0.05 0.6±0.05 0.4±0.05 6.8±0.05 Ø1.7 HRS No. Contact plating (contact area/termination) Shell plating (Body / termination) EX80-100P1(70) 232-0598-9 70 Gold / Gold Packaging Nickel / Tin RoHS 1 pcs/tray 54 pos. 31.5 19.2 16.2 14.4 9.7 0.6 Signal contact No.3 Power contact No.2 Power contact No.1 10.9 Signal contact No.27 Recommended PCB mounting pattern (PCB thickness : 1mm min.) ole 15.1 4.5 Shell ground tab (4) 8 22.6 25.2 27.3 30.2 32.2 HRS No. EX80-54P (70) 232-0610-2 70 8 25.2 27.3 30.2 1.5 3.9 6.8 9.6 10.7 0.9(Through hole) 2.8(Through hole) ) ho le (Th rou gh Part No. 0.2 10.6 3.9 9.6 11.7 7.8 ) 10.6 27.3 0.9 0.4 1.2 (H R0 .7 .45 Ø1 Power contact No.28 Power contact No.29 Signal contact No.30 Signal contact No.54 Removable vacuum pick-up tape 0.9(Through hole) 6.8 2.8(Through hole) 19.2 16.2 14.4 9.7 0.6 2-Ø 1.3 Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Recommended PCB mounting pattern (PCB thickness : 1mm min.) NO.52 Power contact No conductive traces 2-Ø1.5(hole) Contact plating (contact area/termination) Shell plating (Body / termination) Gold / Gold Nickel / Tin Packaging RoHS 1 pcs/tray 3 EX80 Series●0.6mm Pitch, Docking Station Connectors Receptacles (Without shutter) 100 pos. 43.4 33 30 28.2 16.6 0.6 NO.52 Power contact NO.51 Power contact 8.8 (7.9) (6) NO.100 (25) NO.50 Removable vacuum pick-up tape NO.1 Power contact NO.2 Power contact Ø1 . 45 33 (31.5) 30 28.2 16.6±0.05 0.4±0.05 0.6±0.05 +0 0 .1 (T hr 8-Ø1 .85 ou g (Lan h h d) ole 14.9 Shell ground tab (4) 40.15 40.9 43 1.2 0.6 0.8 3.2 7.7 8.6 5.6 9.6 7.7 3.2 ) 0.9 Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 8- 3.6 Recommended PCB mounting pattern (PCB thickness : 1mm min.) R le) Ho n.( HRS No. mi Part No. .6 34 34.9 40.15 40.9 43 No conductive traces R 0.9 1. 75 Ø1 14.9 Contact plating (contact area/termination) Shell plating (Body / termination) EX80-100S(70) 232-0592-2 70 Gold / Gold Nickel / Tin Packaging RoHS 1 pcs/tray 54 pos. 29.6 25 19.2 16.2 NO.30 Signal contact NO.29 Power contact 0.6 NO.28 Power contact 6 8.8 NO.54 Signal contact 14.4 9.7 Recommended PCB mounting pattern (PCB thickness : 1mm min.) .4 hr gh 14.4 ho le (Lan d) 9.7 ) 0.6 1.2 0.4 5.6 7.7 .85 3.6 16.2 ou 8-Ø1 NO.3 Signal contact Removable vacuum pick-up tape (17.7) (T Shell ground tab (4) 9.6 5 NO.1 Power contact NO.2 Power contact NO.27 Signal contact 19.2 0.8 0.6 8 0.9 8Ø1 27.35 7.7 8.6 R0 5 ) ole (H 27.1 .7 n. 21.1 .9 R1 mi 20.2 No conductive traces .6 Ø1 8 27.35 4 Part No. HRS No. EX80-54S(70) 232-0609-3 70 Contact plating (contact area/termination) Shell plating (Body / termination) Gold / Gold Nickel / Tin Packaging 1,000 pcs/reel RoHS EX80 Series●0.6mm Pitch, Docking Station Connectors Plug (For the Receptacle with shutter) 54 pos. 31.5 19.2 16.2 14.4 9.7 0.6 10.9 Signal contact No.27 Signal contact No.3 Power contact No.2 Power contact No.1 Power contact No.28 Power contact No.29 Signal contact No.30 Signal contact No.54 27.3 ole 15.6 4.5 0.2 10.6 2.8(Through hole) 2Ø1 .5 (H ol e) 8 22.6 25.2 27.3 30.2 32.2 1.5 3.9 6.8 9.6 10.7 0.9 (Through hole) gh h ole) rou (Th 1.3 2-Ø Part No. 10.6 8 25.2 27.3 30.2 3.9 9.6 11.7 7.8 ) Shell ground tab (4) 0.9 0.4 1.2 (H R0 .7 .45 Ø1 0.9(Through hole) 6.8 2.8 (Through hole) 19.2 16.2 14.4 9.7 0.6 No conductive traces HRS No. Contact plating (contact area/termination) Shell plating (Body / termination) EX80-54(50)P(70) 232-0607-8 70 Gold / Gold Nickel / Tin Packaging RoHS 1 pcs/tray Note : The design of the EX80-54(50)P does not have a detection signal contact. Receptacle (With shutter) 54 pos. Shown without shutter 31.4 19.2 16.2 14.4 9.7 0.6 Signal contact No.30 Power contact No.29 Power contact No.28 8.8 Signal contact No.54 Signal contact No.27 Power contact No.1 Power contact No.2 Signal contact No.3 5( Th ro ug h 8-Ø1.85 (L ho and) le) 27.1 19.2 16.2 14.4 9.7 0.6 18.15 0.4 1.2 0.9 R .75 ol 0.2 0.8 7.7 Shell ground tab (4) e) EX80-54(50)S-SH(75) 232-0606-5 75 8 27.35 .(H EX80-54(50)S-SH(71) 232-0606-5 71 0.6 in m HRS No. .6 Part No. Ø1 20.2 21.1 27.35 31.2 33.6 (7.1) (0.6) R1 8 0.9 .4 ( 1.5 ) Ø1 5.6 9.6 8- 5.2(Shutter height) Recommended PCB mounting pattern (PCB thickness : 1mm min.) 7.7 Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Recommended PCB mounting pattern (PCB thickness : 1mm min.) No conducive traces Contact plating (contact area/termination) Shell plating (Body / termination) Gold / Gold Nickel / Tin Shutter color Packaging RoHS Silver Black 500 pcs/reel 5 EX80 Series●0.6mm Pitch, Docking Station Connectors Connector mounting condition Receptacle EX80-*S-SH PCB 5.2 7.5 0.8 1 1 5.5 1.5 3.5 2 3.6 (4.9) 4.5 13 7.5 5.5 3.5 2 2 2 3.5 (4.9) 4.5 13 3.6 1 1 1.1 PCB Receptacle EX80-*S 1.6 Type with shutters Housing mounting condition (Shown for reference only) Type without shutters Housing mounting condition (Shown for reference only) Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. EX80-*P Plug PCB EX80-*P Plug PCB Note : The stacking length between boards of this connector is 13mm. Precautions • Make the stacking height design value of the set 13.0 to 13.7mm. Establish the setting so that the stacking height is 14.5mm or less including the accumulative tolerance of the set. • Use a floating structure (of 1.2mm or less) to mount this product. (Within 0.7mm for the type with shutters) • Be sure to also establish a guide structure on the set side. • For set designs in which the connector rotates and mates, make the radius of the rotation axis 100mm or greater. Personal computer mm 100 r eate or gr EX80-**P Docking station side 6 Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. EX80 Series●0.6mm Pitch, Docking Station Connectors MEMO： 7 Apr.1.2024 Copyright 2024 HIROSE ELECTRIC CO., LTD. All Rights Reserved. EX80 Series●0.6mm Pitch, Docking Station Connectors USA: HIROSE ELECTRIC (U.S.A.), INC. HEADQUARTERS CHICAGO OFFICE 2300 Warrenville Road, Suite 150, Downers Grove, IL 60515 Phone : +1-630-282-6700 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. SAN JOSE OFFICE 2841 Junction Ave, Suite 200 San Jose, CA. 95134 Phone : +1-408-253-9640 Fax : +1-408-253-9641 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. DETROIT OFFICE (AUTOMOTIVE) 17197 N. Laurel Park Drive, Suite 253, Livonia, MI 48152 Phone : +1-734-542-9963 Fax : +1-734-542-9964 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. BOSTON OFFICE 40 Shattuck Road, Suite 215, Andover, MA 01810 Phone : +1-978-655-9850 THE NETHERLANDS: HIROSE ELECTRIC EUROPE B.V. Hogehillweg #8 1101 CC Amsterdam Z-O Phone : +31-20-6557460 Fax : +31-20-6557469 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. GERMAN BRANCH Schoenbergstr. 20, 73760 ostfildern Phone : +49-711-456002-221 Fax : +49-711-456002-299 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. NUREMBERG OFFICE Nordostpark 25, 90411 Nurnberg Phone : +49-911 32 68 89 63 Fax : +49-911 32 68 89 69 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. HANOVER OFFICE Bayernstr. 3, Haus C 30855 Langenhagen, Germany Phone : +49-511 97 82 61 30 Fax : +49-511 97 82 61 36 http://www.hirose.com/eu/ FRANCE: HIROSE ELECTRIC EUROPE B.V. PARIS OFFICE 130-136 Avenue Joseph Kessel, Bâtiment A, 78960 Voisins le Bretonneux, France Phone : +33-1-77048712 http://www.hirose.com/eu/ UNITED KINGDOM: HIROSE ELECTRIC EUROPE BV (UK BRANCH) 4 Newton Court, Kelvin Drive, Knowlhill, Milton Keynes, MK5 8NH Phone : +44-1908 202050 http://www.hirose.com/eu/ CHINA: HIROSE ELECTRIC (CHINA) CO., LTD. (SHANGHAI, HEADQUARTERS) 18, Enterprise Center Tower 2, 209# Gong He Road, Jing’an District, Shanghai, CHINA 200070 Phone : +86-21-6391-3355 Fax : +86-21-6391-3335 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC (CHINA) CO.,LTD. BEIJING BRANCH A2006, Ocean International Center, Building 56# East 4th Ring Middle Road, ChaoYang District, Beijing, 100025 Phone : +86-10-8576-9855 Fax : +86-10-8576-6033 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC (CHINA) CO., LTD. SHENZHEN BRANCH Room 09-13, 19/F, Office Tower Shun Hing Square, Di Wang Commercial Centre, 5002 Shen Nan Dong Road, Shenzhen City, Guangdong Province, 518008 Phone : +86-755-8207-0851 Fax : +86-755-8207-0873 http://www.hirose.com/cn/ HONG KONG: HIROSE ELECTRIC HONGKONG TRADING CO., LTD. Room 1001, West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Phone : +852-2803-5338 Fax : +852-2591-6560 http://www.hirose.com/hk/ TAIWAN: HIROSE ELECTRIC TAIWAN CO., LTD. 8F, No.87, Zhengzhou Rd., Taipei Phone : +886-2-2555-7377 Fax : +886-2-2555-7355 http://www.hirose.com/tw/ KOREA: HIROSE KOREA CO.,LTD. 143, Gongdan 1-daero, Siheung-si, Gyeonggi-do, 15084, Korea Phone : +82-31-496-7000 Fax : +82-31-496-7100 http://www.hirose.co.kr/ INDIA: SINGAPORE: HIROSE ELECTRIC SINGAPORE PTE. LTD. DELHI OFFICE HIROSE ELECTRIC SINGAPORE PTE. LTD. 03, Anson Road, #20-01, Springleaf Tower, Regus Level-2, Elegance Tower, Jasola District Centre, New Delhi 110025, India Singapore 079909 Phone : +91-11-66351030/1037/1167 Phone : +65-6324-6113 http://www.hirose.com/sg/ http://www.hirose.com/sg/ INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. BANGALORE OFFICE WeWork Galaxy, No 43, Residency Road, Shanthala Nagar, Ashok Nagar, Bengaluru, Karnataka 560025, India Phone : +91-80-4120 1907 http://www.hirose.com/sg/ MALAYSIA: THAILAND: PENANG REPRESENTATIVE OFFICE BANGKOK LIAISON OFFICE 73-3-1, Ideal@The One, Jalan Mahsuri, Bayan No.8, T-One Building, Level 15 unit 103, Sukhumvit, 40 Alley, Khet Khlong Toei, Phra Khanong Bangkok 10110, Thailand Lepas, 11950, Penang, Malaysia Phone : +66-98-886-6746 Phone : +604-648-5536 http://www.hirose.com/sg/ http://www.hirose.com/sg/ ® 8 2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN TEL: +81-45-620-7410 Fax: +81-45-591-3754 http://www.hirose.com The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use. The contents of this catalog are current as of date of 02/2021. Contents are subject to change without notice for the purpose of improvements.
