The new top performer for data and signals
HARTING ix Industrial®
More compact. More robust. More powerful.
HARTING ix Industrial®
Increased miniaturisation.
Your advantages at a glance.
The HARTING ix Industrial® is our answer to the challenges
that will be presented by Industry 4.0 and the IoT. Successful
miniaturisation ensures the HARTING ix Industrial® will be a
top performer in your application. The ix Industrial® interface
demonstrates its capabilities in Industrial Ethernet (type A) as
well as in signals and serial BUS systems (type B).
One standard – Two mating faces.
Millions of possible applications.
With the two mating face types A and B (both standardised
according to IEC 61076-3-124), you are always on the right track:
with no mix-ups and no malfunctions.
70% less size compared to the RJ45
Reduce the size of your printed circuit board, gain space,
miniaturise your hoods and housings, and minimise weight by
taking advantage of Captain ix.
Robust socket with THR shield contacts.
With ix Industrial®, you get outstanding stability on
the printed circuit board.
HARTING ix Industrial®
Shown in actual size
A closer look at the
ix Industrial®
portfolio: Visit us at
the HARTING eShop.
Resistant to shock and vibration,
designed for 5000 mating cycles
It shakes, rattles and vibrates.
Captain ix secures your connection:
fewer outages and more secure communication.
Kat. 6A performance for 1/10 Gbit/s
PoE/PoE+ capability.
Captain ix offers you a future-proof Ethernet
connection with top performance.
1/10
GBit/s
Two snap-in metal hooks ensure that the socket receptacle
and the plug connector are safely connected.
It clicks in! You know the connection is secure when you hear the
click when plugging in. Unplugged accidentally? Impossible!
Continuous 360° shielding and robust cable
attachment.
Captain ix protects your connection from electromagnetic radiation: less susceptibility to interference
results in better connections.
360° schielding
HARTING ix Industrial®
HARTING ix Industrial®
Compact. Robust. Powerful.
e
s ec u r
A
:
n
s!
s s io
M y m i tion a lway
c
co n n e
Plan for tomorrow today: with the more compact, robust and powerful
HARTING ix Industrial® interface.
The new HARTING ix Industrial® connector is a clear commitment to
miniaturisation. Standardised according to IEC 61076-3-124, this connector
sets a new benchmark for modularisation and digitisation: one form factor,
two mating faces – with type A for Ethernet and type B for signals and
serial BUS systems. The ix Industrial® provides you with a solution today
that ensures your investment into the future.
HARTING ix Industrial®
Product overview
Images
Advantages
Type A (data)
A
A
PCB sockets
A
Type B (signal)
B
T HR shield contacts are
used to secure the robust
socket permanently onto
the PCB.
Type A (data)
Type B (signal)
ix Industrial® type A, angled vertical,
solder termination, roll of 400 pieces
09 45 281 2560
ix Industrial® type A, angled vertical,
solder termination, 1 piece
09 45 281 2560 333
ix Industrial® type A, angled horizontal,
solder termination, roll of 550 pieces
09 45 281 2561
ix Industrial® type A, angled horizontal,
solder termination, 1 piece
Available in: Q2/2019
T heir compatibility with the
reflow soldering process
means: a) They can be
integrated into the existing
infrastructure, b) Less time
is needed for on-board
processing.
ix Industrial® type A, vertical,
solder termination, 1 piece
09 45 281 2562 333
ix Industrial® type B, angled vertical, solder
termination, roll of 400 pieces
09 45 281 9000
It is not possible to mistakenly plug in the wrong
connector, because of the
A / B coding of the mating
face.
ix Industrial® type B, angled vertical, solder
termination, 1 piece
09 45 281 9000 333
ix Industrial® type B, angled horizontal,
solder termination, roll of 550 pieces
09 45 281 9001
ix Industrial® type B, angled horizontal,
solder termination, 1 piece
Available in: Q2/2019
B
09 45 281 2561 333
09 45 281 2562
B
A
Product number
ix Industrial® type A, vertical,
solder termination, roll of 450 pieces
B
Connectors
Description
uitable for various conS
ductor cross-sections.
IDC insulation displacement terminal connection
(can be assembled in the
field) for easy installations.
09 45 281 9001 333
ix Industrial® type B, vertical, solder termination, roll of 450 pieces
09 45 281 9002
ix Industrial® type B, vertical, solder termination, 1 piece
09 45 281 9002 333
ix Industrial® type A, AWG 28 – 22, Cat. 6A ,
solder termination, 100 pieces
09 45 181 2560 XL
ix Industrial® type A, AWG 28 – 26, Cat. 6A ,
IDC, 100 pieces
09 45 181 2561 XL
ix Industrial® type A, AWG 24, Cat. 6A ,
IDC, 100 pieces
09 45 181 2562 XL
ix Industrial® type B, AWG 28 – 22, solder
termination, 100 pieces
09 45 181 9000 XL
ix Industrial® type B, AWG 28 – 26, IDC,
100 pieces
09 45 181 9001 XL
ix Industrial® type B, AWG 24, IDC,
100 pieces
09 45 181 9002 XL
HARTING ix Industrial®
Product overview
Images
Type A (data)
Pre-assembled
system cables
save time and
money.
Type B (signal)
00 % tested
1
and functional
system cables
help avoid sources of error.
Adapter
Tool
Description
Product number
ix Industrial® type A copper cable (round), PVC,
pre-assembled on both sides, number of wire cores: 8,
wire layout: 4x 2x AWG 28/7, Cat. 6A
The ix Industrial®
interface can
easily be integrated by combining it with other
mating faces.
Combinations
of mating faces
are available
on request,
including ix-M12,
ix-D-Sub, etc.
Type A (data)
System cable ix-ix
System cable ix-RJ45
xxx
002 003 004 005 007 010 015 020 025 030 050 075 100
Length:
0.2
0.3
0.4
0.5
0.7
1.0
1.5
2.0
2.5
ix Industrial® type B copper cable (round), PVC,
pre-assembled on both sides, number of wire cores: 10,
wire layout: 10x AWG 26
xxx
003 005 010 015 020 030 050 075 100
Length:
0.3
0.5
1.0
1.5
2.0
3.0
5.0
xxx
3.0
5.0
7.5 10.0
33 48 111 1A20
xxx
7.5 10.0
ix Industrial® type B copper cable (round), PUR,
pre-assembled on both sides, number of wire cores: 10,
wire layout: 10x AWG 26
33 48 111 1A21
xxx
003 005 010 015 020 030 050 075 100
Length: m 0.2
0.3
0.4
0.5
0.7
3.0
5.0
7.5 10.0
ix Industrial® type A copper cable (round), PVC,
pre-assembled on both sides, number of wire cores: 8,
wire layout: 4x 2x AWG 28/7, Cat. 6A
XXX
09 48 261 2749
xxx
002 003 004 005 007 010 015 020 025 030 050 075 100
Length: m 0.2
A
09 48 262 6749
xxx
0.3
0.4
0.5
0.7
1.0
1.5
2.0
2.5
3.0
5.0
7.5 10.0
Adapter PCB: preLink® PCB to
ix Industrial®
20 82 008 0001
ix Industrial® assembly tool
09 45 800 0181

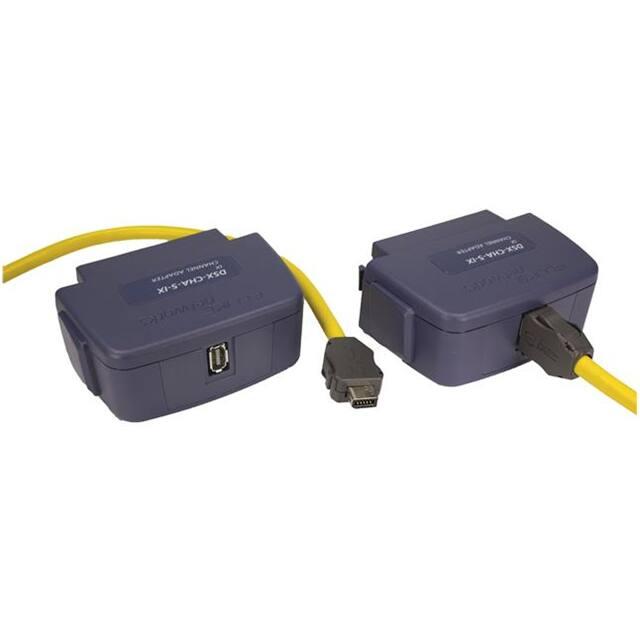

ix Industrial® FLUKE channel
adapter
Available in: Q2/2019
09 45 800 0183
reLink® technology paired with the
p
robustness of the ix Industrials® for connecting cables easily.
ual-function assembly tool for the IDC
D
press-fit process and crimping the cable
holder.
atchet mechanism to optimally apply
R
force.
Compatible with the DSX CableAnalyzer™
series.
Testing
Accessories
Advantages
T ests ix Industrial® cable assemblies
quickly and conveniently.
Complies with the strictest requirements.
