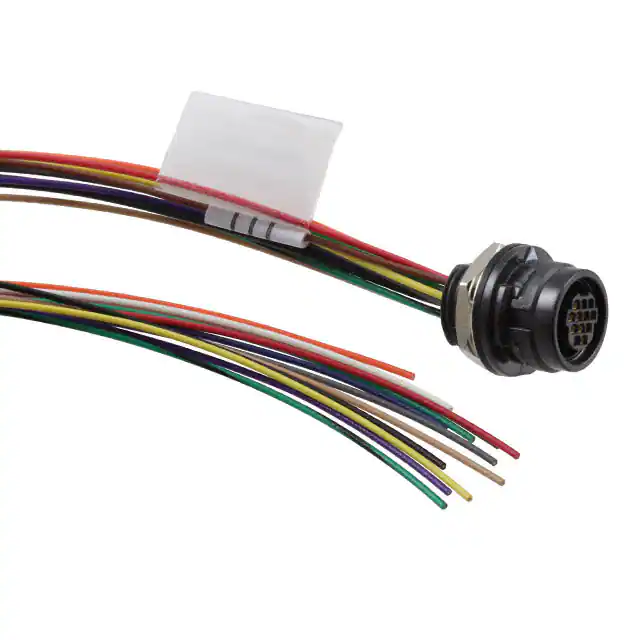

MCR-8-02-L-00.25-S-BC

IP67 SEALED 8 SERIES CABLE ASSEMBLY MCP/MCR SERIES MCP MCP Mates with: MCR(K), MCP(K) MCP Kit: MCPK - - 8 LEAD STYLE - –02 = 12 positions, 28 AWG MCR Mates with: MCP(K) MCR Kit: MCRK - PLATING OPTION –L LENGTH - END 1 OPTION –01.00 = 10 µ" (0.25 µm) Gold on contact area - –T = 1 meter –T = Terminal –02.00 = Terminal –S = 2 meters –S = Socket (Not available with End 2 -T) Standard lengths END 2 OPTION = Socket –BC = Blunt Cut SPECIFICATIONS Insulator Material: PPS Terminal Material: Phosphor Bronze (MCP) Contact Material: Phosphor Bronze (MCR) Operating Temp Range: -20 °C to +80 °C Gasket Material: Silicone (MCP) Neoprene Rubber (MCR) Spring Material: Stainless Steel (MCP) Coupling Ring Spacer: PBT (MCP) Cable Clamp: POM (MCP) Lock Washer: Phosphor Bronze, Ni plated (MCR) Hex Nut: Brass, Ni plated (MCR) (15.50) .610 DIA (37.30) 1.47 (39.50) 1.56 –T END OPTION MCR - - 8 LEAD STYLE - –02 PANEL OPENING –S END OPTION PLATING OPTION –L = 12 positions, 28 AWG = 10 µ" (0.25 µm) Gold on contact area (5.45) .215 (9.25) .364 (15.50) .610 DIA Overall Length (XX.XX) ±2 % - LENGTH - –00.25 –S = 0.25 meter = Socket –00.50 = 0.50 meter Notes: Samtec’s MCR, MCP Seires is dual soruced by Hirose Electric Co. LTD PIN COLOR 1 2 3 4 5 6 7 8 9 10 11 12 BROWN RED ORANGE YELLOW GREEN DARK BLUE VIOLET GRAY WHITE BLACK GREEN/BLACK TAN –BC = Blunt Cut (Color wire only, see chart) Overall Length (XX.XX) ±2 % (8.00) .315 (15.50) .610 –01 SHOWN Some lengths, styles and options are non-standard, non-returnable F-224 WEB END 2 OPTION = 2x6 SFSD (Pin 1 to Pin 1) (Black wire only) (11.05) .435 DIA (15.00) .591 DIA - –01 Standard lengths –BC CABLE COLOR CODING END 1 OPTION DUST CAPS -S (socket) = DCA-MCR-8 -T (terminal) = DCA-MCP-8 samtec.com?MCP or samtec.com?MCR Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.
