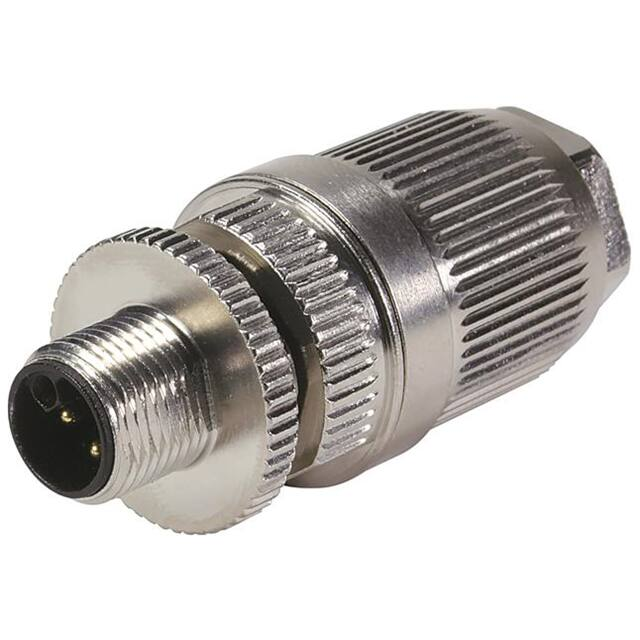

Product data sheet 21 03 296 1506 M12 Power IDC male L-coded w/o FE M12 Power IDC male L-coded w/o FE Part number 21 03 296 1506 Specification M12 Power IDC male L-coded w/o FE HARTING eCatalogue https://b2b.harting.com/21032961506 Identification Category Connector Series Circular connectors M12 Identification M12 Power Element Cable connector Specification Straight Version Termination method HARAX® connection technology Gender Male Locking type Screw locking Shielding Shielded Number of contacts 4 Coding L-coding Technical characteristics Conductor cross-section 0.75 ... 1.5 mm² Conductor cross-section AWG 18 ... AWG 16 Rated current 12 A Rated voltage 63 V Rated impulse voltage 1.5 kV Pollution degree 3 Insulation resistance > 108 Ω Contact resistance ≤10 mΩ Ambient temperature -40 ... +85 °C Page 1 / 2 | Creation date 2019-04-17 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com Product data sheet 21 03 296 1506 M12 Power IDC male L-coded w/o FE Technical characteristics Tightening torque 0.6 Nm Wrench size A/F 17 Knurled screw / knurled nut Mating cycles ≥100 Degree of protection acc. to IEC 60529 IP65 / IP67 when mated Cable diameter 5.8 ... 13.5 mm Overvoltage category III Isolation group I (600 ≤ CTI) Material properties Material (insert) PA Colour (insert) Black Material (contacts) Copper alloy Surface (contacts) Gold plated Material (hood/housing) Zinc die-cast Specifications and approvals Specifications IEC 61076-2-111 Commercial data Packaging size 10 Net weight 84.7 g Country of origin Romania European customs tariff number 85366990 eCl@ss 27440102 Circular connector (for field assembly) Page 2 / 2 | Creation date 2019-04-17 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
