09151172603

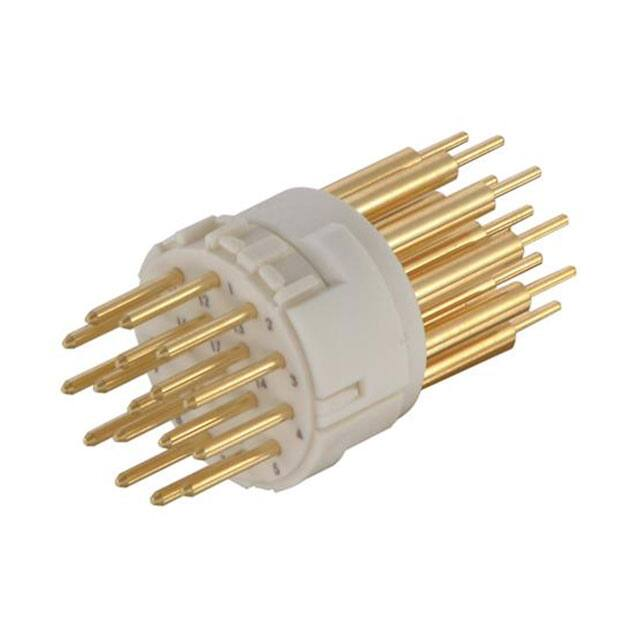

Product data sheet 09 15 117 2603 Han M23 17 Male -soldered contact Han M23 17 Male -soldered contact Part number 09 15 117 2603 Specification Han M23 17 Male -soldered contact HARTING eCatalogue https://b2b.harting.com/09151172603 Identification Category Inserts Series Han® M23 Signal Element Inserts Version Termination method PCB solder termination Gender Male Number of contacts 17 Details Suitable for bulkhead mounted housings 09 15 100 0301, 0302, 0305, 0306 and 0307 only! Technical characteristics Rated current 8 A Rated voltage 160 V Rated impulse voltage 1.5 kV Pollution degree 3 Insulation resistance > 106 Ω Limiting temperature -40 ... +125 °C Mating cycles ≥500 Material properties Material (insert) Polyamide Colour (insert) White Material (contacts) Copper alloy Page 1 / 2 | Creation date 2019-04-12 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany Phone +49 5772 47-97100 | electric@HARTING.com | www.HARTING.com Product data sheet 09 15 117 2603 Han M23 17 Male -soldered contact Material properties Surface (contacts) Gold plated Material flammability class acc. to UL 94 V-0 RoHS compliant with exemption RoHS exemptions 6c: Copper alloy containing up to 4 % lead by weight ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances No REACH ANNEX XIV substances No REACH SVHC substances Yes REACH SVHC substances Lead Specifications and approvals UL / CSA UL 1977 ECBT2.E235076 Commercial data Packaging size 5 Net weight 10.8 g Country of origin Germany European customs tariff number 85366990 eCl@ss 27440205 Contact insert for industrial connectors Page 2 / 2 | Creation date 2019-04-12 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany Phone +49 5772 47-97100 | electric@HARTING.com | www.HARTING.com
