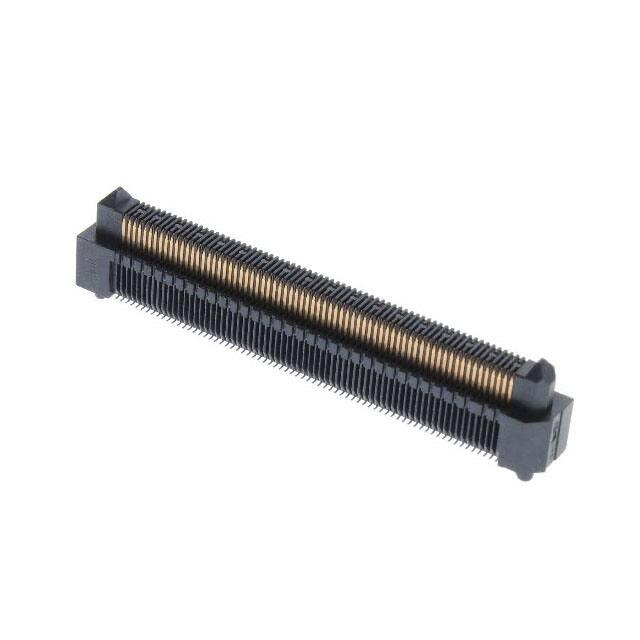

ERM5-070-02.0-L-DV-P-TR

RUGGED HIGH-SPEED STRIPS FEATURES & BENEFITS Edge Rate® rugged high-speed connector strips are designed for high-speed, high cycle applications, and enabled by Samtec's signal integrity-optimized Edge Rate® contact system. • Up to 1.5 mm contact wipe for a reliable connection • 20 to 200 positions • Choice of 0.50 mm, 0.635 mm or 0.80 mm pitch • 0.50 mm pitch system offers up to 40% PCB space savings vs. 0.80 mm pitch • 0.635 mm pitch system with extremely slim 2.5 mm body width • Rugged latching, extended guide posts and 360° shielding Signal integrity-optimized Edge Rate® contact system reduces broadside coupling • Severe Environment Testing qualified (ERM8/ERF8); aligns with MIL-DTL-55302. Visit samtec.com/set EDGE RATE® STACK HEIGHT FLEXIBILITY (shown in mm) 5 7 8 ERM6/ ERF6 10 9 12 11 ERM5/ERF5 13 14 15 16 18 17 ERM8/ERF8 Rugged 360º shielding reduces EMI KEY SPECIFICATIONS SERIES PITCH ERM5 / ERF5 0.50 mm ERM6 / ERF6 0.635 mm ERM8 / ERF8 0.80 mm F-224 (Rev 13FEB24) INSULATOR MATERIAL TERMINAL MATERIAL Phosphor Bronze or BeCu (ERM5), BeCu (ERF5) Black LCP Copper Alloy Phosphor Bronze or BeCu (ERM8), BeCu (ERF8) PLATING Au or Sn over 50 µ" (1.27 µm) Ni OPERATING TEMP RANGE -55 °C to +125 °C CURRENT RATING VOLTAGE RATING 1.5 A 190 VAC 1.4 A 155 VAC 1.4 A 225 VAC LEAD-FREE SOLDERABLE Yes samtec.com/EdgeRate Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. (0.50 mm) .0197" PITCH • RUGGED HIGH-SPEED STRIPS SERIES - POSITIONS PER ROW –010, –020, –030, –040, –050, –060, –070, –075 ERM5 = Header ERF5 = Socket - - LEAD STYLE PLATING OPTION –02.0 - DV - –L = 2 mm Body Height (ERM5 only) (Not available with –K–TR) (Not required. Only specify one option in callout. Will only mate with a corresponding option) = 10 µ" (0.25 µm) Gold on contact, Matte Tin on Tail –04.0 = 4 mm Body Height (ERM5 only) - OPTIONS –K –WT –L –07.0 = Latching (Available with –02.0 and –05.0 Lead Styles only) –P = Plastic Pick & Place Pad 1RRI3RVLWLRQV[  ERM5 Board Mates: ERF5 LEAD A B STYLE (ERM5) (ERF5)     (1.00 mm) .039" Nominal Wipe   ERF5 Board Mates: ERM5     % Right-Angle Socket ERF5-RA Board Mates: ERM5 Note: Some lengths, styles and options are non-standard, non-returnable. POSITIONS PER ROW –010, –020, –030, –040, –050 - 01 - PLATING OPTION - D (4.84) .191 N/A –04.0 (6.84) .269 N/A $ –05.0 (7.84) .309 (4.91) .193 -07.0 N/A (6.91) .272 - RA ERF5 LEAD STYLE ERM5 LEAD STYLE -05.0 -07.0 -02.0 (7.00) .276 (9.00) .354 -04.0 (9.00) .354 (11.00) .433 -05.0 (10.00) .394 (12.00) .472 *Processing conditions will affect mated height. View complete specifications at: samtec.com?ERM5 or samtec.com?ERF5 - –02.0   MATED HEIGHT* 1RRI3RVLWLRQV[  ERF5 –FR = Full Reel Tape & Reel (must order maximum quantity per reel; contact Samtec for quantity breaks) = (6.00 mm) .236" DIA Polyimide Film Pick & Place Pad (ERF5 only) = Weld Tab = 7 mm Body Height (ERF5 only & Available up to 50 positions only) –TR = Tape & Reel = (3.50 mm) .138" DIA Polyimide Film Pick & Place Pad (ERM5 only) –FL –05.0 "X"R (Required in callout) = Friction Lock (max. –030 positions) = 5 mm Body Height - PICK & PLACE PAD - "X"R –L –TR = 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail = Tape & Reel –FR = Full Reel Tape & Reel (must order maximum quantity per reel; contact Samtec for quantity breaks) No. of Positions x (0.50) .0197 + (10.30) .406 (6.83) .269 (4.75) .187 View complete specifications at: samtec.com?ERF5-RA samtec.com/EdgeRate F-224 (Rev 13FEB24) Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.
