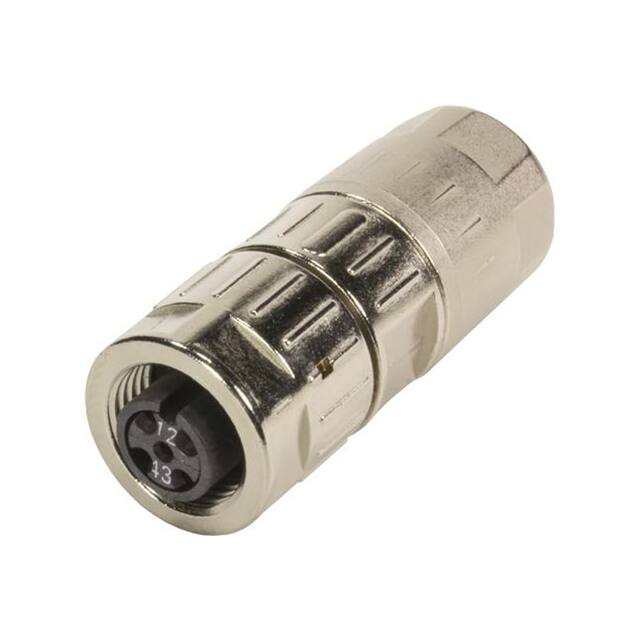

Product data sheet 21 03 382 2400 M12-SD-CC-IDC-4P-DCOD-F-STR-SHLD M12-SD-CC-IDC-4P-DCOD-F-STR-SHLD Part number 21 03 382 2400 Specification M12-SD-CC-IDC-4P-DCOD-F-STRSHLD HARTING eCatalogue https://b2b.harting.com/21033822400 Identification Category Connector Series Circular connectors M12 Identification M12 Slim Design Element Cable connector Specification Straight Version Termination method HARAX® connection technology Gender Female Locking type Screw locking Shielding Shielded Number of contacts 4 Coding D-coding Technical characteristics Conductor cross-section 0.34 mm² Conductor cross-section AWG 22 Wire outer diameter ≤1.6 mm Rated current 4 A Rated voltage 50 V Rated impulse voltage 1.5 kV Pollution degree 3 Insulation resistance ≥108 Ω Contact resistance ≤10 mΩ Ambient temperature -40 ... +85 °C -5 ... +50 °C During connection Tightening torque 0.6 Nm Wrench size A/F 15 Knurled screw / knurled nut Page 1 / 2 | Creation date 2018-08-06 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com Product data sheet 21 03 382 2400 M12-SD-CC-IDC-4P-DCOD-F-STR-SHLD Technical characteristics Mating cycles ≥500 Degree of protection acc. to IEC 60529 IP65 / IP67 when mated Cable diameter 5.7 ... 8.8 mm Overvoltage category III Isolation group I (600 ≤ CTI) Material properties Material (insert) Polyamide Material (contacts) Copper alloy Surface (contacts) Gold plated Material (hood/housing) Zinc die-cast RoHS compliant ELV status compliant China RoHS e REACH Annex XVII substances No REACH ANNEX XIV substances No REACH SVHC substances No Commercial data Packaging size 1 Net weight 53.4 g Country of origin Romania Customs tariff number 85389099 Page 2 / 2 | Creation date 2018-08-06 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
