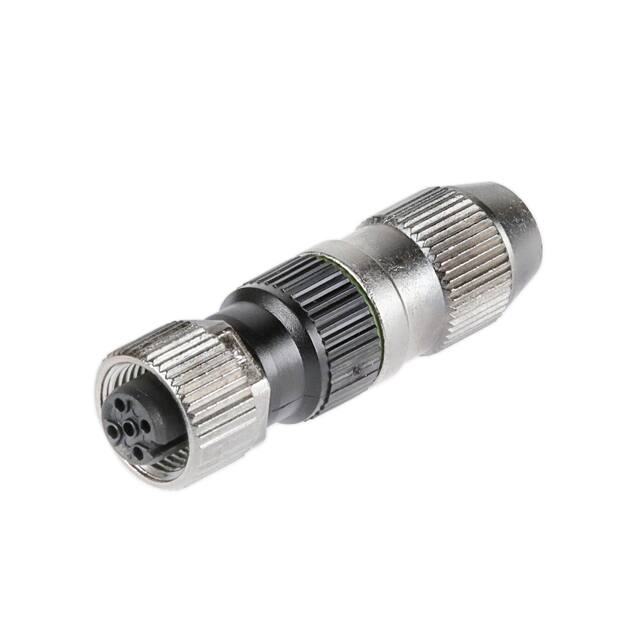

Product data sheet 21 03 112 2405 Circular Connector with Harax M 1 2/ 4-p Circular Connector with Harax M 1 2/ 4-p Part number 21 03 112 2405 Specification Circular Connector with Harax M 1 2/ 4-p HARTING eCatalogue https://b2b.harting.com/21031122405 Identification Category Connector Series Circular connectors M12 Element Cable connector Specification Straight Version Termination method HARAX® connection technology Gender Female Locking type Screw locking Shielding Unshielded Number of contacts 4 Coding A-coding Technical characteristics Conductor cross-section 0.25 ... 0.5 mm² Conductor cross-section AWG 24 ... AWG 20 Wire outer diameter ≤1.6 mm Rated current 4 A Rated voltage 32 V Rated impulse voltage 1.5 kV Pollution degree 3 Insulation resistance > 108 Ω Contact resistance ≤10 mΩ Ambient temperature -40 ... +85 °C Page 1 / 2 | Creation date 2019-04-17 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com Product data sheet 21 03 112 2405 Circular Connector with Harax M 1 2/ 4-p Technical characteristics Tightening torque 0.6 Nm Wrench size A/F 13 Knurled screw / knurled nut Mating cycles ≥100 Degree of protection acc. to IEC 60529 IP65 when mated IP67 when mated Cable diameter 4 ... 5.1 mm Overvoltage category III Isolation group I (600 ≤ CTI) Material properties Material (insert) Polyamide Material (contacts) Brass Surface (contacts) Gold plated Material (hood/housing) Polyamide Zinc die-cast RoHS compliant ELV status compliant China RoHS e REACH Annex XVII substances No REACH ANNEX XIV substances No REACH SVHC substances No Specifications and approvals Specifications IEC 61076-2-101 UL / CSA UL 1977 ECBT2.E102079 CSA-C22.2 No. 182.3 ECBT8.E102079 Commercial data Packaging size 1 Net weight 24 g Country of origin Germany European customs tariff number 85366990 eCl@ss 27440102 Circular connector (for field assembly) Page 2 / 2 | Creation date 2019-04-17 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
