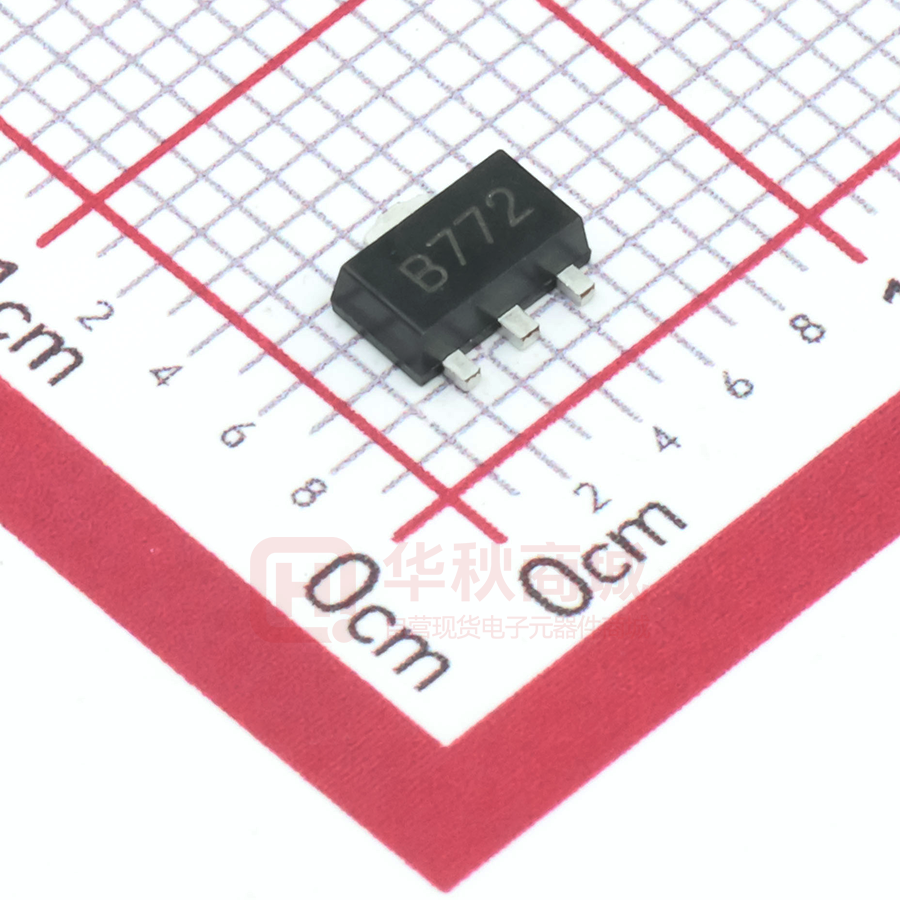

B772
SOT-89 Transistor(PNP)
1. BASE
SOT-89
2. COLLETOR
1
2
3. EMITTER
3
4.6
4.4
1.8
1.4
1.6
1.4
2.6 4.25
2.4 3.75
Features
B
0.8
MIN
Low speed switching
0.44
0.37
Parameter
Value
Units
VCBO
Collector-Base Voltage
-40
V
VCEO
Collector-Emitter Voltage
-30
V
VEBO
Emitter-Base Voltage
-5
V
IC
Collector Current -Continuous
-3
A
PC
Collector Power Dissipation
0.5
W
Tj
Junction Temperature
150
℃
Tstg
Storage Temperature
-55-150
℃
B
0.53
0.48 0.40
2x)
0.35
1.5
3.0
Dimensions in inches and (millimeters)
MAXIMUM RATINGS (TA=25℃ unless otherwise noted)
Symbol
0.13
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter
Symbol
Test
conditions
MIN
TYP
MAX
UNIT
Collector-base breakdown voltage
V(BR)CBO
IC=-100μA ,IE=0
-40
V
Collector-emitter breakdown voltage
V(BR)CEO
IC= -10mA , IB=0
-30
V
Emitter-base breakdown voltage
V(BR)EBO
IE= -100μA,IC=0
-5
V
Collector cut-off current
ICBO
VCB= -40V, IE=0
-1
μA
Collector cut-off current
ICEO
VCE=-30V, IB=0
-10
μA
Emitter cut-off current
IEBO
VEB=-6V, IC=0
-1
μA
DC current gain
hFE
VCE= -2V, IC= -1A
Collector-emitter saturation voltage
VCE(sat)
IC=-2A, IB= -0.2A
-0.5
V
Base-emitter saturation voltage
VBE(sat)
IC=-2A, IB= -0.2A
-1.5
V
Transition frequency
60
VCE= -5V, IC=-0.1A
fT
400
80
f =10MHz
MHz
CLASSIFICATION OF hFE
Rank
R
O
Y
GR
Range
60-120
100-200
160-320
200-400
Revision:20170701-P1
ht t p : //
www.lgesem i .c o m
mail:lge@lgesemi.com
B772
SOT-89 Transistor(PNP)
Typical
Revision:20170701-P1
characteristics
ht t p : //
www.lgesem i .c o m
mail:lge@lgesemi.com
