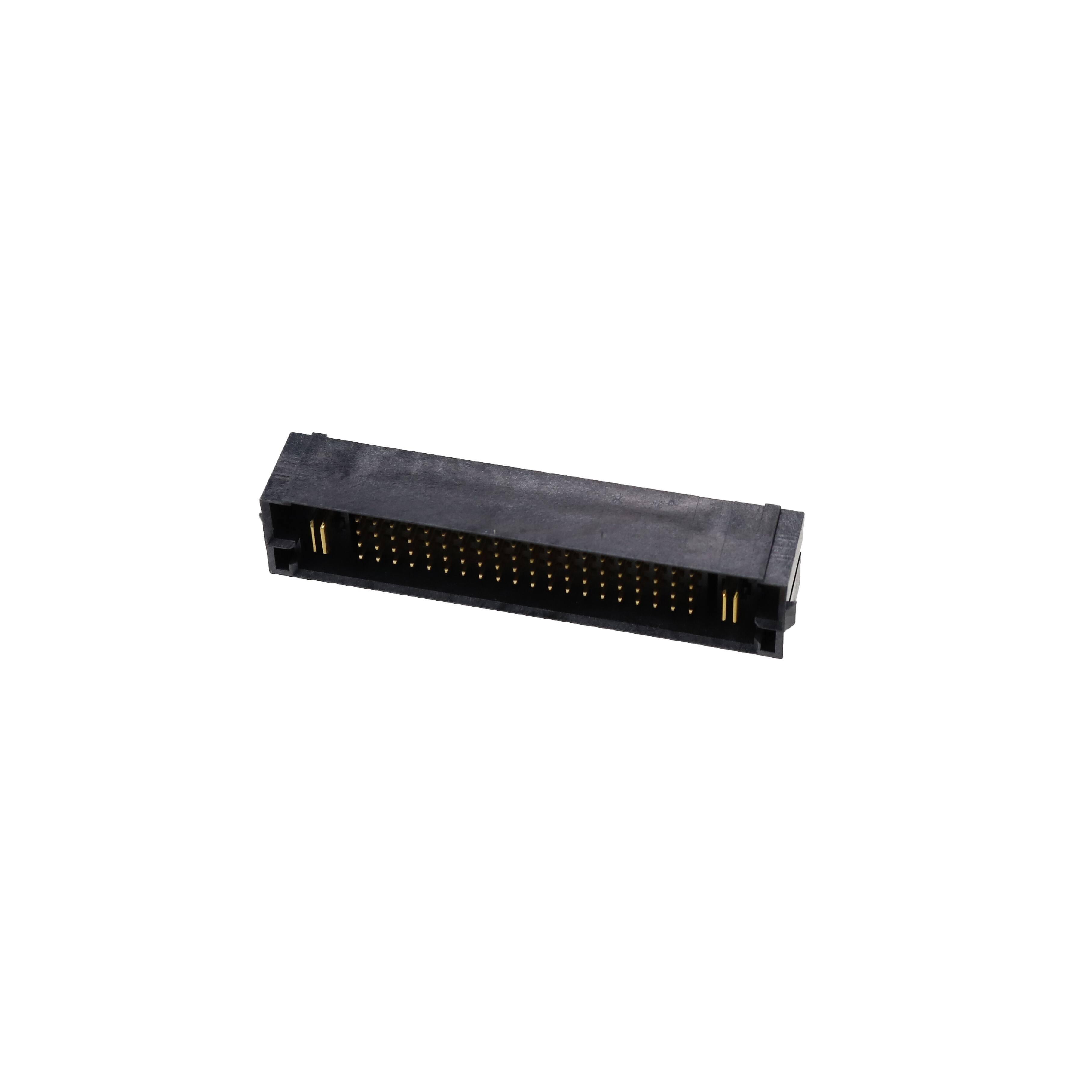

MPTC-01-80-01-6.30-01-L-V-LC

HIGH POWER SYSTEMS 20-60 A p er bla de FEATURES & BENEFITS • Current Rating: 23 A - 58.7 A per power blade • 3.81 mm, 5.00 mm and 6.35 mm pitch • Dual blade contact system • Power only or power/signal combinations available • Right-angle and vertical orientations • Rugged screw down and locking clip options • Discrete wire cable assemblies with 10-16 AWG wire (see pages 246-248) • “Hinged” for unique mating in any orientation from 0° to 90° and space confined applications CREEPAGE & CLEARANCE Hermaphroditic options samtec.com?MPPT and samtec.com?UPPT Hinging options available samtec.com?FMPT and samtec.com?FMPS PITCH CREEPAGE CLEARANCE UPT/UPS/UPPT 5.50 mm 1.51 mm MPT/MPS/MPTC/MPSC 2.95 mm 2.71 mm PET/PES/PETC/PESC 3.66 mm 3.31 mm Selectively loading contacts achieves customer specific creepage and clearance requirements. KEY SPECIFICATIONS SERIES SERIES INSULATOR CONTACT MATERIAL MATERIAL PLATING OPERATING TEMP RANGE CURRENT RATING VOLTAGE RATING LEAD-FREE SOLDERABLE UPT/UPS (3.81 mm) .150" Black LCP BeCu Sn or Au over -55 ºC to +105 ºC (Sn) 50 µ" (1.27 µm) Ni -55 ºC to +125 ºC (Au) 23 A (1 pin powered) 438 VAC Yes UPPT (3.81 mm) .150" Black LCP Copper Alloy Sn or Au over -55 ºC to +105 ºC (Sn) 50 µ" (1.27 µm) Ni -55 ºC to +125 ºC (Au) 21.4 A (1 pin powered) 425 VAC Yes MPT/MPS (5.00 mm) .1969" Black LCP Copper Alloy Sn or Au over -55 ºC to +105 ºC (Sn) 50 µ" (1.27 µm) Ni -55 ºC to +125 ºC (Au) 28.8 A (1 pin powered) 575 VAC Yes (5.00 mm) .197" (pwr) MPTC/MPSC (2.00 mm) .079" (sig) Black LCP Signal: Phosphor Sn or Au over -55 ºC to +105 ºC (Sn) Bronze 50 µ" (1.27 µm) Ni -55 ºC to +125 ºC (Au) Terminal: Copper Alloy 28.8 A (pwr - 1 pin powered) 5A (sig - 4 pins powered) 250 VAC Yes PET/PES (6.35 mm) .250" Black LCP Copper Alloy Sn or Au over -55 ºC to +105 ºC (Sn) 50 µ" (1.27 µm) Ni -55 ºC to +125 ºC (Au) 58.7 A (1 pin powered) 450 VAC Yes PETC/PESC (6.35 mm) .250" (pwr) (2.54 mm) .100" (sig) Black LCP Copper Alloy Sn or Au over -55 ºC to +105 ºC (Sn) 50 µ" (1.27 µm) Ni -55 ºC to +125 ºC (Au) 31.4 A (pwr - 1 pin powered) 5.7 A (sig - 4 pins powered) 650 VAC (pwr) 450 VAC (sig) Yes F-224 samtec.com/PowerStrip Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. (5.00 mm) .197"(PWR) / (2.00 mm) .079"(SIG) • 30 A SIGNAL/POWER COMBO SYSTEMS - SERIES POWER PINS MPTC Per end MPSC –02 Terminal - –01 Socket SIGNAL PINS - POWER PINS –16 Per end –40 –02 - –01 –24 –80 MPTC LEAD STYLE –6.30 = (6.30 mm) 0.248" (MPTC only) –7.70 = (7.70 mm) 0.303" (MPSC only) - - TAIL LENGTH –01 –L = Use with (1.60 mm) .062" Thick PCB –03 = Use with (2.36 mm) .093" Thick PCB = Locking Clip (Manual placement required) –T = Matte tin on contact and tail (power), Gold on contact, Matte tin on tail (Signal)   TAIL LENGTH B –01 (2.72) .107 –03 (3.51) .138   % MPSC $ Board Mates: MPTC OTHER OPTION –LC = 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail (Power & Signal) $ Board Mates: MPSC Cable Mates: MPCC -V- PLATING OPTION   POWER PINS/ENDS A 16 24 40 80 SIGNAL SIGNAL SIGNAL SIGNAL PINS PINS PINS PINS –01 (27.44) 1.081 (31.45) 1.238 (39.44) 1.553 (59.44) 2.340 –02 (37.44) 1.474 (41.45) 1.632 (49.44) 1.946 (69.44) 2.734 TAIL LENGTH % View complete specifications at: samtec.com?MPTC & samtec.com?MPSC SERIES - POWER PINS MPTC Per end MPSC –02 Terminal Socket –01 - SIGNAL PINS –24 –80 - POWER PINS TAIL LENGTH - –01 Per end = Use with (1.60 mm) .062" Thick PCB –01 –02 –03 = Use with (2.36 mm) .093" Thick PCB $ MPTC-RA Board Mates: MPSC Cable Mates: MPCC - 01 -   PLATING OPTION - RA - –L –01 (2.72) .107 –03 (3.51) .138 % $ MPSC-RA Board Mates: MPTC   TAIL LENGTH B –01 (2.20) .087 –03 (3.00) .118   % View complete specifications at: samtec.com?MPTC & samtec.com?MPSC OTHER OPTION –SD –LC –T   (2.72) .107 (3.52) .139 = Screw Down = Locking Clip (Manual placement required) = Matte Tin on contact and tail (power), Gold on contact, Matte tin on tail (Signal) B –01 –03 –SD or –LC is a required callout = 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail (Power & Signal) TAIL LENGTH B POWER PINS/ENDS A 24 SIGNAL PINS 80 SIGNAL PINS –01 (35.25) 1.388 (63.25) 2.490 –02 (45.25) 1.781 POWER PINS/ ENDS (73.25) 2.884 A 24 SIGNAL PINS 80 SIGNAL PINS –01 (36.52) 1.438 (64.52) 2.540 –02 (46.52) 1.831 (74.52) 2.934 Note: Some lengths, styles and options are non-standard, non-returnable samtec.com/PowerStrip Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. F-224
