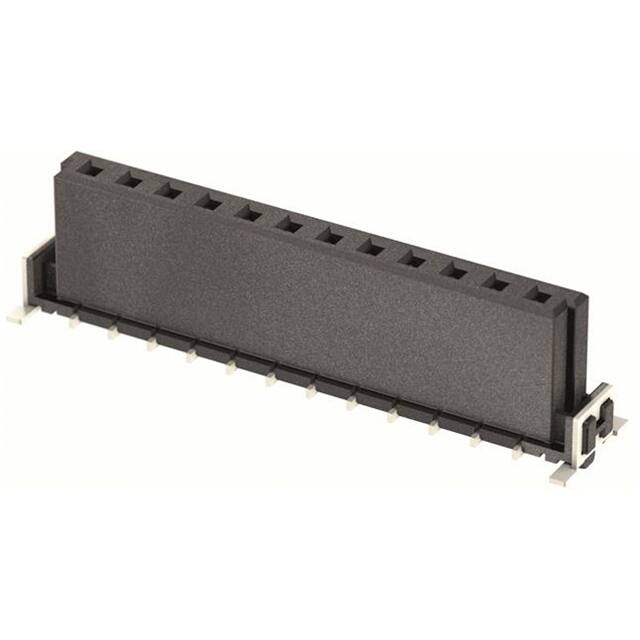

Product data sheet 15 62 012 2601 000 har-flex str. P F 9.05 12P SMT PL1 280pc har-flex str. P F 9.05 12P SMT PL1 280pc Part number 15 62 012 2601 000 Specification har-flex str. P F 9.05 12P SMT PL1 280pc HARTING eCatalogue https://b2b.harting.com/15620122601000 Image is for illustration purposes only. Please refer to product description. Identification Category Connectors Series har-flex® Identification Power Element Female connector Description of the contact Straight Version Termination method Reflow soldering termination (SMT) Connection type Motherboard to daughtercard Mezzanine Number of contacts 12 Performance level 1 Details According to IEC 61984, it is an unencapsulated connector. Protection against electric shock must be ensured by the type of installation by the user. Pack contents 280 pieces on reel Technical characteristics Contact spacing (mating side) 2.54 mm Stacking height 9.05 mm Rated voltage 180 V Rated voltage acc. to IEC 60664-1 Rated impulse voltage 1.5 kV Pollution degree 2 Clearance distance ≥1.74 mm Page 1 / 3 | Creation date 2020-10-20 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com Product data sheet 15 62 012 2601 000 har-flex str. P F 9.05 12P SMT PL1 280pc Technical characteristics Creepage distance ≥1.74 mm PCB ≥1.89 mm Connector Insulation resistance >1010 Ω Contact resistance ≤25 mΩ Limiting temperature -55 ... +125 °C Mating cycles ≥500 Test voltage Ur.m.s. 1.39 kV Isolation group IIIa (175 ≤ CTI < 400) Moisture Sensitivity Level (MSL) 1 acc. to ECA/IPC/JEDEC J-STD-020D Process Sensitivity Level (PSL) R0 acc. to ECA/IPC/JEDEC J-STD-020D Coplanarity of contacts 0.1 mm Material properties Material (insert) Liquid crystal polymer (LCP) Colour (insert) Black Material (contacts) Copper alloy Surface (contacts) Au over Pd/Ni Mating side Tin plated Termination side Material flammability class acc. to UL 94 V-0 Commercial data Packaging size 1 Country of origin China European customs tariff number 85366990 eCl@ss 27460201 PCB connector (board connector) Page 2 / 3 | Creation date 2020-10-20 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com Product data sheet 15 62 012 2601 000 har-flex str. P F 9.05 12P SMT PL1 280pc Current carrying capacity Operating current (A) The current carrying capacity of the connectors is limited by the thermal load capability of the contact element material including the connections and the insulating parts. The derating curve is therefore valid for currents which flow constantly (nonintermittent) through each contact element of the connector evenly, without exceeding the allowed maximum temperature. Measuring and testing techniques acc. to IEC 60512-5-2 Ambient temperature (°C) Derating curve 80% Page 3 / 3 | Creation date 2020-10-20 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
