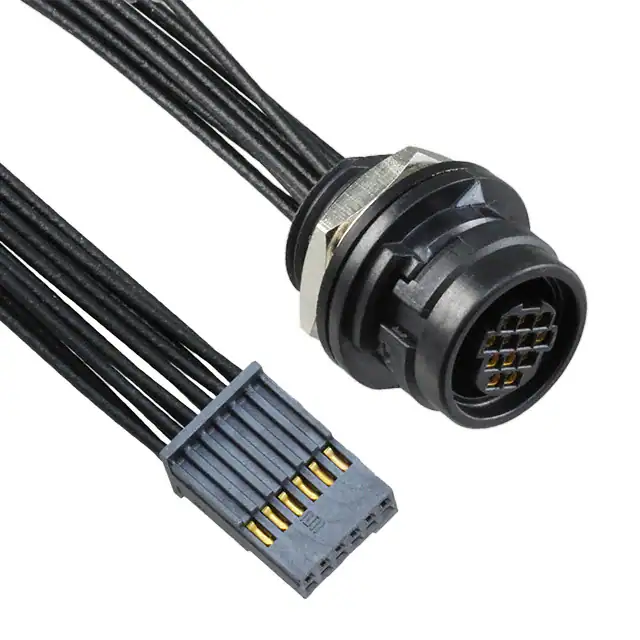

MCR-8-02-L-00.25-S-01

F-217 MCR–8–02–L–00.50–S–BC TM MCR SERIES IP67 SEALED 8 SERIES PANEL ASSEMBLY FEATURES • IP67 dust and water protected when submerged 1 m deep for 30 minutes • Lightweight plastic shell • Push-pull latching system • 11.05 mm (.435") DIA panel opening • Polarizing keys protect from misalignment • Visual alignment indicators • Cable-to-cable or cable-to-panel solutions Mates with: MCP(K) Push-pull latching system PANEL OPENING 28 AWG wire (5.45) .215 (9.25) .364 (11.05) .435 DIA Miniature sealed assembly Meets IP67 requirements for dust & water SPECIFICATIONS For complete specifications see www.samtec.com?MCR Insulator Material: PPS Contact Material: Phosphor Bronze Operating Temp Range: -20 °C to +80 °C Gasket Material: Neoprene Rubber Lock Washer: Phosphor Bronze, Ni plated Hex Nut: Brass, Ni plated RoHS Compliant: Yes MCR 8 LEAD STYLE PLATING –L = 10 µ" (0.25 µm) Gold on contact area –02 = 12 positions, 28 AWG LENGTH END 1 OPTION END 2 OPTION –S –BC –00.25 = 0.25 meter = Blunt Cut (Color wire only, see chart) = Socket –00.50 = 0.50 meter Standard lengths –01 COMPONENTS • For body, see www.samtec.com?MCRK • For contacts, see www.samtec.com?CC393 = 2x6 SFSD (Pin1 to Pin1) (Black wire only) Overall Length (XX.XX) ±2 % APPLICATION DUST CAPS • DCA-MCR-8 Visit sealedio.samtec.com for a complete list of sealed systems (15.00) .591 DIA –BC SHOWN –BC CABLE COLOR CODING PIN COLOR (15.50) .610 Overall Length (XX.XX) ±2 % ALSO AVAILABLE (MOQ Required) • Other lengths Contact Samtec. Note: Samtec’s MCR Series is dual sourced by Hirose Electric Co., LTD. (15.00) .591 DIA –01 SHOWN (8.00) .315 (15.50) .610 WWW.SAMTEC.COM Due to technical progress, all designs, specifications and components are subject to change without notice. 1 2 3 4 5 6 7 8 9 10 11 12 BROWN RED ORANGE YELLOW GREEN DARK BLUE VIOLET GRAY WHITE BLACK GREEN/BLACK TAN
