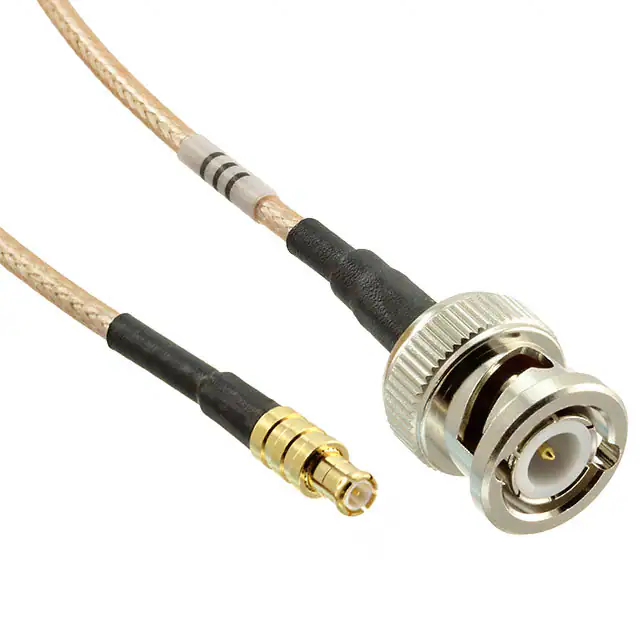

RF316-04SP3-02SP1-0500

RF-18 RF316–07SP1–01BJ1–0300 RF316–01RP1–02RP1–0200 50 W RG 316 CABLE ASSEMBLIES SPECIFICATIONS For complete specifications see www.samtec.com?RF316 Mates with: MCX, MMCX, MMCXV, SMA, SMB5, BNC5, TNC High performance 26 AWG RG 316 coax cable Plugs and Jacks RF Connector: Outer Contact Material: Ni plated Brass (BNC) Au plated Brass (SMB & SMA) Au plated BeCu (MCX & MMCX) Center Contact Material: Au plated Brass (BNC-P, MCX-P, MMCX-P & SMA-P) Au plated BeCu (SMB-P & SMA-J) Au plated Phos. Bronze (BNC-J) Insulator Material: PTFE Operating Temperature: -50 °C to +165 °C Impedance: 50 W Frequency Range: 0~6 GHz (Cable & connector dependent) RoHS Compliant: Yes Double shielded RG 316 cable also available (RS316 Series) Solutionator ® DESIGN IN A MINUTE • Create a full system: cable assembly and board level mates, 50 Ω and 75 Ω solutions • 24-hour samples on standard products • Visit: rf.samtec.com Straight or Right-angle RG 316 Cable: Impedance: 50 W Capacitance: 96.432 pF/meter Max Attenuation (cable only): 1.25 dB @ 1 GHz for 1 meter Conductor Size: 26 AWG, (0.51 mm) .020" dia. Conductor Material: Silver Plated Copper Insulator Material: PTFE Shield Material: Silver Plated Copper Clad Steel Jacket Material: FEP Jacket Diameter: (2.54 mm) .100" Jacket Color: Amber Bend Radius: 12.7 mm RoHS Compliant: Yes OTHER SOLUTIONS • Double shielded RG 316 cable available, see RS316 Series • Cable connector kits (see cable components catalog pages) END 1 CONNECTOR CABLE TYPE END 2 CONNECTOR Specify END OPTIONS from chart RF316 = RG 316 Cable, Single Braid Shield –01SP1–02RP1 SHOWN XXXX = OAL (millimeters) END OPTIONS –01SP1 = SMA Straight Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) END OPTIONS –02RP1 = MCX Right-angle Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –02SP1 = MCX Straight Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –03SP1 = MMCX Straight Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –03RP1 = MMCX Right-angle Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –V3SP1 = MMCXV Straight Plug, High Vibration (30 µ" (0.76 µm) Gold on Center Contact, Nickel on Shell) –V3RP1 = MMCXV Right-angle Plug, High Vibration (30 µ" (0.76 µm) Gold on Center Contact, Nickel on Shell) –V3SJ1 = MMCXV Straight Jack, High Vibration (30 µ" (0.76 µm) Gold on Center Contact, Nickel on Shell) –01RP1 = SMA Right-angle Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –07SP1 = SMB Straight Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –07RP1 = SMB Right-angle Plug (30µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –02SJ1 = MCX Straight Jack (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) Due to technical progress, all designs, specifications and components are subject to change without notice. WWW.SAMTEC.COM All parts within this catalog are built to Samtec’s specifications. Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply. RF316–02RP1–02SP1–0200 RF316–03RP1–07RP1–0200 RF316–04BJ2–07SP1–0100 RF316 SERIES Single or Double ended Standard heat shrink wraps Variety of Bulkhead Jacks ALSO AVAILABLE Heavy Gold plated (MOQ Required) • Additional stripping and tinning options • IP68 Sealed AccliMate™ end options • IP67 TNC option • Additional plating options • Additional end connector combinations • Knurled nuts with BNC option Contact Samtec. Choice of RF connector styles OVERALL LENGTH –“XXXX” = Overall Length in millimeters –0100 (100 mm) minimum (Cable lengths larger than 1000 millimeters are not supported by S.I. Test data) END OPTIONS END OPTIONS –04SP3 = BNC Straight Plug (10 µ" (0.25 µm) Gold on Center Contact, Nickel on Shell) –01PN1 = SMA 4-Hole Panel Mount Jack (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –05SP3 = TNC Straight Plug (10 µ" (0.25 µm) Gold on Center Contact, Nickel on Shell) –04BJ2 = BNC Bulkhead Jack (30 µ" (0.76 µm) Gold on Center Contact, Nickel on Shell) –07BJ1 = SMB Bulkhead Jack (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –01BJ1 = SMA Straight Bulkhead Jack –01SB1 = SMA Straight Bulkhead Jack, Sealed –01SR1 = SMA Straight Bulkhead Jack, Sealed, Reversed Polarity –01BR1 = SMA Straight Bulkhead Jack, Reversed Polarity END OPTIONS –SING = Single Ended (End 2 Callout) XXXXXX = Stripped & Tinned (End 2 Callout) B A C STRIPPED & TINNED (Dimensions in mm) –05BJ3 = TNC Bulkhead Jack (10 µ" (0.25 µm) Gold on Center Contact, Nickel on Shell) –06BJ2 = N Type Bulkhead Jack (30 µ" (0.76 µm) Gold on Center Contact, Nickel on Shell) (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) Due to technical progress, all designs, specifications and components are subject to change without notice. WWW.SAMTEC.COM All parts within this catalog are built to Samtec’s specifications. Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply. CALLOUT –303030 –303040 –403030 –403040 –404040 A 3.0 3.0 4.0 4.0 4.0 B 3.0 3.0 3.0 3.0 4.0 C 3.0 4.0 3.0 4.0 4.0 Both center conductor and braid shield are stripped, only the center conductor is tinned.
