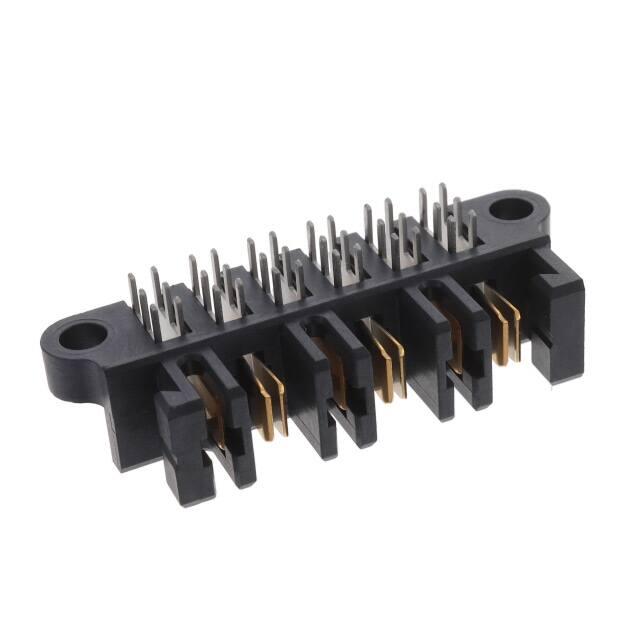

MPPT-06-01-01-L-RA-SD

F-224 WEB MPPT–10–01–01–L–RA–SD MPPT–06–01–01–L–RA–SD MPPT–02–01–01–L–RA–SD (5.00 mm) .1969" MPPT SERIES HERMAPHRODITIC 30 A POWER SYSTEM SPECIFICATIONS For complete specifications see www.samtec.com?MPPT Insulator Material: Black LCP Terminal Material: Copper Alloy Plating: Sn or Au over 50 µ" (1.27 µm) Ni Operating Temp Range: -55 °C to +105 °C with Tin; -55 °C to +125 °C with Gold Voltage Rating: 600 VAC/848 VDC Standard Creepage: (2.95 mm) .116" Standard Clearance: (2.71 mm) .106" RoHS Compliant: Yes Lead–Free Solderable: Yes Dual leaf contacts Mates with: MPPT Screw down option CREEPAGE AND CLEARANCE Selectively loading contacts achieves customer specific creepage and clearance requirements. Contact asp@samtec.com Dual blade post RECOGNITIONS For complete scope of recognitions see www.samtec.com/quality MPPT NO. OF POSITIONS 01 TAIL LENGTH PLATING RA SD OPTION FILE NO. E111594 POWER PINS 1 2 3 4 10 MPPT/MPPT CURRENT RATING (PER CONTACT) 23.3 A 20.5 A 19.4 A 18.4 A 17.2 A –01 –02, –04, –06, –08, –10 = (1.60 mm) .062" Thick PCB –L –SD =10 µ" (0.25 µm) Gold on contact, Matte Tin on tail –FR –T (MOQ Required) • Locking Clip (Manual placement required) • Solder Leads for (2.36 mm) .093" thick board APPLICATION = Tape & Reel = Full Reel Tape & Reel (must order max. quantity per reel; Contact Samtec for quantity breaks) = Matte Tin ALSO AVAILABLE –TR = Screw Down No. of positions x (5.00) .1969 + (13.50) .531 (7.00) .275 (15.75) .620 (3.60) .142 DIA (5.00) .1969 TYP (9.26) .365 Note: Some sizes, styles and options are non-standard, non-returnable. (2.84) .112 (4.00) .157 (1.88) .074 (0.41) .016 (2.54) .100 WWW.SAMTEC.COM Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.
