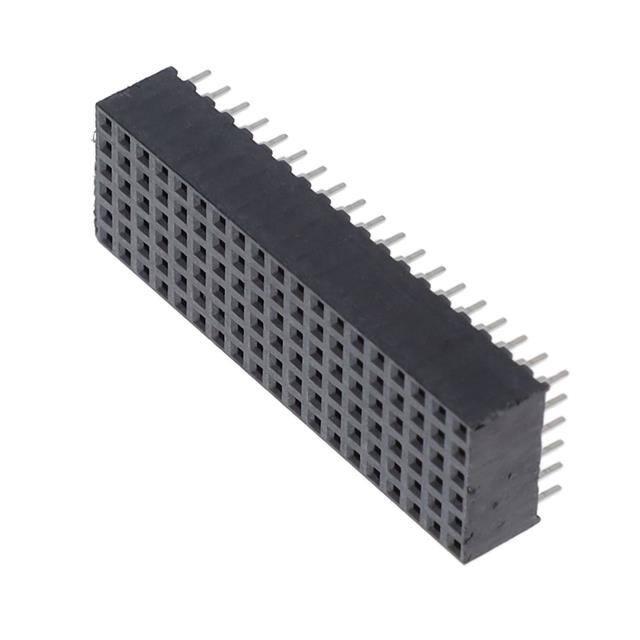

SQW-119-01-L-6

F-215 SQW–112–01–F–D–VS–LC SQW–114–01–F–6 TM SQW–111–01–L–6 (2,00 mm) .0787" SQW SERIES COST-EFFECTIVE RUGGED SOCKETS SPECIFICATIONS For complete specifications and recommended PCB layouts see www.samtec.com?SQW Insulator Material: Black Liquid Crystal Polymer Contact Material: Phosphor Bronze Plating: Sn or Au over 50µ" (1,27 µm) Ni Current Rating (SQW/TMMH): 3.8 A per pin (1 pin powered per row) Voltage Rating: 500 VAC mated with TMM or TMMH Operating Temp Range: -55°C to +125°C Contact Resistance: 10 mΩ Insertion Depth: (2,62 mm) .103" to (5,03 mm) .198" with (0,38 mm) .015" wipe Insertion Force: (Single contact only) 1.8 oz (0,50 N) avg. Withdrawal Force: (Single contact only) 1.0 oz (0,28 N) avg. Max Cycles: 100 with 10µ" (0,25 µm) Au RoHS Compliant: Yes Choice of two through six rows Mates with: TMMH, TMM, MTMM, MMT, TW, TSH, TCMD, LTMM, PTT (7,62 mm) .300" (2,00 mm) .0787" pitch Choice of Surface Mount or Through-hole SQW Processing: NO. PINS PER ROW 1 –F 02 thru 50 Lead–Free Solderable: Yes, for -D & -D-VS (Wave only for -T, -Q, -5 & -6) SMT Lead Coplanarity: (0,15 mm) .006" max = Gold flash on contact, Matte Tin on tail –L RECOGNITIONS 300 No. of positions x (2,00) .0787 + (0,30) .012 295 –T –Q = Four Row –5 BILITY Note: Some lengths, styles and options are non-standard, non-returnable. (1,27) .050 (6,35) .250 (2,00) .0787 (0,51) .020 s ion for specificat Call Samtecring information. and orde –D–VS only options: –A = Alignment Pin (5 positions minimum) Metal or plastic at Samtec discretion. (N/A with -LC) –LC = Locking Clip (5 positions minimum) (N/A with -A) (Manual placement required) 01 EL AVAILA arges. No tooling chthe lesser of der is Minimum orantity or 125 pieces. a full reel quantity above minimum. Order any qudesign, manufacture. In-house turn-around. Quick –“XXX” = Polarized Position = Triple Row (2,00) No. of .0787 rows TYP x (2,00) .0787 FILE NO: 090871_0_000 –D = Double Row Surface Mount 06 OPTION = Double Row –D–VS = 10µ" (0,25 µm) Gold on contact, Matte Tin on tail For complete scope of recognitions see www.samtec.com/quality TAPE & RE ROW OPTION PLATING OPTION 01 (5,72) .225 x (5,13) .202 –P OPTION (0,38) (0,25) .015 (2,29) .010 TYP –D, –T, –Q, .090 –5, –6 (1,27) .050 (0,89) .035 (1,09) .043 DIA –A OPTION (4,74) .187 –D–VS = Five Row –6 = Six Row (0,25) .010 x (1,42) .056 –LC OPTION WWW.SAMTEC.COM Due to technical progress, all designs, specifications and components are subject to change without notice. –K = (4,25 mm) .167" DIA Polyimide Film Pick & Place Pad (4 positions minimum) –P = Pick & Place Pad (4 positions minimum) –TR = Tape & Reel Packaging (4 thru 28 positions only)
