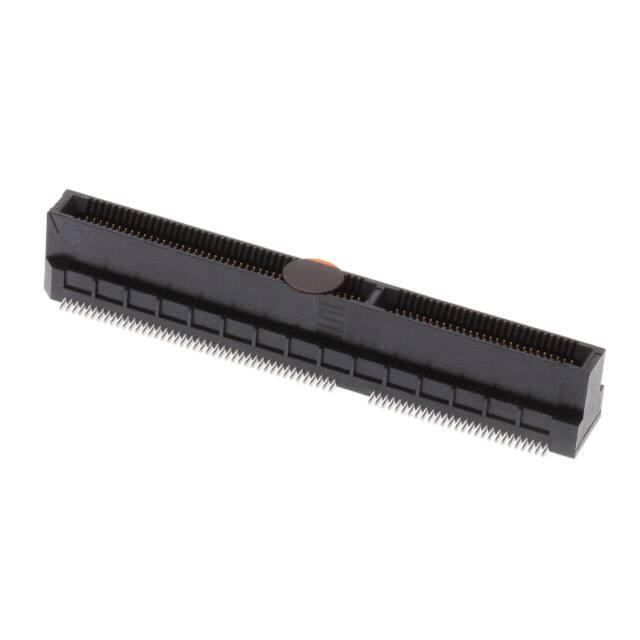

MEC6-170-02-L-DV-A-K-TR

MICRO EDGE CARD SYSTEMS 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm PITCH FEATURES & BENEFITS • Up to 56 Gbps PAM4 • PCI Express® 4.0 (MEC5 Series) • Solutions for (1.60 mm) .062" and (2.36 mm) .093" thick cards • Choice of pitch: 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm Staggered press-fit tails (MEC8-VP) • Vertical, right-angle and edge mount orientations • Available in surface mount and through-hole Justification beam ensures card and body are flush (MEC5) KEY SPECIFICATIONS SERIES PITCH TOTAL POSITIONS INSULATOR MATERIAL CONTACT MATERIAL OPERATING TEMP RANGE CURRENT RATING VOLTAGE RATING LEAD-FREE SOLDERABLE MEC5 0.50 mm 60-200 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 1.5 A (2 pins) 125 VAC Yes MEC6 0.635 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 2.4 A (2 pins) 185 VAC Yes MEC8 0.80 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 2.3 A (2 pins) 180 VAC Yes F-224 MEC1 1.00 mm 20-140 Black LCP Phosphor Bronze -55 ℃ to +125 ℃ 2.2 A (2 pins) 250 VAC Yes MECF 1.27 mm 10-100 Black/Natural LCP BeCu -55 ℃ to +125 ℃ 3.5 A (2 pins) 280 VAC Yes MEC2 2.00 mm 10-100 Black/Natural LCP BeCu -55 ℃ to +125 ℃ 3.5 A (2 pins) 235 VAC Yes samtec.com/EdgeCard Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. 14 G b p s (0.635 mm) .025" PITCH • VERTICAL AND RIGHT-ANGLE EDGE CARD SOCKET MEC6 - 1 - 02 - POSITIONS PER ROW 10, 20, 30, 40, 50, 60, 70 - DV - PLATING OPTION A - –L - OPTION -K = 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail “X”R Leave blank for Tray Packaging = (5.50 mm) 2.17" DIA Polyimide Pick & Place Pad –TR = Tape & Reel –FR MEC6-DV POSITIONS PER ROW Card Mates: (1.60 mm) .062" thick card A B 50 (21.06) (36.49) .829 1.437 60 (24.87) (42.84) .979 1.687 70 (28.68) (49.19) 1.129 1.937 = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) 1RRI3RVLWLRQV[ 1RRI3RVLWLRQV[    10, 20, 30 & 40 POSITIONS 1RRI3RVLWLRQV[ % $          1RRI3RVLWLRQV [   1RRI3RVLWLRQV [ 50, 60 & 70 POSITIONS   View complete specifications at: samtec.com?MEC6-DV MEC6 - 1 POSITIONS PER ROW 10, 20, 30, 40, 50 MEC6-RA - 02 - PLATING OPTION - D - –L = 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail - TAIL –RA1 = Right-angle –TR = Tape & Reel –FR = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) 1RRI3RVLWLRQV[ Card Mates: (1.60 mm) .062" thick card OPTIONS    1RRI3RVLWLRQV[     50 POSITIONS Note: Some sizes, styles and options are non-standard, non-returnable. 10, 20, 30 & 40 POSITIONS   View complete specifications at: samtec.com?MEC6-RA samtec.com/EdgeCard Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. F-224
