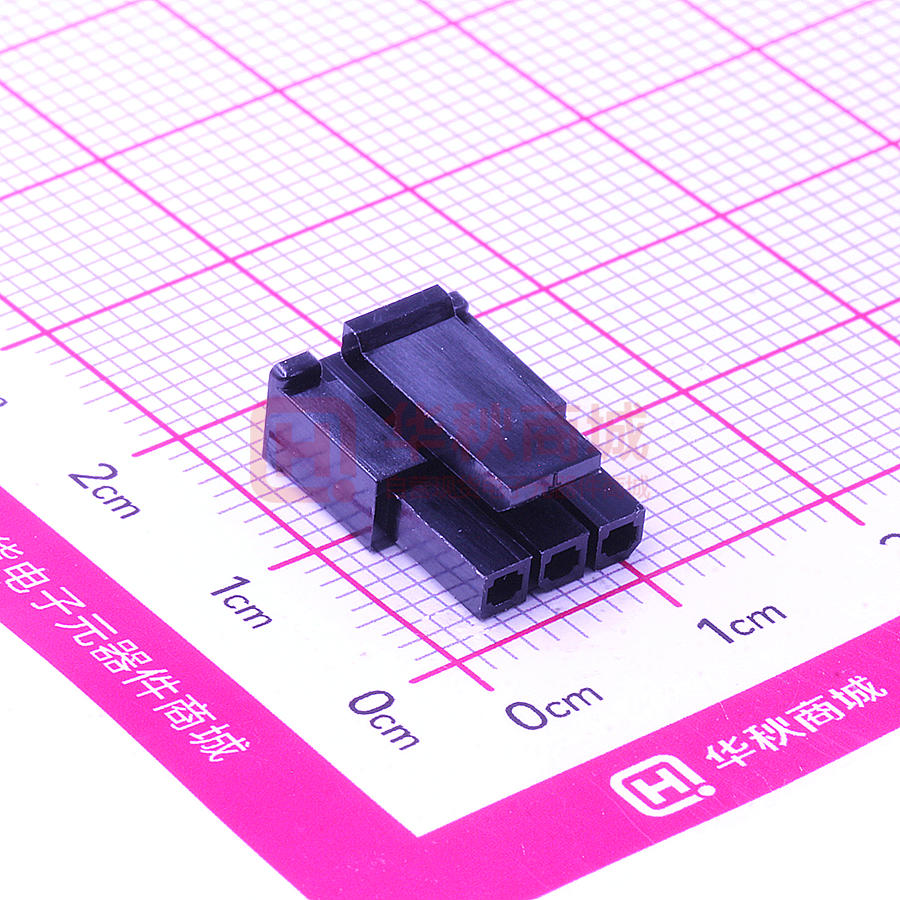

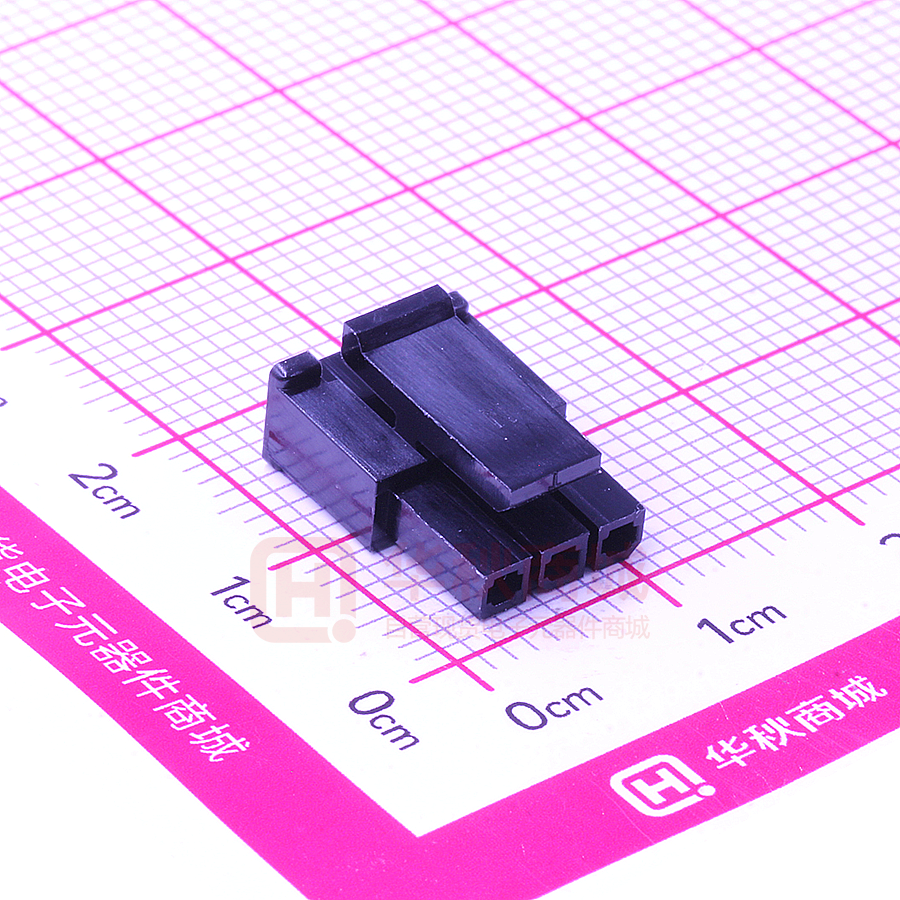

X3025HM-03-N2

3.00±0.10 01 Circuit 1 Specifications : A±0.25 01 02 Voltage rating: 250V AC / DC Current rating: 5A AC / DC Withstanding voltage: 1000V AC/minute Temperature range: -40°C~+105°C Insulation resistance:≥1000MΩ Contact resistance: ≤10mΩ After environmental testing ：≤20mΩ Circuit 1 3.00±0.10 5.00 02 3.80 07 4.80 03 3.80±0.25 07 6.50 03 14.10 04 X3025 H M-XX X-N2 XX 1 1 05 7.60±0.25 14.00±0.30 04 2 6.85 05 B±0.30 06 5.30±0.25 08 3 5.30 08 4 8.20 06 5 2P 6 7 Poles 2PIN 3PIN 5PIN 6PIN 8PIN 9PIN 03 04 05 06 07 11PIN 12PIN X3025HM-XX-N2 4PIN 7PIN 10PIN PART N0 Nylon 66 94V-2 Material 2 3 4 5 6 7 Series No. Category：H-HSG Welding Board Angle： M-Male HGS Row No.-Pin No.: XX-02P~12P Plug the Pin & special No. Material：N2-PA66 94V-2 Color：Blank-Natural Color Dimensions (mm) A 6.00 9.00 12.00 15.00 18.00 B 9.85 12.85 15.85 18.85 21.85 Poles 08 09 10 11 12 A 21.00 24.00 27.00 30.00 33.00 B 24.85 27.85 30.85 33.85 36.85 X3025W X3025TF Suitable XKB Terminal Dimensions (mm) Mates With XK B Wafer X3025HM-XX-N2 3.00 mm Crimp Style Connectors ＸＫＢ　ＩＮＤＵＳＴＲＩＡＬ　ＰＲＥＣＩＳＩＯＮ　ＣＯ．，ＬＩＭＩＴＥＤ
