Motorcomm
YT8522C/YT8522H/YT8522E/
YT8522A
Datasheet

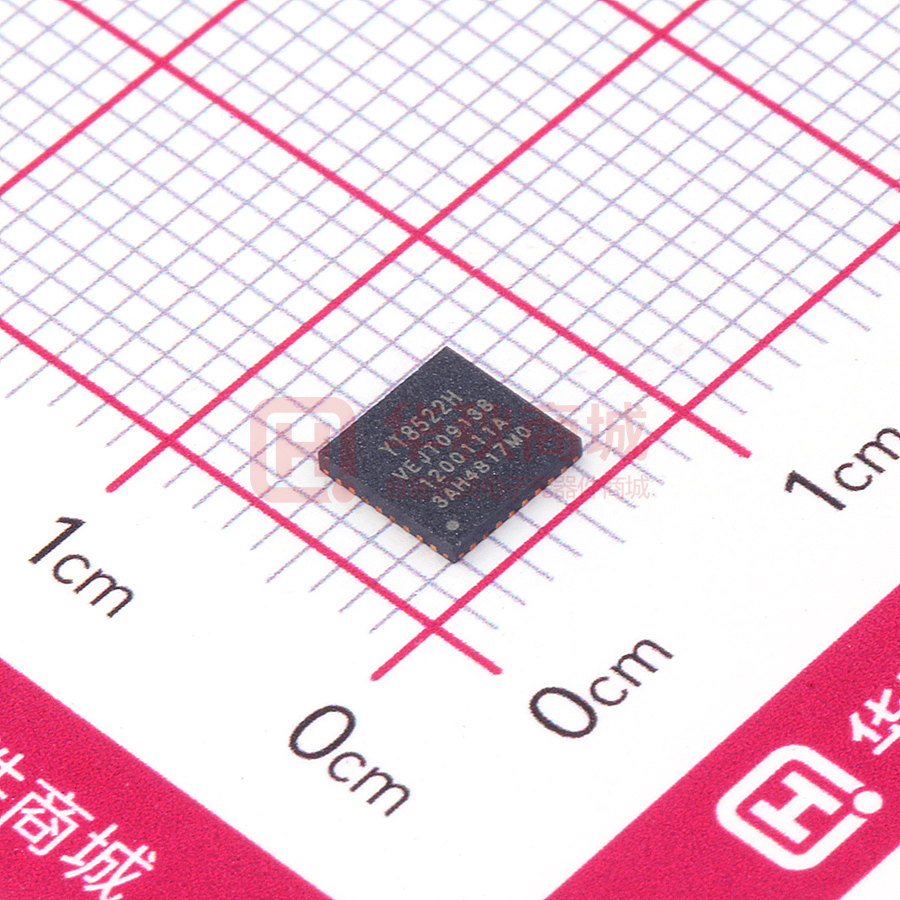

10/100 FAST ETHERNET TRANSCEIVER
VERSION DRAFT 0.4
DATE
2023-05-15
裕太微电子 | Motorcomm
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Copyright Statement
This document is copyright of Motorcomm Electronic Technology Co., Ltd. ("Motorcomm"). All rights
reserved. No company or individual may copy, disseminate, disclose or otherwise distribute any part of
this document to any third party without the written consent of Motorcomm. If any company or individual
so does, Motorcomm reserves the right to hold it or him liable therefor.
Disclaimer
This document only provides periodic information, and its contents will/may be updated from time to time
according to actual situation of Motorcomm’s products without further notice. Motorcomm will not take
any responsibility for any direct or indirect losses caused due to improper use of this document.
1
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Revision History
Revision
Release Date
Summary
Draft 0.1
2022/12/04
draft version
Draft 0.2
2023/03/11
Modify strappin setting and some description errors
Draft 0.3
2023/05/05
Add register overview
Draft 0.4
2023/05/15
Add block diagram and modify pin map
2
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Content
1. General Description .............................................................................................................................................. 1
1.1. Features .......................................................................................................................................................1
1.2. Target Applications .................................................................................................................................... 2
1.3. Block Diagram ............................................................................................................................................ 2
2. Pin Assignment ...................................................................................................................................................... 3
2.1. Pin Map ........................................................................................................................................................3
2.2. Pin Descriptions ......................................................................................................................................... 3
3. Function Description .......................................................................................................................................7
3.1. Application Diagram .................................................................................................................................. 7
3.1.1. 100Base-Tx/100Base-Fx/10Base-Te application .................................................................. 7
3.2. MII Interface ................................................................................................................................................ 7
3.3. RMII Interface ............................................................................................................................................. 7
3.4. Management Interface .............................................................................................................................. 7
3.5. DAC .............................................................................................................................................................. 7
3.6. ADC .............................................................................................................................................................. 8
3.7. Adaptive Equalizer .....................................................................................................................................8
3.8. Auto-Negotiation ....................................................................................................................................... 8
3.9. Polarity Detection and Auto Correction .................................................................................................. 8
3.10. EEE ............................................................................................................................................................ 8
4. Operational Description ................................................................................................................................ 9
4.1. Reset ............................................................................................................................................................ 9
4.2. Strapping pins Setting ............................................................................................................................... 9
4.2.1. POS .................................................................................................................................................. 9
4.2.2. Phy address ...................................................................................................................................11
4.2.3. Mode config ................................................................................................................................... 11
4.2.4. Wake on lan selection ..................................................................................................................11
4.3. XMII Interface ........................................................................................................................................... 12
4.3.1. MII ................................................................................................................................................... 12
4.3.2. RMII ................................................................................................................................................ 12
4.3.3. REMII interface ............................................................................................................................. 13
4.4. Loopback Mode ........................................................................................................................................14
4.4.1. Internal loopback: ......................................................................................................................... 14
4.4.2. External loopback ......................................................................................................................... 14
4.4.3. Remote loopback ..........................................................................................................................14
4.5. Wake on Lan .............................................................................................................................................15
4.5.1. WOL ................................................................................................................................................15
5. Register Overview ......................................................................................................................................... 17
5.1. MII Management Interface Clause 22 Register Programming .........................................................17
5.2. MII Registers .............................................................................................................................................17
5.2.1. Mii register 00H: Basic control register ..................................................................................... 17
5.2.2. Mii register 01H: Basic status register ...................................................................................... 19
5.2.3. Mii register 02H: PHY identification register1 .......................................................................... 20
3
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.2.4. Mii register 03H: PHY identification register2 .......................................................................... 20
5.2.5. MII register 04H: Auto-Negotiation advertisement .................................................................20
5.2.6. MII register 05H: Auto-Negotiation link partner ability ...........................................................23
5.2.7. MII register 06H: Auto-Negotiation expansion register ......................................................... 25
5.2.8. MII register 07H: Auto-Negotiation Next Page register .........................................................25
5.2.9. MII register 08H: Auto-Negotiation link partner Received Next Page register ..................26
5.2.10. MII register 0AH: MASTER-SLAVE status register ............................................................. 26
5.2.11. MII register 0DH: MMD access control register .................................................................... 27
5.2.12. MII register 0EH: MMD access data register .........................................................................28
5.2.13. Mii register 0FH: Extended status register .............................................................................28
5.2.14. MII register 10H: PHY specific function control register ...................................................... 28
5.2.15. MII register 11H: PHY specific status register .......................................................................29
5.2.16. MII register 12H: Interrupt Mask Register .............................................................................. 30
5.2.17. MII register 13H: Interrupt Status Register ............................................................................ 31
5.2.18. MII register 14H: Speed Auto Downgrade Control Register ............................................... 32
5.2.19. MII register 15H: Rx Error Counter Register ......................................................................... 33
5.2.20. MII register 1AH:Reference Clock Register ...........................................................................33
5.2.21. MII register 1EH: Debug Register’s Address Offset Register ..........................................33
5.2.22. MII register 1FH: Debug Register’s Data Register ............................................................ 33
5.3. Extended register .....................................................................................................................................33
5.3.1. EXT 0000h PHY Broadcast addr ............................................................................................... 33
5.3.2. EXT 0001h Interpolator Filter ..................................................................................................... 34
5.3.3. EXT 0010H: Interpolator Filter Coef.0 .......................................................................................34
5.3.4. EXT 0011H: Interpolator Filter Coef.1 .......................................................................................34
5.3.5. EXT 0012H: Interpolator Filter Coef.2 .......................................................................................34
5.3.6. EXT 0013H: Interpolator Filter Coef.3 .......................................................................................34
5.3.7. EXT 0014H: Interpolator Filter Coef.4 .......................................................................................35
5.3.8. EXT 0015H: Interpolator Filter Coef.5 .......................................................................................35
5.3.9. EXT 0016H: Interpolator Filter Coef.6 .......................................................................................35
5.3.10. EXT 0017H: Interpolator Filter Coef.7 .................................................................................... 35
5.3.11. EXT 0050H: AFE PLL Config ...................................................................................................35
5.3.12. EXT 0061H: AFE Switches .......................................................................................................35
5.3.13. EXT 00A0H: PLL Lock Detect Status ..................................................................................... 36
5.3.14. EXT 200AH: 10BT Debug, LPBKs Register .......................................................................... 36
5.3.15. EXT 2012H: AFE Control Register3 ....................................................................................... 36
5.3.16. EXT 2027H: Sleep Control1 ..................................................................................................... 37
5.3.17. EXT 2056H: 10BT RX Comparator Threshold ...................................................................... 37
5.3.18. EXT 2057H: DAC Ctrl for 10BT and 100BT ...........................................................................37
5.3.19. EXT 2058H: PHY DEBUG CONFIGURE 1 .......................................................................37
5.3.20. EXT 2059H: PHY DEBUG CONFIGURE 2 .......................................................................37
5.3.21. EXT 205AH: PHY DEBUG, MSE1 ...................................................................................... 38
5.3.22. EXT 205BH: PHY DEBUG, MSE2 ...................................................................................... 38
5.3.23. EXT 2068H: PHY Debug, Integrator ....................................................................................... 39
5.3.24. EXT 4000H: extended combo control1 .................................................................................. 39
4
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.3.25. EXT 4001H: extended pad control .......................................................................................... 39
5.3.26. EXT 4003H: extended combo control2 .................................................................................. 40
5.3.27. EXT 4004H: WOL MAC Address .............................................................................................41
5.3.28. EXT 4005H: WOL MAC Address .............................................................................................41
5.3.29. EXT 4006H: WOL MAC Address .............................................................................................41
5.3.30. EXT 40A0H: pkg_selftest control .............................................................................................42
5.3.31. EXT 40A1H: pkg_selftest control .............................................................................................43
5.3.32. EXT 40A2H: pkg_selftest control .............................................................................................43
5.3.33. EXT 40A3H: pkg_selftest status ..............................................................................................43
5.3.34. EXT 40A4H: pkg_selftest status ..............................................................................................44
5.3.35. EXT 40A5H: pkg_selftest status ..............................................................................................44
5.3.36. EXT 40A6H: pkg_selftest status ..............................................................................................44
5.3.37. EXT 40A7H: pkg_selftest status ..............................................................................................44
5.3.38. EXT 40A8H: pkg_selftest status ..............................................................................................45
5.3.39. EXT 40A9H: pkg_selftest status ..............................................................................................45
5.3.40. EXT 40AaH: pkg_selftest status ..............................................................................................45
5.3.41. EXT 40AbH: pkg_selftest status ..............................................................................................45
5.3.42. EXT 40AcH: pkg_selftest status .............................................................................................. 45
5.3.43. EXT 40AdH: pkg_selftest status ..............................................................................................45
5.3.44. EXT 40AeH: pkg_selftest status ..............................................................................................46
5.3.45. EXT 40AfH: pkg_selftest status ............................................................................................... 46
5.3.46. EXT 40B0H: pkg_selftest status ..............................................................................................46
5.3.47. EXT 40B1H: pkg_selftest status ..............................................................................................46
5.3.48. EXT 40B2H: pkg_selftest status ..............................................................................................47
5.3.49. EXT 40B3H: pkg_selftest status ..............................................................................................47
5.3.50. EXT 40B4H: pkg_selftest status ..............................................................................................47
5.3.51. EXT 40B5H: pkg_selftest status ..............................................................................................47
5.3.52. EXT 40B6H: pkg_selftest status ..............................................................................................47
5.3.53. EXT 40B7H: pkg_selftest control .............................................................................................47
5.3.54. EXT 40B8H: pkg_selftest control .............................................................................................48
5.3.55. EXT 40B9H: pkg_selftest control .............................................................................................48
5.3.56. EXT 40BAH: pkg_selftest control ............................................................................................ 48
5.3.57. EXT 40C0H: LED0 control ........................................................................................................48
5.3.58. EXT 40C1H: LED0/1 control .................................................................................................... 50
5.3.59. EXT 40C2H: LED0/1 control .................................................................................................... 51
5.3.60. EXT 40C3H: LED1 control ........................................................................................................52
5.3.61. EXT 4201H: Txclk_delay .......................................................................................................... 54
5.3.62. EXT 4216H: IO Level .................................................................................................................54
6. Timing and electrical characteristics .....................................................................................................55
6.1. Crystal Requirement ................................................................................................................................55
6.2. Oscillator/External Clock Requirement ................................................................................................ 55
6.3. DC Characteristics ...................................................................................................................................55
6.4. MDC/MDIO Timing .................................................................................................................................. 56
6.5. MII Transmission Cycle Timing ............................................................................................................. 57
5
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6.6. MII Reception Cycle Timing ................................................................................................................... 58
6.7. RMII1 Transmission and Reception Cycle Timing ............................................................................. 59
6.8. RMII2 Transmission and Reception Cycle Timing ............................................................................. 60
6.9. 100Base-FX Characteristics ........................................................................................................ 61
6.9.1. 100Base-FX Differential Transmitter Characteristics ............................................................ 61
6.9.2. 100Base-FX Differential Receiver Characteristics .................................................................62
7. Power Requirements .................................................................................................................................... 63
7.1. Absolute Maximum Ratings ................................................................................................................... 63
7.2. Recommended Operating Condition .................................................................................................... 63
7.3. Power On Sequence ............................................................................................................................... 64
7.4. Power Consumption ...............................................................................................................................65
7.4.1. MII mode ........................................................................................................................................ 65
7.4.2. RMII mode ..................................................................................................................................... 65
7.5. Maximum Power Consumption ............................................................................................................ 65
8. Package information ........................................................................................................................................... 66
8.1. RoHS-Compliant Packaging ................................................................................................................. 66
8.2. Thermal resistance .................................................................................................................................. 66
9. Mechanical Information ...................................................................................................................................... 67
10. Ordering Information .........................................................................................................................................69
6
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
List of Table
Table 1 .Pin Assignment ....................................................................................................................... 4
Table 2 .Power on strapping .................................................................................................................9
Table 3 .Power on strapping-Phy address ........................................................................................ 11
Table 4 .Power on strapping-Mode config .........................................................................................11
Table 5 .Power on strapping-Wake on lan ........................................................................................ 11
Table 6 . Crystal Requirement ............................................................................................................ 55
Table 7 . Oscillator/External Clock Requirement ............................................................................... 55
Table 8 . DC Characteristics ...............................................................................................................55
Table 9 . MDC/MDIO Timing .............................................................................................................. 56
Table 10 . MII Transmission Cycle Timing ......................................................................................... 57
Table 11 . MII Reception Cycle Timing .............................................................................................. 58
Table 12 . RMII1 Transmission and Reception Cycle Timing ............................................................59
Table 13 . RMII2 Transmission and Reception Cycle Timing ............................................................60
Table 14 .100Base-FX Differential Transmitter Characteristics ........................................................61
Table 15 .100Base-FX Differential Transmitter Characteristics ........................................................62
Table 16 . Absolute Maximum Ratings ...............................................................................................63
Table 17 . Recommended Operating Condition .................................................................................63
Table 19 .MII Mode Power Consumption ........................................................................................... 65
Table 20 .RMII Mode Power Consumption ........................................................................................ 65
Table 21 .Maximum Power Consumption .......................................................................................... 65
Table 22 . RoHS-Compliant Packaging .............................................................................................66
Table 23 . Thermal resistance ............................................................................................................ 66
Table 24 . Ordering Information ..........................................................................................................69
7
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
List of Figures
Figure 1 . PIN MAP ............................................................................................................................... 3
Figure 2 . Connection diagram of MII ................................................................................................. 12
Figure 3 . Connection diagram of RMII1(with 25MHz and 50MHz clock) ..........................................13
Figure 4 . Connection diagram of RMII2 ............................................................................................ 13
Figure 5 . Connection diagram of REMII ............................................................................................ 13
Figure 6 . Internal loopback ................................................................................................................ 14
Figure 7 . External loopback ............................................................................................................... 14
Figure 8 . Remote loopback ................................................................................................................15
Figure 9 . MDC/MDIO Timing ............................................................................................................. 56
Figure 10 . MII Transmission Cycle Timing ........................................................................................ 57
Figure 11 . MII Reception Cycle Timing ............................................................................................. 58
Figure 12 . RMII1 Transmission and Reception Cycle Timing ...........................................................59
Figure 13 . RMII2 Transmission and Reception Cycle Timing ...........................................................60
Figure 14 . 100Base-FX Differential Transmitter Eye Diagram ........................................................ 61
Figure 15 . 100Base-FX Differential Receiver Eye Diagram .............................................................62
Figure 16 . Power On Sequence ........................................................................................................ 64
Figure 17 . Mechanical Information .................................................................................................... 67
8
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
1. General Description
YT8522 is a low power single-port 10/100 Mbps Ethernet PHY. It provides all physical layer
functions needed to transmit and receive data over both standard twisted pair cables transceiver or Fiber
PECL interface to an external 100Base-FX optical transceiver module. Additionally, YT8522 provides
flexibility to connect to a MAC through a standard MII and RMII interface.
YT8522 uses mixed-signal processing to perform equalization, data recovery, and error
correction to achieve robust operation over CAT5 twisted-pair cable or 100Base-FX optical transceiver
module.
YT8522 offers integrated built-in self-test and loopback capabilities for ease of use.
YT8522 offers innovative and robust approach for reducing power consumption through EEE, WoL
and other programmable energy savings modes.
1.1. Features
Supports IEEE 802.3az (Energy Efficient Ethernet)
100Base-TX IEEE 802.3u Compliant
10Base-Te IEEE 802.3 Compliant
Supports MII mode
Supports RMII mode
Supports I/O 1.5V/1.8V/2.5V/3.3V (except for Crystal and LED pins)
Full/Half duplex operation
100BASE-FX support (share with MDI pins)
Twisted pair or fiber mode output
Supports Auto-negotiation
Supports Power down mode
Supports Base Line Wander (BLW) compensation
Supports Auto MDIX
Supports Interrupt function
Supports WOL, Wake on Lan
Automatic Polarity correction
2 sets LED indicator
25MHz crystal or external OSC
50MHz external OSC input
Provide 50Mhz clock source for MAC
Single Power supply, internal LDO
Package QFN 32, 5x5mm
1
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
1.2. Target Applications
Ethernet Switch
DTV (Digital TV)
Communication and Network Riser
Routers, PON Equipment
Printer and Office Machine
MAU(Media Access Unit)
1.3. Block Diagram
2
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
2. Pin Assignment
2.1. Pin Map
Figure 1.PIN MAP
2.2. Pin Descriptions
I = Input
O = Output
I/O = Bidirectional
OD = Open-drain output
PU = Internal pull-up
PD = Internal pull-down
HZ = High Impendence during power on reset
PWR = Power related
XT = Crystal related
3
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Table 1.Pin Assignment
No.
Name
Type
Description
Bias Resistor.
1
RBIAS
I
An external 2.49 kΩ±1% resistor must be connected between the RBIAS
pin and GND
Power Output.
2
AVDDL_O
PWR/O
Be sure to connect a 1uF +0.1uF ceramic capacitor for decoupling
purposes.
3
TRXP0
IO
4
TRXN0
IO
5
TRXP1
IO
6
TRXN1
IO
7
AVDD33
PWR
Transmit/Receive Pairs for channel 0. Differential data from copper media is
transmitted and received on the single TRD± signal pair. There are 50Ω
internal terminations on each pin. Since this device incorporates voltage
driven DAC, it does not require a center-tap power supply.
Transmit/Receive Pairs for channel 1. Differential data from copper media is
transmitted and received on the single TRD± signal pair. There are 50Ω
internal terminations on each pin. Since this device incorporates voltage
driven DAC, it does not require a center-tap power supply.
3.3V Analog Power Input.
3.3V power supply for analog circuit; should be well decoupled.
Receive Data Valid.
This pin’s signal is asserted high when received data is present on the
RXD[3:0] lines. The signal is de-asserted at the end of the packet. The
signal is valid on the rising edge of the RXC.
This pin should be pulled low when operating in MII
8
RX_DV
O/PD
mode.
Power On Strapping for MII/RMII selection.
0: MII mode
1: RMII mode
An internal weakly pulled low resistor sets this to the default of MII mode. It
is possible to use an external 4.7KΩ pulled high resistor to enable RMII
mode.After power on, the pin operates as the Receive Data Valid pin.
9
RXD[0]
O/PD
Receive Data [0]
Receive Data [1]
10
RXD[1]
O/PD
An internal weakly pulled low resistor sets RXD[1] to the LED function
(default). Use an external 4.7KΩ pulled high resistor to enable the WOL
function.
11
RXD[2]/INT_N
O/OD/PD
Receive Data [2]
When in RMII mode, this pin is used for the interrupt function.
Receive Data [3]
RXD[3]/CLK_CTL pin is the Power On Strapping in RMII Mode.
12
RXD[3]/CLK_CTL
O/PD
1: REF_CLK input mode, RMII1 mode
0: REF_CLK output mode, RMII2 mode
Note: An internal weakly pulled low resistor sets RXD[3]/CLK_CTL to
REF_CLK output mode (default).
4
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Receive Clock.
13
RXC
O/PD
This pin provides a continuous clock reference for
RX_DV and RXD [0:3] signals. RXC is 25MHz in
100Mbps mode and 2.5MHz in 10Mbps mode.
Supports 3.3V/2.5V/1.8V/1.5V Digital Power Input.
14
DVDDIO
PWR
3.3V/2.5V/1.8V/1.5V power supply for digital circuit.
Note:IO level register should be connfigured
MII Mode
Transmit Clock.
This pin provides a continuous clock as a timing reference for TXD [3:0] and
TXEN signals.
15
TXC
IO/PD
TXC is 25MHz in 100Mbps mode and 2.5MHz in 10Mbps mode
RMII Mode
Synchronous 50MHz Clock Reference for Receive, Transmit, and Control
Interface.
The default direction is reference clock output mode if RXD[3]/CLK_CTL pin
floating.
16
TXD[0]
I/PD
Transmit Data [0]
17
TXD[1]
I/PD
Transmit Data [1]
18
TXD[2]
I/PD
Transmit Data [2]
19
TXD[3]
I/PD
Transmit Data [3]
MII/RMII Mode
20
TX_EN
I/PD
Transmit Enable.
The input signal indicates the presence of valid nibble data on TXD [3:0]. An
internal weakly pulled low resistor prevents the bus floating.
21
RESET_N
I,HZ
RESET. Active-low, reset pin for chip.
Management Data Clock. This pin provides a clock synchronous to MDIO,
22
MDC
I/PU
which may be asynchronous to the transmit TXC and receive RXC clocks.
The clock rate can be up to 12.5MHz.
Use an internal weakly pulled high resistor to prevent the bus floating.
Management Data Input/Output.
23
MDIO
IO/PU
This pin provides the bi-directional signal used to transfer management
information
24
25
LED0/PHYAD[0]/
PMEB
LED1/PHYAD[1]
O/OD/PD
O/PD
LED 0, Link On/Off.
PHY address 0 selection
LED 1, Link On/Off,Active blink.
PHY address 1 selection
MII mode:
Carrier Sense.
26
CRS/CRS_DV/
XTAL_SEL
This pin’s signal is asserted high if the media is not in Idle state.
O/PD
RMII mode:
Carrier Sense/Receive Data Valid. CRS_DV shall be asserted by the PHY
when the receive medium is non-idle.
This pin status is latched at power on reset to determine Reference Clock
5
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Input Selection .
1:Reference Clock from TXC
0:Reference Clock from XTAL
An internal weakly pulled low resistor sets this to select Reference Clock
from XTAL.It is possible to use an external 4.7KΩ pulled high resistor to
select Reference Clock from TXC.After power on,the pin operates as the
CRS/CRS_DV pin.
Collision Detect.
COL is asserted high when a collision is detected
27
COL/BP_I2C
O/PD
on the media.
It is possible to use an external 4.7KΩ pulled high resistor to bypass I2C
load.After power on,the pin operates as the collision detect pin.
Receive Error.
100FX/UTP Enable.
This pin status is latched at power on reset to determine the media mode to
operate in.
28
RXER/FXEN
O/PD
1:Fiber mode
0:UTP mode
An internal weakly pulled low resistor sets this to the default of UTP mode.It
is possible to use an external 4.7KΩ pulled high resistor to enable fiber
mode.After power on,the pin operates as the receive error pin.
DVDDL Power Output.
29
DVDDL_O
PWR/O
Be sure to connect a 1uF +0.1uF ceramic capacitor for decoupling
purposes.
30
AVDD33
PWR
3.3V Analog Power Input.
3.3V power supply for analog circuit; should be well decoupled.
25 MHz Crystal Input Pin.
If use external oscillator or clock from another device.
31
XTAL_IN
XT
1.
When an external 25Hhz oscillator or clock from another device drivers
XTAL_OUT. XTAL_IN must be shorted to GND
2.
When an external 25Hhz oscillator or clock from another device drivers
XTAL_IN; keep the XTAL_OUT floating.
25 MHz Crystal Output Pin.
If use external oscillator or clock from another device.
32
XTAL_OUT
XT
1.
When an external 25Hhz oscillator or clock from another device drivers
XTAL_OUT. XTAL_IN must be shorted to GND
2.
When an external 25Hhz oscillator or clock from another device drivers
XTAL_IN; keep the XTAL_OUT floating.
33
EPAD
GND
Exposed ground pad on back of the chip, tie to ground
6
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
3. Function Description
3.1. Application Diagram
3.1.1. 100Base-Tx/100Base-Fx/10Base-Te application
100Base-Tx
SWITCH/MAC
MII/RMII
100Base-Fx
YT8522
10Base-Te
RXD[3:0]
CMC and
Capacitive
Coupling
TXD[3:0]
3.2. MII Interface
The Media Independent Interface (MII) is the digital data interface between the MAC and the physical
layer that can be enabled when the device is functioning in 10BASE-Te, 100BASE-TX/FX,. The original
MII transmit signals include TX_EN, TXC, TXD[3:0], and TX_ER. The receive signals include RX_DV,
RXC, RXD[3:0], and RX_ER. The media status signals include CRS and COL. Due to pin-count
limitations, the YT8522 supports a subset of MII signals. This subset includes all MII signals except
TX_ER.
3.3. RMII Interface
Reduced media-independent interface (RMII) is a standard which was developed to reduce the number
of signals required to connect a PHY to a MAC. If this interface is active, the number of data signal pins
required to and from the MAC is reduced to half by doubling clock frequency.
3.4. Management Interface
The Status and Control registers of the device are accessible through the MDIO and MDC serial
interface. The functional and electrical properties of this management interface comply with IEEE 802.3,
Section 22 and also support MDC clock rates up to 12.5 MHz
3.5. DAC
The digital-to-analog converter (DAC) transmits MLT3, and Manchester coded
symbols. The transmit
DAC performs signal wave shaping that reduces electromagnetic interference (EMI). The transmit DAC
uses voltage driven output with internal terminations and hence does not require external components or
magnetic supply for operation.
7
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
3.6. ADC
Receive channel has its own analog-to-digital converter (ADC) that samples the incoming data on the
receive channel and feeds the output to the digital data path.
3.7. Adaptive Equalizer
The digital adaptive equalizer removes inter-symbol interference (ISI) created by the channel. The
equalizer accepts sampled data from the analog-to-digital converter (ADC) on channel and produces
equalized data. The coefficients of the equalizer are adaptive to accommodate varying conditions of
cable quality and cable length.
3.8. Auto-Negotiation
The YT8522 negotiates its operation mode using the auto negotiation mechanism according to IEEE
802.3 clause 28 over the copper media. Auto negotiation supports choosing the mode of operation
automatically by comparing its own abilities and received abilities from link partner. The advertised
abilities include:
a)
Speed: 10/100Mbps
b)
Duplex mode: full duplex and/or half duplex
c)
Pause
Auto negotiation is initialized when the following scenarios happen:
a)
Power-up/Hardware/Software reset
b)
Auto negotiation restart
c)
Transition from power-down to power up
d)
Link down
Auto negotiation is enabled for YT8522 by default, and can be disable by software control.
3.9. Polarity Detection and Auto Correction
YT8522 can detect and correct two types of cable errors: swapping of pairs within the UTP cable and
swapping of wires within a pair.
For 10BASE-Te/100BASE-TX, YT8522 can handle both cable errors at the same time.
3.10. EEE
EEE is IEEE 802.3az, an extension of the IEEE 802.3 standard. EEE defines support for the PHY to
operate in Low Power Idle (LPI) mode which, when enabled, supports QUIET times during low link
utilization allowing both link partners to disable portions of each PHY's circuitry and save power.
8
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
4. Operational Description
4.1. Reset
YT8522 have a hardware reset pin(RESET_N) which is low active. RESET_N should be active for at
least 10ms to make sure all internal logic is reset to a known state. Hardware reset should be applied
after power up.
RESET_N is also used as enable for power on strapping. After RESET_N is released , YT8522 latches
input value on POS related pins are used as configuration information which provides flexibility in
application without mdio access.
YT8522 also provides a software reset control registers which are used to reset all internal logic except
some mdio configuration registers. For detailed information about what register will be reset by software
reset, please refer to register table.
4.2. Strapping pins Setting
4.2.1. POS
Table 2.Power on strapping
No.
Name
Internal
POS
Pull/Down
Description
The PHY address is 00~11 config by
24
LED0/PHYAD[0]
phy_address[0]
Pull Down
phy_address[1:0].Wol_led_sel=1, this PAD
works as PMEB, it shall be external pull-up,
then phy_address[0] always =1.
25
LED1/PHYAD[1]
phy_address[1]
Pull Down
The PHY address is 00~11 config by
phy_address[1:0]
The power on strapping value of PAD RXD1,
10
RXD[1]
Wake
on
selection
LAN
Wol_led_sel, determines the PAD LED0
Pull Down
working as LED0 or PMEB.
1, LED0 works as PMEB (WOL interrupt)
0, LED0 works as LED0.
12
RXD[3]/
CLK_CTL
Clock control
Pull Down
9
The power-on strapping value of {RX_DV,
RXD3} determines the xMII mode:
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
{RX_DV, RXD3}=2’b00 means MII mode;
{RX_DV, RXD3}=2 ’ b01
8
RX_DV
MII/RMII
mode
selection
means ReMII
mode;
Pull Down
{RX_DV,
RXD3}=2’b10
means
RMII2
mode, TXC 50Mhz reference clock is output.
{RX_DV,
RXD3}=2’b11
means
RMII1
mode, TXC 50Mhz reference clock is input.
This pin status is latched at power on reset to
determine Reference Clock Input Selection .
1:Reference Clock from TXC
0:Reference Clock from XTAL
26
CRS/CRS_DV/
Reference
XTAL_SEL
selection
Clock
Pull Down
An internal weakly pulled low resistor sets
this to
select Reference Clock from XTAL.It
is possible to use an external 4.7KΩ pulled
high resistor to select Reference Clock from
TXC.After power on,the pin operates as the
CRS/CRS_DV pin.
It is possible to use an external 4.7K Ω
27
COL/BP_I2C
Bypass I2C load
Pull Down
pulled high resistor to bypass I2C load.After
power on,the pin operates as the collision
detect pin.
This pin status is latched at power on reset to
determine the media mode to operate in.
1:Fiber mode
0:UTP mode
28
RX_ER/FXEN
FX_EN
Pull Down
An internal weakly pulled low resistor sets
this to the default of UTP mode.It is possible
to use an external 4.7K Ω
pulled high
resistor to enable fiber mode.After power
on,the pin operates as the receive error pin.
10
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
4.2.2. Phy address
Table 3.Power on strapping-Phy address
Pin 25
Pin 24
LED1/ PHYAD[1] (PD)
LED0/ PHYAD[0] (PD)
0
0
00
0
1
01
1
0
10
1
1
11
PHY address
4.2.3. Mode config
Table 4.Power on strapping-Mode config
Pin 8
Pin 12
RX_DV (PD)
RXD3 (PD)
0
0
0
1
1
0
1
1
Mode
MII
ReMII,
Reverse MII Mode
RMII2,
TXC 50Mhz reference clock is output by default
RMII1,
TXC 50Mhz reference clock is input
4.2.4. Wake on lan selection
Table 5.Power on strapping-Wake on lan
Pin 10
RXD1 (PD)
Function
0
LED Mode
1
WOL Mode
11
Mote
Pin 24 is LED0
Pin 24 is PMEB,
Must external pull up
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
4.3. XMII Interface
YT8522 support 4 kinds of MII related interfaces: MII, RMII1, RMII2 and REMII.
4.3.1. MII
The Media Independent Interface (MII) is the digital data interface between the MAC and the
physical layer that can be enabled when the device is functioning in 10BASE-Te, 100BASE-TX, The
original MII transmit signals include TX_EN, TXC, TXD[3:0], and TX_ER. The receive signals include
RX_DV, RXC, RXD[3:0], and RX_ER. The media status signals include CRS and COL. Due to pin-count
limitations, the YT8522 supports a subset of MII signals. This subset includes all MII signals except
TX_ER. For 100M application, TXC and RXC are 25MHz; for 10M application, TXC and RXC are 2.5MHz.
TXC and RXC are output in this case.
Figure 2. Connection diagram of MII
4.3.2. RMII
Reduced media-independent interface (RMII) is a standard which was developed to reduce the
number of signals required to connect a PHY to a MAC. If this interface is active, the number of data
signal pins required to and from the MAC is reduced to half by doubling clock speed compared to MII. It
has 7 signals: REF_CLK, TX_EN, TXD[1:0], RX_DV and RXD[1:0]. YT8522 uses TXC or Cystal as
REF_CLK. For 100M application, REF_CLK is 50MHz; for 10M application, REF_CLK is still 50MHz,
data will be duplicated for 10 times in 20ns cycles. YT8522 supports two types of connection method;
1. RMII1 mode: This is fully conforming to RMII standard.For RMII1, YT8522 supports Cystal
25M/50M ,TXC 50M without Cystal.
2. RMII2 mode: TXC will be 50MHz output to MAC.
12
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Figure 3. Connection diagram of RMII1(with 25MHz and 50MHz clock)
Figure 4. Connection diagram of RMII2
4.3.3. REMII interface
Reverse media independent interface is the opposite of MII interface. The only difference is the direction
of tx clock and rx clock. For MII, tx clock and rx clock are output; for REMII, tx clock and rx clock are input.
REMII interface are used for back to back connection of two phys.
Figure 5. Connection diagram of REMII
13
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
4.4. Loopback Mode
There are three loopback modes in YT8522.
4.4.1. Internal loopback:
In Internal loopback mode, YT8522 feed transmit data to receive path in chip.
Configure bit 14 of mii register(address 0h0) to enable internal loopback mode. For 10Base-Te and
100Base-Tx, YT8522 feeds digital DAC data to ADC directly.
Figure 6. Internal loopback
4.4.2. External loopback
In external loopback mode, YT8522 feed transmit data to receive path out of chip. For 10Base-Te and
100Base-Tx, just connect TRX_P0/N0 to TRX_P1/N1.
Figure 7. External loopback
4.4.3. Remote loopback
In remote loopback mode, YT8522 feed MII receive data to transmit path in chip. Configure bit 11 of
extended register(address 0h4000) and for TRX interface, just connect to link partner normally.
14
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Figure 8. Remote loopback
4.5. Wake on Lan
4.5.1. WOL
Wake-on-LAN (WOL) is a mechanism to manage and regulate the total network power
consumption.YT8522 supports automatic detection of a specific frame and notification via dedicated
hardware interrupt pin or general PHY interrupt pin. The specific frame contains a specific data sequence
located anywhere inside the packet. The data sequence consists of 6 bytes of consecutive 1
(0xFFFFFFFFFFFF), followed by 16 repetitions of the MAC address of the computer to be waked up.
The 48-bit MAC address is written in EXT 0x4004, 0x4005, 0x4006 registers.
For example, to write a specific MAC address (0xAAAABBBBCCCC) to PHY, write EXT 0x4004 =
0xAAAA, 0x4005 = 0xBBBB, and 0x4006 = 0xCCCC. The PHY internal MAC address can be set to any
value.
NOTE:
The MAC address is not a real MAC address and is only a symbol to indicate the content of the
frame.The WOL mechanism is enabled via EXT 0x4000 bit2. POS RXD[1] can ’ t control enable or
disable the WOL mechanism but only control pad LED0 working as WOL interrupt.
15
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
4.5.2. WOL Interrupt
YT8522 support dedicated WOL interrupt pin. When the pad RXD[1] is externally PULL UP, pad LED0
will work as WOL interrupt.
If EXT 0x4003 bit7 is 0, the dedicated WOL interrupt is programmed to a level, otherwise, it’s programed
to a pulse; either is active low. When it’s programmed to a pulse, the pulse width can be programmed via
EXT 0x4003 bit9:8.
WOL interrupt is also wire-and to general PHY interrupt RXD[2]_INTN when the bit6 INT_WOL in
Interrupt enable register (MII Register 0x12) is set to 1. If the general PHY interrupt is triggered by WOL,
it can be cleared by reading MII register 0x13 bit6.
NOTE:
When general PHY interrupt is used to monitor WOL interrupt, EXT 0x4003 bit7 should be 1, otherwise,
the general PHY interrupt can’t be read cleared.
Because PHY requires to receive packets from the line side, PHY cannot be powered down. If the link
partner supports Energy Efficient Ethernet function, both ends can use EEE mode to save more power.
MII register 0x0 bit10 ISOLATE: When this bit is set to 1, the xMII output pins are HighZ. The xMII inputs
are ignored.
16
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5. Register Overview
5.1. MII Management Interface Clause 22 Register Programming
The YT8522 transceiver is designed to be fully compliant with the MII clause of the IEEE 802.3u Ethernet
specification.
The MII management interface registers are written and read serially, using the MDIO and MDC pins.
A clock of up to 12.5 MHz must drive the MDC pin of the YT8512. Data transferred to and from the MDIO
pin is synchronized with the MDC clock. The following sections describe what each MII read or write
instruction contains.
Notation
Description
RW
Read and write
SC
Self-clear
RO
Read only
LH
Latch high
LL
Latch Low
RC
Read clear
SWC
Software reset clear
5.2. MII Registers
5.2.1.
Bit
Mii register 00H: Basic control register
Symbol
Access
Default
Description
PHY Software Reset. Writing 1 to this bit causes
immediate PHY reset. Once the operation is done, this
15
Reset
RW SC
1’b0
bit is cleared automatically.
0: Normal operation
1: PHY reset
14
Loopback
RW
SWC
Internal loopback control
1’b0
1’b0: disable loopback
1’b1: enable loopback
17
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
LSB of speed_selection[1:0]. Link speed can be
selected via either the Auto-Negotiation process, or
manual
speed
selection
speed_selection[1:0].
Speed_selection[1:0] is valid when Auto-Negotiation is
disabled by clearing bit 0.12 to zero.
13
Speed
Selection(LSB)
RW
1’b0
Bit 6
Bit 13
1
1
Reserved
1
0
1000Mb/s
0
1
100Mb/s
0
0
10Mb/s
1: to enable auto-negotiation;
12
Autoneg_En
RW
1’b1
0: auto-negotiation is disabled.
=1: Power down
=0: Normal operation
When the port is switched from power down to
11
Power_down
RW
SWC
1’b0
normal operation, software reset and AutoNegotiation are performed even bit[15] RESET and
bit[9] RESTART_AUTO_NEGOTIATION are not set by
the user.
Isolate phy from MII/RMII: PHY will not respond to xMII
TXD/TX_EN,
10
Isolate
RW
SWC
1’b0
and
present
high
impedance
on
RXD/RX_DV.
1’b0: Normal mode
1’b1: Isolate mode
Auto-Negotiation automatically restarts after hardware
RW
9
Re_Autoneg
SWS
1’b0
SC
or software reset regardelss of bit[9] RESTART.
=1: Restart Auto-Negotiation Process
=0: Normal operation
The duplex mode can be selected via either the
Auto-Negotiation process or manual duplex selection.
Manual
8
Duplex_Mode
RW
1’b1
duplex
Auto-Negotiation
selection
is
disabled
AUTO_NEGOTIATION to 0.
=1: Full Duplex
=0: Half Duplex
18
is
by
allowed
when
setting
bit[12]
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Setting this bit to 1 makes the COL signal asserted
7
Collision_Test
RW
SWC
whenever the TX_EN signal is asserted.
1’b0
=1: Enable COL signal test
=0: Disable COL signal test
6
Speed_
Selection(MSB)
See bit13.
RW
1’b1
RO
5’b0
Reserved. Write as 0, ignore on read
5:0
Reserved
5.2.2.
Mii register 01H: Basic status register
Bit
Symbol
Access
Default
Description
15
100Base-T4
RO
1’b0
PHY doesn’t support 100BASE-T4
14
100Base-X_Fd
RO
1’b1
PHY supports 100BASE-X_FD
13
100Base-X_Hd
RO
1’b1
PHY supports 100BASE-X_HD
12
10Mbps_Fd
RO
1’b1
PHY supports 10Mbps_Fd
11
10Mbps_Hd
RO
1’b1
PHY supports 10Mbps_Hd
10
100Base-T2_Fd
RO
1’b0
PHY doesn’t support 100Base-T2_Fd
9
100Base-T2_Hd
RO
1’b0
PHY doesn’t support 100Base-T2_Hd
Whether support extended status register in 0Fh
8
Extended_Status
RO
1’b1
0: Not supported
1: Supported
1’b0: PHY able to transmit from MII only when the
PHY has determined that a valid link has been
7
Unidirect_Ability
RO
established
1’b0
1’b1: PHY able to transmit from MII regardless of
whether the PHY has determined that a valid link
has been established
1’b0: PHY will not accept management frames
6
Mf_Preamble_Suppression
RO
with preamble suppressed
1’b1
1’b1: PHY will accept management frames with
preamble suppressed
5
Autoneg_Complete
RO
SWC
1’b0: Auto-negotiation process not completed
1’b0
1’b1: Auto-negotiation process completed
1’b0: no remote fault condition detected
RO RC
4
Remote_Fault
SWC
1’b0
1’b1: remote fault condition detected
LH
3
Autoneg_Ability
RO
1’b0: PHY not able to perform Auto-negotiation
1’b1
1’b1: PHY able to perform Auto-negotiation
19
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Link status
RO
2
Link_Status
LL
1’b0: Link is down
1’b0
SWC
1’b1: Link is up
10BaseTe jabber detected
RO RC
1
Jabber_Detect
LH
1’b0: no jabber condition detected
1’b0
SWC
1’b1: Jabber condition detected
To indicate whether support EXTs, to access from
0
Extended_Capability
RO
address register 1Eh and data register 1Fh
1’b1
1’b0: Not supported
1’b1: Supported
5.2.3.
Mii register 02H: PHY identification register1
Bit
Symbol
Access
Default
15:0
Phy_Id
RO
16’b0
5.2.4.
Description
Bits 3 to 18 of the Organizationally Unique
Identifier
Mii register 03H: PHY identification register2
Bit
Symbol
Access
Default
Description
15:10
Phy_Id
RO
6’b0
Bits 19 to 24 of the Organizationally Unique
Identifier
9:4
Type_No
RO
6’h12
3:0
Revision_No
RO
4’h8
5.2.5.
Bit
4 bits manufacturer’s revision number
MII register 04H: Auto-Negotiation advertisement
Symbol
Access
Default
Description
This bit is updated immediately after the
writing operation; however the configuration
does not take effect until any of the following
occurs:
Software reset is asserted by writing
register 0x0 bit[15]
15
Next_Page
RW
1’b0
Restart Auto-Negotiation is triggered by
writing register 0x0 bit[9]
The port is switched from power down to
normal operation by writing register 0x0
bit[11]
Link goes down
If 1000BASE-T is advertised, the required
next pages are automatically transmitted.
20
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
This bit must be set to 0 if no additional next
page is needed.
=1: Advertise
=0: Not advertised
14
Reserved
RO
1’b0
Reserved
=1: Set Remote Fault bit
13
Remote_Fault
RW
1’b0
=0: Do not set Remote Fault bit
Extended next page enable control bit
=1: Local device supports transmission of
12
Extended_Next_Page
RW
1’b1
extended next pages
=0:
Local
device
does
not
support
transmission of extended next pages.
This bit is updated immediately after the
writing operation; however the configuration
does not take effect until any of the following
occurs:
Software reset is asserted by writing
register 0x0 bit[15]
11
Asymmetric_Pause
RW
1’b1
Restart Auto-Negotiation is triggered by
writing register 0x0 bit[9]
The port is switched from power down to
normal operation by writing register 0x0
bit[11]
Link goes down
=1: Asymmetric Pause
=0: No asymmetric Pause
This bit is updated immediately after the
writing operation; however the configuration
does not take effect until any of the following
occurs:
10
Pause
RW
1’b1
Software reset is asserted by writing
register 0x0 bit[15]
Restart Auto-Negotiation is triggered by
writing register 0x0 bit[9]
The port is switched from power down to
normal operation by writing register 0x0
bit[11]
21
Link goes down
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
=1: MAC PAUSE implemented
=0: MAC PAUSE not implemented
=1: Able to perform 100BASE-T4
9
100BASE-T4
RO
1’b0
=0: Not able to perform 100BASE-T4
Always 0
This bit is updated immediately after the
writing operation; however the configuration
does not take effect until any of the following
occurs:
Software reset is asserted by writing
register 0x0 bit[15]
8
100BASE-TX_Full_Duplex
RW
1’b1
Restart Auto-Negotiation is triggered by
writing register 0x0 bit[9]
The port is switched from power down to
normal operation by writing register 0x0
bit[11]
Link goes down
=1: Advertise
=0: Not advertised
This bit is updated immediately after the
writing operation; however the configuration
does not take effect until any of the following
occurs:
Software reset is asserted by writing
register 0x0 bit[15]
7
100BASE-TX_Half_Duplex
RW
1’b1
Restart Auto-Negotiation is triggered by
writing register 0x0 bit[9]
The port is switched from power down to
normal operation by writing register 0x0
bit[11]
Link goes down
=1: Advertise
=0: Not advertised
This bit is updated immediately after the
writing operation; however the configuration
does not take effect until any of the following
6
10BASE-Te_Full_Duplex
RW
1’b1
occurs:
Software reset is asserted by writing
register 0x0 bit[15]
22
Restart Auto-Negotiation is triggered by
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
writing register 0x0 bit[9]
The port is switched from power down to
normal operation by writing register 0x0
bit[11]
Link goes down
=1: Advertise
=0: Not advertised
This bit is updated immediately after the
writing operation; however the configuration
does not take effect until any of the following
occurs:
Software reset is asserted by writing
register 0x0 bit[15]
5
10BASE-Te_Half_Duplex
RW
1’b1
Restart Auto-Negotiation is triggered by
writing register 0x0 bit[9]
The port is switched from power down to
normal operation by writing register 0x0
bit[11]
Link goes down
=1: Advertise
=0: Not advertised
Selector Field mode.
4:0
5.2.6.
Bit
15
Selector_Field
RW
5’b00001
00001 = IEEE 802.3
MII register 05H: Auto-Negotiation link partner ability
Symbol
1000Base-X_Fd
Access
RO
SWC
Default
1’b0
Description
Received Code Word Bit 15
=1: Link partner is capable of next page
=0: Link partner is not capable of next page
Acknowledge. Received Code Word Bit 14
14
ACK
RO
SWC
=1: Link partner has received link code
1’b0
word
=0: Link partner has not received link code
word
Remote Fault. Received Code Word Bit 13
13
REMOTE_FAULT
RO
SWC
1’b0
=1: Link partner has detected remote fault
=0: Link partner has not detected remote
fault
12
RESERVED
RO
SWC
1’b0
23
Technology Ability Field. Received Code
Word Bit 12
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Technology Ability Field. Received Code
Word Bit 11
11
ASYMMETRIC_PAUSE
RO
SWC
1’b0
=1: Link partner requests asymmetric pause
=0:
Link
partner
does
not
request
asymmetric
pause
Technology Ability Field. Received Code
10
PAUSE
RO
SWC
Word Bit 10
1’b0
=1: Link partner supports pause operation
=0: Link partner does not support pause
operation
Technology Ability Field. Received Code
9
100BASE-T4
RO
SWC
Word Bit 9
1’b0
=1: Link partner supports 100BASE-T4
=0:
Link
partner
does
not
support100BASE-T4
Technology Ability Field. Received Code
Word Bit 8
8
100BASE-TX_FULL_DUPLEX
RO
SWC
1’b0
=1: Link partner supports 100BASE-TX
full-duplex
=0:
Link
partner
does
not
support
100BASE-TX full-duplex
Technology Ability Field. Received Code
Word Bit 7
7
100BASE-TX_HALF_DUPLEX
RO
SWC
=1: Link partner supports 100BASE-TX
1’b0
half-duplex
=0:
Link
partner
does
not
support
100BASE-TX
half-duplex
Technology Ability Field. Received Code
Word Bit 6
6
10BASE-Te_FULL_DUPLEX
RO
SWC
1’b0
=1: Link partner supports 10BASE-Te
full-duplex
=0:
Link
partner
does
not
support
10BASE-Te full-duplex
Technology Ability Field. Received Code
Word Bit 5
5
10BASE-Te_HALF_DUPLEX
RO
SWC
1’b0
=1: Link partner supports 10BASE-Te
half-duplex
=0:
Link
partner
does
not
support
10BASE-Te half-duplex
4:0
SELECTOR_FIELD
RO
SWC
5’h0
24
Selector Field Received Code Word Bit 4:0
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.2.7.
MII register 06H: Auto-Negotiation expansion register
Bit
Symbol
Access
Default
15:5
Reserved
RO
11’h0
Always 0
4
Parallel_Detection_fault
RO RC LH
1’b0
=1: Fault is detected
SWC
3
Link_partner_next_page able
RO LH SWC
Description
=0: No fault is detected
1’b0
=1: Link partner supports Next
page
=0:
Link
partner
does
not
support next page
2
Local_Next_Page_able
RO
1’b1
=1: Local Device supports Next
Page
=0: Local Device does not Next
Page
1
Page_received
RO RC LH
1’b0
=1: A new page is received
=0: No new page is received
0
Link_Partner_Auto_negotiation_able
RO
1’b0
=1:
Link
partner
supports
auto-negotiation
=0:
Link
partner
does
not
support auto-negotiation
5.2.8.
Bit
MII register 07H: Auto-Negotiation Next Page register
Symbol
Access
Default
Description
Transmit Code Word Bit 15
15
Next_Page
RW
1’b0
=1: The page is not the last page
=0: The page is the last page
14
Reserved
RO
1’b0
Transmit Code Word Bit 14
Transmit Code Word Bit 13
13
Message_page_mode
RW
1’b1
=1: Message Page
=0: Unformatted Page
Transmit Code Word Bit 12
12
Ack2
RW
1’b0
=1: Comply with message
=0: Cannot comply with message
Transmit Code Word Bit 11
=1: This bit in the previously exchanged
11
Toggle
RO
1’b0
Code Word is logic 0
=0:
The
Toggle
bit
in the
exchanged Code Word is logic 1
10:0
Message_Unformatte
RW
11’h1
25
Transmit Code Word Bits [10:0].
previously
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
D_Field
These bits are encoded as Message Code
Field when bit[13] is set to 1, or as
Unformatted Code Field when bit[13] is set to
0.
5.2.9.
Bit
MII register 08H: Auto-Negotiation link partner Received Next Page register
Symbol
Access
Default
Description
Received Code Word Bit 15
15
Next_Page
RO
1’b0
=1: This page is not the last page
=0: This page is the last page
14
Reserved
RO
1’b0
Received Code Word Bit 14
Received Code Word Bit 13
13
Message_page_mode
RO
1’b0
=1: Message Page
=0: Unformatted Page
Received Code Word Bit 12
12
Ack2
RO
1’b0
=1: Comply with message
=0: Cannot comply with message
Received Code Word Bit 11
=1: This bit in the previously exchanged
11
Toggle
RO
1’b0
Code Word is logic 0
=0:
The
Toggle
bit
in the
previously
exchanged Code Word is logic 1
Received Code Word Bit 10:0
10:0
Message_Unformatte
D_Field
These bits are encoded as Message Code
RO
11’b0
Field when bit[13] is set to 1, or as
Unformatted Code Field when bit[13] is set to
0.
5.2.10.
Bit
MII register 0AH: MASTER-SLAVE status register
Symbol
Access
Default
Description
This register bit will clear
on read, rising of MII 0.12
and
RO RC
15
Master_Slave_Configuration_Fault
SWC
1’b0
LH
rising
of
AN
complete.
=1:
Master/Slave
configuration
fault
detected
=0: No fault detected
14
Master_Slave_Configuration_Resolution
26
RO
1’b0
This
bit
is
not
valid
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
unless register 0x1 bit5 is
1.
=1:
Local
PHY
configuration resolved to
Master
=0:
Local
PHY
configuration resolved to
Slave
=1: Local Receiver OK
13
Local_Receiver_Status
RO
1’b0
=0: Local Receiver not
OK
Always 0.
=1: Remote Receiver OK
12
Remote_Receiver_Status
RO
1’b0
=0: Remote Receiver not
OK
Always 0.
This
bit
is
not
valid
unless register 0x1 bit5 is
1.
Link Partner_
11
RO
1000Base-T_Full_Duplex_Capability
1’b0
=1: Link Partner supports
1000BASE-T half duplex
=0: Link Partner does not
support
1000BASE-T
half duplex
This
bit
is
not
valid
unless register 0x1 bit5 is
1.
10
Link_Partner_1000Base-T_Half_Duplex_Capability
RO
1’b0
=1: Link Partner supports
1000Base-T full duplex
=0: Link Partner does not
support 1000Base-T full
duplex
9:8
Reserved
RO
2’b0
Always 0
7:0
Idle_Error_Count
RO SC
8’b0
Counter for Idle errors
5.2.11.
Bit
MII register 0DH: MMD access control register
Symbol
Access
Default
Description
00 = Address
15:14
Function
RW
01 = Data, no post increment
2’b0
10 = Data, post increment on reads and writes
11 = Data, post increment on writes only
27
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
13:5
Reserved
RO
9’b0
Always 0
MMD register device address.
4:0
DEVAD
RW
00001 = MMD1
5’b0
00011 = MMD3
00111 = MMD7
5.2.12.
Bit
MII register 0EH: MMD access data register
Symbol
Access
Default
Description
If register 0xD bits [15:14] are 00, this register is
15:0
Address_data
RW
16’b0
used
as
MMD
DEVAD
address
register.
Otherwise, this register is used as MMD DEVAD
data register as indicated by its address register.
5.2.13.
Mii register 0FH: Extended status register
Bit
Symbol
Access
Default
15
1000Base-X_Fd
RO
1’b0
PHY not able to support 1000Base-X_Fd
14
1000Base-X_Hd
RO
1’b0
PHY not able to support 1000Base-X_Hd
13
1000Base-T_Fd
RO
1’b0
PHY not able to support 1000Base-T_Fd
12
1000Base-T_Hd
RO
1’b0
PHY not able to support 1000Base-T_Hd
11:8
Reserved
RO
1’b0
Reserved
7
100Base-T1
RO
1’b1
Reserved
6
1000Base-T1
RO
1’b0
Reserved
5:0
Reserved
RO
6’b0
Reserved
5.2.14.
Description
MII register 10H: PHY specific function control register
Bit
Symbol
Access
Default
15:7
Reserved
RO
9’b0
Description
Always 0.
Changes made to these bits disrupt normal
operation, thus a software reset is mandatory
after the change. And the configuration does
not take effect until software reset.
6:5
Cross_md
RW
2’b11
00 = Manual MDI configuration
01 = Manual MDIX configuration
10 = Reserved
11 = Enable automatic crossover for all
modes
4
Int_polar_sel
RW
1’b0
28
No use.
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
This
bit
is
effective
in
10BASE-Te
half-duplex mode and 100BASE-TX mode:
3
Crs_on_tx
RW
1’b0
=1: Assert CRS on transmitting or receiving
=0: Never assert CRS on transmitting, only
assert it on receiving.
=1: SQE test enabled
=0: SQE test disabled
2
En_sqe_test
RW
1’b0
Note: SQE Test is automatically disabled in
full-duplex mode regardless the setting in this
bit.
If polarity reversal is disabled, the polarity is
1
En_pol_inv
RW
1’b1
forced to be normal in 10BASE-Te.
=1: Polarity Reversal Enabled
=0: Polarity Reversal Disabled
Jabber takes effect only in 10BASE-Te
0
Dis_jab
RW
1’b0
=1: Disable jabber function
=0: Enable jabber function
5.2.15.
Bit
MII register 11H: PHY specific status register
Symbol
Access
Default
Description
This status bit is valid only when bit11 is
1. Bit11 is set when Auto-Negotiation is
completed
15:14
Speed_mode
RO
2’b00
or
Auto-Negotiation
is
disabled.
11 = Reserved
10 = 1000 Mbps
01 = 100 Mbps
00 = 10 Mbps
This status bit is valid only when bit11 is
1. Bit11 is set when Auto-Negotiation is
13
Duplex
RO
1’b0
completed
or
Auto-Negotiation
is
disabled.
=1: Full-duplex
=0: Half-duplex
12
Page_Received_real-time
RO
1’b0
=1: Page received
=0: Page not received
This bit is set when Auto-Negotiation is
11
Speed_and_Duplex_Resolved
RO
1’b0
completed
or
disabled =1: Resolved
=0: Not resolved
10
Link_status_real-time
RO
1’b0
29
Auto-Negotiation
=1: Link up
is
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
=0: Link down
9:7
Reserved
RO
3’b111
Always 3’b111.
This status bit is valid only when bit11 is
1. Bit11 is set when Auto-Negotiation is
completed
or
Auto-Negotiation
is
disabled.
The bit value depends on register 0x10
6
MDI_Crossover_Status
RO
“ PHY
1’b0
specific
register ”
function
control
bits6~bit5 configurations.
Register 0x10 configurations take effect
after software reset.
=1: MDIX
=0: MDI
5
Wirespeed_downgrade
RO
1’b0
4:2
Reserved
RO
3’b0
1
Polarity_Real_Time
RO
1’b0
0
Jabber_Real_Time
RO
1’b0
5.2.16.
=1: Downgrade
=0: No Downgrade
Always 0.
=1: Reverted polarity
=0: Normal polarity
=1: Jabber is asserted.
=0: No jabber
MII register 12H: Interrupt Mask Register
Bit
Symbol
Access
Default
15
Auto-Negotiation_Error_int _mask
RW
1’b0
14
Speed_Changed_int_mask
RW
1’b0
13
Duplex_changed_int_mask
RW
1’b0
12
Page_Received_int_mask
RW
1’b0
11
Link_Failed_int_mask
RW
1’b0
10
Link_Succeed_int_mask
RW
1’b0
9
Reserved
RW
1’b0
Reserved
8
Reserved
RW
1’b0
Reserved
7
Reserved
RW
1’b0
Reserved
6
WOL_int_mask
RW
1’b0
30
Description
=1: Interrupt enable
=0: Interrupt disable
=1: Interrupt enable
=0: Interrupt disable
=1: Interrupt enable
=0: Interrupt disable
=1: Interrupt enable
=0: Interrupt disable
=1: Interrupt enable
=0: Interrupt disable
=1: Interrupt enable
=0: Interrupt disable
=1: Interrupt enable
=0: Interrupt disable
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5
Wirespeed_downgraded_int_mask
RW
1’b0
4:2
Reserved
RW
3’b0
1
Polarity_changed_int_mask
RW
1’b0
0
Jabber_Happened_int_mask
RW
1’b0
5.2.17.
Bit
=1: Interrupt enable
=0: Interrupt disable
No used.
=1: Interrupt enable
=0: Interrupt disable
=1: Interrupt enable
=0: Interrupt disable
MII register 13H: Interrupt Status Register
Symbol
Access
Default
Description
Error can take place when any of
the following
happens:
MASTER/SLAVE does not
resolve correctly
15
Auto-Negotiation_Error_INT
RO RC
Parallel detect fault
No common HCD
Link does not come up after
1’b0
negotiation is complete
Selector Field is not equal
flp_receive_idle=true
while
Autoneg Arbitration FSM is
in NEXT PAGE WAIT state
=1: Auto-Negotiation Error takes
place
=0: No Auto-Negotiation Error
takes place
=1: Speed changed
14
Speed_Changed_INT
RO RC
1’b0
13
Duplex_changed_INT
RO RC
1’b0
12
Page_Received_INT
RO RC
1’b0
11
Link_Failed_INT
RO RC
1’b0
10
Link_Succeed_INT
RO RC
1’b0
9
Reserved
RO
1’b0
Always 0.
8
Reserved
RO
1’b0
Always 0.
7
Reserved
RO
1’b0
Always 0.
31
=0: Speed not changed
=1: duplex changed
=0: duplex not changed
=1: Page received
=0: Page not received
=1: Link down takes place
=0: No link down takes place
=1: Link up takes place
=0: No link up takes place
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
=1: PHY received WOL magic
6
WOL_INT
RO RC
1’b0
5
Wirespeed_downgraded_INT
RO RC
1’b0
4:2
Reserved
RO
3’b0
frame.
=0: PHY didn ’ t receive WOL
magic frame.
=1: speed downgraded.
=0: Speed didn’t downgrade.
Always 0.
=1: PHY revered MDI polarity
1
Polarity_changed_INT
RO RC
1’b0
=0: PHY didn ’ t revert MDI
polarity
=1:10BaseTe
0
Jabber_Happened_INT
5.2.18.
RO RC
1’b0
TX
jabber
happened
=0: 10BaseTe TX jabber didn’t
happen
MII register 14H: Speed Auto Downgrade Control Register
Bit
Symbol
Access
Default
15:12
Reserved
RO
4’b0
Description
Always 0.
=1: To latch MII/MMD register’s read
11
En_mdio_latch
RW
1’b1
out value during MDIO read
=0: Do not latch MII/MMD register ’ s
read out value during MDIO read
10:6
Reserved
RW SC
5’b0
Reserved
When this bit is set to 1, the PHY
5
En_speed_downgrade
RW
1’b1
enables smart-speed function. Writing
this bit requires a software reset to
update.
If these bits are set to 3, the PHY
4:2
Autoneg retry limit
pre-downgrade
attempts five times (set value 3 +
RW
3’b011
additional 2) before downgrading. The
number of attempts can be changed by
these bits.
=1: the wirespeed downgrade FSM will
bypass the timer used for link stability
check;
1
Bp_autospd_timer
RW
1’b0
=0: not bypass the timer, then links that
established but hold for less than 2.5s
would still be taken as failure, autoneg
retry counter will increase by 1.
0
Reserved
RO
1’b0
32
Always 0.
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.2.19.
Bit
MII register 15H: Rx Error Counter Register
Symbol
Access
Default
Description
This counter increase by 1 at the 1st rising
of RX_ER when RX_DV is 1. The counter
will hold at maximum 16’hFFFF and not
15:0
Rx_err_counter
RO
16’b0
roll over.
If speed mode is 2 ’ b01, it counts for
fe_100 RX_ER;
Else, it’s 0.
5.2.20.
MII register 1AH:Reference Clock Register
Bit
Symbol
Access
Default
15:2
Reserved
RW
14’b0
1
Txc_xtal_sel
RW
1’b0
0
Xtal_freq_sel
RW
1’b0
5.2.21.
Bit
15:0
Reserved
=1: Use Txc as ext reference clock
=0: Use Xtal as ext reference clock
=1: Xtal = 50Mhz
=0: Xtal = 25Mhz
MII register 1EH: Debug Register’ s Address Offset Register
Symbol
Extended_Register_Address
5.2.22.
Description
_Offset
Access
Default
RW
16’b0
Description
It’s the address offset of the EXT that
will be Write or Read
MII register 1FH: Debug Register’ s Data Register
Bit
Symbol
Access
Default
Description
It’s the data to be written to the EXT
15:0
Extended_Register_Datas
RW
16’b0
indicated by the address offset in
register 0x1E, or the data read out
from that debug register.
5.3. Extended register
5.3.1.
EXT 0000h PHY Broadcast addr
Bit
Symbol
Access
default
15:7
reserved
RO
0
6
En_phyaddr0
RW
1’b1
Description
reserved
33
Enable mdio phy address 0 access
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5
En_bdcst_addr
RW
1’b1
4:0
Bdcst_addr
RW
5’b11111
5.3.2.
Enable mdio broadcast address access
EXT 0001h Interpolator Filter
Bit
Symbol
Access
default
15:10
Reserved
RO
6’b100
9
Step_sw_en
RW
1’b0
8:0
Reserved
RO
9’b1000000
5.3.3.
Description
reserved
Use manual step for interp filter
reserved
EXT 0010H: Interpolator Filter Coef.0
Bit
Symbol
Access
default
15:0
Reserved
RO
16’b0
5.3.4.
MDIO Broadcast address
Description
Reserved
EXT 0011H: Interpolator Filter Coef.1
Bit
Symbol
Access
default
15:11
Reserved
RO
8’b0
Reserved
10:8
Step_sw_1[10:8]
RO
3’b0
Interp filter coefficient 1
7:1
Step_sw_1[7:1]
RW
7’b1001_101
Interp filter coefficient 1
0
Step_sw_1[0]
RO
1’b0
Interp filter coefficient 1
5.3.5.
Description
EXT 0012H: Interpolator Filter Coef.2
Bit
Symbol
Access
default
15:11
Reserved
RO
5’b0
Reserved
10:9
Step_sw_2[10:9]
RO
2’b0
Interp filter coefficient 2
8:1
Step_sw_2[8:1]
RW
8’b1_0001_101
Interp filter coefficient 2
0
Step_sw_2[0]
RO
1’b0
Interp filter coefficient 2
5.3.6.
Description
EXT 0013H: Interpolator Filter Coef.3
Bit
Symbol
Access
default
15:11
Reserved
RO
5’b0
10:8
Step_sw_3[10:8]
RO
3’b001
Interp filter coefficient 3
7:1
Step_sw_3[7:1]
RW
7’b1000_000
Interp filter coefficient 3
0
Step_sw_3[0]
RO
1’b0
Interp filter coefficient 3
34
Description
Reserved
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.3.7.
EXT 0014H: Interpolator Filter Coef.4
Bit
Symbol
Access
default
15:11
Reserved
RO
5’b0
10:8
Step_sw_4[10:8]
RO
3’b001
Interp filter coefficient 4
7:1
Step_sw_4[7:1]
RW
7’b1100_110
Interp filter coefficient 4
0
Step_sw_4[0]
RO
1’b0
Interp filter coefficient 4
5.3.8.
Description
Reserved
EXT 0015H: Interpolator Filter Coef.5
Bit
Symbol
Access
default
15:11
Reserved
RO
5’b0
Reserved
10:8
Step_sw_5[10:8]
RO
3’b001
Interp filter coefficient 5
7:1
Step_sw_5[7:1]
RW
7’b1110_011
Interp filter coefficient 5
0
Step_sw_5[0]
RO
1’b0
Interp filter coefficient 5
5.3.9.
EXT 0016H: Interpolator Filter Coef.6
Bit
Symbol
Access
default
15:11
Reserved
RO
5’b0
10:0
Step_sw_6
RO
11’d512
5.3.10.
Description
Reserved
Interp filter coefficient 6
EXT 0017H: Interpolator Filter Coef.7
Bit
Symbol
Access
default
15:11
Reserved
RO
5’b0
10:0
Step_sw_7
RO
11’d512
5.3.11.
Description
Description
Reserved
Interp filter coefficient 7
EXT 0050H: AFE PLL Config
Bit
Symbol
Access
default
15:7
Reserved
RO
9’b0
Reserved
6
Pll_refclk_sel
RW
1’b0
Sel clk source in rmii2 mode
5
Reserved
RW
6’b111111
5.3.12.
Description
Reserved
EXT 0061H: AFE Switches
Bit
Symbol
Access
default
15:7
Reserved
RO
9’b110
35
Description
Reserved
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
enable or disable VCO_fast or VCO_slow
6
en_vco_check
RW
1’b1
5:0
reserved
RO
6’b11110
5.3.13.
check circuit
reserved
EXT 00A0H: PLL Lock Detect Status
Bit
Symbol
Access
default
15:2
Reserved
RO
13’b0
reserved
1
Pll_vco_h
RO
1’b0
Analog Pll vco fast flag
0
Pll_vco_l
RO
1’b0
Analog pll vco slow flag
5.3.14.
Bit
Description
EXT 200AH: 10BT Debug, LPBKs Register
Symbol
Access
Default
Description
=1: Control to gate the baset10 module’s clock
15
En_gate_bt10
RW
when link up at 100Mbps.
1’b1
=0: disable the clock gating.
14:11
reserved
RO
4'b1001
reserved
=1: In 10BT mode , if there’s no data or NLP to
transmit, shut off DAC; otherwise turn on the
10
En_10bt_idl
RW
1’b1
DAC;
=0: In 10BT, DAC will not be turn off.
9:0
Reserved
5.3.15.
RO
10'h208
reserved
EXT 2012H: AFE Control Register3
Bit
Symbol
Access
Default
15
Reserved
RW
1’b0
Description
reserved
when speed mode is 100Mb/s or 10Mb/s,
14
En_clkadc_aon
RW
1’b0
=1: keep channel 0 and 1 clkadc both on;
=0: open one channel ’ s clkadc based on mdi
status.
13:0
Reserved
RO
12'h2f0
reserved
36
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.3.16.
Bit
EXT 2027H: Sleep Control1
Symbol
Access
default
Description
=1: enable sleep mode: PHY will enter sleep
15
En_sleep_sw
RW
1’b1
mode and close AFE after unplug cable for a
timer;
14:0
reserved
RO
15’h200
reserved
5.3.17.
EXT 2056H: 10BT RX Comparator Threshold
Bit
Symbol
Access
default
15:14
Tenbt_vth_cfg_10M
RW
2’b00
13:0
Reserved
RO
14’b0
5.3.18.
Description
10BT RX comparator threshold. It ’ s valid
only when speed mode is 10Mbps.
Always 0.
EXT 2057H: DAC Ctrl for 10BT and 100BT
Bit
Symbol
Access
default
15
Reserved
RO
1’b0
14:12
DAC_amp_100M
RW
3’b010
11:8
DAC_amp_cfg_100M
RW
4’b0110
7
Reserved
RO
1’b0
6:4
DAC_amp_10M
RW
3’b010
3:0
DAC_amp_cfg_10M
RW
4’b0110
5.3.19.
Description
Always 0.
Always 0.
EXT 2058H: PHY DEBUG CONFIGURE1
Bit
Symbol
Access
default
15
reserved
RO
1’b0
14
En_snap_shot
RW
1’b0
13:0
reserved
RO
14'hc00
5.3.20.
EXT 2059H:PHY DEBUG CONFIGURE2
Bit
Symbol
Access
default
15
Prob_auto
RW
1’b0
Description
reserved
1 = enable to snap shot 1000BT and 100BT PMA
FSM and related intermediate status.
reserved
Description
1 = probe the PMA status immediately, not at
certain condition.
37
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
1 = monitor big slicer error after 1000BT training
done;
14
Cnt_err_auto
RW
1’b0
0 = monitor big slicer error after 1000BT training
done and during RX_DV;
1 = monitor big ADC output after 1000BT training
done;
13
Cnt_clp_auto
RW
1’b0
0 = monitor big ADC output after 1000BT training
done and during RX_DV;
12:8
Target_eee_st
RW
5’b0
7:0
Err_big_th
RW
8’d64
5.3.21.
Bit
The target PMA EEE state to be snap shot.
The amplitude threshold determining the errors
after slicer are big.
EXT 205AH:PHY DEBUG, MSE1
Symbol
Access
default
Description
Valid when EXT 2058h bit14 en_snap_shot is set.
15
Hold_snap_shot
RO
1’b0
1 = the snap shot condition is met and triggerd
Valid when EXT 2058h bit14 en_snap_shot is set,
or
14:0
Mse0
RO
EXT
2059h
bit15
prob_auto
is
set.
Corresponding to these two setting, it is the:
15’b0
MSE0 at the time snap shot condition is met, or
MSE0 at the time this EXT register is being read.
5.3.22.
Bit
EXT 205BH:PHY DEBUG, MSE2
Symbol
Access
default
Description
Valid
when
EXT
2058h
bit15
en_snap_shot_az is set.
15
Hold_snap_shot_az
RO
1’b0
1 = the EEE snap shot condition is met and
triggerd
14:0
Reserved
RO
15’b0
38
Always 0.
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.3.23.
Bit
EXT 2068H: PHY Debug, Integrator
Symbol
Access
default
Description
Channel 0’s integrator. Frquence different between
lp and dut. PPM = 0.95 * integrator; integrator is 2's
complement value
15:0
Integrator
RO
Valid when EXT 2058h bit14 en_snap_shot is set,
16’h0
or
EXT
2059h
bit15
prob_auto
is
set.
Corresponding to these two setting, it is the:
Integrator at the time snap shot condition is met, or
Integrator at the time this EXT register is being
read.
5.3.24.
EXT 4000H: extended combo control1
Bit
Symbol
Access
default
Description
15
Led0_wk_mode
RW
1’b0
0 = LED,1 = WOL
14
Led0_polarity
RW
1’b0
0 = active high 1 = active low
13
Led1_polarity
RW
1’b0
0 = active high,1 = active low
12
External_Loopback
RW
1’b0
0 = disable 1 = enable
11:7
Reserved
RW
5’b0
Reserved
6
Rmii1_clk_sel
RW
1’b0
1 = rmii tx clk use xtal 0 = txc
1 = Enable Jumbo frame, reception up to
5
Jumbo_Enable
RW
1’b0
18KB frame; 0 = disabled,
only up to
4.5KB frame supported
Drive PAD CRS_DV of RMII by (0=
4
Rmii_rxdv_sel
RW
1’b0
3
Fx_en
RW
1’b0
1 = enable fx100 mode, 0 = disable
2
Wol_en
RW
1’b0
1 = enable WOL mechanism.
1
Rmii_en
RW
1’b0
0
Clk_sel
RW
1’b0
5.3.25.
CRS_DV,
1 = RX_DV).
1 = enable RMII mode;
Symbol
Access
default
15:6
reserved
RO
10'h203
1 = input TXC/RXC
0 = output
TXC/RXC(default by power on strapping)
Description
reserved
39
0 = disable RMII
mode(default by power on strapping)
EXT 4001H: extended pad control
Bit
0 = disable.
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5:4
Xmii_Dr
RW
2’b10
3:0
reserved
RO
4'b1111
5.3.26.
Xmii interface driver strength control in non-scan
mode.
reserved
EXT 4003H: extended combo control2
Bit
Symbol
Access
default
15
Reserved
RW
1’b0
Description
Reserved
Mux clk_dac to rxc in slave jitter test mode
14
Slave_jitter_test
RW
1’b0
1: enable
0: disable
13:10
Reserved
RW
4’b0
Reserved
Wol_lth_sel[0] control WOL INTn to be a level
or a pulse.
1’b1: a pulse;
1’b0: a level.
Wol_lth_sel[2:1] control WOL INTn pulse width
when Wol_lth_sel[0] is 1.
9:7
Wol_lth_sel
RW
3’b100
2’b00: 10us;
2’b01: 100us;
2’b10: 1ms;
2’b11: 10ms.
40
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
When isolate (mii.0.10) is 1, control to make
TXC input or not.
6
En_isolate_txc
RW
1’b1
1’b1: input;
1’b0: keep TXC previous direction.
When isolate (mii.0.10) is 1, control to make
RXC input or not.
5
En_isolate_rxc
RW
1’b1
1’b1: input;
1’b0: keep RXC previous direction.
4:0
Reserved
5.3.27.
RW
5’b01111
EXT 4004H: WOL MAC Address
Bit
Symbol
Access
default
15:0
Mac_addr_loc[47:32]
RW
16’b0
5.3.28.
Description
mac address for WOL
EXT 4005H: WOL MAC Address
Bit
Symbol
Access
default
15:0
Mac_addr_loc[31:16]
RW
16’b0
5.3.29.
Reserved
Description
mac address for WOL
EXT 4006H: WOL MAC Address
Bit
Symbol
Access
default
15:0
Mac_addr_loc[15:0]
RW
16’b0
41
Description
mac address for WOL
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.3.30.
Bit
EXT 40A0H: pkg_selftest control
Symbol
Access
default
Description
1: to enable RX/TX package checker. RX
15
Pkg_chk_en
RW
1’b0
checker checks the MII data at transceiver’
s PCS RX; TX checker checks the MII data
at mii_bridge’s TX.
1: to enable gate all the clocks to package
self-test module when bit15 pkg_chk_en is
14
Pkg_en_gate
RW
1’b1
0, bit13 bp_pkg_gen is
1 and bit12
pkg_gen_en is 0;
0: not gate the clocks.
1: normal mode, to send xMII TX data from
PAD;
13
Bp_pkg_gen
RW
1’b1
0: test mode, to send out the MII data
generated by pkg_gen module.
1: to enable pkg_gen
generating MII
packages. But, the data will only be sent to
transceiver when Bit13 bp_pkg_gen is 1’b0.
If pkg_burst_size is 0, continuous packages
12
Pkg_gen_en
RW SC
1’b0
will be generated and will be stopped only
when pkg_gen_en is set to 0;
Otherwise, after the expected packages are
generated, pkg_gen will stop, pkg_gen_en
will be self-cleared.
The preamble length of the generated
packages, in Byte unit. Pkg_gen function
11:8
Pkg_prm_lth
RW
4’d8
only support >=2 Byte preamble length.
Values smaller than 2 will be ignored by the
pkg_gen module.
42
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
The IPG of the generated packages, in Byte
7:4
Pkg_ipg_lth
RW
4’d12
unit. Pkg_gen function only support >=2
Byte preamble length. Values smaller than 2
will be ignored by the pkg_gen module.
1: To enable pkg_gen to send out the
3
Xmit_mac_force_gen
RW
1’b0
generated data even when the link is not
established.
1: to make pkg_gen to send out CRC error
2
Pkg_corrupt_crc
RW
1’b0
packages.
0: pkg_gen sends out CRC good packages.
Control the payload of the generated
packages.
00: increased Byte payload;
1:0
Pkg_payload
RW
2’b0
01: random payload;
10: fix pattern 0x5AA55AA5…
11: reserved.
5.3.31.
EXT 40A1H: pkg_selftest control
Bit
Symbol
Access
default
15:0
Pkg_length
RW
16’d64
5.3.32.
Bit
Description
To set the length of the generated packages.
EXT 40A2H: pkg_selftest control
Symbol
Access
default
Description
To set the number of packages in a burst of
15:0
Pkg_burst_size
RW
package generation.
16’b0
0: continuous packages will be generated.
5.3.33.
Bit
EXT 40A3H: pkg_selftest status
Symbol
Access
default
43
Description
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Pkg_ib_valid[31:16], pkg_ib_valid is the number
15:0
Pkg_ib_valid_high
RO
16’b0
of RX packages from wire whose CRC are good
and length are >=64Byte and =64Byte and 1518Byte.
5.3.36.
Bit
EXT 40A6H: pkg_selftest status
Symbol
Access
default
Description
Pkg_ib_os_good[15:0], pkg_ib_os_good is
15:0
Pkg_ib_os_good_low
RO
16’b0
the number of RX packages from wire
whose CRC are good and length are
>1518Byte.
5.3.37.
Bit
EXT 40A7H: pkg_selftest status
Symbol
Access
default
Description
Pkg_ib_us_good[31:16], pkg_ib_us_good
15:0
Pkg_ib_us_good_high
RO
16’b0
is the number of RX packages from wire
whose CRC are good and length are
1518Byte.
5.3.39.
Bit
EXT 40A9H: pkg_selftest status
Symbol
Access
default
Description
pkg_ib_err is the number of RX packages from wire
15:0
Pkg_ib_err
RO
16’b0
whose CRC are wrong and length are >=64Byte,
=1518Byte.
5.3.41.
EXT 40AbH: pkg_selftest status
Bit
Symbol
Access
default
15:0
Pkg_ib_frag
RO
16’b0
5.3.42.
Symbol
Access
default
15:0
Pkg_ib_nosfd
RO
16’b0
Bit
pkg_ib_frag is the number of RX packages from
wire whose length are =64Byte and
=64Byte and 1518Byte.
5.3.46.
Bit
EXT 40B0H: pkg_selftest status
Symbol
Access
default
Description
Pkg_ob_os_good[15:0], pkg_ob_os_good
15:0
Pkg_ob_os_good_low
RO
16’b0
is the number of TX packages from MII
whose CRC are good and length are
>1518Byte.
5.3.47.
Bit
EXT 40B1H: pkg_selftest status
Symbol
Access
default
Description
Pkg_ob_us_good[31:0], pkg_ob_us_good
15:0
Pkg_ob_us_good_high
RO
16’b0
is the number of TX packages from MII
whose CRC are good and length are
1518Byte.
5.3.49.
Bit
EXT 40B3H: pkg_selftest status
Symbol
Access
default
Description
pkg_ob_err is the number of TX packages from MII
15:0
Pkg_ob_err
RO
16’b0
whose CRC are wrong and length are >=64Byte,
=1518Byte.
5.3.51.
EXT 40B5H: pkg_selftest status
Bit
Symbol
Access
default
15:0
Pkg_ob_frag
RO
16’b0
5.3.52.
pkg_ob_frag is the number of TX packages from
MII whose length are
Led_act_level_th*42ms, then the traffic is
heavy; otherwise, traffic is not heavy.
5.3.59.
Bit
EXT 40C2H: LED0/1 control
Symbol
Access
default
Description
Control the LED blink frequency in Blink mode 0.
ON/OFF duty cycle could be reverted by 40C1h
bit9 invert_led_duty. Below description is the
default ON/OFF cycle, that is invert_led_duty=0.
4’d0=LED blink once every 10s, 6% OFF;
4’d1=LED blink once every 9.4s, 7% OFF;
4’d2=LED blink once every 8s, 8% OFF;
4’d3=LED blink once every 7.4s, 9% OFF;
15:12
Freq_sel_c0
RW
4’d4=LED blink once every 6s, 11% OFF;
4’d14
4’d5=LED blink once every 5s, 6% OFF;
4’d6=LED blink once every 4s, 8% OFF;
4’d7=LED blink once every 3s, 11% OFF;
4’d8=LED blink once every 2s, 16% OFF;
4’d9=LED blink once every 1s, 16% OFF;
4’d10=LED blink at 2Hz, 50% OFF;
4’d11=LED blink at 3Hz, 50% OFF;
4’d12=LED blink at 4Hz, 50% OFF;
4’d13=LED blink at 6Hz, 50% OFF;
4’d14=LED blink at 8Hz, 50% OFF;
4’d15=LED blink at 10Hz, 50% OFF;
Control the LED blink frequency in Blink mode 1.
11:8
Freq_sel_c1
RW
4’d12
See description in bit15~12 Freq_sel_c0 for detail.
51
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Control the LED blink frequency in Blink mode 2.
7:4
Freq_sel_c2
RW
4’d7
See description in bit15~12 Freq_sel_c0 for detail.
3:0
5.3.60.
Freq_sel_c3
RW
Control the LED blink frequency in Blink mode 3.
4’d5
See description in bit15~12 Freq_sel_c0 for detail.
EXT 40C3H: LED1 control
Bit
Symbol
Access
default
15
Led_force_en
RW
1’b0
Description
To enable LED force mode.
Valid when bit15 led_force_en is set.
00 = force LED OFF;
01 = force LED ON;
14:13
Led_force_mode
RW
2’b0
10 = force LED to blink at Blink Mode1;
11 = force LED to blink at Blink Mode0.
There are 4 Blink Mode, which are different at
blink frequency.
Refer to EXT 40C2 for detail of Blink Mode0~3.
When traffic is present, make LED BLINK no
matter the previous LED status is ON or OFF, or
make LED blink only when the previous LED is
ON.
when any *_blk_en in bit9~8 and bit3~1 is set
and chip do work at corresponding status,
12
Led_act_blk_ind
RW
1’b0
=1: LED will blink, no matter bit11~10 (duplex
control) and bit5~4 (speed control) are 1 or 0;
=0: LED will not blink, unless one (more) of
bit11~10 (duplex control) and bit5~4 (speed
control) is (are) 1 and related status is (are)
matched (ON at certain speed or duplex mode
is/are activated);.
If BLINK status is not activated, when PHY link
11
Led_fdx_on_en
RW
1’b0
up and duplex mode is full duplex,
=1: make LED ON;
=0: don’t make LED ON;
If BLINK status is not activated, when PHY link
10
Led_hdx_on_en
RW
1’b0
up and duplex mode is half duplex,
=1: make LED ON;
=0: don’t make LED ON;
52
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
If bit12 Led_act_blk_ind is 1, or it is 0 and LED
ON at certain speed or duplex more is/are
9
Led_txact_blk_en
RW
1’b1
activated, when PHY link up and TX is active,
=1: make LED BLINK at Blink mode 0 or 1 based
on traffic weight;
=0: don’t make LED BLINK.
If bit12 Led_act_blk_ind is 1, or it is 0 and LED
ON at certain speed or duplex more is/are
activated, when PHY link up and RX is active,
8
Led_rxact_blk_en
RW
1’b1
=1: make LED BLINK at Blink mode 0 or 1 based
on traffic weight;
=0: don’t make LED BLINK.
=1: if BLINK status is not activated, when PHY
7
Led_txact_on_en
RW
1’b0
link up and TX is active, make LED ON at least
10ms;
=1: if BLINK status is not activated, when PHY
6
Led_rxact_on_en
RW
1’b0
link up and RX is active, make LED ON at least
10ms;
=1: if BLINK status is not activated, when PHY
5
Led_ht_on_en
RW
1’b1
link up and speed mode is 100Mbps, make LED
ON;
=1: if BLINK status is not activated, when PHY
4
Led_bt_on_en
RW
1’b0
link up and speed mode is 10Mbps, make LED
ON;
=1: if PHY link up at FE and collision happen,
3
Led_col_blk_en
RW
1’b0
make LED BLINK at Blink mode 0 or 1 based on
40C1h bit6 col_blk_sel;
2
Led_ht_blk_en
RW
1’b0
1
Led_bt_blk_en
RW
1’b0
0
Reserved
RO
1’b0
53
=1: if PHY link up and speed mode is 100Mbps,
make LED BLINK at Blink mode 2;
=1: if PHY link up and speed mode is 10Mbps,
make LED BLINK at Blink mode 3;
Always 0.
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
5.3.61.
EXT 4201H: Txclk_delay
Bit
Symbol
Access
default
15:3
Reserved
RW
5’b0
Description
No use.
1: use 8ns delayed tx mii clock
2: use 16ns delayed tx mii clock
2:0
txclk_delay_sel_100bt
RW
3’d4
3: use 24ns delayed tx mii clock
4: use 32ns delayed tx mii clock
others: use no delayed tx mii clock
5.3.62.
EXT 4216H: IO Level
Bit
Symbol
Access
default
15:4
Reserved
RW
12’b0
3
en_led_ren_ctrl
RW
1’b1
2
en_ren_ctrl
RW
1’b1
Description
No use.
0: LED PAD ren will be 0 after strap done
1: LED PAD ren will be 1 after strap done
0: output PAD ren will be 0 after strap done
1: output PAD ren will be 1 after strap done
0: 1.5V IO level
1:0
io_level_ctrl
RW
1’d3
1: 1.8V IO level
2: 2.5V IO level
3: 3.3V IO level
54
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6. Timing and electrical characteristics
6.1. Crystal Requirement
Table 6. Crystal Requirement
Symbol
Description
Min
Typ
Max
Unit
Fref
Crystal Reference Frequency
-
25
-
MHz
Fref Tolerance
Crystal Reference Frequency tolerance
-50
-
50
ppm
Duty Cycle
Reference clock input duty cycle
40
-
60
%
ESR
Equivalent Series Resistance
-
50
ohm
DL
Drive Level
-
-
0.5
mW
Vih
Crystal output high level
1.4
-
-
V
Vil
Crystal output low level
-
-
0.4
V
6.2. Oscillator/External Clock Requirement
Table 7. Oscillator/External Clock Requirement
Parameter
Condition
Min
Frequency
Typ
Max
Unit
25/50
Frequency tolerance
Ta= -40~85 C
MHz
-50
Duty Cycle
40
50
PPM
60
%
200
ps
AVDD33+0.3
V
0.4
V
-
Peak to Peak Jitter
Vih
1.4
Vil
Rise Time
10%~90%
10
ns
Fall Time
10%~90%
10
ns
Temperature Range
YT8522C
0
70
°C
Temperature Range
YT8522H
-40
85
°C
Temperature Range
YT8522E
-40
125
°C
Temperature Range
YT8522A
-40
125
°C
6.3. DC Characteristics
Table 8. DC Characteristics
Symbol
Description
Min
Typ
Max
Unit
Voh (3.3V)
Minimum High Level Output Voltage
2.4
-
3.63
V
Vol (3.3V)
Maximum Low Level Output Voltage
-0.3
-
0.4
V
Voh (2.5V)
Minimum High Level Output Voltage
2
-
2.8
V
Vol (2.5V)
Maximum Low Level Output Voltage
-0.3
-
0.4
V
55
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
Voh (1.8V)
Minimum High Level Output Voltage
1.62
-
2.1
V
Vol (1.8V)
Maximum Low Level Output Voltage
-0.3
-
0.4
V
Voh (1.5V)
Minimum High Level Output Voltage
1.4
-
1.8
V
Vol (1.5V)
Maximum Low Level Output Voltage
-0.3
-
0.4
V
Vih (3.3V)
Minimum High Level Input Voltage
2
-
-
V
Vil (3.3V)
Maximum Low Level Input Voltage
-
-
0.8
V
Vih (2.5V)
Minimum High Level Input Voltage
1.7
-
-
V
Vil (2.5V)
Maximum Low Level Input Voltage
-
-
0.7
V
Vih (1.8V)
Minimum High Level Input Voltage
1.3
-
-
V
Vil (1.8V)
Maximum Low Level Input Voltage
-
-
0.5
V
Vih (1.5V)
Minimum High Level Input Voltage
1.1
-
-
V
Vil (1.5V)
Maximum Low Level Input Voltage
-
-
0.4
V
Min
Typ
Max
Unit
20
ns
6.4. MDC/MDIO Timing
Figure 9. MDC/MDIO Timing
Table 9. MDC/MDIO Timing
Symbol
Description
T DLY_MDIO
MDC to MDIO Output Delay Time
T SU_MDIO
MDIO Input to MDC Setup Time
10
ns
T HD_MDIO
MDIO Input to MDC Hold Time
10
ns
T P_MDC
MDC Period
80
ns
T H_MDC
MDC High
30
ns
T L_MDC
MDC Low
30
ns
Maximum Frequency = 12.5M Hz
56
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6.5. MII Transmission Cycle Timing
Figure 10. MII Transmission Cycle Timing
Table 10. MII Transmission Cycle Timing
Symbol
Description
Minimum
Typical
Maximum
Unit
100Mbps
14
20
26
ns
10Mbps
140
200
260
ns
100Mbps
14
20
26
ns
10Mbps
140
200
260
ns
100Mbps
-
40
-
ns
10Mbps
-
400
-
ns
TXEN, TXD[0:3]
100Mbps
10
-
-
ns
Setup to TXCLK Rising Edge
10Mbps
5
-
-
ns
TXEN, TXD[0:3]
100Mbps
0
-
-
ns
Hold After TXCLK Rising Edge
10Mbps
0
-
-
ns
100Mbps
-
-
40
ns
10Mbps
-
-
400
ns
100Mbps
-
-
160
ns
10Mbps
-
-
2000
ns
t1
TXCLK Low Pulse Width
t2
TXCLK High Pulse Width
t3
TXCLK Period
t4
t5
t6
TXEN Sampled to CRS High
t7
TXEN Sampled to CRS Low
57
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6.6. MII Reception Cycle Timing
Figure 11. MII Reception Cycle Timing
Table 11. MII Reception Cycle Timing
Symbol
Description
Minimum
Typical
Maximum
Unit
100Mbps
14
20
26
ns
10Mbps
140
200
260
ns
100Mbps
14
20
26
ns
10Mbps
140
200
260
ns
100Mbps
-
40
-
ns
10Mbps
-
400
-
ns
100Mbps
10
-
-
ns
10Mbps
10
-
-
ns
100Mbps
10
-
-
ns
10Mbps
10
-
-
ns
100Mbps
-
-
130
ns
10Mbps
-
-
2000
ns
t1
RXCLK Low Pulse Width
t2
RXCLK High Pulse Width
t3
RXCLK Period
t4
RXER, RX_DV,RXD[0:3]
Setup to RXCLK Rising Edge
t5
RXER, RX_DV, RXD[0:3] Hold
After RXCLK Rising Edge
t6
Receive Frame to CRS High
t7
End of Receive Frame to CRS
Low
100Mbps
-
-
240
ns
10Mbps
-
-
1000
ns
t8
Receive Frame to Sampled
Edge of RX_DV
100Mbps
-
-
150
ns
10Mbps
-
-
3200
ns
t9
End of Receive Frame to
Sampled Edge of RX_DV
100Mbps
-
-
120
ns
10Mbps
-
-
1000
ns
58
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6.7. RMII1 Transmission and Reception Cycle Timing
Figure 12. RMII1 Transmission and Reception Cycle Timing
Table 12. RMII1 Transmission and Reception Cycle Timing
Symbol
Description
Minimum
Typical
REFCLK Frequency
Frequency of Reference Clock
-
50
-
MHz
REFCLK Duty Cycle
Duty Cycle of Reference Clock
35
-
65
%
T_ipsu_tx_rmii
TXD[1:0]/TXEN Setup Time to REFCLK
4
-
-
ns
T_iphd_tx_rmii
TXD[1:0]/TXEN Hold Time from REFCLK
2
-
-
ns
T_ophd_rx_rmii
RXD[1:0]/CRS_DV/RXER Output Delay
Time from REFCLK
6
-
12
ns
59
Maximum Unit
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6.8. RMII2 Transmission and Reception Cycle Timing
Figure 13. RMII2 Transmission and Reception Cycle Timing
Table 13. RMII2 Transmission and Reception Cycle Timing
Symbol
Description
Minimum
REFCLK Frequency
Frequency of Reference Clock
-
50
-
MHz
REFCLK Duty Cycle
Duty Cycle of Reference Clock
35
-
65
%
T_ipsu_tx_rmii
TXD[1:0]/TXEN Setup Time to REFCLK
4
-
-
ns
T_iphd_tx_rmii
TXD[1:0]/TXEN Hold Time from
REFCLK
2
-
-
ns
T_ophd_rx_rmii
RXD[1:0]/CRS_DV/RXER Output Delay
Time from REFCLK
0
-
3
ns
60
Typical Maximum Unit
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6.9. 100Base-FX Characteristics
6.9.1.
100Base-FX Differential Transmitter Characteristics
Table 14.100Base-FX Differential Transmitter Characteristics
Symbol
Parameter
Min
Typ
Max
Units
Notes
UI
Unit Interval
7.9976
8
8.0024
ns
8ns ± 300ppm
T_X1
Eye Mask
-
-
0.15
UI
-
T_X2
Eye Mask
-
-
0.4
UI
-
T_Y1
Eye Mask
250
-
-
mV
-
T_Y2
Eye Mask
-
-
600
mV
-
VTX-DIFFp-p
Output Differential Voltage
500
700
1200
mV
-
TTX-EYE
Minimum TX Eye Width
0.7
-
-
UI
-
TTX-JITTER
Output Jitter
-
-
0.3
UI
RTX
Differential Resistance
80
100
120
ohm
-
CTX
AC Coupling Capacitor
80
100
200
nF
-
LTX
Transmit Length in PCB
-
-
10
Inch
-
Figure 14. 100Base-FX Differential Transmitter Eye Diagram
61
TTX-JITTER-MAX = 1 - TTX-EYE-MIN
= 0.35UI
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
6.9.2.
100Base-FX Differential Receiver Characteristics
Table 15.100Base-FX Differential Transmitter Characteristics
Symbol
Parameter
Min
Typ
Max
Units
Notes
UI
Unit Interval
7.9976
8
8.0024
ns
8ns ± 300ppm
R_X1
Eye Mask
-
-
0.3
UI
-
R_Y1
Eye Mask
100
-
-
mV
-
R_Y2
Eye Mask
-
-
1000
mV
-
200
-
2000
mV
-
VRX-DIFFp-p Input Differential Voltage
TRX-EYE
Minimum RX Eye Width
0.4
-
-
UI
TRX-JITTER
Input Jitter Tolerance
-
-
0.6
UI
RRX
Differential Resistance
80
100
120
ohm
Figure 15.100Base-FX Differential Receiver Eye Diagram
62
TRX-JITTER-MAX = 1 - TRX-EYE-MIN
= 0.6UI
-
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
7. Power Requirements
7.1. Absolute Maximum Ratings
Table 16. Absolute Maximum Ratings
Symbol
Description
Min
Max
Unit
AVDD33
3.3 V power supply
-0.3
3.70
V
AVDDL
1.2 V power supply
-0.2
1.50
V
DVDDL
1.2 V power supply
-0.2
1.50
V
DVDDIO 3.3V
3.3V power supply
-0.3
3.70
V
DVDDIO 2.5V
2.5V power supply
-0.3
2.8
V
DVDDIO 1.8V
1.8V power supply
-0.3
2.3
V
DVDDIO 1.5V
1.5V power supply
-0.3
1.7
V
7.2. Recommended Operating Condition
Table 17. Recommended Operating Condition
Description
Pins
Min
Typ
Max
Unit
AVDD33
2.97
3.30
3.63
V
AVDDL
1.08
1.20*
1.32
V
DVDDL
1.08
1.20*
1.32
V
DVDDIO 3.3V
2.97
3.30
3.63
V
DVDDIO 2.5V
2.25
2.50
2.75
V
DVDDIO 1.8V
1.71
1.8
1.89
V
DVDDIO 1.5V
1.43
1.5
1.57
V
YT8522C Ambient Operation Temperature Ta
0
-
70
°C
YT8522H Ambient Operation Temperature Ta
-40
-
85
°C
YT8522E Ambient Operation Temperature Ta
-40
-
125
°C
YT8522A Ambient Operation Temperature Ta
-40
-
125
°C
135
°C
Power Supply
Maximum Junction Temperature
Note:AVDDL/DVDDL is from internal LDO.Actual voltage is about 1.15V.
63
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
7.3. Power On Sequence
Figure 16.Power On Sequence
When using crystal, the clock generated internally.1.2V power from internal LDO, the sequence between
clock and 3.3V, or 1.2V and 3.3V is determined by YT8522 inside and can be ignored. When using
external clock CLK 25/50MHz or TXC, CLK 25/50MHz or TXC should be a stable clk after
AVDDH/AVDDL reaches 3.3V/1.2V.For a reliable power on reset, suggest to keep asserting the reset
low long enough (10ms) to ensure the clock is stable and clock-to-reset 10ms requirement is satisfied.
64
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
7.4. Power Consumption
7.4.1.
MII mode
Table 19.MII Mode Power Consumption
Condition
DVDDIO=3.3V(mA)
AVDD33(mA)
3.3V total(mA)
Power Consumption(mW)
Reset
1.4
5.8
7.2
23.8
Power down
1.6
6.0
7.6
25.1
Sleep
1.9
6.6
8.5
28.1
Active
1.8
44.2
46.0
151.8
Traffic 100FX
7.0
47.7
54.7
180.5
10M
3.1
29.1
32.2
106.3
100M
4.6
56.7
61.3
202.3
10M
7.9
39.6
47.5
156.8
100M
10.8
57.1
67.9
224.1
Link
Traffic
7.4.2.
RMII mode
Table 20.RMII Mode Power Consumption
Condition
DVDDIO=3.3V(mA)
AVDD33(mA)
3.3V total(mA)
Power Consumption(mW)
Reset
1.4
5.8
7.2
23.8
Power down
0.9
6.1
7.0
23.1
Sleep
1.0
6.6
7.6
25.1
Active
3.1
46.9
50.0
165.0
Traffic 100FX
5.7
48.1
53.8
177.5
10M
3.8
31.4
35.2
116.2
100M
3.8
57.4
61.2
202.0
10M
5.2
40.5
45.7
150.8
100M
5.7
57.7
63.4
209.2
Link
Traffic
Note: The power consumption is measured under room temperature with typical process DUT.When
dvddio=2.5/1.8/1.5V,power consumption is close to 3.3v.
7.5. Maximum Power Consumption
Table 21.Maximum Power Consumption
Condition
Traffic
100M
DVDDIO=3.3V(mA)
AVDD33(mA)
3.3V total(mA)
Power Consumption(mW)
15.0
65.0
80.0
264.0
Note: Test by FF corner IC in MII mode with DVDDIO= 3.3V at 125℃ ambient temperature.
65
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
8. Package information
8.1. RoHS-Compliant Packaging
Motor-comm offers a RoHS package that is compliant with RoHS
Table 22. RoHS-Compliant Packaging
Part Number
Status
Package
Op temp (℃)
YT8522C
Active
QFN 32 5x5mm
0 to 70
YT8522H
Active
QFN 32 5x5mm
-40 to 85
YT8522E
Active
QFN 32 5x5mm
-40 to 125
YT8522A
Active
QFN 32 5x5mm
-40 to 125
Note
8.2. Thermal resistance
Symbol
θJA
Table 23. Thermal resistance
Pa r a m e t e r
C o n di t on
Thermal resistance - junction to
ambient
θJA = (TJ - TA)/ P
P = Total power dissipation
Typ
Units
JEDEC
3 in. x 4.5 in. 4-layer PCB with
no air flow TA=25°C
37.8
°C/W
JEDEC
3 in. x 4.5 in. 4-layer PCB with
no air flow TA=125°C
33.3
°C/W
JEDEC with no air flow
35
°C/W
JEDEC with no air flow
16.3
°C/W
Thermal resistance - junction to
case
θJC
θJC = (TJ - TC)/ Ptop
Ptop = Power dissipation from the
top of the package
Thermal resistance - junction to
board
θJB
θJB = (TJ - TB)/ Pbottom
Pbottom = Power dissipation from
the bottom of the package to the
PCB surface.
66
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
9. Mechanical Information
Figure 17. Mechanical Information
67
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
68
Motorcomm YT8522(C)/(H)/(E)/(A) Datasheet
10. Ordering Information
Table 24. Ordering Information
Part Number
Grade
YT8522C
Consumer
YT8522H
Industrial
YT8522E
Extreme
YT8522A
Package
QFN 32
5x5mm
QFN 32
5x5mm
QFN 32
5x5mm
Automotive application
QFN 32
AECQ-100 Grade 2
5x5mm
Packaging
Tape Reel 3000ea
Tape Reel 3000ea
Status
Mass
production
Mass
production
Operation
temp(℃)
0 to 70 ℃
-40 to 85 ℃
Tape Reel 3000ea
Sampling
-40 to 125 ℃
Tape Reel 3000ea
Sampling
-40 to 125 ℃
69
工商网监
湘ICP备2023018690号
