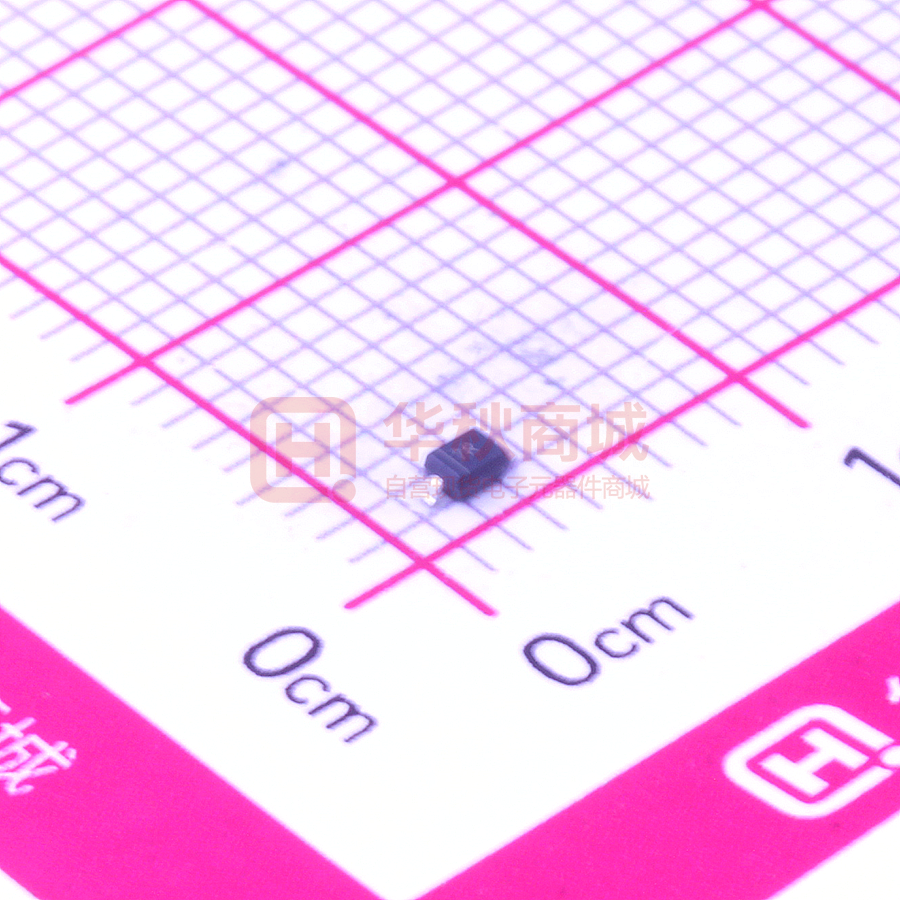

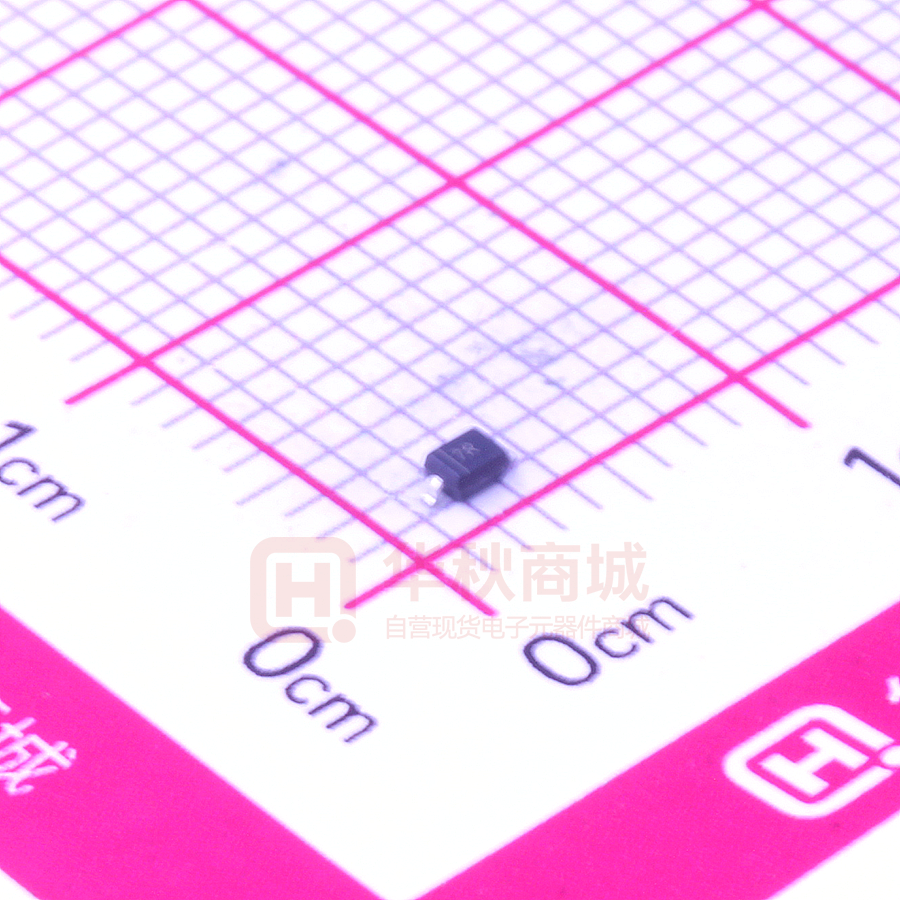

FR107WS

FR101WS THRU FR107WS SOD-323 Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V 2 Forward Current - 1 A FEATURES  Low forward voltage drop  Low leakage current  For surface mounted applications  Low profile package  Glass Passivated Chip Junction 1.Cathode 2.Anode 1 ■ Simplified outline(SOD-323) Top View Marking Code  Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA  Case: SOD-3 23  Terminals: Solderable per MIL-STD-750, Method 2026  Approx. Weight: 4.5mg / 0.00016oz Absolute Maximum Ratings and characteristics FR101WS 1R FR102WS 2R FR103WS 3R FR104WS 4R FR105WS 5R FR106WS 6R FR107WS 7R Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols Parameter FR101WS FR102WS FR103WS FR104WS FR105WS FR106WS FR107WS Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at Tc = 125 °C IF(AV) 1 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load IFSM 25 A Maximum Instantaneous Forward Voltage at 1 A VF 1.3 V IR 5 50 μA Typical Junction Capacitance at VR=4V,f=1MHZ Cj 5 pF Maximum Reverse Recovery Time（1） Trr Typical Thermal Resistance （2） RθJA 85 °C/W Tj, Tstg -55 ~ +150 °C Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a=125 °C Operating and Storage Temperature Range 150 250 500 nS （1）Measured with IF=0.5A,IR=1A,In=0.25A （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. www.yfwdiode.com 1/3 G uangDong YFW Electronics Co, Ltd. FR101WS THRU FR107WS SOD-323 Fig.2 Typical Instaneous Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current ( μ A) Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 175 100 T J =150°C 10 T J =125°C T J =100°C 1.0 T J =75°C 0.1 T J =25°C 0.01 0 Junction Capacitance ( pF) TJ = 2 5° C 00 =1 TJ =1 25 °C °C 0.5 TJ Instaneous Forward Current (A) 1.0 0.8 0.9 600 800 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 0.2 0.1 0.6 400 200 Instaneous Reverse Voltage (V) Case Temperature (°C) 100 T J =25°C 10 1 0.7 1.0 1.1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 30 25 20 15 10 5 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles www.yfwdiode.com 2/3 G uangDong YFW Electronics Co, Ltd. FR101WS THRU FR107WS SOD-323 SOD-323 Package Outline Plastic surface mounted package; 2 leads E E D b A C A1 ∠ALL ROUND L1 E1 A C D E E1 b L1 A1 max 1.1 0.15 1.4 1.8 2.75 0.4 0.45 0.2 min 0.8 0.08 1.2 1.4 2.55 0.25 0.2 max 43 5.9 55 70 108 16 16 min 32 3.1 47 63 100 9.8 7.9 UNIT ∠ mm 9° 8 mil The recommended mounting pad size 1.4 (55) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) Summary of Packing Options Package SOD-323 www.yfwdiode.com Packing Description Packing Quantity Industry Standard Tape/Reel,7”reel 3000 EIA-481-1 3/3 G uangDong YFW Electronics Co, Ltd.
