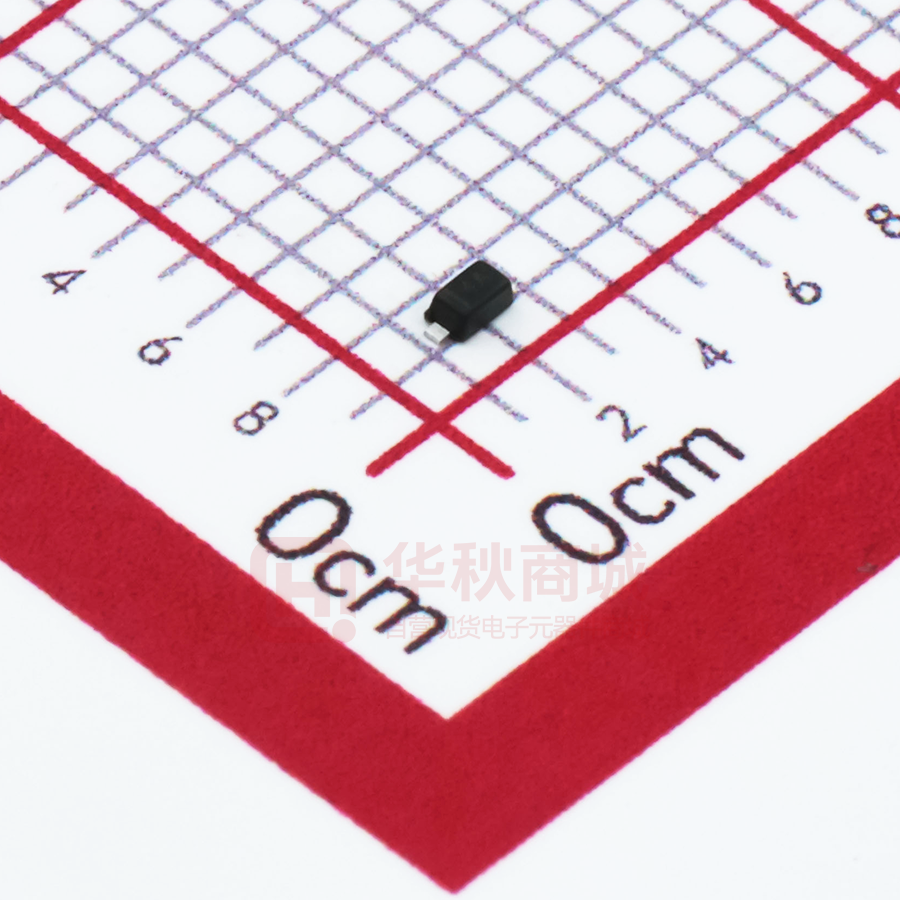

RB160SS-40

RB160SS-40 Features       Low forward voltage drop Low reverse current RoHS Compliant REACH & SVHC Compliant Halogen Compliant SOD-523 Package Ordering Information Part Number Packaging Reel Size RB160SS-40 3000/Tape & Reel 7 inch Circuit Diagram Marking Diagram ： 4A Top view Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Repetitive peak reverse voltage VRRM 40 V DC blocking voltage VR 40 V Continuous forward current IO 1 A Non-repetitive peak forward current @ t=8.3ms IFSM 7 A Power dissipation PD 500 mW Junction temperature TJ −40 to +125 °C Storage temperature TSTG −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Test Condition Min Breakdown voltage VBR IT = 1mA 40 Reverse leakage current IR VR = 40V Forward voltage VF Forward voltage Typ Max Unit V 10 40 μA IF = 0.1A 420 mV VF IF = 0.2A 450 mV Forward voltage VF IF = 1A 610 mV Diode capacitance CD VR = 10V, f = 1MHz 19 pF RB160SS-40 Typical Performance Characteristics (TA=25°C unless otherwise Specified) RB160SS-40 SOD-523 Package Outline Drawing TOP VIEW SIDE VIEW Suggested Land Pattern
