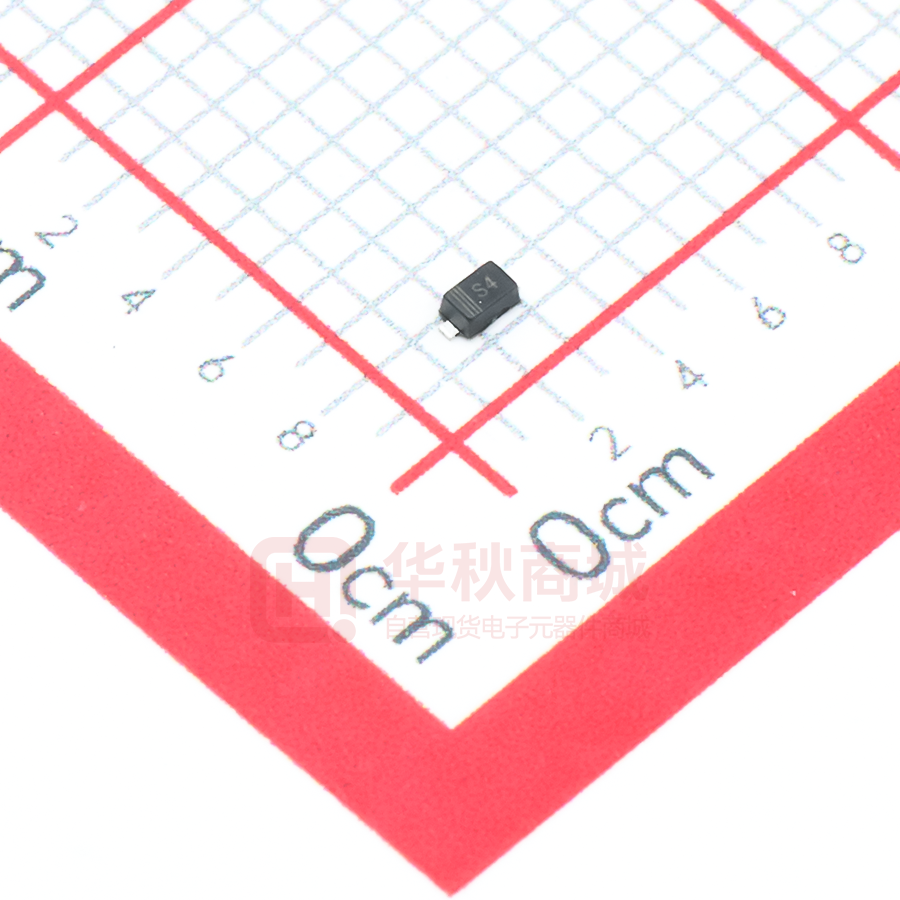

1N5819WT

HUAXUANYANG 1N5819WT HXY ELECTRONICS CO.,LTD SCHOTTKY BARRIER DIODE FEATURES z z Peak Forward Current: IFM=350 mA Power Dissipation of 150mw - + SOD-523 Package Marking and Ordering Information Product ID Pack Marking 1N5819WT SOD-523 S4 Qty(PCS) - 3000 + MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit 40 V RMS Reverse Voltage 28 V Forward Continuous Current 350 mA IFSM Non-Repetitive Peak Forward Surge Current@t=8.3ms 2 A PD Power Dissipation 150 mW Thermal Resistance From Junction To Ambient 667 ℃/W Tj Junction Temperature 125 ℃ Tstg Storage Temperature -55~+150 ℃ VRRM Peak Repetitive Reverse Voltage VRWM Working Peak Reverse Voltage VR VR(RMS) IFM RΘJA DC Blocking Voltage ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Reverse voltage Reverse current Forward voltage Total capacitance Reverse recovery time Symbol V(BR) IR VF Ctot trr Shenzhen HuaXuanYang Electronics CO.,LTD Test conditions IR=100μA Min Typ Max 40 Unit V VR=30V 5 VR=20V 2 VR=10V 1 IF=1mA 0.27 IF=5mA 0.32 IF=20mA 0.37 IF=200mA 0.6 μA V VR=0V,f=1MHz 50 pF IF= IR=200mA, Irr=0.1×IR, RL=100Ω 10 ns www.hxymos.com HUAXUANYANG 1N5819WT HXY ELECTRONICS CO.,LTD SCHOTTKY BARRIER DIODE Typical Characteristics Forward 1000 Characteristics Reverse 1000 Characteristics (uA) Ta=100℃ 100 REVERSE CURRENT IR FORWARD CURRENT IF (mA) Ta=100℃ Ta=25℃ 10 1 100 200 300 FORWARD VOLTAGE 400 VF 500 10 Ta=25℃ 1 0.1 600 0 10 20 30 REVERSE VOLTAGE (mV) Capacitance Characteristics 50 100 VR 40 (V) Power Derating Curve 200 Ta=25℃ (mW) 150 PD 40 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 30 20 100 50 10 0 0 5 10 15 REVERSE VOLTAGE 20 VR 25 (V) Shenzhen HuaXuanYang Electronics CO.,LTD 30 0 0 25 50 75 AMBIENT TEMPERATURE 100 Ta 125 (℃ ) www.hxymos.com HUAXUANYANG HXY ELECTRONICS CO.,LTD 1N5819WT SCHOTTKY BARRIER DIODE SOD-523 Package Outline Dimensions 6\P RO A A1 b c D E E1 E2 L  LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF Shenzhen HuaXuanYang Electronics CO.,LTD LPHQVLRQV,Q,QFKHV 0LQ 0D[ 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF www.hxymos.com HUAXUANYANG 1N5819WT HXY ELECTRONICS CO.,LTD SCHOTTKY BARRIER DIODE Attention ■ Any and all HUA XUAN YANG ELECTRONICS products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your HUA XUAN YANG ELECTRONICS representative nearest you before using any HUA XUAN YANG ELECTRONICS products described or contained herein in such applications. ■ HUA XUAN YANG ELECTRONICS assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all HUA XUAN YANG ELECTRONICS products described or contained herein. ■ Specifications of any and all HUA XUAN YANG ELECTRONICS products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’s products or equipment. ■ HUA XUAN YANG ELECTRONICS CO.,LTD. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with some probability. It is possible that these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits and error prevention circuits for safe design, redundant design, and structural design. ■ In the event that any or all HUA XUAN YANG ELECTRONICS products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from the authorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of HUA XUAN YANG ELECTRONICS CO.,LTD. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. HUA XUAN YANG ELECTRONICS believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringements of intellectual property rights or other rights of third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification" for the HUA XUAN YANG ELECTRONICS product that you intend to use. Shenzhen HuaXuanYang Electronics CO.,LTD www.hxymos.com
