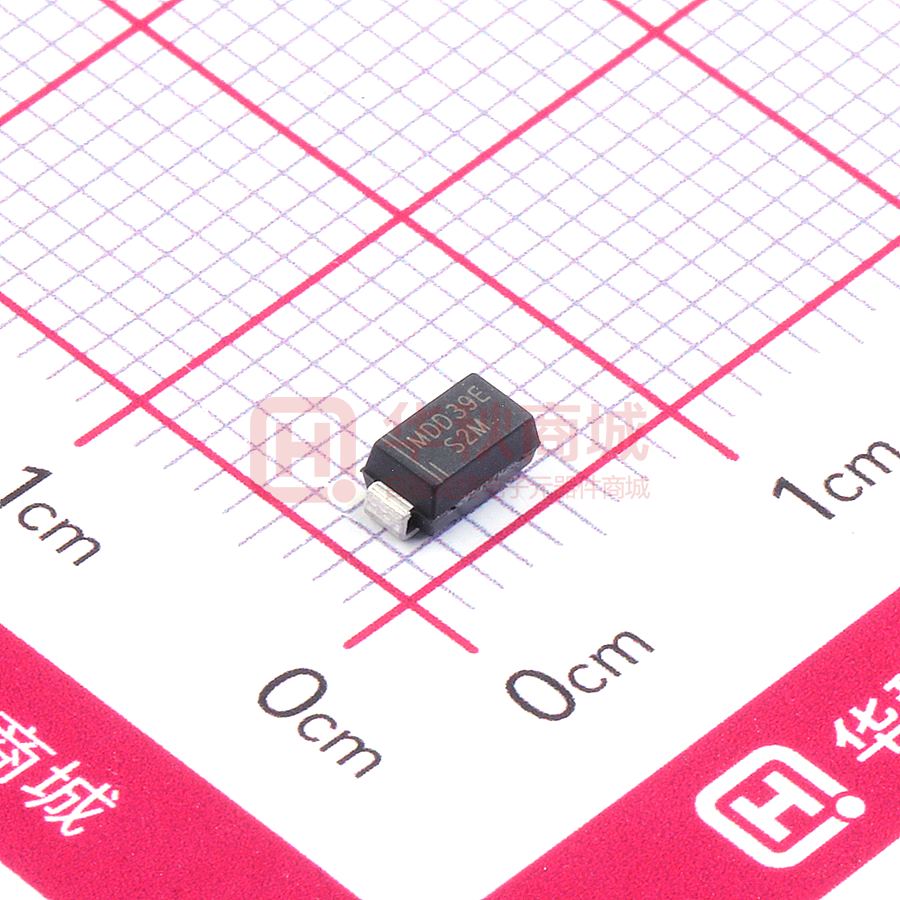

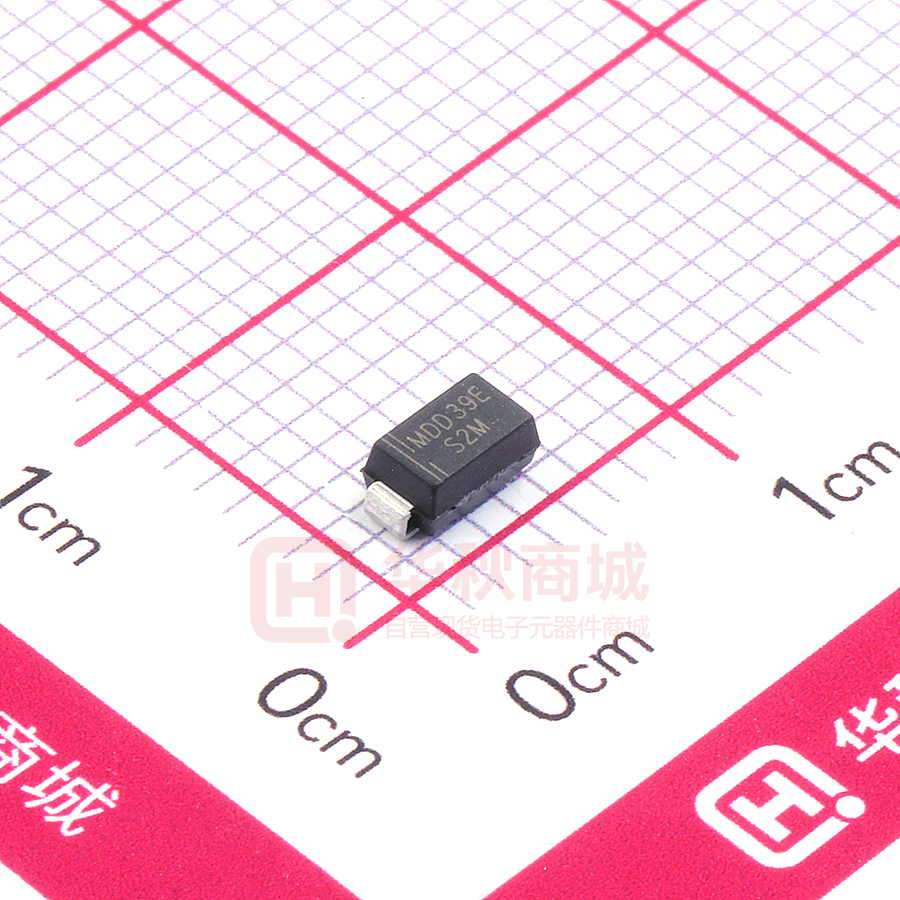

S2M

S2A THRU S2M Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere SURFACE MOUNT GENERAL RECTIFIER Features DO-214AC/SMA  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Idea for printed circuit board 0.110(2.80) 0.091(2.30) 0.067 (1.70) 0.051 (1.30)  Open Junction chip  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed 0.177(4.50) 0.157(3.99) 0.012(0.305) 0.006(0.152) 250℃/10 seconds at terminals 0.096(2.42) 0.078(1.98) 0.059(1.50) 0.035(0.90) Mechanical Data 0.008(0.203)MAX. 0.205(5.20) 0.188(4.80) Case : JEDEC DO-214AC/SMA Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Dimensions in inches and (millimeters) Mounting Position : Any Weight : 0.0023 0.0019 ounce, 0.07 0.055grams grams Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=110℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) VRRM VRMS VDC MDD S2A MDD S2B MDD S2D MDD S2G MDD S2J MDD S2K MDD S2M UNITS 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V I(AV) 2.0 A IFSM 50 A VF 1.10 V IR 5.0 100 uA 25.0 pF 65.0 ℃/W -55 to +150 ℃ CJ RJA Operating junction and storage temperature range TJ,TSTG Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A3 Page :1 S2A THRU S2M Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Ratings And Characteristic Curves Fig.1 Forward Current Derating Curve Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） 2.5 Average Forward Current (A) 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 100 TJ=125°C 10 1.0 TJ=25°C 0.1 00 Case Temperature (°C) 60 80 100 100 Junction Capacitance (pF) 1.0 TJ=25°C 0.4 0.6 0.8 1.0 1.2 120 140 Fig.4 Typical Junction Capacitance 10 Instaneous Forward Current (A) 40 percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Forward Characteristic 0.1 20 1.4 1.6 1.8 TJ=25°C 10 1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 75 60 45 30 15 00 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A3 Page :2 S2A THRU S2M Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SMA Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width A B C d D D1 D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 2.80 5.33 2.36 1.50 330.00 50.00 178.00 62.00 13.00 1.75 5.50 4.00 4.00 2.00 0.28 12.00 18.00 E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE SMA REEL SIZE 7" APPROX. GROSS WEIGHT (kg) REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) 2,000 4.0 4,000 183*155*183 178 382*356*392 10,000 290*290*38 330 310*310*360 80,000 11.0 15,000 335*335*38 330 350*330*360 120,000 14.5 SMA 11" 5,000 4.0 SMA 13" 7,500 4.0 CARTON SIZE (m/m) CARTON (pcs) 80,000 16.0 Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) Unit (inch) A 1.68 0.066 B 1.52 0.060 C 3.93 0.154 D 2.41 0.095 E 5.45 0.215 Rev:2024A3 Page :3
