BAS16

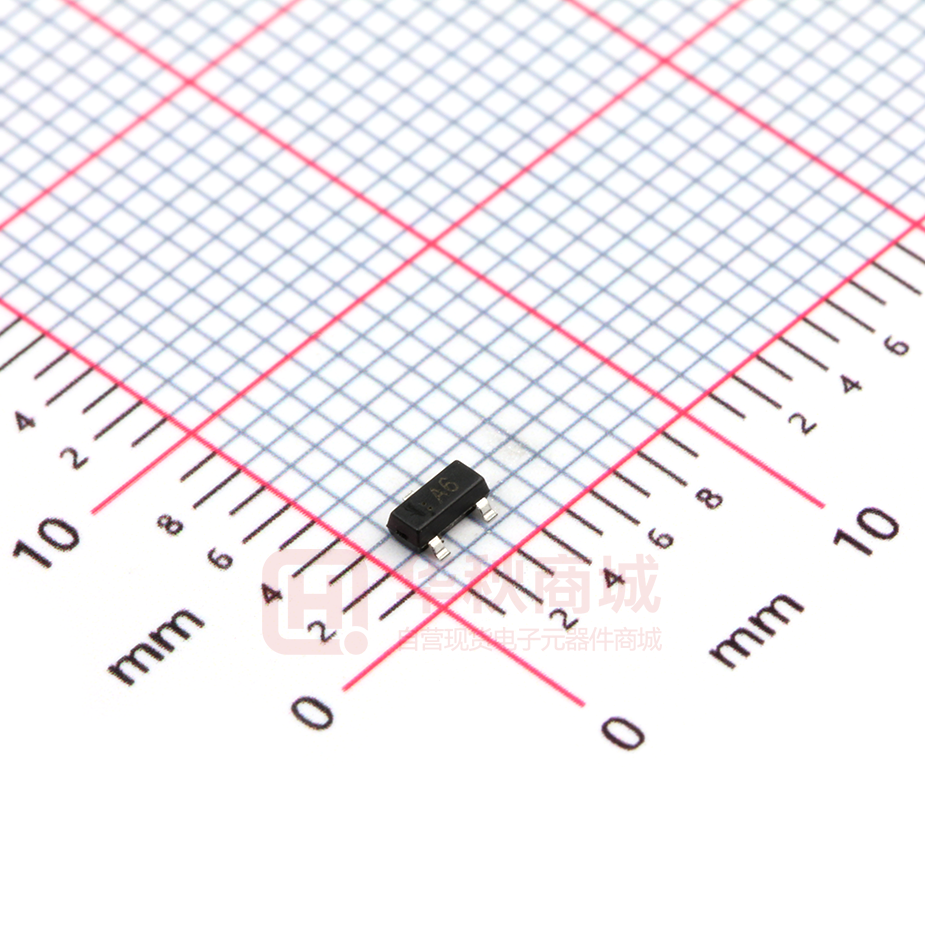

BAS16 SOT-23 Plastic-Encapsulate Diodes BAS16 SWITCHING DIODE SOT-23 FEATURES z z z Fast Switching Speed For General Purpose Switching Applications High Conductance Marking: 1 A6 3 2 A6 Maximum Ratings @Ta=25℃ Parameter Symbol Limit Unit Non-Repetitive Peak Reverse Voltage VRM 100 V Peak Repetitive Peak Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 75 V DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 53 V Forward Continuous Current IFM 300 mA Average Rectified Output Current IO 150 mA Non-Repetitive Peak Forward Surge Current @t=8.3ms IFSM 2.0 A Power Dissipation Pd 225 mW RθJA 556 ℃/W TJ,TSTG -55~+150 ℃ Thermal Resistance Junction to Ambient Operation Junction and Storage Temperature Range Electrical Characteristics @Ta=25℃ Parameter Reverse breakdown voltage Reverse voltage leakage current Symbol V(BR) Test conditions IR= 100µA Forward voltage VF Diode capacitance CD VR=0, f=1MHz Reveres recovery time trr Max 75 = VR 75V IR IF=1mA IF=10mA IF=50mA IF=150mA http://www.microdiode.com Min IF=IR=10mA,Irr=0.1×IR, RL=100Ω Rev:2024A1 Unit V 1 µA 0.715 0.855 1 1.25 V 2 pF 6 ns Page :1 BAS16 Typical Characteristics Forward Reverse Characteristics Characteristics 1000 300 100 (nA) REVERSE CURRENT IR FORWARD CURRENT 10 Ta =2 5℃ Ta =1 00 ℃ 30 IF (mA) 300 3 1 Ta=100℃ 100 30 10 Ta=25℃ 3 0.3 0.1 0.0 0.4 0.8 FORWARD VOLTAGE 1.2 VF 1 1.6 0 40 20 (V) REVERSE VOLTAGE 60 VR 80 (V) Power Derating Curve Capacitance Characteristics 1.4 300 Ta=25℃ f=1MHz (mW) PD 1.3 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) 250 1.2 1.1 200 150 100 50 1.0 0 5 10 REVERSE VOLTAGE http://www.microdiode.com 15 VR (V) 20 0 0 25 50 75 AMBIENT TEMPERATURE Rev:2024A1 100 Ta 125 150 (℃) Page :2 BAS16 Outlitne Drawing SOT-23 Package Outline Dimensions e Suggested Pad Layout 0.037 0.95 0.037 0.95 L L1 E E1 Symbol A A1 b c D E E1 e L L1 θ Dimensions In Millimeters Min Typ Max 1.00 1.40 0.10 0.35 0.50 0.10 0.20 2.70 2.90 3.10 1.20 1.60 2.4 2.80 1.90 0.10 0.30 0.4 0° 10° Note: 1. Controlling dimension:in/millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purposes only. 0.079 2.0 0.035 0.9 0.031 0.8 http://www.microdiode.com inches mm Rev:2024A1 Page :3 BAS16 SOT-23 Tape and Reel Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). 3000 pcs http://www.microdiode.com 7 Inch 45,000 pcs 203×203×195 180,000 pcs 438×438×220 Rev:2024A1 Page :4
