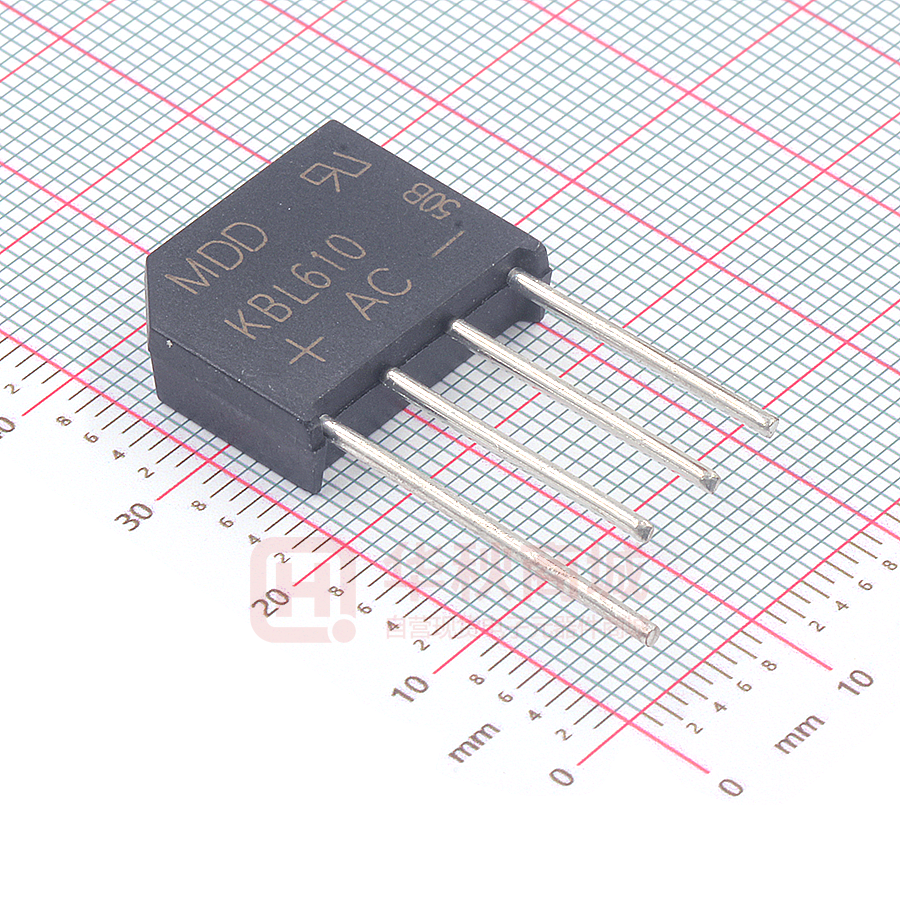

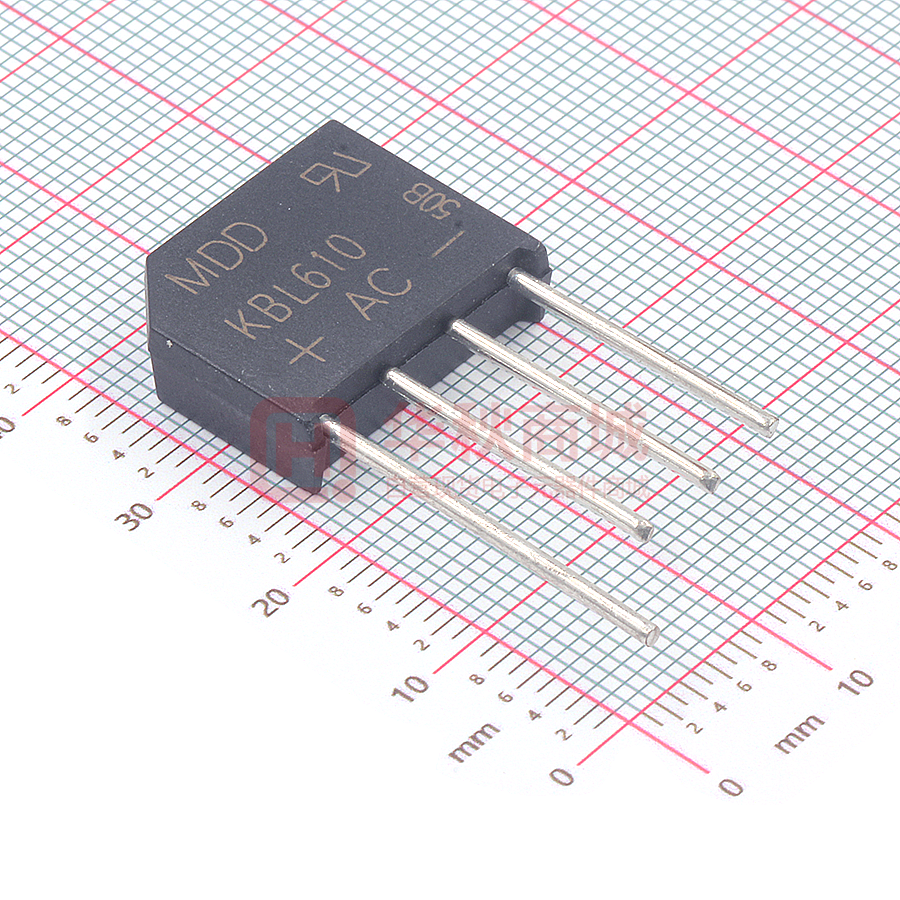

KBL610

KBL6005 THRU KBL612 Reverse Voltage - 50 to 1200 V olts Forward Current - 6.0 Amperes SILICON BRIDGE RECTIFIERS Features KBL  The plastic package carries Underwriters Laboratory 0.768(19.5) Flammability Classification 94V-0 0.728(18.5)  Ideal for printed circuit boards  Low reverse leakage  High forward surge current capability 0.580(14.7) 0.640(16.3) 0.594(15.1) 0.540(13.7) +  High temperature soldering guaranteed: 260°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension AC 0.670 0.052(1.3) (17.0) 0.046(1.18) Mechanical Data MIN. 0.083 Case : JEDEC KBL Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.20ounce , 5.6 grams 0.220(5.6) (2.1) 0.180(4.6) 0.256(6.5) 0.217(5.5) Maximum Ratings And Electrical Characteristics Dimensions in inches and (millimeters) Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward output rectified current at TA=50°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) MDD MDD MDD MDD SYMBOLS KBL6005 KBL601 KBL602 KBL604 VRRM VRMS VDC 50 35 50 100 70 100 200 140 200 400 280 400 MDD MDD MDD MDD UNITS 600 420 600 800 560 800 1000 700 1000 1200 840 1200 V V V KBL606 KBL608 KBL610 KBL612 I(AV) 6.0 A IFSM 200 A Rating for fusing ( t
