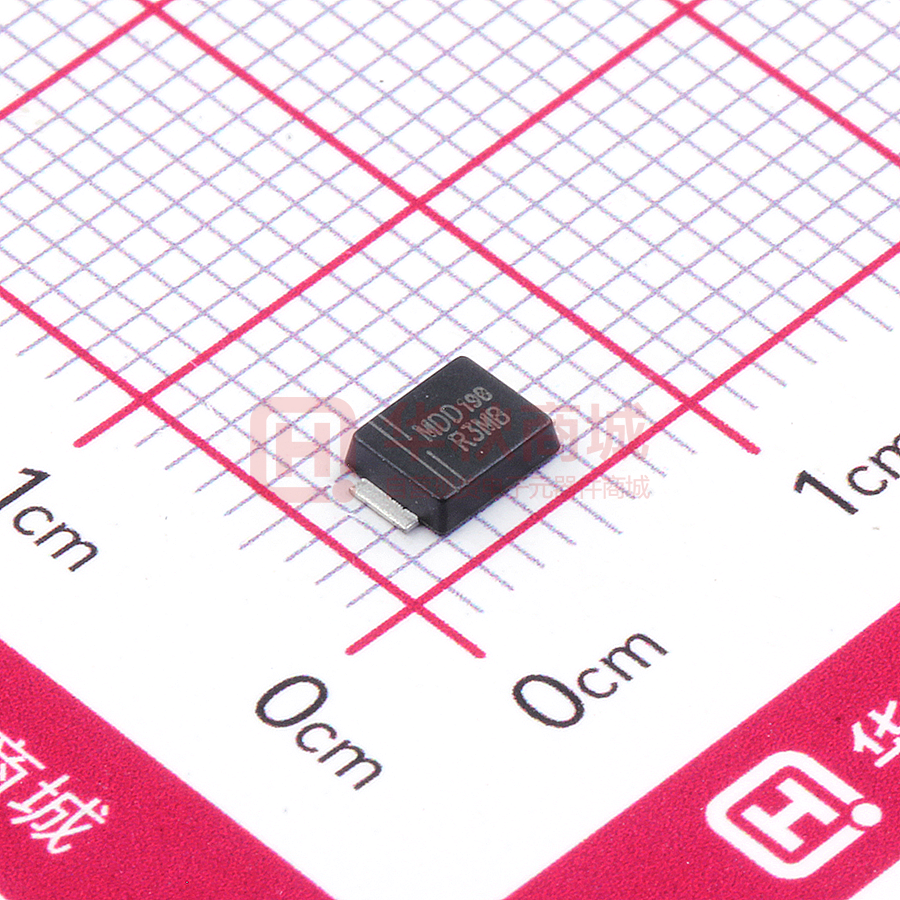

RS3MBF

RS3ABF THRU RS3MBF Forward Current - 3.0 Ampere Reverse Voltage - 50 to 1000 Volts SURFACE MOUNT FAST RECOVERY RECTIFIER Features SMBF  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Fast switching for high efficiency  Low reverse leakage  Built-in strain relief,ideal for automated placement 0.146(3.70) 0.138(3.50) 0.086 (2.20) 0.075 (1.90) 0.173(4.40) 0.165(4.20)  High forward surge current capability  High temperature soldering guaranteed: 260°C/10 seconds at terminals 0.051(1.30) 0.043(1.10) Glass passivated chip junction 0.010(0.26) 0.007(0.18) 0.048(1.20) 0.031(0.80) Mechanical Data 0.216(5.50) 0.200(5.10) Case : JEDEC SMBF Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.002ounce, 0.057 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter RS3ABF RS3BBF RS3DBF RS3GBF SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=125℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) VRRM VRMS VDC RS3JBF RS3KBF RS3MBF UNITS MDD R3AB MDD R3BB MDD R3DB MDD R3GB MDD R3JB MDD R3KB MDD R3MB 50 35 100 70 200 140 400 280 600 420 800 560 1000 700 V V 50 100 200 400 600 800 1000 V I(AV) 3.0 A IFSM 80 A Maximum instantaneous forward voltage at 3.0A VF 1.30 V Maximum DC reverse current at rated DCblocking voltage IR 5.0 100 μA Maximum reverse recovery time TA=25℃ TA=125℃ (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) trr 150 250 40 CJ RJA 45 RθJC 15 Operating junction and storage temperature range TJ,TSTG -55 to +150 500 ns pF ℃/W ℃ Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A3 Page :1 RS3ABF THRU RS3MBF Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 175 Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Maximum Average Forward Current Rating 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) Junction Capacitance (pF) Instaneous Forward Current (A) 60 80 100 120 140 Fig.4 Typical Junction Capacitance T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Instaneous Forward Characteristics 10 20 T J =25°C 100 10 T J=25°C f = 1.0MHz V sig = 50mV p-p 1 0.5 1.0 1.5 2.0 2.5 Instaneous Forward Voltage (V) 0.1 1.0 10 100 Reverse Voltage (V) Peak Forward Surge Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surge Current 90 75 60 45 30 15 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A3 Page :2 RS3ABF THRU RS3MBF Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere Packing information P0 unit:mm P1 d E F B A W P D2 T D1 C W1 D Item Symbol Tolerance SMBF Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 3.81 5.61 1.60 1 50 . 330.00 50.00 13.00 1.75 5.50 4.00 4.00 2.00 0.30 12.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) BOX (pcs) INNER BOX (mm) REEL DIA, (mm) SMBF 13" 5,000 4.0 10,000 190*190*41 330 CARTON SIZE (mm) 365*365*360 CARTON (pcs) 80,000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) A 2.54 0.100 B 1.8 0.071 C 4.8 0.189 D 3.0 0.118 E 6.6 0.260 Unit (inch) Rev:2024A3 Page :3
