GM7333

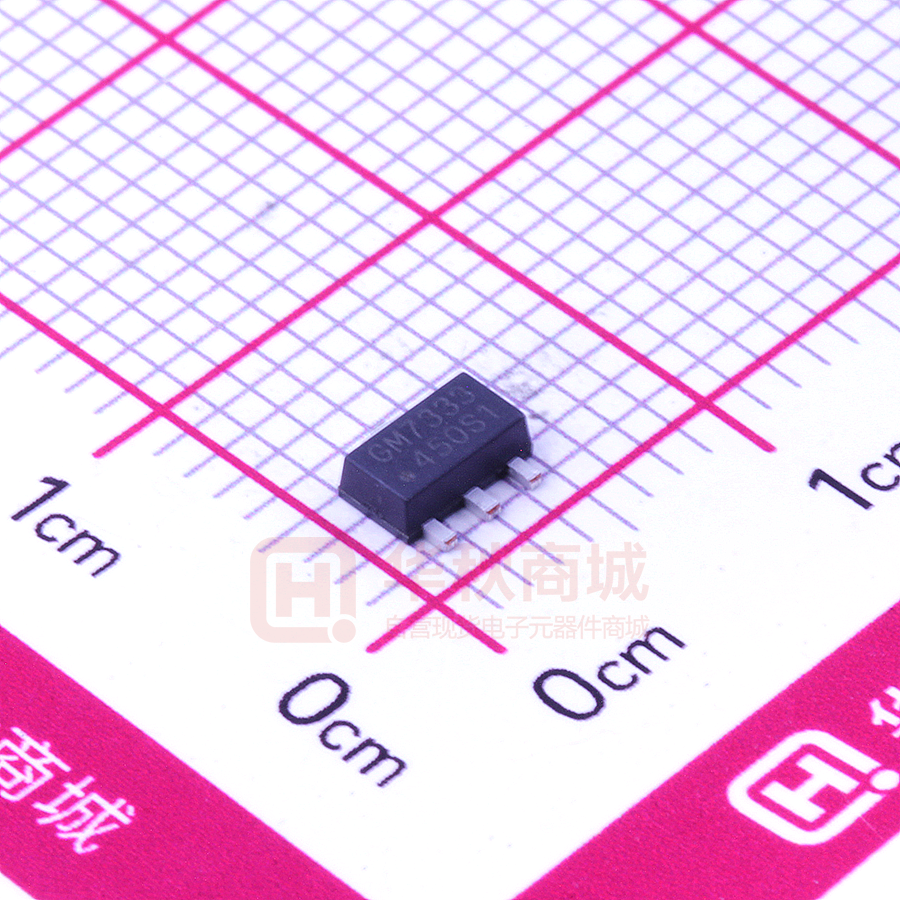

GM7333 40V 250mA Ultralow-Quiescent-Current LDO 40V 250mA Ultralow-Quiescent-Current LDO General Description The GM7333 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 1.5μA quiescent current at no load, the GM7333 is ideally suited for standby micro-control-unit systems, especially for always-on applications like E-meters, fire alarms, smoke detectors and other battery operated systems. The GM7333 retains all of the features that are common to low dropout regulators including a low dropout PMOS pass device, short circuit protection, and thermal shutdown. The GM7333 has a 40-V maximum operating voltage limit, a -40°C to 125°C operating temperature range, and ±2% output voltage tolerance over the entire output current, input voltage, and temperature range. The GM7333 is available in a SOT893 through-hole and SOT235, surface mount packages. Ordering Information Part Number GM7333 Package SOT893 Ordering Number GM7333 SOT235 GM7333K  Dropout Voltage Typically 1200 mV    at IOUT = 250 mA Internal Thermal Overload Protection Internal Short-Circuit Current Limit Ceramic Capacitor Stable Applications    E-meters, Water Meters and Gas Meters Fire Alarm, Smoke Detector Appliances and White Goods Pin Configuration SOT235 SOT893 Typical Application Circuit Features  VIN Range up to 40V  Output Voltage Tolerances of ±2% Over the Temperature Range   Output Current of 250 mA Ultra Low Quiescent Current (IQ = 1.5 μA) www.gmmicro.com Hang Zhou Gatemode Microelectronics Ltd 1 GM7333 40V 250mA Ultralow-Quiescent-Current LDO Pin Assignment Pin Name Pin No. SOT235 Pin No. SOT893 VOUT GND VIN EN 5 2 1 3 3 1 2,4 -- Pin Function Output Voltage Pin Ground Input Voltage pin. Enable Function Block Diagram www.gmmicro.com Hang Zhou Gatemode Microelectronics Ltd 2 GM7333 40V 250mA Ultralow-Quiescent-Current LDO Absolute Maximum Ratings (Note1)  VIN -------------------------------------------------------------------------------------------------- -0.3V to +45V  Junction Temperature------------------------------------------------------------------------------------------ 125C  Lead Temperature (Soldering, 10 sec.)-------------------------------------------------------------------- 300C  Storage Temperature ---------------------------------------------------------------------------- 65C to 150C Recommended Operating Conditions  Input Voltage, V IN ------------------------------------------------------------------------------ +2.7V to +40V  Junction Temperature ----------------------------------------------------------------------------- -40C to 125C Electrical Characteristics VIN=VOUT + 1V, IOUT=1mA, CIN=COUT=2.2uF, TJ=25℃, unless otherwise specified Parameter Symbol Output Voltage VOUT Line Regulation △VLINE Load Regulation △VLOAD Dropout Voltage Quiescent Current VDROP IQ Test Conditions Min Typ Max Units -2% 3.3 2% V VIN=VOUT + 1V to 40V 2 12 mV IOUT= 1mA to 100mA 10 20 IOUT= 1mA to 250mA 20 30 IOUT=50mA 200 mV IOUT=100mA 400 mV IOUT=180mA 700 mV IOUT=250mA 1200 mV 1.5 TJ= 25℃ Output Current IOUT 0 Current Limit ICL 270 Enable high level VENHI 0.9 Enable low level VENLO mV 4.0 uA 250 mA 340 mA V 0.4 V Enable pin pull high current IEN 0.3 uA Thermal Shutdown TSD 140 ℃ Thermal Shutdown Hysteresis THY 20 ℃ www.gmmicro.com Hang Zhou Gatemode Microelectronics Ltd 3 GM7333 40V 250mA Ultralow-Quiescent-Current LDO Typical Characteristics VIN=VOUT + 1V, IOUT=1mA, VOUT=3.3V, CIN=COUT=1uF, TJ=25℃, unless otherwise specified Fig 1 Vout vs Vin Fig 2 Iq vs Vin Fig 3 Vout vs Load Fig 4 Dropout vs Load Fig 5 Vout Load Transient (0 to 50mA) Fig 6 Vout Load Transient (1 to 250mA) www.gmmicro.com Hang Zhou Gatemode Microelectronics Ltd 4 GM7333 40V 250mA Ultralow-Quiescent-Current LDO Fig 7 Vout Load Transient (50 to 250mA) Fig 8 Vout Short to GND Fig 9 Vin Start up www.gmmicro.com Hang Zhou Gatemode Microelectronics Ltd 5 GM7333 40V 250mA Ultralow-Quiescent-Current LDO Package Information SOT89-3 符号 毫米 英寸 最小值 典型值 最大值 最小值 典型值 最大值 A 1.4 1.5 1.6 - - - B 2.8 3 3.2 - - - B1 1.4 1.5 1.6 - - - C 0.3 0.4 0.5 - - - C1 0.3 0.4 0.5 - - - D 4.4 4.5 4.6 - - - D1 1.4 1.6 1.8 - - - E 2.4 2.5 2.6 - - - e 0.37 0.47 0.57 - - - e1 0.22 0.42 0.62 - - - H - - 4.25 - - - L 0.8 - - - - - www.gmmicro.com Hang Zhou Gatemode Microelectronics Ltd 6 GM7333 40V 250mA Ultralow-Quiescent-Current LDO SOT23-5 符号 毫米 英寸 最小值 典型值 最大值 最小值 典型值 最大值 A 1.05 1.15 1.25 - - - A1 0.0 0.05 0.1 - - - A2 1.05 1.1 1.15 - - - b 0.3 0.4 0.5 - - - c 0.1 0.15 0.2 - - - D 2.82 2.92 3.02 - - - E 1.5 1.6 1.7 - - - E1 2.65 2.8 2.95 - - - e 0.95 - - - e1 1.9 - - - L 0.3 - 0.6 - - - Ɵ 0° - 8° - - - www.gmmicro.com Hang Zhou Gatemode Microelectronics Ltd 7
