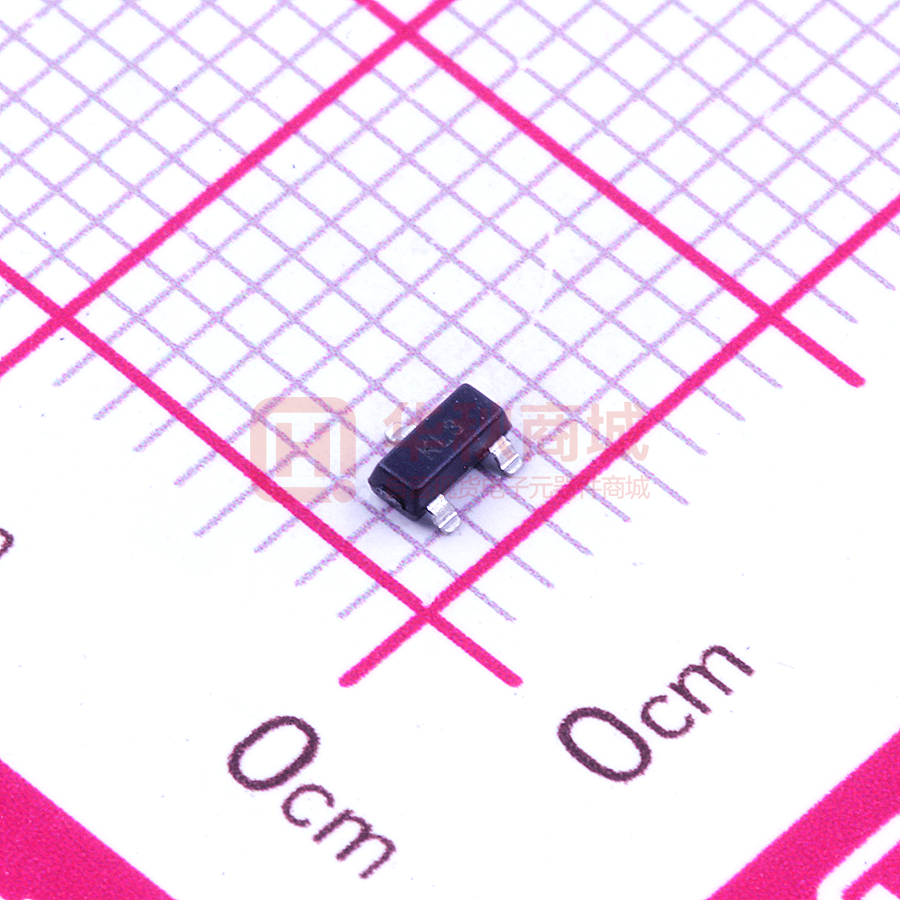

BAT54C

BAT54/A/C/S Schottky Barrier Diodes SOT-23 SOT-23 Plastic-Encapsulate Diodes Features ● High Conductance ● Fast Switching Speed ● For General Purpose Switching Applications ● Surface Mount Package Ideally Suited for Automatic Insertion Solid dot = Green molding compound device, if none,the normal device. Maximum ratings (@Ta=25℃) Parameter Symbol Limit Unit Peak Repetitive Reverse Voltage VRRM 30 V Working Peak Reverse Voltage VRWM 30 V DC Blocking Voltage VR 30 V Forward Continuous Current IFM 200 mA Non-Repetitive Peak Forward Surge Current @t=8.3ms IFSM 600 mA Repetitive Peak Forward Current @ t≤1s,δ≤0.5 IFRM 300 mA PD 200 mW RθJA 556 ℃/W TJ 125 ℃ TSTG -55~+150 ℃ Power Dissipation Thermal Resistance from Junction to Ambient Junction Temperature Storage Temperature Range 1 BAT54/A/C/S Electrical Characteristics (@Ta=25℃ unless otherwise specified) Parameter Symbol Test Condition Min V(BR) IR=100μA 30 VF1 IF=0.1mA 0.24 V VF2 IF=1mA 0.32 V VF3 IF=10mA 0.4 V VF4 IF=30mA 0.5 V VF5 IF=100mA 1 V Reverse current IR VR=25V 2 uA Diode Capacitance Ctot VR=0V,f=1MHz 10 PF Reverse recovery time trr IF=IR=10mA, Irr=0.1×IR,RL= 100Ω 5 nS Reverse voltage Forward voltage Typ Max Unit V Typical Characteristics 2 BAT54/A/C/S 3
