Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
ORIENT
Photocoupler
Product Data Sheet
Name: ORPC-6N137
Customer:_________________
Date:
_________________
SHENZHEN ORIENT TECHNOLOGY CO.,LTD.
Block A 3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang
Dist,Shenzhen,GD
TEL：0755-29681816
FAX：0755-29681200
www.orient-opto.com
Copyright© 2018 Orient Tech Corporation.All rights Reserved
1
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
1、Features
(1) 3.3v / 5V supply voltage
(2) low power consumption
(3) high speed: 15MBd(typical)
(4) VCM=1000V, and the lowest common mode inhibition
(CMR) is 10 kv/μs
(5) when - 40 ℃ ~ + 85 ℃ temperature of ac and dc
performance
2、Instructions
6N137 is made up of an efficient AlGaAs light-emitting diode
and high-speed optical detector. This design provides good ac
and dc isolation between the input and output ends of the
photoelectric coupler. The output characteristic of the
photodetector is a collector open circuit schottky clamp transistor.
The total mode transient immunity should reach 10 kv/pa at 3.3 v.
The photoelectric coupler operating temperature range: 40 ℃ ~ + 85 ℃.
3、Application Range
• line receiver isolation
•A/ D, D/A converted digital signal isolation
• eliminate noise from the ground loop
• switching power supply
• alternative pulse transformers
• motor control system
• interface of microprocessor system, computer and peripheral equipment
4、Functional Diagram
Truth table
Input（LED）Enable Output
1.NC
5.GND
2.Anode
6.Output
3.Cathode 7.VE(Enable)
4.NC
8.Vcc
ON
H
L
OFF
H
H
ON
L
H
OFF
L
H
ON
NC
L
OFF
NC
H
0.1 capacitor F bypass capacitance needs to be connected between A Pin8 and Pin5
Copyright© 2018 Orient Tech Corporation.All rights Reserved
2
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
5、Absolute Maximum Ratings (Ta=25℃)*1
Parameter
Input
Output
*2
Symbol
Rated Value
Unit
Average Forward Input Current
IF
20
mA
Reverse Input Voltage
VR
5
V
Power Dissipation
PI
40
mV
Enable Input Voltage
VE
VCC+0.5
V
Enable Input current
IE
5
mA
Output Collector Current
IO
50
mA
Output Collector Voltage
VO
7
V
Output Collector Power Dissipation
PO
85
mW
Supply Voltage
VCC
7
V
Insulation Voltage
Viso
5000
Vrms
Working Temperature
Topr
-40 ～ + 85
Storage Temperature
Tstg
-55～ + 125
Soldering Temperature
Tsol
260
℃
*1. Room temperature = 25 ℃. Exceeding the maximum absolute rating can permanently damage the device.
Working long hours at the maximum absolute rating can affect reliability.
*2. soldering time is 10 seconds.
Copyright© 2018 Orient Tech Corporation.All rights Reserved
3
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
6、Recommended Operating Conditions
Parameter
Operating Temperature
Supply Voltage
Symbol
Min
Max
Unit
TA
-40
85
℃
2.7
3.6
4.5
5.5
VCC
V
Low Level Input Current
IFL
0
250
μA
High Level Input Current
IFH
5
15
mA
Low Level Enable Voltage
VEL
0
0.8
V
High Level Enable Voltage
VEH
2
VCC
V
Output Pull-up Resistor
RL
330
4k
Ω
N
—
5
TTL Loads
Fan Out (at RL=1kΩ per
channel)
Copyright© 2018 Orient Tech Corporation.All rights Reserved
4
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
7、Opto-electronic Characteristics
Parameter
Symbol
Condition
Min
Typ
Max
Unit
VF
IF= 10mA
—
1.38
1.7
V
ΔVF/ ΔT
IF= 10mA
—
-1.5
—
mV/℃
BVR
IR = 10μA
5
—
—
V
—
1.5
5
mA
—
34
—
pF
—
3.8
10
μA
—
5.8
13
mA
Input
Forward voltage
Temperature Coefficient OF
Forward Voltage
Reverse Voltage
VE=2V,VCC=3.3V
Input Threshold Current
ITH
VO=0.6V
IOL (sinking) =13mA
Input Capacitance
CIN
f = 1MHz, VF = 0V
Detector
VE= 0.5V,
High Level Supply Current
ICCH
Low Level Supply Current
ICCL
High Level Enable Current
IEH
VCC= 3.3V,VE=2V
—
-0.19
-1.6
mA
Low Level Enable Current
IEL
VCC= 3.3V,VE=0.5V
—
-0.41
-1.6
mA
High Level Enable Voltage
VEH
2
—
—
V
Low Level Enable Voltage
VEL
—
0.8
V
High Level Output Current
IOH
—
5
100
μA
—
0.3
0.6
V
VCC=3.3V,IF=0mA
VE= 0.5V,
VCC= 3.3V,IF=10mA
VE=2V, VCC=3.3V，
VO=3.2V,IF=250μA
VE=2V, VCC=3.3V，
Low Level Output Voltage
VOL
IF=5mA,
IOL (sinking) = 13mA
Recommended temperature range (TA= -40℃—+85℃,2.7V≤VCC≤3.6 V),IF= 7.5mA Unless otherwise
stated. Typical valuesTA =25℃,VCC = 3.3 V.
Copyright© 2018 Orient Tech Corporation.All rights Reserved
5
A0
Shenzhen Orient Technology
Parameter
Co ., Ltd
ORPC-6N137
Symbol
Condition
Min
Typ
Max
Unit
VF
IF= 10mA
—
1.38
1.7
V
ΔVF/ ΔT
IF= 10mA
—
-1.5
—
mV/℃
Reverse Voltage
BVR
IR = 10μA
5
—
—
V
Input Threshold Current
ITH
—
1.35
5
mA
Input Capacitance
CIN
—
34
—
pF
—
6.1
10
μA
—
8.3
13
mA
Input
Forward voltage
Temperature Coefficient OF
Forward Voltage
VCC=5.5V,VO=0.6V
IOL>13mA
f = 1MHz, VF = 0V
Detector
VE= 0.5V,
High Level Supply Current
ICCH
Low Level Supply Current
ICCL
High Level Enable Current
IEH
VCC= 5.5V,VE=2V
—
-0.6
-1.6
mA
Low Level Enable Current
IEL
VCC= 5.5V,VE=0.5V
—
-0.9
-1.6
mA
High Level Enable Voltage
VEH
2
—
—
V
Low Level Enable Voltage
VEL
—
0.8
V
High Level Output Current
IOH
—
0.9
100
μA
—
0.3
0.6
V
VCC=5.5V,IF=0mA
VE= 0.5V,
VCC= 5.5V,IF=10mA
VE=2V, VCC=5.5V，
VO=5.5V,IF=250μA
VE=2V, VCC=5.5V，
Low Level Output Voltage
VOL
IF=5mA,
IOL (sinking) = 13mA
Recommended temperature range(TA= -40℃—+85℃,4.5V≤VCC≤5.5V),IF= 7.5mA Unless otherwise stated.
Typical values TA =25℃,VCC = 5.0V.
Copyright© 2018 Orient Tech Corporation.All rights Reserved
6
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
8、Switching Characteristics
Parameter
Propagation delay time to output
High level
Propagation delay time to output
Low level
Pulse Width Distortion
Output Rise Time (10 to
90%)
Output Fall Time (90 to 10%)
Propagation Delay Time of
Enable from VEH to VEL
Propagation Delay Time of
Enable from VEL to VEH
Symbol
Condition
Min
Typ
Max
Unit
tPLH
25
48
90
ns
tPHL
25
35
75
ns
—
13
—
ns
tr
—
21
—
ns
tf
—
6.6
—
ns
—
27
—
ns
—
9
—
ns
RL=350Ω
|tPLH-tPHL|
tELH
tEHL
CL=15pF
RL=350Ω
CL=15pF
VEL=0V
VEH=3V
Recommended temperature range (TA= -40℃—+85℃,2.7V≤VCC≤3.6 V),IF= 7.5mA Unless otherwise
stated. Typical values TA =25℃,VCC = 3.3 V。
Parameter
Propagation delay time to output
High level
Propagation delay time to output
Low level
Pulse Width Distortion
Symbol
tPLH
tPHL
TA=25
℃
RL=350
Ω
CL=15pF
|tPLH-tPHL|
Output Rise Time (10 to 90%)
tr
Output Fall Time (90 to 10%)
tf
Propagation Delay Time of
Condition
tELH
Copyright© 2018 Orient Tech Corporation.All rights Reserved
RL=350Ω
CL=15pF
RL=350Ω
7
Min
Typ
Max
Unit
25
40
75
—
—
100
25
32
75
—
—
100
—
8
—
ns
—
22
—
ns
—
6.9
—
ns
—
28
—
ns
ns
ns
A0
Shenzhen Orient Technology
Enable from VEH to VEL
Co ., Ltd
ORPC-6N137
CL=15pF
Propagation Delay Time of
VEL=0V
tEHL
Enable from VEL to VEH
VEH=3V
—
12
—
ns
Recommended temperature range (TA= -40℃—+85℃,4.5V≤VCC≤5.5V),IF= 7.5mA Unless otherwise stated.
Typical values TA =25℃,VCC = 5.0 V。
Parameter
Symbol
Condition
VCC=3.3V,VCM=1000V,RL=350Ω
Logic High Common
Mode Transient Immunity
IF=0mA,TA=25℃
|CMH|
VCC=5V,VCM=1000V,RL=350Ω
IF=0mA,TA=25℃
VCC=3.3V,VCM=1000V,RL=350Ω
Logic Low Common Mode
Transient Immunity
IF=10mA,TA=25℃
|CML|
VCC=5V,VCM=1000V,RL=350Ω
IF=10mA,TA=25℃
Parameter
Input-Output Insulation
Leakage
Current
Withstand Insulation Test
Voltage
Symbol
Condition
45% RH,t=5s,
II-O
VISO
VI-O = 3kV DC,TA =25 C
Min
10
Typ
Max
15
—
Unit
kV/μs
10
15
—
10
15
—
kV/μs
10
15
—
Min
Typ
Max
Unit
—
—
1
μA
—
—
VRMS
—
Ω
RH ≤ 50%, t =1min,TA=25℃ 5000
Input-Output Resistance
RI-O
VI-O = 500V DC
—
1012
Input-Output Capacitance
CI-O
f = 1MHz, TA = 25 C
—
1
p
Recommended temperature range (TA=40℃-85℃) Unless otherwise stated. Typical values TA =25℃.
Copyright© 2018 Orient Tech Corporation.All rights Reserved
8
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
9、Naming Rule
NOTE：
（1）year Code：
'08' means' 2008 ', '09' means' 2009 'and so on.
（2) Week Code：
01 represents the first week, 02 represents the second
week, and so on.
(3)OR：Manufacturer name, representing manufacturer Shenzhen Orient Components Co.,
Ltd.
(4) Type code: representing type 6N137.
(5)Anode
Copyright© 2018 Orient Tech Corporation.All rights Reserved
9
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
10、 Outer Dimension

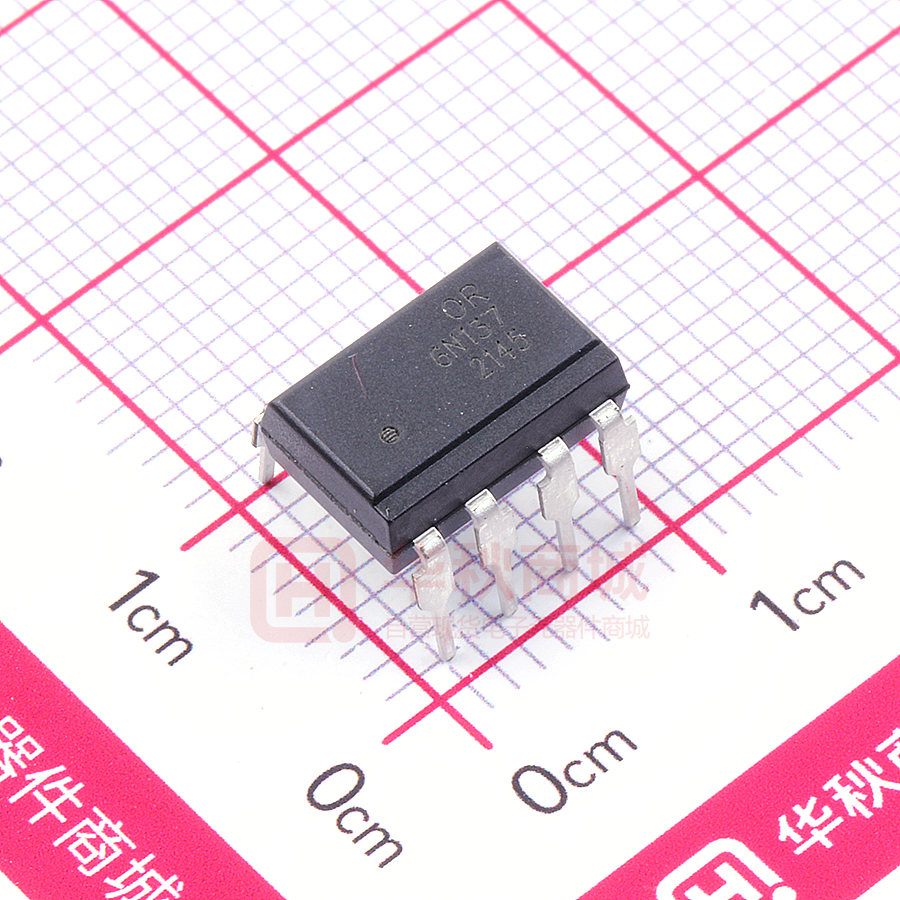

（1）OR-6N137
（2）OR-6N137M
（3）OR-6N137S
11、Recommended Foot Print Patterns (Mount Pad)
(unit：mm)
Copyright© 2018 Orient Tech Corporation.All rights Reserved
10
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
12、Taping Dimensions
（1）OR-6N137-TA
（2）OR-6N137-TA1
type
symbol
Size: mm （ inches ）
bandwidth
W
16±0.3（0.63）
pitch
P0
4±0.1（0.15）
F
7.5±0.1（0.295）
P2
2±0.1（0.079）
P1
12±0.1（0.472）
pitch
interval
Encapsulation
TA/TA1
type
amount （pcs）
Copyright© 2018 Orient Tech Corporation.All rights Reserved
1000
11
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
13、Temperature Profile Of Soldering
（1）IR Reflow soldering (JEDEC-STD-020C compliant)
Note: one solder backflow is recommended under the conditions described below in the
temperature and time profile. Do not weld more than three times.
Configuration items
conditions
Preheat
- TSmin
150˚C
- TSmax
200˚C
- Time (min to Max（TS）
90±30 sec
Soldering zone
- temperature （TL）
217˚C
- time（tL）
60～100 sec
260˚C
Peak Temperature
3˚C / sec max.
Ramp-up rate
Drop rate （3˚C / sec max.）
Copyright© 2018 Orient Tech Corporation.All rights Reserved
12
3～6˚C / sec
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
（2）Wave soldering (JEDEC22A111 compliant)
One-time welding is recommended under the temperature condition.
Temperature
260+0/-5˚C
Time
10 sec
Preheat temperature
5 to 140˚C
30 to 80 sec
Preheat time
（3）Hand soldering by soldering iron
Single lead welding is allowed in each process and one-time welding is recommended.
Temperature
380+0/-5˚C
Time
3 sec max
Copyright© 2018 Orient Tech Corporation.All rights Reserved
13
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
14、Switching time test circuit
Copyright© 2018 Orient Tech Corporation.All rights Reserved
14
A0
Shenzhen Orient Technology
Co ., Ltd
ORPC-6N137
15、Characteristics Curve
Copyright© 2018 Orient Tech Corporation.All rights Reserved
15
A0
Shenzhen Orient Technology
Copyright© 2018 Orient Tech Corporation.All rights Reserved
16
Co ., Ltd
ORPC-6N137
A0
Shenzhen Orient Technology
Copyright© 2018 Orient Tech Corporation.All rights Reserved
17
Co ., Ltd
ORPC-6N137
A0
