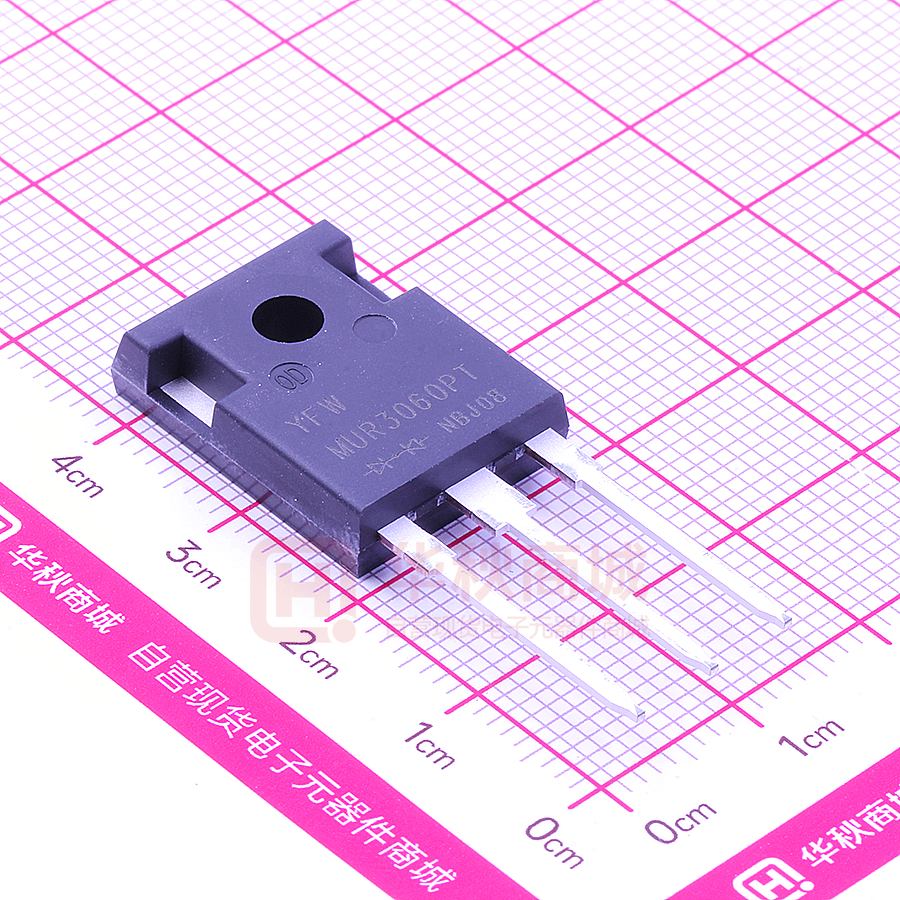

MUR3060PT

MUR3060PT-PTS ULTRAFST RECOVERY RECTIFIERS Reverse Voltage - 600 V Forward Current - 30 A FEATURES  High speed switching capability  High current capability  High forward surge capability  Low power losses，High efficiency  For use in low voltage, high frequency inverters  Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA  Case: TO-247/PT TO-247/PTS  Solder bath temperature275℃maximum,10s per JESD22-106 Primary Characteristic Io VRRM IFSM VF TJ Max 2*15A 600V 250A 1.0V 150°C Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified Parameter Symbols Value Units Maximum Repetitive Peak Reverse Voltage VRRM 600 V Maximum RMS voltage VRMS 600 V Maximum DC Blocking Voltage VDC 600 V Per Leg 15 Io Maximum Average Forward Rectified Current A Total 30 Peak Forward Surge Current, 8.3ms Single Half Sine-wave IFSM 250 A Operating Temperature Range TJ 150 °C TSTG -40 ~ +150 °C RθJA/ RθJC 2 °C/W Value Units Storage Temperature Range Typical Thermal Resistance (Note1) TO-247/PT TO-247/PTS Note1: Thermal resistance from Junction to case per leg mounted on heatsink. Electrical Characteristics (Per Leg) unless otherwise specified Characteristics Symbols Typ Max TA=25°C 0.92 - TA=125°C 0.73 - Forward Voltage Drop(Note2) at IF=3A at IF=5A at IF=15A Maximum Reverse Current at VR=600V TA=25°C 0.99 - 0.80 - TA=25°C 1.20 1.59 TA=125°C 1.00 - TA=25°C 0.03 1 11 - - 50 TA=25°C Maximum Reverse Recovery Time at IF=0.5A, IR=1A, IRR=0.25A Note2:Pulse test: 300 μs pulse width, 1 % duty cycle www.yfwdiode.com VF TA=125°C IR TRR 1/3 V uA uA nS Dongguan YFW Electronics Co, Ltd. MUR3060PT-PTS RATINGS AND CHARACTERISTIC CURVES 20 300 PEAK FORWARD SURGE CURRENT(A) AVERAGE FORWARD CURRENT (A) FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE 15 10 5 250 200 8.3ms Single Half Sine Wave JEDEC Method 150 100 50 0 0 0 25 50 75 100 125 150 175 1 10 FIG. 3 TYPICAL FORWARD CHARACTERISTICS PER LEG FIG. 4 TYPICAL REVERSE CHARACTERISTICS PER LEG 100000 50 10000 REVERSE LEAKAGE CURRENT(uA) INSTANTANEOUS FORWARD CURRENT (A) 100 NUMBER OF CYCLES AT 60 Hz AMBIENT TEMPERATURE (℃) TA=125℃ 5 TA=25℃ 0.5 0.3 0.5 0.7 0.9 1.1 1.3 1000 100 TA=125℃ 10 1 0.1 TA=25℃ 0.01 0.001 0 1.5 50 100 150 200 250 300 350 400 450 500 550 600 PERCENT OF VBR(V) FORWARD VOLTAGE (V) Marking on the body Ordering information Part Number Package Unit Weight Base Quantity Delivery mode MUR3060PT TO-247 0.209oz(5.93g) 30 pcs / tube 600pcs/box 2400pcs/carton MUR3060PTS TO-247S 0.158oz(4.48g) 30 pcs / tube 600pcs/box 2400pcs/carton Note: For Halogen Free molding compound, add "H" suffix to part number above. www.yfwdiode.com 2/3 Dongguan YFW Electronics Co, Ltd. MUR3060PT-PTS Package Outline Dimensions millimeters www.yfwdiode.com 3/3 Dongguan YFW Electronics Co, Ltd.
