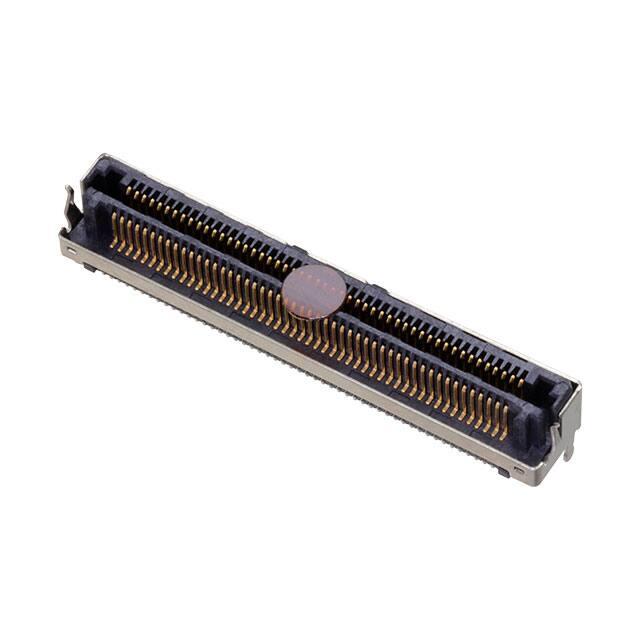

LSHM-150-03.0-L-DV-A-S-K-TR

FINE PITCH SELF MATING CONNECTORS (0.50 mm) .0197" PITCH FEATURES & BENEFITS • Ten stack height options from 5.00 mm to 12.00 mm • 0.50 mm, 0.635 mm or 0.80 mm pitches • Audible click when mated • Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors • Self-mating system reduces inventory cost • Parallel, perpendicular and coplanar systems • Shielded and lubricated options • Severe Environment Testing qualified (LSHM); aligns with MIL-DTL-55302. Visit samtec.com/set SLIM BODY DESIGNS (40 total positions each) 5.00 4.60 14.70 17.45 20.40 5.00 LSHM LSS LSEM LSHM 8 mm STACK HEIGHT LSHM 12 mm STACK HEIGHT LSHM 5 mm STACK HEIGHT KEY SPECIFICATIONS INSULATOR MATERIAL CONTACT MATERIAL PLATING OPERATING TEMP RANGE CURRENT RATING SMT COPLANARITY LEAD-FREE SOLDERABLE Black LCP Phosophor Bronze Au or Sn over 50 µ" (1.27 µm) Ni -55 °C to +125 °C LSHM: 2.0 A per pin LSS: 1.7 A per pin LSEM: 1.8 A per pin (0.10 mm) .004" max Yes F-224 samtec.com/RazorBeam Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. 14 G b p s (0.50 mm) .0197" PITCH • RUGGED HERMAPHRODITIC CONNECTORS LSHM -1 NO. PINS PER ROW - 05, 10, 20, 30, 40, 50 - LEAD STYLE (Vertical) Specify LEAD STYLE from chart (Right-angle) –01 = Standard PLATING OPTION - TAIL OPTION –F -A- –DV = Gold flash on contact, Matte Tin on tail –S = Vertical = With Shield –DH –N = Right-angle (Lead style –01 & –L1 only) –L =10 µ" (0.25 µm) Gold on contact, Matte Tin on tail SHIELD OPTION = Without Shield - - K –K = (3.50 mm) .138" DIA Polyimide film Pick & Place Pad –RH = Reverse Right-angle (Lead style –01 & –L1 only (Right-angle) –L1 = Lubricated "X"R –TR = Tape & Reel –FR = Full Reel Tape & Reel (must order maximum quantity per reel; contact Samtec for quantity breaks) LSHM Board Mates: LSHM Cable Mates: HLCD LEAD STYLE No. of positions x (0.50) .0197 + (4.70) .185 –02.5 & –02.5 –02.5 & –03.0 –03.0 & –03.0 –02.5 & –04.0 B LEAD STYLE LEAD STYLE (LUBRICATED) A B –02.5 –L2.5 (3.95) .156 (1.00) .039 –03.0 –L3.0 (4.45) .175 (1.50) .059 –04.0 –L4.0 (5.45) .215 (2.50) .098 –06.0 –L6.0 (7.45) .293 (4.50) .177 (STANDARD) –03.0 & –04.0 (4.98) .196 –04.0 & –04.0 A No. of positions x (0.50) .0197 + (4.95) .195 No. of positions x (0.50) .0197 + (2.00) .078 —DV—S —DV—N (5.00) .196 (5.50) .217 (6.00) .236 (6.50) .256 (7.00) .276 (8.00) .315 –02.5 & –06.0 (8.50) .335 –04.0 & –06.0 (10.00) .394 –03.0 & –06.0 –06.0 & –06.0 (9.00) .354 (12.00) .472 *Processing conditions will affect mated height.       5VVMWVZP[PVUZ _     MATED HEIGHT *   5VVMWVZP[PVUZ _   —DH—S —RH—S 5VVMWVZP[PVUZ _   5VVMWVZP[PVUZ _     Notes: Severe Environment Testing qualified; aligns with MIL-DTL-55302. Visit samtec.com/set Some lengths, styles and options are non-standard, non-returnable.   5VVMWVZP[PVUZ _    —DH—N    5VVMWVZP[PVUZ _   —RH—N   View complete specifications at: samtec.com?LSHM samtec.com/RazorBeam Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice. F-224
