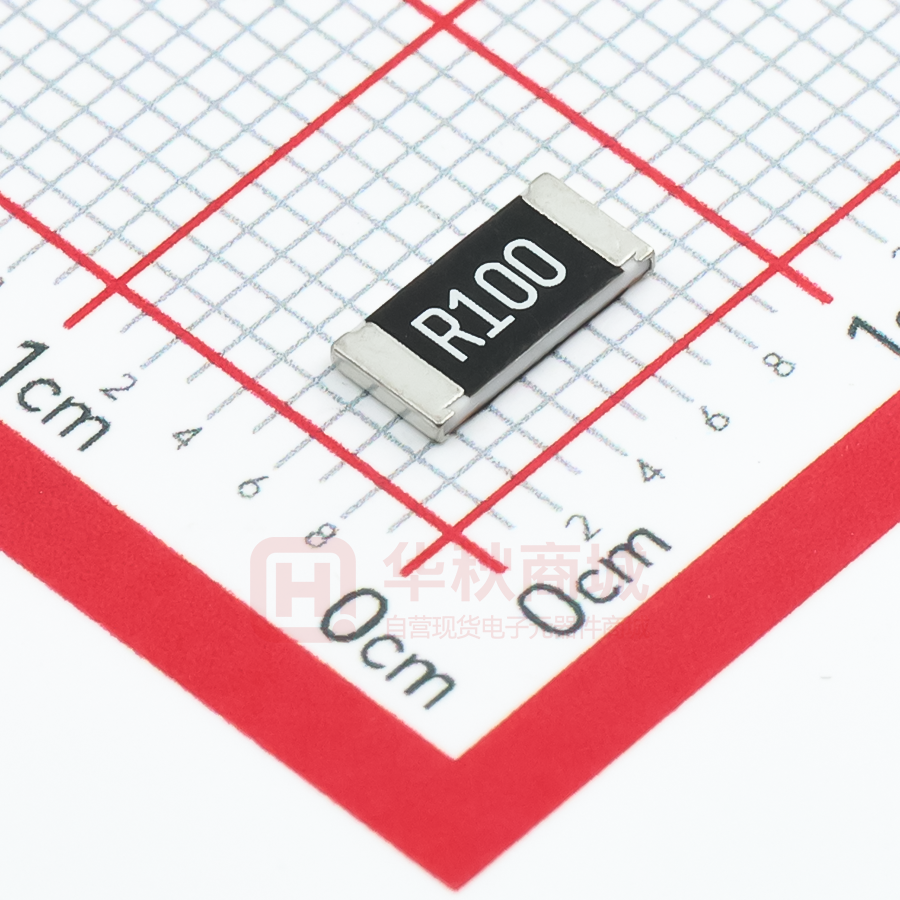

MFL12HR100FT

METAL FOIL CHIP FIXED RESISTOR Metal Foil Chip Fixed Resistor 2W The highest power is up to 2W. TCR 50 ppm/ The lowest TCR is 50 ppm/ . Current detecting resistors for power supply, motor circuits,etc Superior mechanical and frequency characteristics ROHS Compliant with RoHS directive Halogen f ree requirement Switching Power Supply Over Current Protection Voltage Regulation Module(VRM) DC-DC Converter Charger Automotive Engine Control Portable Devices etc. MF Product Code L Power Rating Series Code Code G Metal Foil Chip Fixed Resistor 12 Power rating series 1/2W H 3/4W J 1W L 2W Type Code Code Type 03 0603 05 0805 06 1206 10 2010 12 2512 R010 H T.C.R Code T.C.R Type Code (ppm/ ) H 0603 0805 1206 2010 2512 50 K 100 W 200 Resistance Value Code F T Resistance Tolerance Code Packaging Style Code R m M Units: Decimal point should be expressedby R Units m Decimal point should be expressed by M Example R005=0.005 R100=0.100 R047=0.047 6M50=6.50m Code Tolerance F Code Packaging Style 1% T G 2% J 5% Tape & Reel C Case Ceramic Substrate Alloy Plate Top Electrode Primary Overcoat Cu Plating Secondary Overcoat Edge Electrode Barrier Layer External Electrode 1 (m Type 0603 0805 1206 2010 2512 W (mm) L (mm) ) R003~R004 R005 R003~R004 R005 R003~R004 R005 R003 R004~R005 R005 R002 R003 R004 R005-R006 R007 R007 Ta (mm) Tt (mm) 1.60 0.20 0.80 0.20 0.70 0.15 0.35 0.25 2.00 0.20 1.25 0.15 0.70 0.15 0.40 0.25 3.20 0.20 1.60 0.15 0.75 0.15 0.50 0.30 5.00 0.20 2.50 0.20 0.75 0.20 0.60 0.30 6.40 0.20 3.20 0.20 0.75 0.20 0.90 0.30 100 -55 Tb (mm) 0.60 0.20 0.35 0.70 0.20 0.30 0.40 0.90 0.30 0.30 0.50 1.60 0.30 0.30 1.30 0.80 2.30 1.90 1.70 1.20 1.10 0.90 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 70 75 Percent Rated Load Operating Temperature Range: -55 ~170 50 25 0 -75 -50 -25 0 100 125 150 170 25 50 75 Ambient temperature( ) 70 ( ) Note: For resistors operated in ambient over 70 ,rated load (rated power) shall be derated in accordance with the above figure. Type 70 Rating Power at 70 (W) 1/2 0603 Limiting Element Current (A) Resistance Range 12.9 28.9 0.003 R 0.030 0805 1/2 3/ 4 15.8 35.4 0.003 R 0.047 1206 1/ 2 1 18.3 40.8 0.003 R 0.068 1 18.3 40.8 0.003 R 0.100 2 25.8 51.6 0.002 R 0.100 1 18.3 40.8 0.100
