TP5531 / TP5532 / TP5534
1.8V, 34μA, RRIO, Zero Drift Op-amps
Description
Features
LOW OFFSET VOLTAGE: 10 μV (Max)
ZERO DRIFT: 0.008 µV/°C
0.1Hz to 10Hz Noise: 1.1 µVPP
Low Supply Current: 34µA per Amplifier
Bandwidth: 350 kHz
Slew Rate: 0.16 V/μs
High Gain, 130 dB High CMRR and PSRR
Rail-to-rail Input and Output Swing
–40°C to 125°C Operation Range
Small Packages: SC70 and SOT23 (TP5531)
Applications
Transducer Amplifier
Bidirectional Current Sense
DC Offset Correction
Temperature Measurement
Remote Located Sensors
Battery-Powered Instruments
Electronic Weigh Scales
The 3PEAK TP5531/2/4 low-power chopper stabilized
operational amplifiers provide input offset voltage
correction for very low offset and offset drift over time
and temperature. The devices operate with a single
supply voltage as low as 1.8V, while drawing 34μA per
amplifier of quiescent current with a gain bandwidth
product of 350kHz. They are unity gain stable, have no
1/f noise, have good Power Supply Rejection Ratio
(PSRR) and Common Mode Rejection Ratio (CMRR),
and feature rail-to-rail input and output swing.
The devices were designed using an advanced CMOS
process. The TP5531 (single version) is available in
SC70-5, SOT23-5 and SO-8 packages. The TP5532
(dual version) is offered in MSOP-8 and SO-8 package.
The TP5534 (quad version) is available in TSSOP-14
and SOIC-14 package. All versions are specified for
operation from -40°C to 125°C.
3PEAK and the 3PEAK logo are registered trademarks of
3PEAK INCORPORATED. All other trademarks are the property of
their respective owners.
Related Zero-Drift Op-amps
VOS (Max.)
10 μV
5 μV
5 μV
GBWP
350 kHz
1.5 MHz
3.5 MHz
Supply Current
34 μA
220 μA
500 μA
eN at 1 kHz
55 nV/√Hz
25 nV/√Hz
15 nV/√Hz
Single
TP5531
TP5541
TP5551
Dual
TP5532
TP5542
TP5552
Quad
TP5534
TP5544
TP5554
Pin Configuration (Top View)
500nV/div
0.1Hz to 10Hz NOISE
www.3peakic.com
5s/div
REV1.0
1
TP5531 / TP5532/TP5534
1.8V, 34μA, RRIO, Zero Drift Op-amps
Pin Configuration (Top View, continued)
TP5531
TP5532
8-Pin SOIC
(-S Suffix)
8-Pin SOIC/MSOP
(-S and -V Suffixes)
NC
1
8
NC
Out A
1
﹣In
2
7
﹢Vs
﹣In A
2
﹢In
3
6
Out
﹢In A
3
﹣Vs
4
5
NC
﹣Vs
4
A
B
TP5534
14-Pin SOIC/TSSOP
(-S and -T Suffixes)
8
﹢Vs
Out A
1
14
Out D
7
Out B
﹣In A
2
13
﹣In D
6
﹣In B
﹢In A
3
12
﹢In D
5
﹢In B
﹢Vs
4
11
﹣Vs
﹢In B
5
10
﹢In C
A
B
D
C
﹣In B
6
9
﹣In C
Out B
7
8
Out C
Order Information
Model Name
TP5531
TP5531U
TP5532
TP5534
Order Number
Package
Transport Media, Quantity
Marking
Information
TP5531-TR
SOT23-5
Tape and Reel, 3,000
E31T
TP5531-CR
SC70-5 (SOT353)
Tape and Reel, 3,000
E31C
TP5531-SR
SOIC-8
Tape and Reel, 4,000
E31S
TP5531U-TR
SOT23-5
Tape and Reel, 3,000
E31U

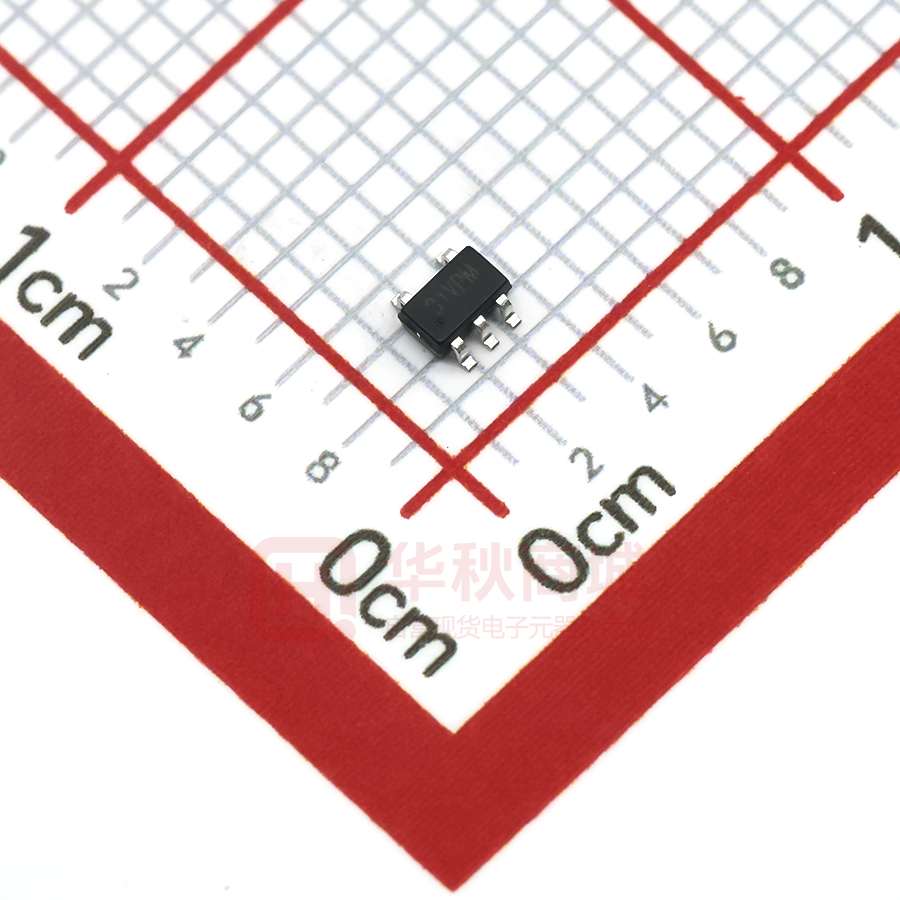

TP5531U-CR
SC70-5
E31V
TP5532-SR
SOIC-8
Tape and Reel, 3,000
Tape and Reel, 4,000
E32S
TP5532-VR
MSOP-8
Tape and Reel, 3,000
E32V
TP5534-SR
SOIC-14
Tape and Reel, 2,500
E34S
TP5534-TR
TSSOP-14
Tape and Reel, 3,000
E34T
Absolute Maximum Ratings Note 1
Supply Voltage: .....................................................6V
Current at Supply Pins……………............... ±50mA
Input Voltage: ....................... ……V– – 0.2 to V+ + 0.2
Operating Temperature Range.......–40°C to 125°C
Note 2
........................... ±20mA
Maximum Junction Temperature................... 150°C
Output Current: OUT...................................... ±60mA
Storage Temperature Range.......... –65°C to 150°C
Input Current: +IN, –IN
Output Short-Circuit Duration
Note 3
…....... Indefinite
Lead Temperature (Soldering, 10 sec) ......... 260°C
Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to
any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime.
Note 2: The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 500mV beyond the
power supply, the input current should be limited to less than 10mA.
Note 3: A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power
supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to
the package. The specified values are for short traces connected to the leads.
2
REV1.0
www.3peakic.com
TP5531 / TP5532/TP5534
1.8V, 34μA, RRIO, Zero Drift Op-amps
ESD, Electrostatic Discharge Protection
Symbol
Parameter
Condition
Minimum Level
Unit
HBM
Human Body Model ESD
MIL-STD-883H Method 3015.8
7
kV
CDM
Charged Device Model ESD
JEDEC-EIA/JESD22-C101E
2
kV
Electrical Characteristics
The boldface denotes the specifications which apply over the full operating temperature range, TA = -40°C to +125°C.
At TA = 27°C, VDD = 5V, RL = 10kΩ, VCM = VDD/2, unless otherwise noted.
SYMBOL
PARAMETER
VDD
Supply Voltage Range
IQ
Quiescent current per amplifier
CONDITIONS
MIN
TYP
V
40
μA
55
μA
2
10
μV
0.008
0.05
μV/°C
34
Over temperature
VOS
Input Offset Voltage
dVOS/dT
vs temperature
PSRR
vs power supply
Vn
Input grounded, unity gain.
0.5
μV/V
input voltage noise, f=0.01Hz to 1Hz
0.4
μVpp
input voltage noise, f=0.1Hz to 10Hz
1.1
μVpp
en
Input voltage noise density, f=1kHz
55
nV/√Hz
CIN
3
2
±50
ISC
CL
GBWP
SR
tOR
tS
Input capacitor, Differential
Input capacitor, Common-Mode
Input Bias Current
Over temperature
Input offset current
Common-mode voltage range
Common-mode rejection ratio
Output Voltage Swing from rail
Over temperature
Short-circuit current
Maximum Capacitive Load
Unity Gain Bandwidth
Slew rate
Overload recovery time
Settling time to 0.01%
1,000
350
0.16
60
40
pF
pF
pA
pA
pA
V
dB
mV
mV
mA
pF
kHz
V/μs
μs
μs
AVOL
Open-Loop Voltage Gain
120
dB
250
200
210
158
83
100
°C/W
IB
IOS
VCM
CMRR
VO
θJA
Thermal Resistance Junction to
Ambient
www.3peakic.com
Vs = +1.8V to +5.5V
UNITS
5.5
1.8
IO = 0
MAX
±100
(V-)–0.1
110
RL=10kΩ
RL=10kΩ
CL=100pF
G=+1, CL=100pF
G=-10
CL=100pF
(V-)+100mV
