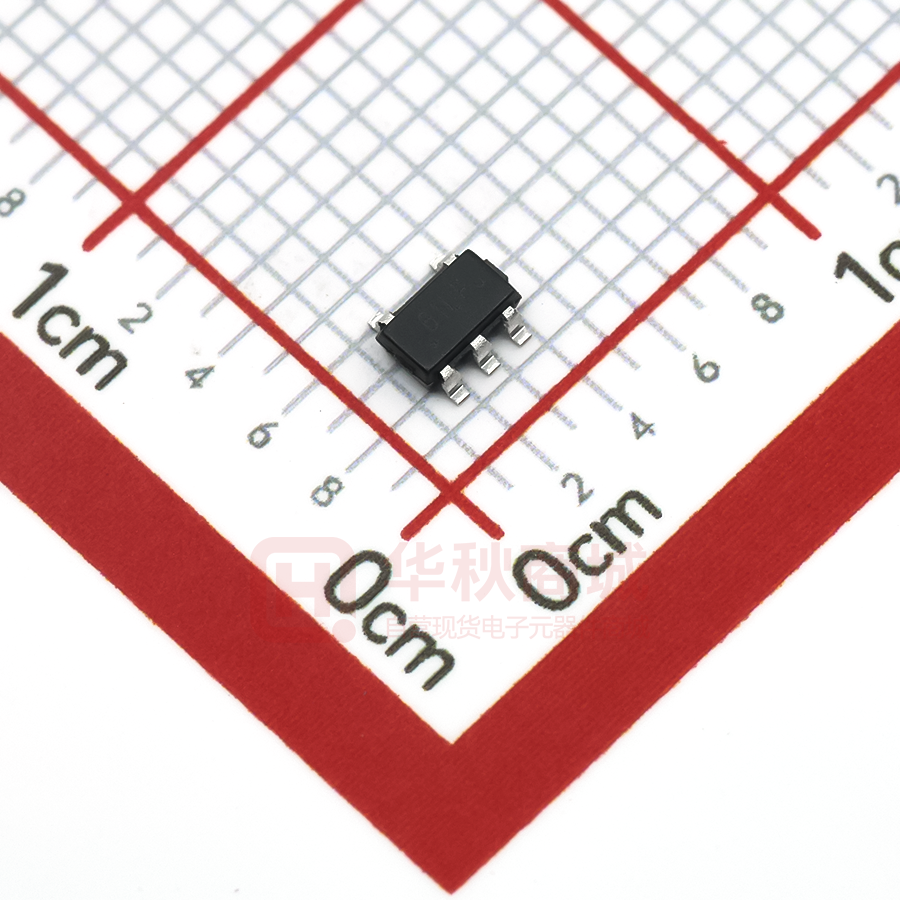

TP1561AL1-TR

TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Features Description • • • • • • • • • • • • The TP156xAL1 series of products are CMOS dual and quad RRIO op-amps with low offset, low power and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 6-MHz bandwidth, 4.5-V/μs slew rate, and low distortion while drawing only 600 μA of quiescent current per amplifier. The input common-mode voltage range extends 300 mV beyond V− and V+, and the outputs swing rail-to-rail. The TP156xAL1 family can be used as plug-in replacements for many commercially available op-amps to reduce power consumption and improve input/output range and performance. Supply Voltage: 2.5 V to 6 V Low Supply Current: Typical 600-μA per Channel Rail-to-Rail Input and Output Bandwidth: Typical 6 MHz Slew Rate: Typical 4.5 V/μs Excellent EMI Suppress Performance Offset Voltage: Maximum ±3 mV Offset Voltage Temperature Drift: Typical 1 μV/°C Low Noise: Typical 19 nV/√Hz at 1 kHz High Output Capability: Typical 100 mA −40°C to 125°C Operation Temperature Range The combination of features makes the TP156xAL1 ideal choice for motor control and automotive applications. The ability to swing rail-to-rail at the inputs and outputs enables designers to buffer CMOS DACs, ASICs, or other wide output swing devices in single-supply systems. Qualified for Automotive Applications with AEC-Q100 Reliability Test Applications • • Automotive Motor Control On-Board Charger Typical Application Circuit www.3peak.com 1 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Table of Contents Features................................................................................................................................................................1 Applications......................................................................................................................................................... 1 Description........................................................................................................................................................... 1 Typical Application Circuit..................................................................................................................................1 Revision History...................................................................................................................................................3 Pin Configuration and Functions....................................................................................................................... 4 Specifications.......................................................................................................................................................7 Absolute Maximum Ratings (1) .......................................................................................................................7 ESD, Electrostatic Discharge Protection........................................................................................................ 7 Recommended Operating Conditions............................................................................................................ 7 Thermal Information........................................................................................................................................7 Electrical Characteristics................................................................................................................................ 8 Typical Performance Characteristics............................................................................................................ 10 Detailed Description.......................................................................................................................................... 13 Functional Block Diagram.............................................................................................................................13 Application and Implementation...................................................................................................................... 14 Application Information ................................................................................................................................ 14 Tape and Reel Information................................................................................................................................ 15 Package Outline Dimensions........................................................................................................................... 16 SOT23-5....................................................................................................................................................... 16 SOP8............................................................................................................................................................ 17 MSOP8......................................................................................................................................................... 18 SOP14.......................................................................................................................................................... 19 Order Information.............................................................................................................................................. 20 IMPORTANT NOTICE AND DISCLAIMER......................................................................................................... 21 www.3peak.com 2 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Revision History Date Revision 2022-11-20 Rev.A.0 Initial version. 2023-02-01 Rev.A.1 Updated the status of AEC-Q100 test in Features. 2023-02-15 Rev.A.2 Corrected typo. 2023-09-15 Rev.A.3 Update the max value of supply voltage from 5.5V to 6V. www.3peak.com Notes 3 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Pin Configuration and Functions TP1561AL1 SOT23-5 Package Top View Out 1 5 +Vs 4 −In Part Number −Vs 2 +In 3 Table 1. Pin Functions: TP1561AL1 Pin No. Name I/O 1 Out Output 2 −VS - 3 +In Input Noninverting input 4 −In Input Inverting input 5 +VS - www.3peak.com Description Output Negative power supply Positive power supply 4 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps TP1562AL1 SOP8 Package Top View TP1562AL1 MSOP8 Package Top View Out A 11 88 +Vs −In A 22 77 Out B +In A 33 66 −In B 4 −Vs 55 Out A 1 8 +Vs −In A 2 7 Out B +In A 3 6 −In B −Vs 4 5 +In B +In B Table 2. Pin Functions: TP1562AL1 Pin No. Name I/O 1 Out A Output 2 −In A Input Inverting input 3 +In A Input Noninverting input 4 −VS - 5 +In B Input Noninverting input 6 −In B Input Inverting input 7 Out B Output 8 +VS - www.3peak.com Description Output Negative power supply Output Positive power supply 5 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps TP1564AL1 SOP14 Package Top View Out A 1 14 Out D −In A 2 13 −In D +In A 3 12 +In D +Vs 4 11 −Vs +In B 5 10 +In C −In B 6 9 −In C Out B 7 8 Out C Table 3. Pin Functions: TP1564AL1 Pin No. Name I/O 1 Out A Output 2 −In A Input Inverting input 3 +In A Input Noninverting input 4 +VS - 5 +In B Input Noninverting input 6 −In B Input Inverting input 7 Out B Output Output power supply 8 Out C Output Output power supply 9 −In C Input Inverting input 10 +In C Input Noninverting input 11 −VS - 12 +In D Input Noninverting input 13 −In D Input Inverting input 1 Out D Output www.3peak.com Description Output Positive power supply Negative power supply Output 6 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Specifications Absolute Maximum Ratings (1) Parameter Min Max Unit 6.5 V (−VS) – 0.3 (+VS) + 0.3 V Differential Input Voltage (−VS) – (+VS) (+VS) – (−VS) V Input Current: +IN, −IN (2) −10 +10 mA Supply Voltage, (+VS) – (−VS) Input Voltage Output Short-Circuit Duration (3) Infinite TJ Maximum Junction Temperature 150 °C TA Operating Temperature Range −40 125 °C TSTG Storage Temperature Range –65 150 °C TL Lead Temperature (Soldering 10 sec) 260 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. (2) The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300 mV beyond the power supply, the input current should be limited to less than 10 mA. (3) A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD, Electrostatic Discharge Protection Parameter Condition Minimum Level Unit HBM Human Body Model ESD AEC-Q100-002 4 kV CDM Charged Device Model ESD AEC-Q100-011 1.5 kV Recommended Operating Conditions Parameter Min Typ Max Unit VS Supply Voltage, (+VS) – (−VS) 2.5 6 V TA Operating Temperature Range −40 125 °C Thermal Information Package Type θJA θJC Unit SOT23-5 250 81 °C/W SOP8 158 43 °C/W MSOP8 210 45 °C/W SOP14 120 36 °C/W www.3peak.com 7 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Electrical Characteristics All test condition is at VS = 5 V, TA = 25°C, RL = 2 kΩ, CL = 100 pF, unless otherwise noted. Parameter Conditions Min Typ Max Unit 6 V 900 μA 1200 μA Power Supply VS Supply Voltage Range IQ Quiescent Current per Amplifier 2.5 600 TA = −40°C to 125°C VS = 2.7 V to 5.5 V, VCM = 0.1 V PSRR Power Supply Rejection Ratio VS = 2.7 V to 5.5 V, VCM = 0.1 V, TA = −40°C to 125°C 75 90 dB 65 dB Input Characteristics VOS Input Offset Voltage VOS Input Offset Voltage VOS TC Input Offset Voltage Drift IB Input Bias Current IOS Input Offset Current CIN Input Capacitance Av VCMR Open-loop Voltage Gain VCM = 0 V to 3 V VCM = 0 V to 3 V, TA = −40°C to 125°C −3 3 mV −4 4 mV TA = −40°C to 125°C 1 μV/°C TA = 25 °C −200 1 200 pA TA = 125 °C −500 25 500 pA 1 pA Differential Mode 8 pF Common Mode 7 pF 100 dB VOUT = 0.1 V to 4.9 V, RLOAD = 100 kΩ 80 VOUT = 0.1 V to 4.9 V, RLOAD = 100 kΩ, TA = −40°C to 125°C 70 Common-mode Input Voltage Range dB (−VS) − 0.1 VCM = 0 V to 2.5 V 70 60 (+VS) + 0.1 100 CMRR Common Mode Rejection Ratio VCM = 0 V to 2.5 V, TA = −40°C to 125°C Xtalk Channel Separation f = 1 kHz, RL = 2 kΩ 110 Maximum Output Voltage Swing RLOAD = 10 kΩ, TA = −40°C to 125°C 3 Output Short-Circuit Current TA = −40°C to 125°C V dB dB dB Output Characteristics ISC 65 20 mV 100 mA 6 MHz 4.5 V/μs AC Specifications GBW Gain-Bandwidth Product SR Slew Rate www.3peak.com AV = 1, VOUT = 1.5 V to 3.5 V, CLOAD = 60 pF, RLOAD = 1 kΩ 8 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Parameter Conditions Open loop Min 3 Typ 4.5 Settling Time, 0.1% Settling Time, 0.01% AV = 1, 2 V Step, CLOAD = 60 pF, RLOAD = 1 kΩ Unit V/μs Open loop, TA = −40°C to 125°C 2 tS Max V/μs 0.8 μs 1 μs PM Phase Margin RLOAD = 1 kΩ, CLOAD = 60 pF 60 ° GM Gain Margin RLOAD = 1 kΩ, CLOAD = 60 pF 15 dB Noise Performance EN Input Voltage Noise f = 0.1 Hz to 10 Hz 8 μVPP eN Input Voltage Noise Density f = 1 kHz 19 nV/√Hz iN Input Current Noise f = 1 kHz 2 fA/√Hz www.3peak.com 9 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Typical Performance Characteristics All test condition: VS = 5 V, VCM = 2.5 V, RL = Open, unless otherwise noted. Figure 1. Unity Gain Bandwidth vs. Temperature Figure 2. Open-Loop Gain and Phase Figure 3. Supply Current vs. Temperature Figure 4. Short Circuit Current vs. Temperature Figure 5. Quiescent Current vs. Supply Voltage Figure 6. Offset Voltage vs. Common-Mode Voltage www.3peak.com 10 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Figure 7. CMRR vs. Frequency Figure 8. CMRR vs. Temperature Figure 9. PSRR vs. Frequency Figure 10. PSRR vs. Temperature Figure 11. Input Voltage Noise Spectral Density Figure 12. 0.1-Hz to 10-Hz Input Voltage Noise www.3peak.com 11 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Figure 13. EMIRR IN+ vs. Frequency Figure 14. Large-Scale Step Response Figure 15. Negative Over-Voltage Recovery Figure 16. Positive Over-Voltage Recovery Figure 17. Negative Output Swing vs. Load Current Figure 18. Positive Output Swing vs. Load Current www.3peak.com 12 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Detailed Description Functional Block Diagram Figure 19. Functional Block Diagram www.3peak.com 13 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Application and Implementation Note Information in the following application sections is not part of the 3PEAK’s component specification and 3PEAK does not warrant its accuracy or completeness. 3PEAK’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. Application Information Low Supply Voltage and Low Power Consumption The TP156xAL1 family of operational amplifiers can operate with power supply voltages ranging from 2.5 V to 6 V. Each amplifier draws only 600-μA quiescent current. The low-supply voltage capability and low-supply current are ideal for portable applications demanding high capacitive load driving capability and stable wide bandwidth. The TP156xAL1 family is optimized for wide bandwidth and low-power applications. They have an industry leading high GBWP to power ratio and are unity gain stable for any capacitive load. When the load capacitance increases, the increased capacitance at the output pushed the non-dominant pole to lower frequency in the open loop frequency response, lowering the phase and gain margin. Higher gain configurations tend to have better capacitive drive capability than lower gain configurations due to lower closed loop bandwidth and hence higher phase margin. Ground Sensing and Rail-to-Rail Output The TP156xAL1 family has excellent output drive capability, delivering over 100 mA of output drive current. The output stage is a rail-to-rail topology that is capable of swinging to within 10 mV of either rail. Since the inputs can go 300 mV beyond either rail, the op-amp can easily perform ‘true ground’ sensing. The maximum output current is a function of total supply voltage. As the supply voltage to the amplifier increases, the output current capability also increases. Attention must be paid to keep the junction temperature of the IC below 150°C when the output is in continuous short-circuit. The output of the amplifier has reverse-biased ESD diodes connected to each supply. The output should not be forced more than 0.5 V beyond either supply, otherwise the current will flow through these diodes. www.3peak.com 14 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Tape and Reel Information Order Number Package D1 (mm) W1 (mm) TP1561AL1-S5TR-S SOT23-5 180.0 13.1 3.2 3.2 1.4 TP1562AL1-SO1R-S SOP8 330.0 17.6 6.4 5.4 TP1562AL1-VS1R-S MSOP8 330.0 17.6 5.2 TP1564AL1-SO2R-S SOP14 330.0 21.6 6.5 www.3peak.com W0 (mm) Pin1 Quadrant 4.0 8.0 Q3 2.1 8.0 12.0 Q1 3.3 1.5 8.0 12.0 Q1 9.0 2.1 8.0 16.0 Q1 A0 (mm) B0 (mm) K0 (mm) P0 (mm) 15 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Package Outline Dimensions SOT23-5 www.3peak.com 16 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps SOP8 www.3peak.com 17 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps MSOP8 www.3peak.com 18 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps SOP14 www.3peak.com 19 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps Order Information Operating Temperature Range Package Marking Information MSL Transport Media, Quantity Eco Plan TP1561AL1-S5TR-S −40 to 125°C SOT23-5 61S MSL 3 Tape and Reel, 3000 Green TP1562AL1-SO1R-S −40 to 125°C SOP8 1562S MSL 1 Tape and Reel, 4000 Green TP1562AL1-VS1R-S −40 to 125°C MSOP8 1562S MSL 1 Tape and Reel, 3000 Green TP1564AL1-SO2R-S −40 to 125°C SOP14 1564S MSL 1 Tape and Reel, 2500 Green Order Number (1) For future products, contact the 3PEAK factory for more information and samples. Green: 3PEAK defines "Green" to mean RoHS compatible and free of halogen substances. www.3peak.com 20 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps IMPORTANT NOTICE AND DISCLAIMER Copyright© 3PEAK 2012-2023. All rights reserved. Trademarks. Any of the 思瑞浦 or 3PEAK trade names, trademarks, graphic marks, and domain names contained in this document /material are the property of 3PEAK. You may NOT reproduce, modify, publish, transmit or distribute any Trademark without the prior written consent of 3PEAK. Performance Information. Performance tests or performance range contained in this document/material are either results of design simulation or actual tests conducted under designated testing environment. Any variation in testing environment or simulation environment, including but not limited to testing method, testing process or testing temperature, may affect actual performance of the product. Disclaimer. 3PEAK provides technical and reliability data (including data sheets), design resources (including reference designs), application or other design recommendations, networking tools, security information and other resources "As Is". 3PEAK makes no warranty as to the absence of defects, and makes no warranties of any kind, express or implied, including without limitation, implied warranties as to merchantability, fitness for a particular purpose or non-infringement of any thirdparty’s intellectual property rights. Unless otherwise specified in writing, products supplied by 3PEAK are not designed to be used in any life-threatening scenarios, including critical medical applications, automotive safety-critical systems, aviation, aerospace, or any situations where failure could result in bodily harm, loss of life, or significant property damage. 3PEAK disclaims all liability for any such unauthorized use. www.3peak.com 21 / 22 AA20221102A3 TP1561AL1/TP1562AL1/TP1564AL1-S 6-MHz, 600-μA, RRIO, Op Amps This page intentionally left blank www.3peak.com 22 / 22 AA20221102A3
