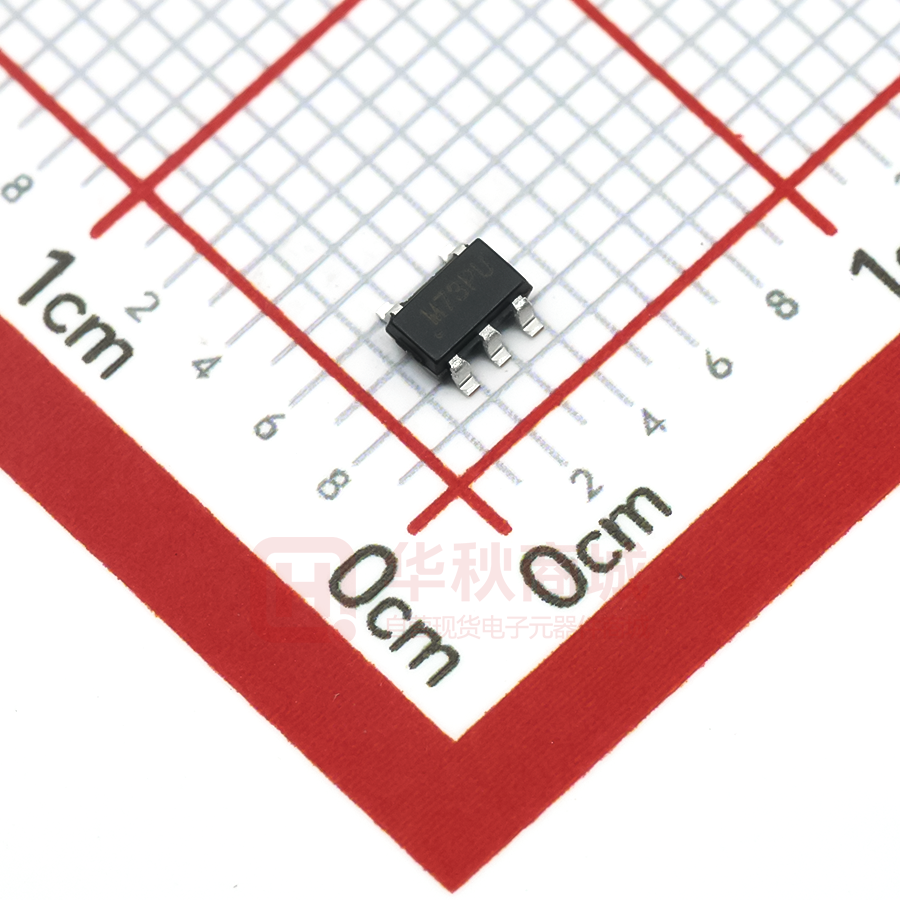

TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Features
Description
•
•
•
Industry-Standard Pin-Out
The TPM44273 is a single-channel low-side gate driver for
MOSFET, IGBT, and GaN power switches.
•
•
•
•
•
TTL and CMOS Compatible Threshold
•
Available in SOT23-5 Package
4.5-V to 23-V Single-Supply Range
High sourcing and sinking current capability of 5 A
allows for improving switching efficiencies by minimizing
slew time and switching loss. The device supports
maximum 25-V supply voltage and –5 V, improving system
robustness especially in noisy industrial applications. Ultralow propagation delay allows applications with tight timing
requirements.
Single Channel 5-A Peak Source and Sink-Drive
Current
Outputs Held Low during VCC-UVLO or Input Floating
Low Propagation Delay (13-ns Typical)
Fast Rise-and-Fall Times (7-ns and 6-ns Typical)
A small SOT23-5 package assists design for high-density
power supply.
ESD Protection Exceeds JESD 22 – 6-kV HBM, 1.5-kV
CDM
Applications
•
•
•
•
Switched-Mode Power Supplies
DC-DC Converters
Motor Control, Solar Inverters, UPS
Gate & IGBT Drive
Typical Application Circuit
TPM44273
IN
VCC
COM
OUT
www.3peak.com
OUT
1 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Table of Contents
Features................................................................................................................................................................1
Applications......................................................................................................................................................... 1
Description........................................................................................................................................................... 1
Typical Application Circuit..................................................................................................................................1
Revision History...................................................................................................................................................3
Pin Configuration and Functions....................................................................................................................... 4
Specifications.......................................................................................................................................................5
Absolute Maximum Ratings (1) .......................................................................................................................5
ESD, Electrostatic Discharge Protection........................................................................................................ 5
Recommended Operating Conditions............................................................................................................ 5
Thermal Information........................................................................................................................................5
Electrical Characteristics................................................................................................................................ 6
Typical Performance Characteristics.............................................................................................................. 7
Detailed Description.......................................................................................................................................... 10
Overview.......................................................................................................................................................10
Functional Block Diagram.............................................................................................................................10
Feature Description.......................................................................................................................................11
Application and Implementation...................................................................................................................... 12
Typical Application........................................................................................................................................12
Layout................................................................................................................................................................. 13
Layout Example............................................................................................................................................13
Tape and Reel Information................................................................................................................................ 14
Package Outline Dimensions........................................................................................................................... 15
SOT23-5....................................................................................................................................................... 15
Order Information.............................................................................................................................................. 16
IMPORTANT NOTICE AND DISCLAIMER......................................................................................................... 17
www.3peak.com
2 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Revision History
Date
Revision
2022-08-12
Rev.A.0
Initial Release
2023-04-09
Rev.A.1
Misc. updates
2024-02-02
Rev.A.2
Updated with new document format
www.3peak.com
Notes
3 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Pin Configuration and Functions
TPM44273
SOT23-5
Top View
IN
1
5
VCC
4
OUT
Part Number
COM
2
OUT
3
Table 1. Pin Functions: TPM44273
Pin No.
Name
I/O
2
COM
Ground
1
IN
Input
3,4
OUT
Output
Channel Output
5
VCC
Power
Power Supply Input
www.3peak.com
Description
Device Ground
Logic Non-inverting Input.
4 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Specifications
Absolute Maximum Ratings (1)
Parameter
Min
Max
Unit
−0.3
25
V
−0.3
VCC + 0.3
V
−2
VCC + 0.3
（200-ns
pulse）
V
−5
20
V
−300
300
mA
Pulsed Output Channel Current OUT (500 ns)
−5
5
A
TJ
Operating Junction Temperature Range
−40
150
°C
TSTG
Storage Temperature Range
−65
150
°C
TL
Lead Temperature (Soldering 10 sec)
260
°C
VCC
Power Supply Voltage
Output Voltage Range OUT
Input Voltage Range IN
Continuous Output Channel Current OUT
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure
to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime.
(2) The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300 mV beyond
the power supply, the input current should be limited to less than 10 mA.
(3) Power dissipation and thermal limits must be observed.
ESD, Electrostatic Discharge Protection
Parameter
HBM
Condition
Human Body Model ESD
CDM
Charged Device Model ESD
Value
Unit
ANSI/ESDA/JEDEC JS-001
(1)
±6
kV
ANSI/ESDA/JEDEC JS-002
(2)
±1.5
kV
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Recommended Operating Conditions
Parameter
Min
Max
Unit
VCC
Power Supply Voltage
4.5
23
V
VIN
Intput Voltage Range
0
20
V
TA
Operating Ambient Temperature Range
–40
125
°C
Thermal Information
Package Type
SOT23-5
www.3peak.com
θJA
θJC
Unit
89.1
52.0
°C/W
5 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Electrical Characteristics
All test conditions: VCC = 12 V, TJ = −40 °C – 150 °C, 1-μF capacitor between VCC and GND, unless otherwise noted.
Parameter
Conditions
Typ
Max
VCC = 3.4 V, IN = H
40
100
VCC = 3.4 V, IN = L
40
100
IDD(off)
Start-up Current
VON
Supply Under Voltage Lock Out
Rising Threshold
VOFF
Supply Under Voltage Lock Out
Falling Threshold
VCC_H
Supply Under Voltage Lock Out
Hysteresis
VIN_H
IN Signal High Threshold
IN high threshold
VIN_L
IN Signal Low Threshold
IN low threshold
VIN_HYS
IN Hysteresis
IOUT
Output Peak Current
Min
Unit
μA
TJ = 25 °C
3.91
4.2
4.5
TJ = −40 °C – 150 °C
3.7
4.2
4.65
TJ = −40 °C – 150 °C
3.4
3.9
4.4
V
0.2
0.3
0.5
V
1.95
2.3
V
1
CLOAD = 0.22 μF, FSW = 1 kHz
V
1.25
V
0.7
V
±5
A
VCC – VOH Output High Voltage
IOUT = −10 mA
40
mV
VOL
IOUT = 10 mA
10
mV
ROH
Output Low Voltage
Output Pull-up Resistance,
PMOS pull-up only
IOUT = −10 mA
1
1.6
3
Ω
0.15
0.5
1
Ω
ROL
Output Pull-down Resistance
IOUT = 10 mA
tR
Output Rise-time
CLOAD = 1.8 nF
7
18
ns
tF
Output Fall-time
CLOAD = 1.8 nF
6
10
ns
tPW
Minimal Pulse Width
15
25
ns
tD1
IN to Output Propagation Delay
CLOAD = 1.8 nF, 5-V IN pulse
6
13
23
ns
tD2
IN to Output Propagation Delay
CLOAD = 1.8 nF, 5-V IN pulse
6
13
23
ns
www.3peak.com
6 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Typical Performance Characteristics
Figure 1. Start-up Current vs. Temperature
Figure 2. Operating Current vs Ambient Temperature
f = 500 kHz, CL = 500 pF, VCC = 12 V
Figure 3. Supply Current vs Temperature (On/Off)
Figure 4. UVLO Threshold vs Temperature
Figure 5. Input Threshold vs Temperature
Figure 6. Operating Supply Current vs Frequency
www.3peak.com
7 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Figure 7. Output Pull-up Resistance vs Temperature
Figure 8. Output Pull-down Resistance vs Temperature
Figure 9. Rise-time vs Temperature
Figure 10. Fall-time vs Temperature
Figure 11. Input to Output Propagation Delay vs
Temperature
Figure 12. Enable to Output Propagation Delay vs
Temperature
www.3peak.com
8 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Figure 13. Fall-time vs Supply Voltage
Figure 14. Rise-time vs Supply Voltage
Figure 15. Output Pull-down Current
Figure 16. Output Pull-up Current
www.3peak.com
9 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Detailed Description
Overview
The TPM44273 single-channel low-side gate driver is designed for high-performance power supplies, motor controls, and
inverters. Designed with industrial standard pin-out and package, the TPM44273 accelerates the design process. With
extended voltage ranges on supply voltage and negative input voltage on inputs, the TPM44273 improves system-level
reliability. 5-A Strong driving capability improves gate driver efficiency and lowers heat generation, especially in highfrequency switching applications.
Functional Block Diagram
VCC
VCC
VCC
IN
OUT
GND
VCC
GND
UVLO
GND
GND
Figure 17. Functional Block Diagram
www.3peak.com
10 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Feature Description
Low Propagation Delay Driver Output
The low-propagation-delay design allows the device to achieve industrial-leading low propagation delay between device input
and output. The low delay enhances driver performance in high-frequency switching regulators.
Supply and UVLO
The device monitors supply voltage with under-voltage lock-out (UVLO). When the supply voltage is below the UVLO
threshold, the outputs are held low in UVLO to avoid glitches during power rising and falling.
The quiescent current and operating current of the device are measured as shown in Figure 4. The current is related
to internal quiescent current consumption as well as output current. The output current can be calculated using external
transistor gate charge times switching frequency fsw.
Channel Input
The input of TPM44273 gate drivers supports TTL and CMOS input with threshold voltage independent of supply voltage.
The threshold is also designed as temperature-independent to support a wide range of ambient temperatures. Wide
hysteresis enhances system-level noise immunity. The integrated pull-down resistors set the device in a low state when
inputs are floating.
Inputs can withstand DC −5V, to improve robustness on ground bouncing.
Output Stage
The TPM44273 output stage can deliver high current sourcing and sink up to 5-A with low propagation delay.
www.3peak.com
11 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Application and Implementation
Note
Information in the following application sections is not part of the 3PEAK’s component specification and 3PEAK does not
warrant its accuracy or completeness. 3PEAK’s customers are responsible for determining suitability of components for
their purposes. Customers should validate and test their design implementation to confirm system functionality.
Typical Application
Figure 18 shows the typical application schematic.
Figure 18. Application Circuit
www.3peak.com
12 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Layout
Layout Example
Figures below show the location of external components as they appear on the PCB diagram.
Figure 19. Top Layer
www.3peak.com
Figure 20. Bottom Layer
13 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Tape and Reel Information
Order Number
TPM44273S5TR
www.3peak.com
Package
SOT23-5
D1
（mm）
W1
（mm）
A0
（mm）
B0
（mm）
K0
（mm）
P0
（mm）
W0
（mm）
Pin1
Quadrant
179
12
3.3
3.25
1.4
4
8
Q3
14 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Package Outline Dimensions
SOT23-5
www.3peak.com
15 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
Order Information
Order Number
TPM44273-S5TR
Operating Ambient Temperature Range
Package
Marking
Information
MSL
Transport Media,
Quantity
Eco Plan
−40 °C – 125 °C (1)
SOT23-5
M73
MSL3
3000
Green
(1) Ambient temperature indicates device operation condition range. Application thermal behavior needs to be taken care of when operating in high-temperature scenarios
Green: 3PEAK defines "Green" to mean RoHS compatible and free of halogen substances.
www.3peak.com
16 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
IMPORTANT NOTICE AND DISCLAIMER
Copyright© 3PEAK 2012-2024. All rights reserved.
Trademarks. Any of the 思瑞浦 or 3PEAK trade names, trademarks, graphic marks, and domain names contained in
this document /material are the property of 3PEAK. You may NOT reproduce, modify, publish, transmit or distribute any
Trademark without the prior written consent of 3PEAK.
Performance Information. Performance tests or performance range contained in this document/material are either results
of design simulation or actual tests conducted under designated testing environment. Any variation in testing environment or
simulation environment, including but not limited to testing method, testing process or testing temperature, may affect actual
performance of the product.
Disclaimer. 3PEAK provides technical and reliability data (including data sheets), design resources (including reference
designs), application or other design recommendations, networking tools, security information and other resources "As Is".
3PEAK makes no warranty as to the absence of defects, and makes no warranties of any kind, express or implied, including
without limitation, implied warranties as to merchantability, fitness for a particular purpose or non-infringement of any thirdparty’s intellectual property rights. Unless otherwise specified in writing, products supplied by 3PEAK are not designed to
be used in any life-threatening scenarios, including critical medical applications, automotive safety-critical systems, aviation,
aerospace, or any situations where failure could result in bodily harm, loss of life, or significant property damage. 3PEAK
disclaims all liability for any such unauthorized use.
www.3peak.com
17 / 18
EA20240105A2
TPM44273
Single-Channel 5-A High-Speed, Low-Side Gate Driver
This page intentionally left blank
www.3peak.com
18 / 18
EA20240105A2
