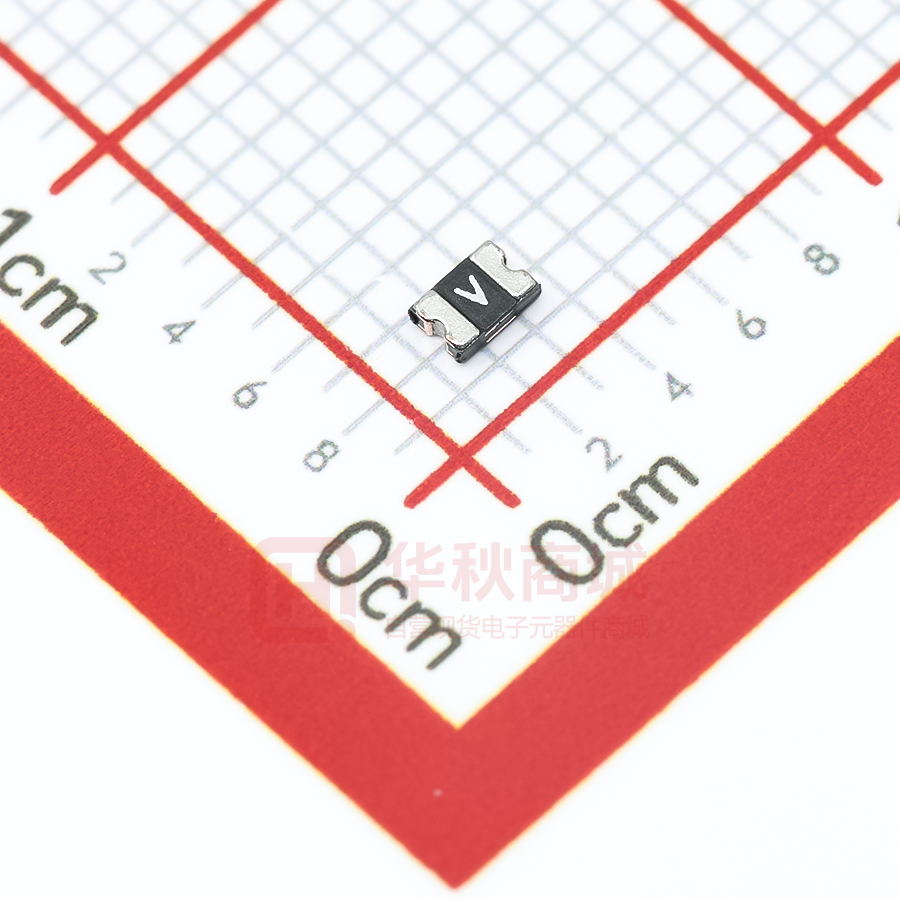

SMD0805-005-60V

SEA & LAND ELECTRONIC CORP. www.sealand-pptc.com ALPHA-TOP TECHNOLOGY CORP. www.alpha-top.cn APPROVAL SHEET SMD0805-005-60V MODEL NO.： CUSTOMER： CUSTOMER'S APPROVAL： AUTHORIZED SIGNATURE/STAMP： DATE MANUFACTURER: HEAD OFFICE: China Branch: Submitted by: Approved by: DATE: 13F.,No.120-10,Sec.3,Zhongshan Rd.,Zhonghe Dist.,New Taipei City 23544,Taiwan Tel: 886-2-8221-2567 Fax:882-2-2225-7268 E-mail:service@chipfast.com.tw Factory Building B)Shuangpeng,Weibu Village, Qiuchang Town, Huiyang District, Huizhou City, Guangdong Province, P.R.C.) Tel: 86-752-3562001 Fax:86-752-3558696 E-mail:service@atpptc.com Chung Cheng YC Lin 6-Sep-22 SEA & LAND ELECTRONIC CORP. 第1页 Features Applications ■ Surface Mount Devices Almost anywhere there is a low voltage ■ Lead free device power supply, up to 15V and a load to be ■ Size 2.0*1.2 mm / 0.08*0.05 inch protected, including: ■ Surface Mount packaging ■ Computer mother board, Modem. USB hub for automated assembly SMD0805-005-60V ■ PDAs & Charger, Analog & digital line card ■ Digital cameras, Disk drivers, CD-ROMs, Alpha-Top (Sea & Land Alliance) Performance Specification Maximum Pd Ihold Itrip Time To Trip Model Marking @25°C @25°C Typ. Current Time (Vdc) (A) (A) (A) (W) (A) (Sec) SMD0805-005-60V V 60 100 0.05 0.20 0.5 0.5 1.50 Ihold = Hold Current. Maximum current device will not trip in 25°C still air. Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air. Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax). Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C. R1max = Maximum device resistance is measured one hour post reflow. Vmax Imax Resistance Rimin (W) 2.000 CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame. Environmental Specifications Test Conditions Passive aging +85°C, 1000 hrs. Humidity aging +85°C, 85% R.H. , 168 hours Thermal shock +85°C to -40°C, 20 times Resistance to solvent MIL-STD-202,Method 215 Vibration MIL-STD-202,Method 201 Ambient operating conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C In case of special use, please contact our engineer Agency Approvals : Regulation/Standard: 2015/863/EU EN14582 Ihold Versus Temperature Model SMD0805-005-60V Maximum ambient operating temperature (Tmao) vs. hold current (Ihold) -40°C 0.078 -20°C 0.068 0°C 0.06 25°C 0.05 40°C 0.042 第2页 50°C 0.038 60°C 0.034 70°C 0.030 85°C 0.021 R1max (W) 10.000 Agency Approval UL TUV SMD0805-005-60V Alpha-Top (Sea & Land Alliance) Construction And Dimension (Unit:mm) A Model Min. SMD0805-005-60V 1.90 Max. 2.20 Min. 1.20 B Max. 1.50 Min. 0.60 Dimensions & Marking A D Termination Pad Characteristics Terminal pad materials： Terminal pad solderability： D Min. 0.20 Max. 1.30 E Min. 0.10 Recommended Pad Layout (mm) 1.0 士0.1 1.5士0.1 1.0士0.1 V B C 1 = Part identification E 1.2士0.1 C Tin-plated Nickel-Copper Meets EIA specification RS186-9E and ANSI/J-STD-002 Category 3. Rework Use standard industry practices, the removal device must be replaced with a fresh one. Thermal Derating Curve Typical Time-To-Trip At 25°C · Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. · PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. · Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. · Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. · Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space. · Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the performance of the devices. PPTC SMD can be cleaned by standard methods. · Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper board layouts or reflow profile could negatively impact solderability performance of our devices. 第3页 SMD0805-005-60V Alpha-Top (Sea & Land Alliance) Recommended Solder Reflow Conditions 300 Preheating Soldering ‧Recommended reflow methods：IR, vapor phase oven, hot air oven. Cooling ‧Devices are not designed to be wave soldered to the bottom side 250 of the board. 200 ‧Recommended maximum paste thickness is 0.25 mm (0.010 inch). 190 ‧Devices can be cleaned using standard method and solvents. 160 Note：If reflow temperatures exceed the recommended profile, 100 0 devices may not meet the performance requirements. 60-120 sec. 30~60sec. 120 sec. EIA Tape Component Dimensions Tape And Reel Specifications (mm) EIA 481-1 8.0 ± 0.3 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.45 ± 0.10 2.30 ± 0.10 4.35 1.55 + 0.1, -0 3.5 ± 0.05 1.75 ± 0.10 6.25 0.25 0.1 0.74 ± 0.1 390 160 178 60 9.0 ± 0.5 12.0 ± 0.05 P0 T P2 D0 Embossment E1 Cover tape A0 B1 F K0 T1 P1 EIA Reel Dimensions W2(measured at hub) 2 Cover tape A 2 2 N(hub dia.) W1(measured at hub) Carrier tape Embossed cavity Storage And Handling ‧ Storage conditions：40°C max, 70% R.H. ‧ Devices may not meet specified performance if storage conditions are exceeded. Order Information SMD0805 Product name Size 2012 mm / 0805 inch SMD：surface mount device Tape & reel packaging per EIA481-1 005-60V Hold Current 0.05A Labeling Information Sea & Land Electronic Corp. Pb Model: Part no.: Spec.: Lot no.: Q'ty: RoHS 倉儲：密封！溫度：18～33℃/濕度：30～60％ A 第4页 Packaging W E2 B0 0 Governing Specifications W P0 P1 P2 A0 B0 B1max. D0 F E1 E2min. T T1max. K0 Leader min. Trailer min. Reel Dimensions A max. N min. W1 W2 Tape & Reel Quantity XXXX pcs/reel
