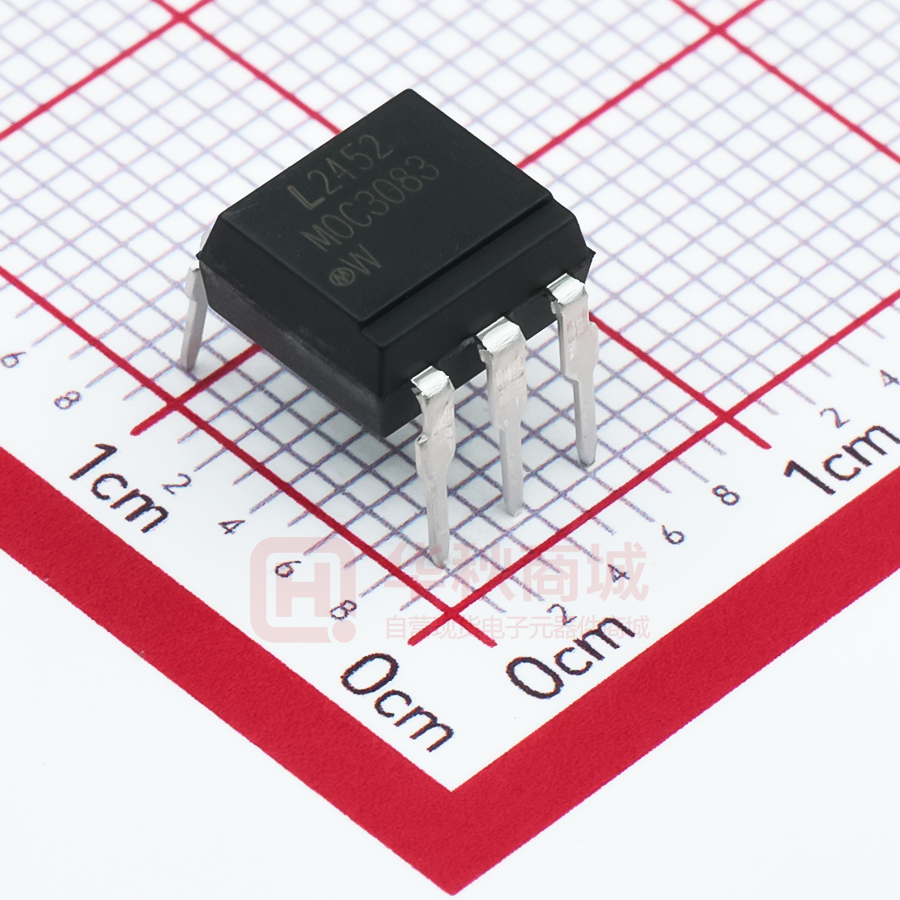

MOC3083

MOC3083

  • 厂商:

    LITE-ON(光宝)

  • 封装:

    OC-6P_7.3X6.5MM_TM

  • 描述:

    单向光耦 Viso=5000Vrms VF(typ)=1.2V IF=50mA Vo=800V DIP6_7.3X6.5MM

  • 数据手册
  • 价格&库存
MOC3083 数据手册
L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only FEATURES * Isolation voltage between input and output Viso : 5,000Vrms * 6pin DIP zero-cross optoisolators triac driver output * High repetitive peak off-state voltage VDRM : Min. 800V * High critical rate of rise of off-state voltage ( dv/dt : MIN. 800V / µs ) * Dual-in-line package : MOC3083 * Wide lead spacing package : MOC3083M * Surface mounting package : MOC3083S * Tape and reel packaging : MOC3083S-TA1 * UL approved ( No. E113898 ) * CUL approved ( No. E113898 ) * FIMKO approved ( No. 15469 ) * NEMKO approved ( No. P00102123 ) * DEMKO approved ( No. 309968-01 ) * SEMKO approved ( No. 0032019/01-11 ) * VDE approved (No. 094722 ) APPLICATIONS * AC Motor Drives * AC Motor Starters * E.M. Contactors * Lighting Controls * Solenoid/Valve Controls * Solid State Relays * Static Power Switches * Temperature Controls Part No. : MOC3083 SERIES BNS-OD-C131/A4 Page : 1 of 8 L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only OUTLINE DIMENSIONS Dual-in-line package : Wide lead spacing package: *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand). Model No.: MOC3083 Page : 2 of 8 Part No. : MOC3083 SERIES BNS-OD-C131/A4 L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only OUTLINE DIMENSIONS Surface mounting package : *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand). Model No.: MOC3083 Part No. : MOC3083 SERIES BNS-OD-C131/A4 Page : 3 of 8 L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only TAPING DIMENSIONS Tape and reel package : MOC3083S-TA1 Description Tape wide Pitch of sprocket holes Distance of compartment Distance of compartment to compartment Symbol W P0 F P2 P1 Dimensions in mm ( inches ) 16 ± 0.3 ( .63 ) 4 ± 0.1 ( .15 ) 7.5 ± 0.1 ( .295 ) 2 ± 0.1 ( .079 ) 12 ± 0.1 ( .472 ) Part No. : MOC3083 SERIES BNS-OD-C131/A4 Page : 4 of 8 L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only ABSOLUTE MAXIMUM RATING ( Ta = 25°C ) PARAMETER Forward Current INPUT Reverse Voltage Power Dissipation Off-State Output Terminal Voltage OUTPUT Peak Repetitive Surge Current ( PW=100µs, 120pps ) Collector Power Dissipation Total Power Dissipation *1 Isolation Voltage Ambient Operating Temperature Range Storage Temperature Range *2 Soldering Temperature SYMBOL IF VR PD VDRM ITSM PC Ptot Viso TA Tstg TL RATING 50 6 120 800 1 150 250 5,000 -40 ~ +100 -55 ~ +150 260 UNIT mA V mW V A mW mW Vrms °C °C °C *1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector, emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2. For 10 Seconds Part No. : MOC3083 SERIES BNS-OD-C131/A4 Page : 5 of 8 L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only ELECTRICAL - OPTICAL CHARACTERISTICS ( Ta = 25°C ) PARAMETER Forward Voltage INPUT Reverse Current *1 Peak Blocking Current, Either Direction OUTPUT Peak On-State Voltage, Either Direction *2 Critical rate of Rise of Off-State Voltage *3 IR IDRM1 VTM dv/dt — — — 800 0.05 — — 1500 10 500 3.0 — µA nA V V/µs VR=6V VDRM = 800V ITM=100 mA Peak SYMBOL MIN. TYP. MAX. UNIT VF — 1.2 1.4 V CONDITIONS IF=20mA Led Trigger Current, Current Required to Latch Output, Either Direction Holding Current, Either Direction Turn-On Time IFT — — 5 mA Main Terminal Voltage = 3V COUPLED IH TON — — 400 8 — 20 µA µs VP=9V, IF=20mA RL = 100Ω IF=Rated IFT, MT1-MT2 Voltage above which device will not trigger. IF = Rated IFT, Rated VDRM, Off State Inhibit Voltage ZERO CROSSING Leakage in Inhibited State VINH — 5 20 Volts IDRM2 — — 500 µA *1 Test voltage must be applied within dv/dt rating. *2 This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only. *3 All devices are guaranteed to trigger at an IF value less than or equal to max IFT. Therefore, recommended operating IF lies between max IFT 5mA for MOC3083 and absolute max IF (50mA) Part No. : MOC3083 SERIES BNS-OD-C131/A4 Page : 6 of 8 L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only CHARACTERISTICS CURVES Fig.1 Forward Current vs. Ambient Temperature 60 Forward current I F (mA) Fig.2 On-state Current vs. Ambient Temperature ITM , on-state current (A) 50 40 30 20 10 0 -40 -20 0.10 0.05 0 20 40 60 80 100 120 o 0 -40 -20 0 20 40 60 80 100 120 o Ambient temperature Ta ( C) Ambient temperature Ta ( C) Fig.3 Minimum Trigger Current vs. Ambient Temperature 10 Minimum trigger current I FT (mA) Fig.4 Forward Current vs. Forward Voltage VP= 6V RL= 100 Forward current I F (mA) 100 8 6 4 2 0 80 C o 100 C 10 o 60 C o 40 oC 20 C o 20 40 60 80 o 100 1 0.4 0.8 1.2 1.6 2.0 Ambient temperature ( C) Forward voltage VF (V) Fig.5 On-state Voltage vs. Ambient Temperature 3.0 On-state voltage VTM(V) Fig.6 Holding Current vs. Ambient Temperature 1 Forward current I H (mA) I TM= 100mA VP= 6V 2.6 2.2 1.8 1.4 1.0 0.1 20 40 60 80 o 100 0.01 20 40 60 80 o 100 Ambient temperature Ta ( C) Ambient Temperature Ta ( C) Part No. : MOC3083 SERIES BNS-OD-C131/A4 Page : 7 of 8 L IT E - O N T E C HN OLOGY C OR P OR A TI ON Property of Lite-on Only CHARACTERISTICS CURVES Fig.7 Turn-on Time vs. Forward Current 10 8 6 4 2 0 Fig.8 Repetitive Peak Off-state Current vs. Temperature 1000 Repetitive Peak Off-state Current Idrm (nA) VP= 9V RL= 100 Turn-on time Ton ( s) 100 10 10 20 30 40 50 1 20 40 60 80 O 100 Forward current I F (mA) Ambient temperature Ta ( C) Fig.9 On-state Current vs. On-state Voltage 100 Static dv/dt Test Circuit + 400 Vdc On-state current ITM (mA) 80 60 40 20 0 APPLIED VOLTAGE WAVEFORM 0 VOLTS PULSE INPUT RTEST CTEST MERCURY WETTED RELAY R= 10k X100 SCOPE PROBE D.U.T. Vmax = 400V 252 V dv/dt= 0.63 Vmax 0 0.5 1.0 1.5 2.0 2.5 3.0 On-state voltage VTM (V) τRC τRC = 378 τRC RECOMMENDED FOOT PRINT PATTERNS (MOUNT PAD) Unit : mm Part No. : MOC3083 SERIES BNS-OD-C131/A4 Page : 8 of 8
