TIP42C

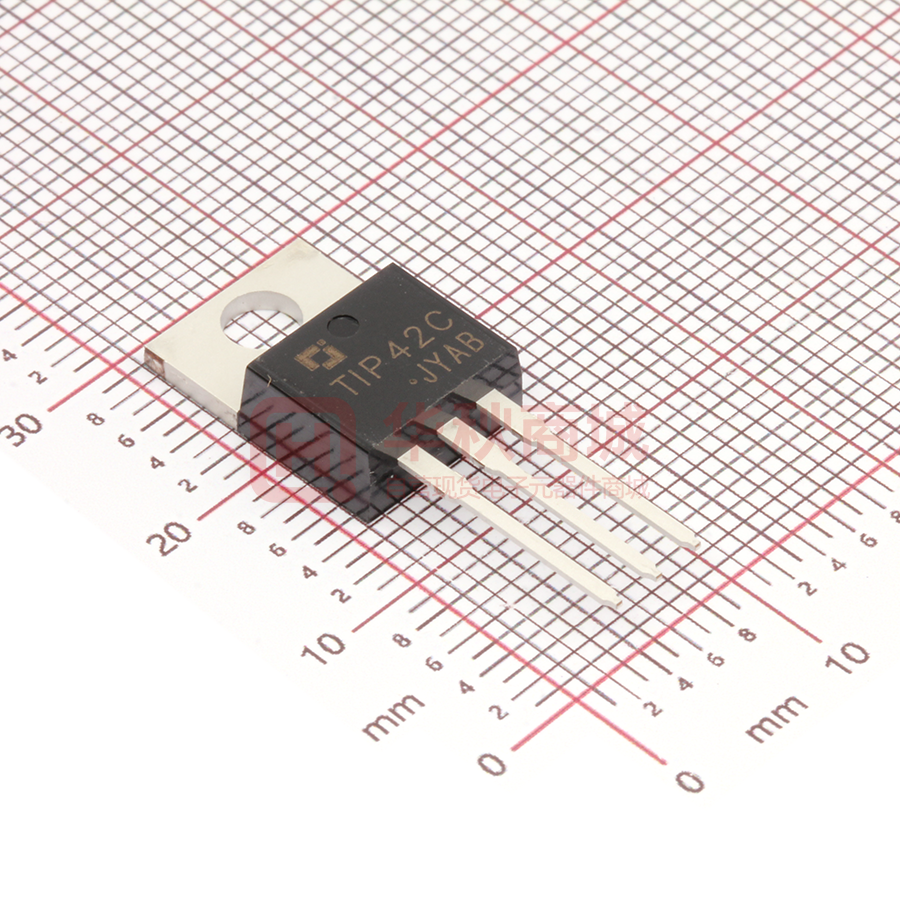

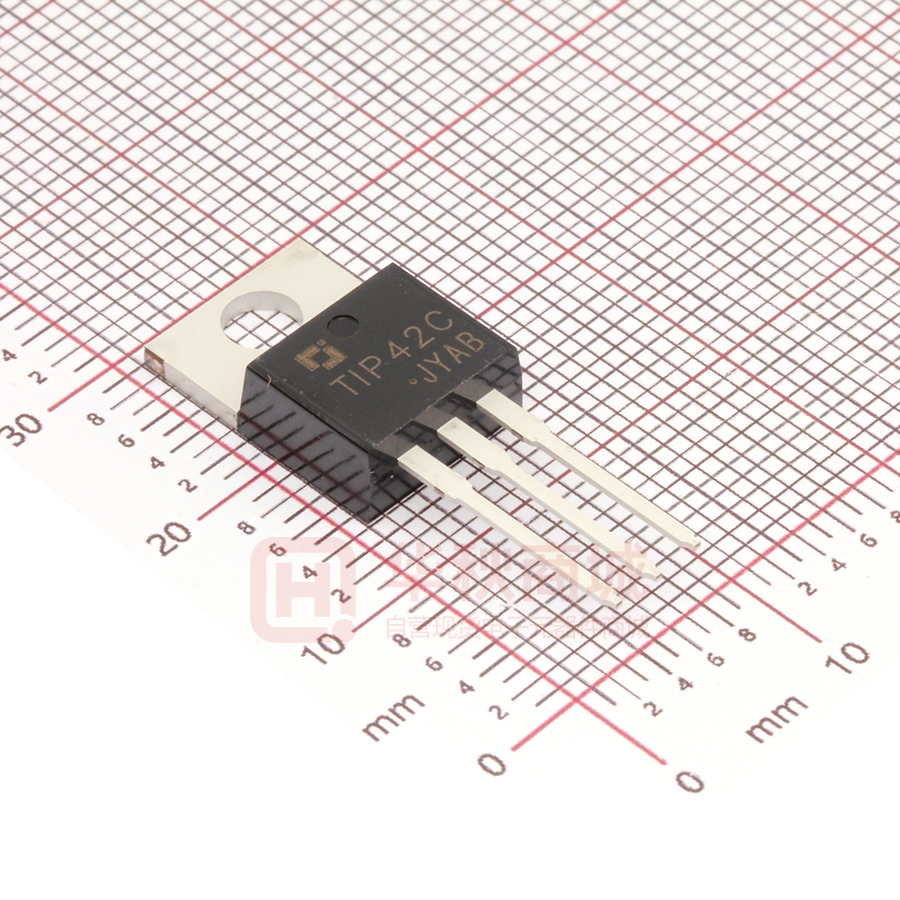

TIP42/A/B/C Rev. H Oct.-2018 描述 / DATA SHEET Descriptions TO-220 塑封封装 PNP 半导体三极管。Silicon PNP transistor in a TO-220 Plastic Package.  特征 / Features 与 TIP41 互补。 Complement to TIP41.  用途 / Applications 用于中功率线性开关放大。 Medium power linear switching applications. 内部等效电路 引脚排列 1 / Equivalent Circuit / Pinning 23 PIN1：Base 放大及印章代码 PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 见印章说明。See Marking Instructions. http://www.fsbrec.com 1/6 TIP42/A/B/C Rev. H Oct.-2018 极限参数 / DATA SHEET Absolute Maximum Ratings(Ta=25℃) 参数 Parameter 数值 Rating 符号 Symbol TIP42 单位 Unit TIP42A TIP42B TIP42C Collector to Base Voltage VCBO -40 -60 -80 -100 V Collector to Emitter Voltage VCEO -40 -60 -80 -100 V Emitter to Base Voltage VEBO -5.0 V Collector Current - Continuous IC -6.0 A Peak Collector Current ICP -10 A Base Current - Continuous IB -2.0 A Collector Power Dissipation PC 2.0 W Collector Power Dissipation PC(Tc=25℃) 65 W Tj 150 ℃ Tsag -55～150 ℃ Junction Temperature Storage Temperature Range 电性能参数 / Electrical Characteristics(Ta=25℃) 参数 Parameter 符号 Symbol 测试条件 Test Conditions TIP42 Collector to Emitter Breakdown Voltage VCEO TIP42A TIP42B -40 IC=-30mA IB=0 TIP42C Collector Cut-Off Current Collector Cut-Off Current Emitter Cut-Off Current DC Current Gain Collector to Emitter Saturation Voltage Base to Emitter Voltage Transition Frequency http://www.fsbrec.com ICEO ICES TIP42 TIP42A TIP42B TIP42C 最小值 典型值 最大值 单位 Min Typ Max Unit -60 V -80 -100 VCE=-30V IB=0 VCE=-60V IB=0 TIP42 VCE=-40V VEB=0 TIP42A VCE=-60V VEB=0 TIP42B VCE=-80V VEB=0 TIP42C VCE=-100V VEB=0 IEBO VEB=-5.0V IC=0 hFE(1) VCE=-4.0V IC=-3.0A 15 hFE(2) VCE=-4.0V IC=-0.3A 30 VCE(sat) IC=-6.0A IB=-0.6A -1.5 V VBE IC=-6.0A VCE=-4.0V -2.0 V fT VCE=-10V IC=-500mA 3.0 -0.7 mA -400 μA -1.0 mA 75 MHz 2/6 TIP42/A/B/C Rev. H Oct.-2018 电参数曲线图 DATA SHEET / Electrical Characteristic Curve http://www.fsbrec.com 3/6 TIP42/A/B/C Rev. H Oct.-2018 外形尺寸图 DATA SHEET / Package Dimensions http://www.fsbrec.com 4/6 TIP42/A/B/C Rev. H Oct.-2018 印章说明 / DATA SHEET Marking Instructions BR **** TIP42  说明： BR：   为公司代码 TIP42：  为产品型号 ****：  为生产批号代码，随生产批号变化。  Company Code Note: BR:   TIP42: ****: http://www.fsbrec.com Product Type.  Lot No. Code, code change with Lot No. 5/6 TIP42/A/B/C Rev. H Oct.-2018 DATA SHEET 波峰焊温度曲线图(无铅) / Temperature Profile for Dip Soldering(Pb-Free) 说明： Note: 1、预热温度 25～150℃，时间 60～90sec; 1.Preheating:25~150℃, Time:60~90sec. 2、峰值温度 255±5℃，时间持续为 5±0.5sec; 2.Peak Temp.:255±5℃, Duration:5±0.5sec. 3、焊接制程冷却速度为 2～10℃/sec. 3. Cooling Speed: 2~10℃/sec. 耐焊接热试验条件 / Resistance to Soldering Heat Test Conditions 温度：270±5℃ 包装规格 Package Type 封装形式 TO-220/F 套管包装 Package Type 封装形式 使用说明 Temp.:270±5℃ Time:10±1 sec / Packaging SPEC. 散件包装 TO-220/F 时间：10±1 sec. / BULK Units 包装数量 Dimension 包装尺寸 3 (unit：mm ) Units/Bag 只/袋 Bags/Inner Box 袋/盒 Units/Inner Box 只/盒 Inner Boxes/Outer Box 盒/箱 Units/Outer Box 只/箱 Bag 袋 Inner Box 盒 Outer Box 箱 200 10 2,000 5 10,000 135×190 237×172×102 560×245×195 Units/Tube 只/套管 Tubes/Inner Box 套管/盒 Units/Inner Box 只/盒 Inner Boxes/Outer Box 盒/箱 Units/Outer Box 只/箱 Tube 套管 Inner Box 盒 Outer Box 箱 50 20 1,000 5 5,000 532×31.4×5.5 555×164×50 575×290×180 / TUBE Units 包装数量 Dimension 包装尺寸 3 (unit：mm ) / Notices http://www.fsbrec.com 6/6
