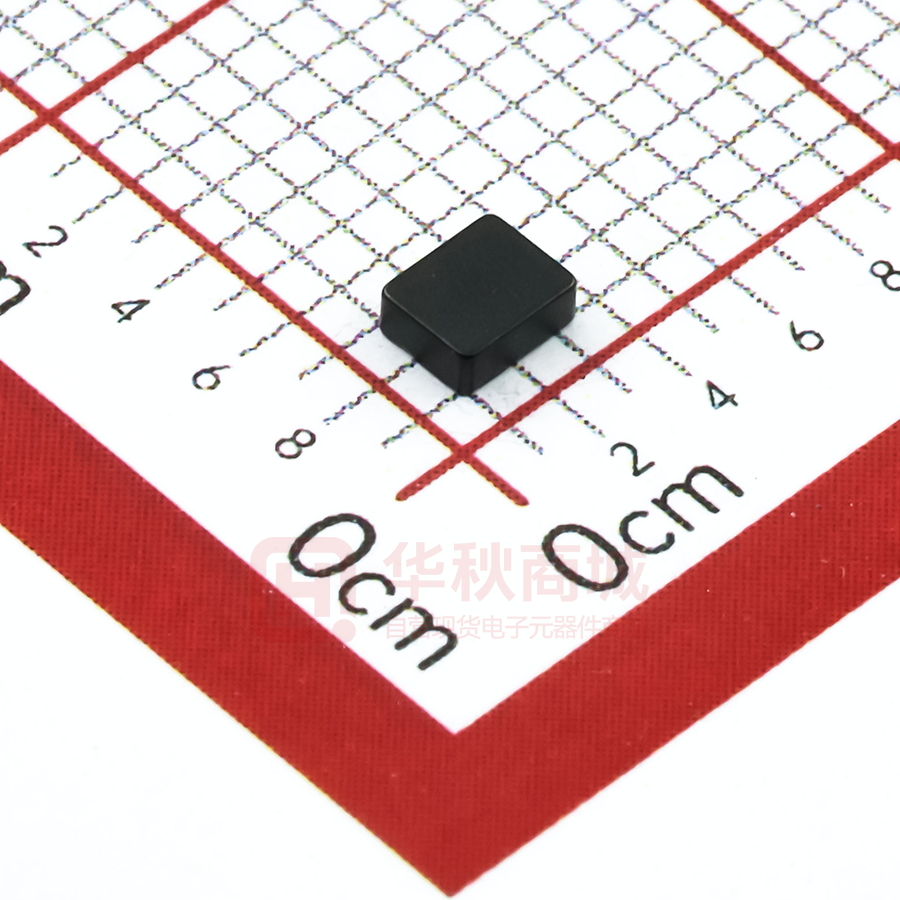

MWTC252010S1R0MT

Mini Molded Chip Power Inductors – MWTC Series Operating Temp. : -40℃~+125℃ (Including self-heating) FEATURES  Metal material for large current and low loss  Vinyl thermal spray, better surface compactness  Closed magnetic circuit design reduces leakage flux APPLICATIONS  Smart phone，pad  Notebooks, VR, AR  Portable gaming devices, Smart wear, Wi-Fi module PRODUCT IDENTIFICATION MWTC 201608 S XXX □ T ① ② ③ ④ ⑤ ⑥ ① ④ Type MWTC ② Mini Molded Chip Power Inductor Nominal Inductance[μH] Example Nominal Value[μH] R47 0.47μH 1R0 1.0μH External Dimensions(L×W×H) [mm] 201208 2.0×1.2×0.8 201210 2.0×1.2×1.0 201608 2.0×1.6×0.8 201610 2.0×1.6×1.0 252010 2.5×2.0×1.0 ③ ⑤ Inductance Tolerance M ±20% N ±30% Feature Type S Standard U Ultra Low RDC H High Saturation Current Sunlord ⑥ Packing T Tape & Reel Specifications subject to change without notice. Please check our website for latest information. Revised 2021/09/06 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Solder-resist Chip inductor C Land pattern B A B Unit: mm Series L W T a A B C MWTC201208 2.0 ±0.2 1.2±0.2 0.8Max. 0.6±0.2 0.8~1.2 0.8~1.2 1.2~2.0 MWTC201210 2.0 ±0.2 1.2±0.2 1.0Max. 0.6±0.2 0.8~1.2 0.8~1.2 1.2~2.0 MWTC201608 2.0 ±0.2 1.6±0.2 0.8Max. 0.6±0.2 0.8~1.2 0.8~1.2 1.2~2.0 MWTC201610 2.0 ±0.2 1.6±0.2 1.0Max. 0.6±0.2 0.8~1.2 0.8~1.2 1.2~2.0 MWTC252008 2.5 ±0.2 2.0±0.2 0.8Max. 0.8±0.2 1.2~1.6 0.8~1.2 1.8~2.4 MWTC252010 2.5 ±0.2 2.0±0.2 1.0Max. 0.8±0.2 1.2~1.6 0.8~1.2 1.8~2.4 SPECIFICATIONS MWTC201208 Series Part Number Units Symbol MWTC201208SR33□T MWTC201208S1R0□T MWTC201208S2R2□T Inductance DC Resistance Max. Self-resonant Frequency @1MHz,1V μH L 0.33 1.0 2.2 Typ. Ω DCR 0.028 0.023 0.102 0.092 0.238 0.216 Min. MHz S.R.F 125 74 45 Inductance DC Resistance Self-resonant Frequency Heat Rating Current Saturation Current Max. Typ. Max. A Isat Typ. A Irms 5.6 6.2 4.3 4.0 2.8 2.2 3.1 2.5 2.0 1.1 2.3 1.3 MWTC201210 Series Part Number Units Symbol MWTC201210SR24□T MWTC201210SR47□T @1MHz,1V μH L 0.24 0.47 Max. Typ. Ω DCR 0.022 0.019 0.031 0.027 Min. MHz S.R.F 136 120 Inductance DC Resistance Self-resonant Frequency Heat Rating Current Saturation Current Max. Typ. Max. A Isat 6.2 4.7 Typ. A Irms 6.7 5.2 4.5 4 5 4.3 MWTC201608 Series Part Number Units Symbol MWTC201608SR24□T MWTC201608SR33□T MWTC201608SR47□T MWTC201608S1R0□T MWTC201608S2R2□T Sunlord @1MHz,1V μH L 0.24 0.33 0.47 1.0 2.2 Max. Typ. Ω DCR 0.022 0.018 0.026 0.021 0.032 0.028 0.066 0.059 0.148 0.134 Min. MHz S.R.F 120 115 104 62 40 Heat Rating Current Saturation Current Max. Typ. Max. A Isat 5.7 5.5 5.0 3.3 2.3 Typ. A Irms 6.3 6.0 5.5 3.7 2.6 4.4 4.2 3.6 2.7 1.8 Specifications subject to change without notice. Please check our website for latest information. 4.9 4.7 4.1 3.0 2.0 Revised 2021/09/06 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWTC201610 Series Part Number Inductan ce Units Symbol MWTC201610SR24□T MWTC201610SR33□T MWTC201610SR47□T MWTC201610S1R0□T MWTC201610S1R0□TD01 MWTC201610S4R7□T @1MHz ,1V μH L 0.24 0.33 0.47 1.0 1.0 4.7 Typ. Ω DCR 0.017 0.014 0.021 0.018 0.026 0.028 0.046 0.042 0.037 0.034 0.235 0.213 Min. MHz S.R.F 142 110 98 46 60 26 Part Number Inductan ce DC Resistance Self-resonant Frequency Units Symbol MWTC252008S1R0□T @1MHz ,1V μH L 1.0 Typ. Ω DCR 0.053 0.046 Min. MHz S.R.F 55 Inductan ce DC Resistance Self-resonant Frequency DC Resistance Max. Self-resonant Frequency Heat Rating Current Saturation Current Max. Typ. Max. A Isat 7.0 6.8 5.0 4.6 4.2 1.6 Typ. A Irms 7.8 7.6 5.4 4.9 4.5 1.9 5.0 4.8 4.0 3.4 4.2 1.3 5.6 5.3 4.4 4.0 4.5 1.5 MWTC252008 Series Max. Heat Rating Current Saturation Current Max. Typ. Max. A Isat 3.5 Typ. A Irms 3.8 3.2 3.5 MWTC252010 Series Part Number Units Symbol MWTC252010SR47□T MWTC252010SR47□TD02 MWTC252010S1R0□T MWTC252010S1R0□TD02 MWTC252010S2R2□T @1MHz ,1V μH L 0.47 0. 0.47 1.0 1.0 2.2 Max. Typ. Ω DCR 0.020 0.016 0.020 0.016 0.043 0.038 0.032 0.027 0.095 0.083 Min. MHz S.R.F 81 81 53 53 35 Heat Rating Current Saturation Current Max. Typ. Max. A Isat 6.0 6.5 4.5 5.0 3.0 Typ. A Irms 6.6 7.0 5.0 5.2 3.3 4.7 4.7 3.4 4.5 2.1 5.0 5.0 3.7 4.7 2.4 ※□: Please specify the inductance tolerance code (M=±20%, N=±30%). ※1: All test data is referenced to 20°C ambient; ※2: Rated current: Isat or Irms, whichever is smaller; ※3: Isat: DC current at which the inductance drops approximate 30% from its value without current; ※4: Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient. TYPICAL ELECTRICAL CHARACTERISTICS MWTC201208 Series Inductance vs. Frequency Characteristics Sunlord Inductance vs. DC Current Characteristics Specifications subject to change without notice. Please check our website for latest information. Revised 2021/09/06 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS MWTC201210 Series Inductance vs. Frequency Characteristics Inductance vs. DC Current Characteristics MWTC201608 Series Inductance vs. Frequency Characteristics Inductance vs. DC Current Characteristics MWTC201608 Series 4.0 2R2 Inductance(uH) 3.0 2.0 1R0 1.0 R47 R33 R24 0.0 0.1 1 Frequency(MHz) 10 100 MWTC201610 Series Inductance vs. Frequency Characteristics Inductance vs. DC Current Characteristics MWTC201610 Series 6 Inductance(uH) 4R7 4 2 1R0 0 0.1 1 Frequency(MHz) 10 1R0(D01) R47 R33 R24 100 MWTC252008 Series Inductance vs. Frequency Characteristics Sunlord Inductance vs. DC Current Characteristics Specifications subject to change without notice. Please check our website for latest information. Revised 2021/09/06 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS MWTC252010 Series Inductance vs. Frequency Characteristics Inductance vs. DC Current Characteristics MWTC252010 Series 4.0 Innductance(uH) 2R2 1R0 2.0 1R0(D02) R47 0.0 0.1 1 Sunlord Frequency(MHz) 10 R47(D02) 100 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/09/06 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
