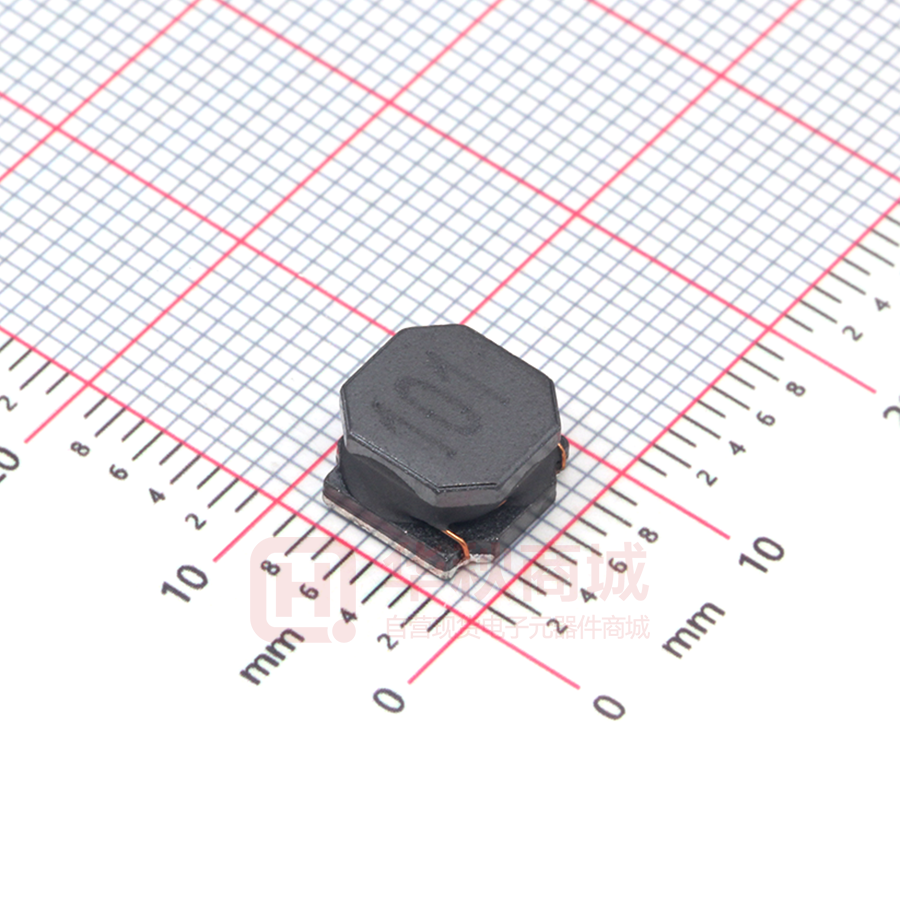

ASWPA8050S101MT

Wire Wound SMD Power Inductors – ASWPA Series Operating Temp: -40℃~+125℃ (Including self-heating) FEATURES  Magnetic-resin shielded construction reduces buzz noise to ultra-low levels  Metallization on ferrite core results in excellent shock resistance and damage-free durability  Magnetically shielded construction reduce leakage and Strong EMI resistance  30% higher current rating than conventional inductors of equal size  AEC-Q200 verified APPLICATIONS     Infotainment system LED Lighting Airbag Power supply system except for power engine or chassis and safety system PRODUCT IDENTIFICATION ASWPA 4035 ① ② S 1R0 N T □□□ ③ ④ ⑤ ⑥ ⑦ ASWPA External Dimensions (L×W×H) [mm] ② Type ① Wire Wound SMD Power Inductor 4035 4.0×4.0×3.5 6055 6.0×6.0×5.5 8050 8.0×8.0×5.0 Feature Type ③ S Standard Nominal Inductance ④ Inductance Tolerance ⑤ M N ±20% ±30% Packing ⑥ T Sunlord Example 1R0 100 ⑦ Tape Carrier Package □□□ Nominal Value 1.0μH 10μH Design Code Standard product is blank Specifications subject to change without notice. Please check our website for latest information. Revised 2019/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Fig.1 C D E F A E B D Recommended Land Pattern Fig.2 B C a E F c 100 A E D b b D Unit: mm Series Shape A B C D E a b c ASWPA4035S Fig.1 4.0±0.2 4.0±0.2 3.5 ±0.2 3.2±0.1 0.95±0.1 1.9 Typ. 1.1Typ. 3.7Typ. ASWPA6055S Fig.1 6.0±0.2 6.0±0.2 5.5 ±0.2 4.9±0.2 1.55±0.2 2.8 Typ. 1.7Typ. 5.7Typ. ASWPA8050S Fig.2 8.0±0.3 8.0±0.3 5.0 ±0.2. 6.3±0.3 2.00±0.2 3.8 Typ. 2.2Typ. 7.5Typ. SPECIFICATIONS ASWPA4035S Series Part Number Units Symbol ASWPA4035SR33MT ASWPA4035SR47MT ASWPA4035SR68MT ASWPA4035S1R0MT ASWPA4035S1R2MT ASWPA4035S1R5MT ASWPA4035S1R8MT ASWPA4035S2R2MT ASWPA4035S3R3MT ASWPA4035S4R7MT ASWPA4035S6R8MT ASWPA4035S8R2MT ASWPA4035S100MT ASWPA4035S150MT ASWPA4035S220MT ASWPA4035S330MT ASWPA4035S470MT ASWPA4035S680MT ASWPA4035S101MT ASWPA4035S151MT Sunlord Inductance @100kHz,1V μH L 0.33±20% 0.47±20% 0.68±20% 1.0±20% 1.2±20% 1.5±20% 1.8±20% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 8.2±20% 10±20% 15±20% 22±20% 33±20% 47±20% 68±20% 100±20% 150±20% DC Resistance Max. Typ. Ω DCR 0.011 0.009 0.010 0.008 0.013 0.010 0.024 0.020 0.028 0.023 0.030 0.025 0.034 0.028 0.040 0.033 0.058 0.048 0.082 0.068 0.101 0.084 0.112 0.093 0.14 0.12 0.23 0.19 0.29 0.24 0.42 0.35 0.59 0.49 1.09 0.91 1.38 1.15 2.28 1.90 Self-resonant Frequency Min. MHz S.R.F 264 176 132 121 70 60 52 52 38 31 24 26 21 16 10 10 8.4 7.0 5.6 4.0 Saturation Current Max. Typ. A Isat 12.2 7.80 6.80 6.30 6.00 5.20 4.60 4.30 3.50 3.00 2.50 2.10 2.00 1.60 1.30 1.10 0.95 0.75 0.65 0.50 13.4 9.80 7.80 6.90 6.70 6.10 5.50 4.80 3.80 3.20 2.80 2.40 2.30 1.80 1.50 1.30 1.05 0.85 0.75 0.55 Specifications subject to change without notice. Please check our website for latest information. Heat Rating Current Max. Typ. A Irms 5.20 5.90 5.20 5.90 4.56 5.10 3.85 4.50 3.60 4.20 3.30 3.90 3.20 3.70 3.00 3.50 2.50 2.90 2.10 2.45 1.90 2.20 1.80 2.10 1.55 1.85 1.25 1.45 1.10 1.30 0.90 1.05 0.75 0.90 0.55 0.65 0.45 0.55 0.35 0.45 Revised 2019/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS ASWPA6055S Series Part Number Units Symbol ASWPA6055S3R3MT ASWPA6055S4R7MT ASWPA6055S6R8MT ASWPA6055S8R2MT ASWPA6055S100MT ASWPA6055S150MT ASWPA6055S220MT ASWPA6055S330MT ASWPA6055S470MT ASWPA6055S680MT ASWPA6055S101MT ASWPA6055S151MT ASWPA6055S221MT ASWPA6055S331MT Inductance DC Resistance @100kHz,1V μH L 3.3±20% 4.7±20% 6.8±20% 8.2±20% 10±20% 15±20% 22±20% 33±20% 47±20% 68±20% 100±20% 150±20% 220±20% 330±20% Max. Typ. Ω DCR 0.026 0.022 0.031 0.026 0.034 0.028 0.049 0.041 0.054 0.045 0.074 0.062 0.100 0.083 0.170 0.142 0.252 0.210 0.353 0.294 0.434 0.362 0.686 0.572 1.036 0.863 1.603 1.336 Inductance DC Resistance Self-resonant Frequency Min. MHz S.R.F 32 24 20 21 15 12 10 7.8 6.4 6.4 4.2 4.2 3.5 2.8 Saturation Current Max. Typ. Heat Rating Current Max. A Isat 5.50 4.5 3.90 3.90 3.30 2.80 2.30 1.70 1.50 1.30 1.00 0.80 0.60 0.55 Typ. A Irms 6.00 5.00 4.30 4.30 3.70 3.30 2.60 2.00 1.70 1.40 1.10 0.90 0.70 0.65 3.95 3.60 3.50 2.90 2.70 2.35 2.00 1.55 1.25 1.00 0.95 0.75 0.60 0.50 4.60 4.25 4.10 3.40 3.20 2.75 2.35 1.80 1.50 1.25 1.10 0.90 0.70 0.60 ASWPA8050S Series Part Number Units Symbol ASWPA8050S1R0MT ASWPA8050S1R5MT ASWPA8050S2R2MT ASWPA8050S3R3MT ASWPA8050S4R7MT ASWPA8050S6R8MT ASWPA8050S8R2MT ASWPA8050S100MT ASWPA8050S150MT ASWPA8050S220MT ASWPA8050S330MT ASWPA8050S470MT ASWPA8050S680MT ASWPA8050S101MT ASWPA8050S151MT ASWPA8050S221MT ASWPA8050S331MT ASWPA8050S471MT @100kHz,1V μH L 1.0±20% 1.5±20% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 8.2±20% 10±20% 15±20% 22±20% 33±20% 47±20% 68±20% 100±20% 150±20% 220±20% 330±20% 470±20% Max. Typ. Ω DCR 0.010 0.008 0.012 0.010 0.014 0.012 0.020 0.017 0.023 0.019 0.029 0.024 0.035 0.029 0.038 0.032 0.061 0.051 0.088 0.073 0.122 0.102 0.173 0.144 0.252 0.210 0.326 0.272 0.480 0.400 0.708 0.590 1.044 0.870 1.540 1.283 Self-resonant Frequency Min. MHz S.R.F 99 79 59 24 23 19 18 14 13 9.0 7.6 6.6 5.4 4.4 3.2 2.9 2.3 1.9 Saturation Current Max. Typ. Heat Rating Current Max. A Isat 15.0 12.0 10.0 8.00 6.60 5.40 4.70 4.60 3.90 3.00 2.60 2.10 1.70 1.40 1.20 1.00 0.80 0.70 Typ. A Irms 16.0 13.0 11.0 9.00 7.50 6.10 5.60 5.20 4.50 3.50 3.00 2.40 2.00 1.60 1.40 1.10 0.90 0.80 6.30 5.60 5.20 4.40 4.10 3.60 3.40 3.20 2.40 1.90 1.80 1.50 1.25 1.10 0.85 0.65 0.60 0.50 7.20 6.50 5.80 4.90 4.60 4.20 3.80 3.60 2.70 2.20 2.00 1.70 1.45 1.25 1.00 0.75 0.65 0.55 Note: ※ 1: Rated current: Isat (Max.) or Irms (Max.), whichever is smaller; ※ 2: Saturation Current: Max. Value, DC current at which the inductance drops less than 30% from its value without current; Typ. Value, DC current at which the inductance drops approximate 30% from its value without current; ※ 3: Heat Rating Current: DC current that causes the temperature rise (∆T) from 20°C ambient. For Max. Value, ∆T＜40℃; For Typ. Value, ∆T is approximate 40℃. The part temperature (ambient + temp. rise) should not exceed 125 °C under worst case operating conditions. Circuit design, component placement, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2019/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
