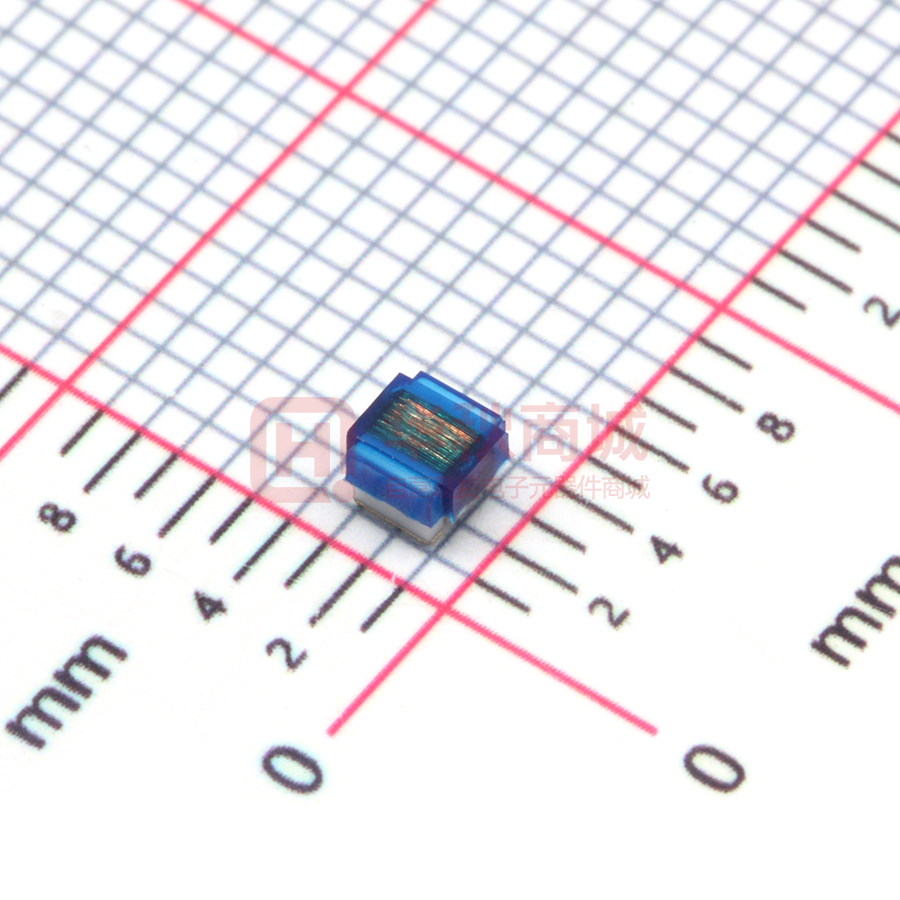

FHW1008UC1R0JGT

WIRE WOUND CHIP FERRITE INDUCTORS FEATURES Minature size, suitable for SMT; Using terminal electrode structure to restrain the parasitic component effect quite caused by lead; low DC resistance , high current and high inductance; Execellent in solderability and heat resistance . APPLICATIONS Wireless communication equipment and various types of general electronic equipment; Other electronic equipment including HDDs and ODDs. ORDERING CODE FHW UF 0805 J 1R0 S T (nH) Code FHW Dimensions (L W ) (mm) Material UF Inductance 1.0 J 5 010 10 K 10 M 20 1.6 0.8 0805 2.0 1.2 R10 100 1008 2.5 2.0 1R0 1000 2.5 100 10000 3.2 101 102 100000 1000000 1210 1812 3.2 4.5 Ferrite DIMENSIONS 76 Terminal Tolerance 1N0 0603 IF (%) S TIN Packaging Style T B Tape&Reel Bulk WIRE WOUND CHIP INDUCTORS (Unit): mm/inch Par N0. A (Max.) 0603 1.78 (.070) 0805 C (Max.) B (Max.) D E F G 1.10 (.043) 0.95 (.037) 0.30 (.012) 1.02 (.04) 0.64 (.025) 0.64 (.025) 2.30 (.091) 1.70 (.067) 1.52 (.060) 0.50 (.020) 1.78 (.07) 1.02 (.04) 0.76 (.03) 1008 2.92 (.115) 2.79 (.110) 2.10 (.083) 0.5 (.020) 2.54 (.10) 1.02 (.04) 1.27 (.05) 1210 3.50 (.138) 2.90 (.114) 2.2 5 (.088) 0.50 (.020) 2.54 (.10) 1.02 (.04) 1.78 (.07) 1812 4.80 (.189) 3.40 (.134) 3.15 (.124) 0.65 (.026) 3.05 (.12) 1.14 (.045) 3.00 (.118) ELECTRICAL CHARACTERISTICS 0603UF Series Inductance (nH Tolerance (% SRF(MH Z ) Min Rdc Max FHW0603UFR10 ST 100@7.9MHz 10,5 Q min 12@7.9MHz 1150 0.13 mA Max 1000 FHW 0603 UF R12 ST 120@7.9MHz 10,5 12@7.9MHz 1100 0.16 1000 FHW 0603 UF R15 ST 150@7.9MHz 10,5 12@7.9MHz 1050 0.15 1000 FHW 0603 UF R18 ST 180@7.9MHz 10,5 12@7.9MHz 950 0.15 1000 FHW 0603 UF R22 ST 220@7.9MHz 10,5 12@7.9MHz 900 0.16 900 FHW 0603 UF R27 ST 270@7.9MHz 10,5 12@7.9MHz 775 0.30 700 FHW 0603 UF R33 ST 330@7.9MHz 10,5 12@7.9MHz 725 0.32 600 FHW 0603 UF R39 ST 390@7.9MHz 10,5 12@7.9MHz 620 0.51 500 FHW 0603 UF R47 ST 470@7.9MHz 10,5 12@7.9MHz 540 0.62 420 FHW 0603 UF R56 ST 560@7.9MHz 10,5 12@7.9MHz 600 0.65 400 FHW 0603 UF R68 ST 680@7.9MHz 10,5 12@7.9MHz 500 1.00 380 FHW 0603 UF R82 ST 820@7.9MHz 10,5 12@7.9MHz 500 1.30 350 FHW 0603 UF 1R0 ST 1000@7.9MHz 10,5 12@7.9MHz 400 1.50 330 FHW0603UF1R2 ST 1200@7.9MHz 10,5 12@7.9MHz 380 1.70 320 FHW0603UF1R5 ST 1500@7.9MHz 10,5 12@7.9MHz 300 1.90 310 FHW0603UF1R8 ST 1800@7.9MHz 10,5 12@7.9MHz 180 2.20 300 FHW0603UF2R2 ST 2200@7.9MHz 10,5 12@7.9MHz 180 2.30 280 FHW0603UF2R7 ST 2700@7.9MHz 10,5 12@7.9MHz 150 2.60 250 FHW0603UF3R3 ST 3300@7.9MHz 10,5 12@7.9MHz 150 2.90 230 FHW0603UF3R9 ST 3900@7.9MHz 10,5 12@7.9MHz 120 3.20 210 FHW0603UF4R7 ST 4700@7.9MHz 10,5 12@7.9MHz 100 4.00 200 PartNumber 77 Idc 0805UF Series Inductance ( H Tolerance (% SRF(MH Z ) Min Rdc Max FHW0805UF1R0 ST 1.0@7.96MHz 10,5 Q min 12@7.96MHz 360 1.00 430 FHW0805UF1R2 ST 1.2@7.96MHz 10,5 12@7.96MHz 350 1.15 410 FHW0805UF1R5 ST 1.5@7.96MHz 10,5 12@7.96MHz 300 1.20 400 FHW0805UF1R8 ST 1.8@7.96MHz 10,5 12@7.96MHz 200 1.35 380 FHW0805UF2R2 ST 2.2@7.96MHz 10,5 12@7.96MHz 170 1.50 350 FHW0805UF2R7 ST 2.7@7.96MHz 10,5 12@7.96MHz 100 1.70 320 FHW0805UF3R3 ST 3.3@7.96MHz 10,5 12@7.96MHz 90 1.80 300 FHW0805UF3R9 ST 3.9@7.96MHz 10,5 12@7.96MHz 90 1.95 280 FHW0805UF4R7 ST 4.7@7.96MHz 10,5 12@7.96MHz 85 2.05 250 FHW0805UF5R6 ST 5.6@7.96MHz 10,5 12@7.96MHz 70 2.30 240 FHW0805UF6R8 ST 6.8@7.96MHz 10,5 12@7.96MHz 55 2.60 220 FHW0805UF7R5 ST 7.5@7.96MHz 10,5 12@7.96MHz 55 2.80 210 FHW0805UF8R2 ST 8.2@7.96MHz 10,5 12@7.96MHz 50 3.00 180 FHW0805UF100 ST 10@2.52MHz 10,5 10 @2.52MHz 30 3.20 150 FHW0805UF120 ST 12@2.52MHz 10,5 10@2.52MHz 17 3.50 110 FHW0805UF150 ST 15@2.52MHz 10,5 10@2.52MHz 16 4.20 100 FHW0805UF180 ST 18@2.52MHz 10,5 10@2.52MHz 15 4.50 95 FHW0805UF220 ST 22@2.52MHz 10,5 10@2.52MHz 14 6.00 80 Inductance ( H Tolerance (% PartNumber Idc mA Max 1008IF Series PartNumber Q (min SRF(MH Z ) Min Rdc Max Idc mA Max FHW1008IF1R0 ST 1.0@25.2MHz 10,5 18@25.2MHz 300 0.55 580 FHW1008IF1R2 ST 1.2@7.96MHz 10,5 18@7.96MHz 250 0.75 550 FHW1008IF1R5 ST 1.5@7.96MHz 10,5 18@7.96MHz 230 0.85 400 FHW1008IF1R8 ST 1.8@7.96MHz 10,5 18@7.96MHz 168 0.95 320 FHW1008IF2R2 ST 2.2@7.96MHz 10,5 18@7.96MHz 150 1.30 315 FHW1008IF2R7 ST 2.7@7.96MHz 10,5 18@7.96MHz 100 1.40 300 FHW1008IF3R3 ST 3.3@7.96MHz 10,5 18@7.96MHz 80 1.50 280 FHW1008IF3R9 ST 3.9@7.96MHz 10,5 18@7.96MHz 60 1.55 250 FHW1008IF4R7 ST 4.7@7.96MHz 10,5 18@7.96MHz 50 1.75 210 FHW1008IF5R6 ST 5.6@7.96MHz 10,5 15@7.96MHz 40 1.90 190 FHW1008IF6R8 ST 6.8@7.96MHz 10,5 15@7.96MHz 35 2.00 175 FHW1008IF7R5 ST 7.5@7.96MHz 10,5 15@7.96MHz 30 2.10 170 FHW1008IF8R2 ST 8.2@7.96MHz 10,5 15@7.96MHz 25 2.20 160 FHW1008IF100 ST 10@2.52MHz 10,5 12@2.52MHz 25 2.50 155 FHW1008IF120 ST 12@2.52MHz 10,5 12@2.52MHz 20 2.60 145 FHW1008IF150 ST 15@2.52MHz 10,5 12@2.52MHz 20 3.00 130 FHW1008IF180 ST 18@2.52MHz 10,5 12@2.52MHz 20 3.00 130 FHW1008IF220 ST 22@2.52MHz 10,5 12@2.52MHz 18 3.90 105 FHW1008IF270 ST 27@2.52MHz 10,5 12@2.52MHz 10 4.00 100 FHW1008IF330 ST 33@2.52MHz 10,5 10@2.52MHz 8 4.80 85 FHW1008IF390 ST 39@2.52MHz 10,5 10@2.52MHz 7 5.00 80 FHW1008IF470 ST 47@2.52MHz 10,5 10@2.52MHz 7 5.70 60 FHW1008IF560 ST 56@2.52MHz 10,5 10@2.52MHz 6.5 6.00 55 FHW1008IF680 ST 68@2.52MHz 10,5 10@2.52MHz 6.5 6.70 50 78 WIRE WOUND CHIP INDUCTORS 1008IF Series Inductance ( H PartNumber Tolerance (% Q (min SRF(MH Z ) Min Rdc Max Idc mA Max FHW1008IF820 ST 82@2.52MHz 10,5 10@2.52MHz 6.5 7.50 45 FHW1008IF101 ST 100@0.796MHz 10,5 8@0.796MHz 4.5 11.0 40 FHW1008IF121 ST 120@0.796MHz 10,5 8@0.796MHz 3 13.0 30 FHW1008IF151 ST 150@0.796MHz 10,5 8@0.796MHz 3 15.0 25 FHW1008IF221 ST 220@0.796MHz 10 8@0.796MHz 2.5 18.0 20 Inductance ( H Tolerance (% 1210IF Series PartNumber Q (min SRF(MH Z ) Min Rdc Max 0.3 Idc mA Max FHW1210IF1R0 ST 1.0@7.96MHz 10,5 20@7.96MHz 220 FHW1210IF1R2 ST 1.2@7.96MHz 10,5 20@7.96MHz 210 0.3 450 450 FHW1210IF1R5 ST 1.5@7.96MHz 10,5 20@7.96MHz 200 0.4 450 FHW1210IF1R8 ST 1.8@7.96MHz 10,5 20@7.96MHz 195 0.5 450 FHW1210IF2R2 ST 2.2@7.96MHz 10,5 20@7.96MHz 175 0.6 450 FHW1210IF2R7 ST 2.7@7.96MHz 10,5 20@7.96MHz 120 0.7 420 FHW1210IF3R3 ST 3.3@7.96MHz 10,5 20@7.96MHz 80 1.1 380 FHW1210IF3R9 ST 3.9@7.96MHz 10,5 20@7.96MHz 75 1.2 360 FHW1210IF4R7 ST 4.7@7.96MHz 10,5 18@7.96MHz 60 1.3 350 FHW1210IF5R6 ST 5.6@7.96MHz 10,5 18@7.96MHz 50 2.0 320 FHW1210IF6R8 ST 6.8@7.96MHz 10,5 18@7.96MHz 35 1.5 310 FHW1210IF8R2 ST 8.2@7.96MHz 10,5 18@7.96MHz 35 1.6 305 FHW1210IF100 ST 10@2.52MHz 10,5 15@2.52MHz 30 1.0 300 FHW1210IF120 ST 12@2.52MHz 10,5 15@2.52MHz 25 1.2 265 FHW1210IF150 ST 15@2.52MHz 10,5 15@2.52MHz 22 2.0 225 FHW1210IF180 ST 18@2.52MHz 10,5 15@2.52MHz 22 2.1 210 FHW1210IF220 ST 22@2.52MHz 10,5 15@2.52MHz 20 2.4 200 FHW1210IF270 ST 27@2.52MHz 10,5 15@2.52MHz 18 2.7 180 FHW1210IF330 ST 33@2.52MHz 10,5 15@2.52MHz 15 2.9 160 FHW1210IF390 ST 39@2.52MHz 10,5 15@2.52MHz 16 4.7 150 FHW1210IF470 ST 47@2.52MHz 10,5 15@2.52MHz 10 5.2 140 FHW1210IF560 ST 56@2.52MHz 10,5 15@2.52MHz 8.0 5.6 125 FHW1210IF680 ST 68@2.52MHz 10,5 12@2.52MHz 5.0 4.7 110 FHW1210IF820 ST 82@2.52MHz 10,5 12@2.52MHz 5.0 5.6 100 FHW1210IF101 ST 100@0.796MHz 10,5 10@0.796MHz 5.0 6.8 95 FHW1210IF121 ST 120@0.796MHz 10,5 10@0.796MHz 4.0 7.9 85 80 FHW1210IF151 ST 150@0.796MHz 10,5 10@0.796MHz 4.0 9.0 FHW1210IF181 ST 180@0.796MHz 10,5 8@0.796MHz 3.0 14.5 70 FHW1210IF221 ST 220@0.796MHz 10,5 8@0.796MHz 2.6 16.5 65 FHW1210IF271 ST 270@0.796MHz 10 8@0.796MHz 2.5 18.0 60 FHW1210IF331 ST 330@0.796MHz 10 8@0.796MHz 2.3 19.0 55 FHW1210IF391 ST 390@0.796MHz 10 8@0.796MHz 2.2 21.5 45 FHW1210IF471 ST 470@0.796MHz 10 8@0.796MHz 2.0 22.5 40 FHW1210IF561 ST 560@0.796MHz 10 6@0.796MHz 1.5 28.0 30 79 1812IF Series Inductance ( H PartNumber Tolerance (% Q(min SRF(MH Z ) Min Rdc Max Idc mA Max FHW1812IF1R0 ST 1.0@7.96MHz 10,5 25@7.96MHz 200 0.22 1000 FHW1812IF1R2 ST 1.2@7.96MHz 10,5 25@7.96MHz 200 0.35 1000 FHW1812IF1R5 ST 1.5@7.96MHz 10,5 25@7.96MHz 180 0.32 1000 FHW1812IF1R8 ST 1.8@7.96MHz 10,5 25@7.96MHz 160 0.35 950 FHW1812IF2R2 ST 2.2@7.96MHz 10,5 25@7.96MHz 150 0.37 900 FHW1812IF2R7 ST 2.7@7.96MHz 10,5 25@7.96MHz 145 0.37 850 FHW1812IF3R3 ST 3.3@7.96MHz 10,5 25@7.96MHz 140 0.48 800 FHW1812IF3R9 ST 3.9@7.96MHz 10,5 25@7.96MHz 135 0.60 750 FHW1812IF4R7 ST 4.7@7.96MHz 10,5 25@7.96MHz 120 1.00 700 FHW1812IF5R6 ST 5.6@7.96MHz 10,5 25@7.96MHz 110 0.55 650 FHW1812IF6R8 ST 6.8@7.96MHz 10,5 25@7.96MHz 80 0.80 600 FHW1812IF8R2 ST 8.2@7.96MHz 10,5 20@7.96MHz 70 0.85 600 FHW1812IF100 ST 10@2.52MHz 10,5 20@2.52MHz 60 1.0 550 FHW1812IF120 ST 12@2.52MHz 10,5 20@2.52MHz 55 1.1 550 FHW1812IF150 ST 15@2.52MHz 10,5 18@2.52MHz 35 1.2 500 FHW1812IF180 ST 18@2.52MHz 10,5 18@2.52MHz 29 1.2 500 FHW1812IF220 ST 22@2.52MHz 10,5 18@2.52MHz 20 1.3 450 FHW1812IF270 ST 27@2.52MHz 10,5 18@2.52MHz 20 1.5 400 FHW1812IF330 ST 33@2.52MHz 10,5 18@2.52MHz 18 1.7 350 FHW1812IF390 ST 39@2.52MHz 10,5 18@2.52MHz 14 1.8 350 FHW1812IF470 ST 47@2.52MHz 10,5 16@2.52MHz 10 2.0 300 FHW1812IF560 ST 56@2.52MHz 10,5 16@2.52MHz 10 2.2 290 FHW1812IF680 ST 68@2.52MHz 10,5 12@2.52MHz 5.4 2.4 260 82@2.52MHz 10,5 12@2.52MHz 5.2 2.8 240 FH1812IF820 ST FHW1812IF101 ST 100@0.796MHz 10,5 1 2 @ 0.7 96MHz 4.0 3.0 220 FHW1812IF121 ST 120@0.796MHz 10,5 10@0.796MHz 3.3 3.3 220 FHW1812IF151 ST 150@0.796MHz 10,5 10@0.796MHz 3.0 3.7 200 FHW1812IF181 ST 180@0.796MHz 10,5 10@0.796MHz 3.0 4.5 200 FHW1812IF221 ST 220@0.796MHz 10,5 10@0.796MHz 2.5 8.0 170 FHW1812IF271 ST 270 @0.796MHz 10,5 10@0.796MHz 2.2 8.5 160 FHW1812IF331 ST 330@0.796MHz 10 10@0.796MHz 2.0 9.0 150 FHW1812IF391 ST 390@0.796MHz 10 10@0.796MHz 1.8 9.5 130 FHW1812IF471 ST 470@0.796MHz 10 8@0.796MHz 1.6 12.0 120 FHW1812IF561 ST 560@0.796MHz 10 8@0.796MHz 1.5 12.5 110 FHW1812IF681 ST 680@0.796MHz 10 8@0.796MHz 1.5 14.0 100 FHW1812IF751 ST 750@0.796MHz 10 8@0.796MHz 1.5 14.5 95 FHW1812IF821 ST 820@0.796MHz 10 8@0.796MHz 1.5 15.0 95 FHW1812IF102 ST 1000@0.252MHz 10 6@0.252MHz 1.4 16.5 90 80 WIRE WOUND CHIP INDUCTORS CHARACTERISTIC CURVE FREQUENCY CHARACTERISTIC Ls VS FREQ. Q VS FREQ. 8 30 25 20 Q Inductance uH 6 4 15 10 2 5 0 0 1 Frequency[MHz] 10 100 1000 10000 1 10 Frequency[MHz] 1 10 Frequency[MHz] 100 1000 20 30 25 20 Q Inductance uH 15 10 15 10 5 5 0 0 1 10 Frequency[MHz] 100 1000 10000 100 1000 20 50 40 Q Inductance uH 15 10 30 20 5 10 0 0 1 10 Frequency[MHz] 100 1000 1 10000 10 Frequency[MHz] 100 1000 10 Frequency[MHz] 100 1000 10 Frequency[MHz] 15 40 30 9 Q Inductance uH 12 20 6 10 3 0 0 1 10 Frequency[MHz] 100 1000 1 10000 15 50 12 Q Inductance uH 40 9 30 6 20 3 10 0 0 1 10 Frequency[MHz] 100 1000 1 10000 81 100 1000 Electrical Specification Test Specified value N0. Item 1 Operating Temp. Range 2 Storage Temp. Range Rated Current 4 5 6 7 Inductance Q Rdc SRF 0402UC 0603UC 0805UC 1008UC 1210HC -40 -10 Test methods ~+85 ~+40 20~1000mA(Max) CH102+1320 or HP4284A+HP42841A Test Equipment CH102+1320 or HP4284A+HP42841A 0.1~1000 0.252~25.2MHz Test Frequency 0.252~25.2MHz HP4285A or HP4286A +16193A or 16197A Test Equipment HP4285A or HP4286A+16193A or 16197A H 0.252~25.2MHz Test Frequency 0.252~25.2MHz HP4285A or HP4286A +16193A or 16197A Test Equipment HP4285A or HP4286A+16193A or 16197A 6~25(min) 0.13~28 HP4263B or HP4286A Test Equipment HP4263B or HP4286A (Max) HP8720D Test Equipment HP8720D 1.4~1150MHz(Min) 82 WIRE WOUND CHIP INDUCTORS Reliability Test Specified value N0. 1 Item 0402UC 0603UC 0805UC 1008UC 1210HC There shall be no case deformation or change in appearance; Solderability At least 90% of terminal electrode is covered by new solder 2 : 245 5 Solder temp.: 245 5 5 1 Duration:5 1S : 260 5 Solder temp.: 260 5 10 1 Duration:10 1S Resistance to soldering There shall be no case deformation or change in appearance; Thermal shock Test methods Inductance shall not change more than 5%; Q shall not change more than 10 emperature:-40 for 60 2min +85 for 60 2min 10 Number of cycles:10 . 4 High Temperature storage +85 2 Temperature:+85 96 2 Time: 96 2h 5 Low Temperature storage -55 2 Temperature:-55 96 2 Time: 96 2h There shall be no case deformation or change in appearance; 6 Damp heat (steady state) Inductance shall not change more than 5%; Q shall not change more than 7 10 2 2 90~95% RH Humidity:90 to 95% RH 50 2 Temperature:50 2 100 2 Duration: 100 2h . 10~55~10Hz Frequency 10 to 55 to 10Hz 1.5mm Amplitude:1.5mm X Y Z 1 45 Directions: 1 hours 45minutes each in X,Y,Z direction. Vibration 83 Reliability Test Specified value N0. 8 Item Terminal Strength (Pull of Test) Test methods 0603UF 0805UF 1008IF 1210IF 1812IF 0603UF 0.9Kg 0805UF 1.3 Kg 1008IF 1210IF 1812IF 2Kg. There shall be no case deformation or change in appearance; 9 Drop Q shall not change more than 10 Flextrue strength Dropped 10 times on a concrete floor from a height of 1m. Inductance shall not change more than 5%; 10 . There shall be no case deformation or change in appearance; Flexure:20mm Inductance shall not change more than 5%; Test board:Glass -Epoxy board Thickness:0.8mm Q shall not change more than 10 . Appearance:No Damage ; 11 Over Loading Provide 2 times the rated current of direct current between inductor terminals, Direct current error 5%, and for 5 minutes. Inductors shall not have a open winding. There shall be no case deformation or change in appearance; 12 Life Inductance shall not change more than 5%; 85 2 Temperature:85 2 1000 Duration: 1000h Applied current: Rated current. Q shall not change more than 10 84 . WIRE WOUND CHIP INDUCTORS Packaging Style Tape Unit(mm) Type Polystyrene tape A B 0603 1.18 1.85 0805 1.85 1008 2.73 1210 2.96 1812 3.22 2.45 2.90 3.60 4.82 Unit(mm) T 0.95 Type 1.50 0603 2.34 A B 178 60 330 75 C 13 D 21 E W t R 2 10 2 1 1210 2.40 2.98 1812 13 23 2 12 Peeling off force Pull strength ~1210 20g ~80g 1812 20g ~100g Speed of peeling off 300mm/min 10% 165 to 180 degree F Cover tape Plastic tape Packaging Quantity Dimension 0603 4000 20000 0805 3000 15000 85 1008 2000 10000 1210 2000 10000 1812 2000 8000 2 1
