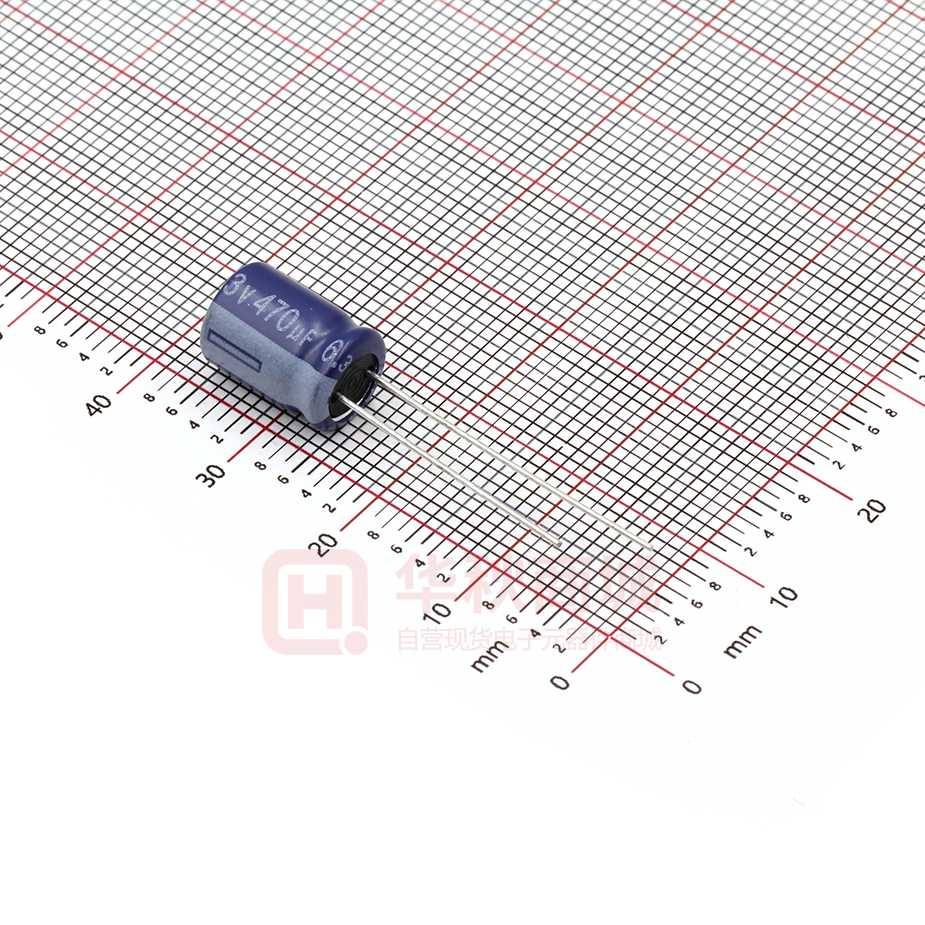

ERF0JM471F11OT

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RF series RF 105 C 1808 Ultra-low impedance, high ripple current Endurance: +105°C 3,000~6,000 hours RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C Rated Voltage Range 6.3~120 V dc Capacitance Tolerance ±20%(M) Leakage Current I≤0.01CV or 3μA, whichever is greater. Where, I:Max.leakage current (μA),C:Nominal capacitance (μF),V: Rated voltage (V) (at 20°C,120Hz) Rated Voltage(V dc ) Dissipation Factor (tanδ) 6.3 10 16 25 35 0.15 0.14 0.12 0.10 0.10 tanδ (max.) 50 63 80 0.08 0.08 0.08 100 (at 20°C after 2 minutes) 120 0.08 0.12 When nominal capacitance exceeds 1,000μF, add 0.02 to the value above for each 1,000μF increase. (at 20°C,120Hz) Low Temperature Characteristics (Max. Impedance Ratio) Rated Voltage(V dc ) 6.3 10 Z(-25°C)/Z(+20°C) 5 4 Z(-40°C)/Z(+20°C) 10 8 16 25 35 5 50 63 80 100 120 3 3 4 6 (at 120Hz) The following specifications shall be met when the capacitors are restored to 20°C after DC voltage plus rated ripple current is applied for a specified period of time at 105 °C. Dia.(mm) Load life (hours) Capacitance Change ≤±25% of the initial value ØD≤6.3 3,000 ØD=8 4,000 D.F. (tanδ) ≤200% of the initial specified value ØD=10 5,000 Leakage Current ≤The initial specified value ØD≥12.5 6,000 The following specifications shall be satisfied when the capacitors are restored to 20°C after leaving them under no load at 105°C for 1,000 hours. Endurance Shelf Life Capacitance Change ≤ ± 25% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Ød ØD' F±0.5 L' 4min. 15min. ( Ø 5~ Ø 18) ØD 5 6.3 Ød 0.5 0.5 F ØD' L' 2.0 2.5 8 0.5 0.6 3.5 10 12.5 16 18 0.6 0.6 0.8 0.8 5.0 5.0 7.5 7.5 Ø D+0.5max. L+2max. Radial Type Sleeve(Violet) PART NUMBERING SYSTEM E RF 1H M 220 D11 O- - T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Cap.(μF) 120 1k 10k 100k Cap.
