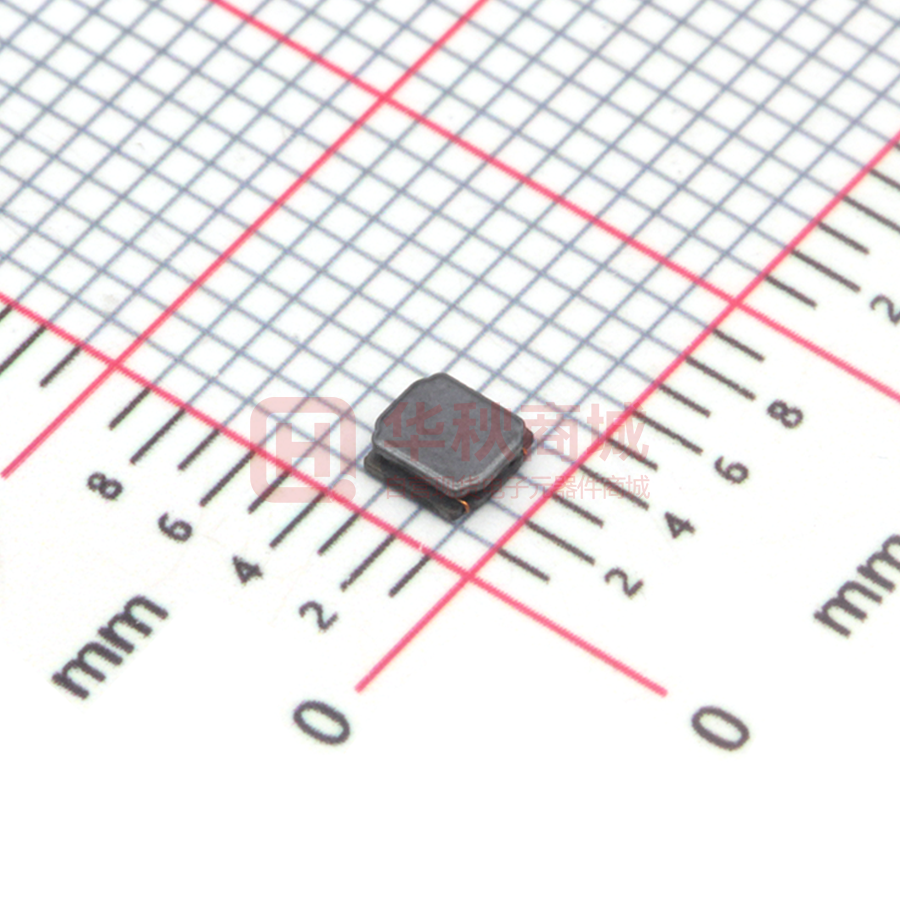

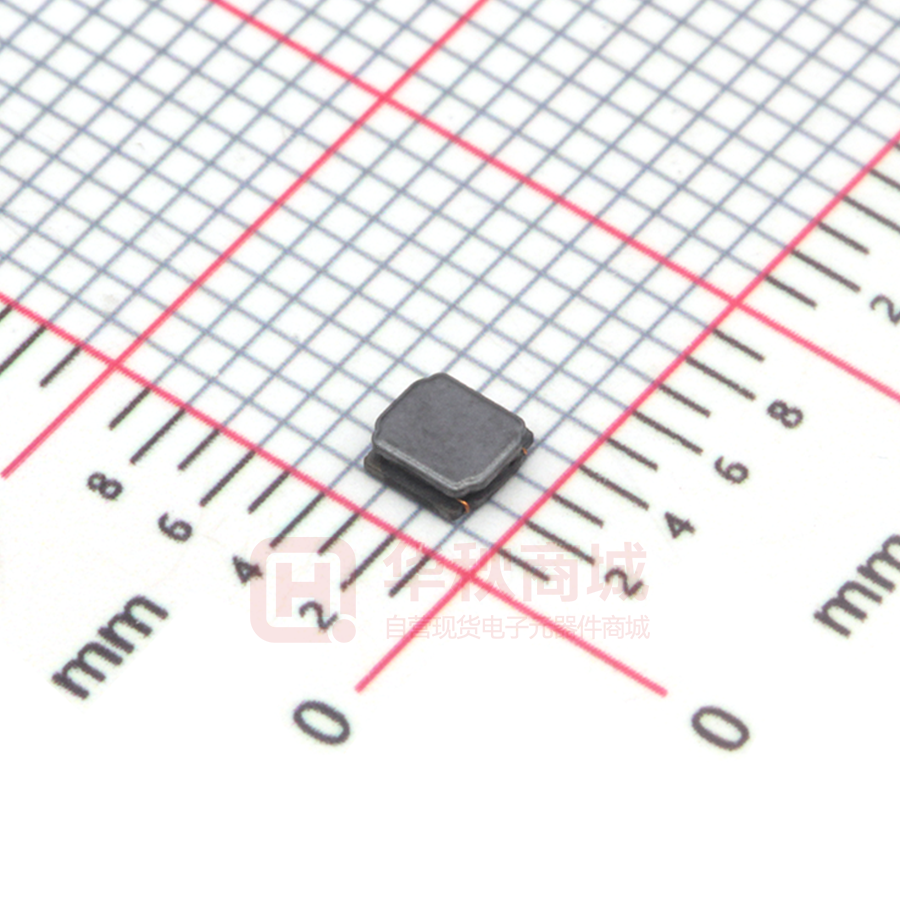

SWPA3010S3R3MT

Wire Wound SMD Power Inductors – SWPA Series Operating temperature range: -40℃~+125℃ (Including self-heating) FEATURES      Magnetic-resin shielded construction reduces buzz noise to ultra-low levels Metallization on ferrite core results in excellent shock resistance and damage-free durability Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI) 30% higher current rating than conventional inductors of equal size Takes up less PCB real estate and save more power APPLICATIONS     Smart phone, smart TV, set top box, notebook Car navigation systems, telecomm base stations VR, AR LED lighting PRODUCT IDENTIFICATION SWPA 3012 S 1R0 N T ① ② ③ ④ ⑤ ⑥ ① ② Type SWPA Wire Wound SMD Power Inductor ③ Feature Type S ④ Standard Nominal Inductance Example 1R0 100 ⑤ Nominal Value 1.0μH 10μH Inductance Tolerance K M N ⑥ ±10% ±20% ±30% Packing T ⑦ Tape Carrier Package Design Code □□□ Sunlord □□□ ⑦ External Dimensions (L×W×H) [mm] 252010 252012 3010 3012 3015 4010 4012 4018 4020 4030 5012 5020 2.5×2.0×1.0 2.5×2.0×1.2 3.0×3.0×1.0 3.0×3.0×1.2 3.0×3.0×1.5 4.0×4.0×1.0 4.0×4.0×1.2 4.0×4.0×1.8 4.0×4.0×2.0 4.0×4.0×3.0 5.0×5.0×1.2 5.0×5.0×2.0 5040 5045 6012 6020 6028 6045 8040 8060 8065 5.0×5.0×4.0 5.0×5.0×4.5 6.0×6.0×1.2 6.0×6.0×2.0 6.0×6.0×2.8 6.0×6.0×4.5 8.0×8.0×4.0 8.0×8.0×6.0 8.0×8.0×6.5 Standard product is blank Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Fig.1 Fig.2 C D E F A E B D Fig.3 B D E F Marking A E C D Recommended Land Pattern Unit: mm Series Shape A B C D E F a Typ. b Typ. c Typ. SWPA252010S Fig.1 2.5±0.1 2.0±0.1 1.0 Max. 2.0±0.2 0.80±0.2 0.80±0.2 0.80 0.85 2.0 SWPA252012S Fig.1 2.5±0.1 2.0±0.1 1.2 Max. 2.0±0.2 0.80±0.2 0.80±0.2 0.80 0.85 2.0 SWPA3010S Fig.2 3.0±0.2 3.0±0.2 1.0 Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 SWPA3012S Fig.2 3.0±0.2 3.0±0.2 1.2 Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 SWPA3015S Fig.2 3.0±0.2 3.0±0.2 1.5 Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 SWPA4010S Fig.2 4.0±0.2 4.0±0.2 1.0 Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4012S Fig.2 4.0±0.2 4.0±0.2 1.2 Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4018S Fig.2 4.0±0.2 4.0±0.2 1.8 Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4020S Fig.2 4.0±0.2 4.0±0.2 2.0 Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4030S Fig.2 4.0±0.2 4.0±0.2 3.0 Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA5012S Fig.3 5.0±0.2 5.0±0.2 1.2 Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 SWPA5020S Fig.3 5.0±0.2 5.0±0.2 2.0 Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 SWPA5040S Fig.3 5.0±0.2 5.0±0.2 4.0 Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 SWPA5045S Fig.3 5.0±0.2 5.0±0.2 4.5 Max. 4.0±0.2 1.30±0.2 2.5±0.2 2.3 1.4 4.2 SWPA6020S Fig.2 6.0±0.3 6.0±0.3 2.0 Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 SWPA6028S Fig.2 6.0±0.3 6.0±0.3 2.8 Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 SWPA6045S Fig.2 6.0±0.3 6.0±0.3 4.5 Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 SWPA8040S Fig.2 8.0±0.3 8.0±0.3 4.2 Max. 6.3±0.3 2.00±0.3 4.0±0.3 3.8 2.2 7.5 SWPA8060S Fig.2 8.0±0.3 8.0±0.3 6.0 Max 6.3±0.3 2.00±0.3 4.0±0.3 3.8 2.2 7.5 SWPA8065S Fig.3 8.0±0.3 8.0±0.3 6.5 Max. 6.3±0.3 2.00±0.3 4.0±0.3 3.8 2.2 7.5 ※*1: All products are printed with Marking except the 252010S, 252012S, 3010S, 3012S and 3015S series. Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA252010S Series Part Number Units Symbol SWPA252010SR47NT SWPA252010SR56NT SWPA252010SR68NT SWPA252010S1R0NT SWPA252010S1R5NT SWPA252010S2R2NT SWPA252010S3R3MT SWPA252010S4R7MT SWPA252010S5R6MT SWPA252010S6R8MT SWPA252010S100MT Inductance DC Resistance @100kHz,1V μH L 0.47±30% 0.56±30% 0.68±30% 1.0±30% 1.5±30% 2.2±30% 3.3±20% 4.7±20% 5.6±20% 6.8±20% 10±20% Max. Typ. Ω DCR 0.056 0.047 0.072 0.060 0.074 0.062 0.108 0.090 0.182 0.152 0.209 0.174 0.328 0.273 0.563 0.469 0.563 0.469 0.896 0.747 1.092 0.910 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 206 160 129 100 81 61 47 42 35 31 27 Max. Typ. Max. A Isat 2.50 2.90 2.20 1.85 1.80 1.20 1.05 0.95 0.80 0.78 0.65 Typ. A Irms 3.35 3.20 2.75 2.20 2.10 1.60 1.30 1.15 0.95 0.92 0.78 2.35 2.00 2.00 1.65 1.30 1.20 0.90 0.70 0.73 0.59 0.50 2.56 2.18 2.18 1.80 1.42 1.31 0.98 0.76 0.80 0.64 0.55 SWPA252012S Series Part Number Units Symbol SWPA252012SR47NT SWPA252012SR68NT SWPA252012S1R0NT SWPA252012S1R2NT SWPA252012S1R5MT SWPA252012S2R2MT SWPA252012S2R7MT SWPA252012S3R3MT SWPA252012S3R6MT SWPA252012S4R3MT SWPA252012S4R7MT SWPA252012S5R1MT SWPA252012S5R6MT SWPA252012S6R2MT SWPA252012S6R8MT SWPA252012S7R5MT SWPA252012S8R2MT SWPA252012S9R1MT SWPA252012S100MT SWPA252012S120MT SWPA252012S150MT SWPA252012S220MT Sunlord @100kHz,1V μH L 0.47±30% 0.68±30% 1.0±30% 1.2±30% 1.5±20% 2.2±20% 2.7±20% 3.3±20% 3.6±20% 4.3±20% 4.7±20% 5.1±20% 5.6±20% 6.2±20% 6.8±20% 7.5±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 22±20% Max. Typ. Ω DCR 0.061 0.047 0.074 0.057 0.090 0.069 0.129 0.099 0.147 0.113 0.216 0.166 0.239 0.184 0.264 0.203 0.348 0.268 0.377 0.290 0.377 0.290 0.500 0.385 0.538 0.414 0.542 0.417 0.581 0.447 0.611 0.470 0.658 0.506 0.690 0.531 0.690 0.531 1.075 0.827 1.591 1.224 1.976 1.520 Self-resonant Saturation Frequency Current*3 Min. MHz S.R.F 160 140 110 100 97 69 63 62 53 51 47 44 38 38 38 35 36 34 34 28 25 20 Max. 3.82 3.28 2.59 2.38 2.24 1.85 1.72 1.61 1.46 1.37 1.12 1.23 1.11 1.03 0.98 0.97 0.98 0.91 0.79 0.78 0.68 0.53 Typ. A Isat 4.27 3.68 2.90 2.67 2.51 2.07 1.92 1.80 1.64 1.53 1.25 1.37 1.25 1.16 1.09 1.09 1.10 1.02 0.88 0.88 0.77 0.59 Heat Rating Current*4 Max. Typ. A Irms 2.15 1.95 1.93 1.46 1.40 1.15 1.09 1.04 0.90 0.87 0.84 0.75 0.73 0.73 0.69 0.68 0.65 0.62 0.62 0.51 0.42 0.38 Specifications subject to change without notice. Please check our website for latest information. 2.34 2.13 2.10 1.59 1.53 1.25 1.19 1.13 0.98 0.95 0.92 0.82 0.80 0.80 0.75 0.74 0.71 0.68 0.68 0.56 0.46 0.41 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA3010S Series Part Number Units Symbol SWPA3010S1R0NT SWPA3010S1R2NT SWPA3010S1R5NT SWPA3010S2R2NT SWPA3010S2R7MT SWPA3010S3R3NT SWPA3010S3R6MT SWPA3010S4R7MT SWPA3010S5R6MT SWPA3010S6R8MT SWPA3010S8R2MT SWPA3010S100MT SWPA3010S120MT SWPA3010S150MT SWPA3010S220MT SWPA3010S270MT SWPA3010S330MT SWPA3010S390MT SWPA3010S430MT SWPA3010S470MT SWPA3010S510MT SWPA3010S560MT Inductance DC Resistance @100kHz,1V μH L 1.0±30% 1.2±30% 1.5±30% 2.2±30% 2.7±20% 3.3±30% 3.6±20% 4.7±20% 5.6±20% 6.8±20% 8.2±20% 10±20% 12±20% 15±20% 22±20% 27±20% 33±20% 39±20% 43±20% 47±20% 51±20% 56±20% Max. Typ. Ω DCR 0.085 0.065 0.085 0.065 0.104 0.080 0.143 0.110 0.169 0.130 0.189 0.145 0.215 0.165 0.293 0.225 0.322 0.248 0.397 0.305 0.520 0.40 0.520 0.40 0.657 0.505 0.793 0.610 1.209 0.930 1.404 1.080 2.015 1.550 2.275 1.750 2.340 1.80 2.535 1.950 2.860 2.20 3.016 2.320 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 180 137 120 100 90 74 67 59 40 42 23 39 36 30 28 25 18 18 18 18 18 16 Current*3 Current*4 Max. Typ. A Irms 1.45 1.80 1.45 1.80 1.30 1.60 1.09 1.40 1.02 1.40 0.96 1.20 0.90 1.10 0.77 1.10 0.70 1.05 0.66 0.96 0.58 0.70 0.58 0.70 0.52 0.67 0.47 0.57 0.38 0.52 0.35 0.50 0.30 0.55 0.28 0.53 0.27 0.52 0.26 0.52 0.25 0.48 0.24 0.35 Max. Typ. A Isat 1.40 1.25 1.27 1.15 1.00 0.97 0.95 0.75 0.58 0.55 0.55 0.55 0.43 0.42 0.35 0.30 0.29 0.28 0.23 0.22 0.21 0.21 2.10 1.70 1.70 1.50 1.20 1.20 1.20 1.05 0.65 0.72 0.70 0.75 0.65 0.57 0.48 0.45 0.42 0.38 0.36 0.35 0.33 0.28 SWPA3012S Series Part Number Units Symbol SWPA3012SR22NT SWPA3012SR82NT SWPA3012S1R0NT SWPA3012S1R2NT SWPA3012S1R5NT SWPA3012S1R8NT SWPA3012S2R2NT SWPA3012S2R4NT SWPA3012S2R7NT SWPA3012S3R3MT SWPA3012S3R6MT SWPA3012S3R9MT SWPA3012S4R7MT SWPA3012S6R8MT SWPA3012S100MT SWPA3012S120MT SWPA3012S150MT SWPA3012S180MT SWPA3012S220MT Sunlord @100kHz,1V μH L 0.22±30% 0.82±30% 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.2±30% 2.4±30% 2.7±30% 3.3±20% 3.6±20% 3.9±20% 4.7±20% 6.8±20% 10±20% 12±20% 15±20% 18±20% 22±20% Max. Typ. Ω DCR 0.022 0.017 0.039 0.030 0.052 0.040 0.059 0.045 0.059 0.045 0.082 0.063 0.098 0.075 0.088 0.068 0.110 0.085 0.130 0.10 0.130 0.10 0.189 0.145 0.156 0.120 0.247 0.190 0.345 0.265 0.449 0.345 0.468 0.360 0.709 0.545 0.839 0.645 Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 321 180 120 120 110 90 84 100 65 64 36 61 61 61 42 32 27 25 23 Current*3 Current*4 Max. Typ. A Irms 3.00 3.30 2.47 3.00 2.20 2.70 2.01 2.20 2.01 2.20 1.65 1.80 1.55 1.70 1.60 1.70 1.48 1.50 1.36 1.40 1.36 1.40 1.24 1.30 1.24 1.30 0.98 1.10 0.83 0.90 0.73 0.84 0.71 0.77 0.58 0.65 0.53 0.59 Max. Typ. A Isat 5.30 2.05 1.87 2.22 1.62 1.30 1.20 1.15 1.14 1.05 1.05 1.00 0.90 0.75 0.60 0.48 0.45 0.43 0.42 6.00 2.80 2.80 2.50 1.90 1.90 1.90 1.50 1.50 1.50 1.50 1.30 1.00 0.90 0.88 0.67 0.62 0.59 0.52 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA3012S Series Part Number Units Symbol SWPA3012S270MT SWPA3012S330MT SWPA3012S360MT SWPA3012S390MT SWPA3012S470MT SWPA3012S560MT SWPA3012S680MT SWPA3012S820MT SWPA3012S101MT Inductance DC Resistance @100kHz,1V μH L 27±20% 33±20% 36±20% 39±20% 47±20% 56±20% 68±20% 82±20% 100±20% Max. Typ. Ω DCR 1.131 0.870 1.138 0.875 1.235 0.950 1.729 1.330 1.885 1.450 1.794 1.380 2.171 1.670 3.302 2.540 3.718 2.860 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 21 18 18 18 14 9 7 7 5 Current*3 Current*4 Max. Typ. A Irms 0.47 0.51 0.46 0.50 0.44 0.48 0.37 0.41 0.35 0.40 0.28 0.40 0.33 0.37 0.27 0.31 0.25 0.29 Max. Typ. A Isat 0.35 0.36 0.34 0.30 0.27 0.26 0.24 0.17 0.21 0.48 0.46 0.44 0.39 0.35 0.33 0.29 0.27 0.23 SWPA3015S Series Part Number Units Symbol SWPA3015SR50NT SWPA3015S1R0NT SWPA3015S1R2NT SWPA3015S1R5NT SWPA3015S1R8NT SWPA3015S2R2NT SWPA3015S2R7NT SWPA3015S3R3MT SWPA3015S3R6MT SWPA3015S3R9MT SWPA3015S4R3MT SWPA3015S4R7MT SWPA3015S5R1MT SWPA3015S6R2MT SWPA3015S6R8MT SWPA3015S100MT SWPA3015S120MT SWPA3015S150MT SWPA3015S180MT SWPA3015S220MT SWPA3015S270MT SWPA3015S330MT SWPA3015S390MT SWPA3015S430MT SWPA3015S470MT SWPA3015S560MT SWPA3015S620MT SWPA3015S680MT SWPA3015S101MT SWPA3015S151MT Sunlord @100kHz,1V μH L 0.5±30% 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.2±30% 2.7±30% 3.3±20% 3.6±20% 3.9±20% 4.3±20% 4.7±20% 5.1±20% 6.2±20% 6.8±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 39±20% 43±20% 47±20% 56±20% 62±20% 68±20% 100±20% 150±20% Max. Typ. Ω DCR 0.039 0.030 0.039 0.030 0.052 0.040 0.065 0.050 0.065 0.050 0.078 0.060 0.098 0.075 0.104 0.080 0.137 0.105 0.137 0.105 0.150 0.115 0.163 0.125 0.173 0.133 0.254 0.195 0.260 0.20 0.325 0.250 0.416 0.320 0.455 0.350 0.559 0.430 0.598 0.460 0.949 0.730 1.066 0.820 1.294 0.995 1.378 1.060 1.625 1.250 1.664 1.280 2.093 1.610 3.510 2.700 4.043 3.110 4.940 3.80 Self-resonant Frequency Min. MHz S.R.F 162 150 110 100 92 86 64 68 59 47 53 46 49 46 39 41 32 30 23 23 22 20 14 16 14 13 13 11 7.2 4.5 Saturation Current*3 Max. Typ. A Isat 3.90 4.20 2.32 2.80 2.21 3.10 2.30 2.70 1.75 2.20 1.60 2.00 1.52 1.90 1.32 1.81 1.28 1.60 1.20 1.40 1.20 1.40 1.10 1.40 1.00 1.20 1.00 1.20 0.85 1.10 0.72 0.92 0.70 0.90 0.66 0.88 0.56 0.72 0.52 0.68 0.48 0.56 0.44 0.53 0.41 0.55 0.37 0.43 0.35 0.43 0.33 0.42 0.30 0.40 0.28 0.37 0.23 0.25 0.18 0.22 Heat Rating Current*4 Max. Typ. A Irms 2.60 2.80 2.35 2.50 1.95 2.30 1.70 2.20 1.70 2.20 1.60 2.00 1.43 1.90 1.36 1.60 1.20 1.50 1.20 1.50 1.14 1.30 1.09 1.30 1.05 1.20 0.86 1.00 0.85 1.10 0.77 0.90 0.68 0.89 0.65 0.72 0.59 0.72 0.57 0.69 0.45 0.56 0.43 0.51 0.39 0.44 0.37 0.48 0.35 0.44 0.34 0.41 0.30 0.41 0.23 0.31 0.21 0.25 0.19 0.23 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4010S Series Part Number Units 单位 Symbol 符号 SWPA4010S1R0NT SWPA4010S1R5NT SWPA4010S2R2MT SWPA4010S3R3MT SWPA4010S4R7MT SWPA4010S6R8MT SWPA4010S100MT SWPA4010S150MT SWPA4010S220MT Inductance DC Resistance @100kHz,1V μH L 1.0±30% 1.5±30% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% 15±20% 22±20% Max. Typ. Ω DCR 0.067 0.056 0.084 0.070 0.102 0.085 0.120 0.100 0.168 0.140 0.240 0.200 0.360 0.300 0.516 0.430 0.684 0.570 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 104 71 52 42 30 26 19 17 11 Max. Typ. Max. A Isat 2.00 1.68 1.20 1.10 0.95 0.80 0.62 0.54 0.45 Typ. A Irms 2.30 2.00 1.50 1.40 1.10 0.95 0.75 0.61 0.52 1.90 1.70 1.50 1.40 1.20 1.00 0.75 0.60 0.50 2.40 2.00 2.00 1.80 1.50 1.20 1.00 0.85 0.75 SWPA4012S Series Part Number Units 单位 Symbol 符号 SWPA4012SR82NT SWPA4012S1R0NT SWPA4012S1R5NT SWPA4012S1R8NT SWPA4012S2R2NT SWPA4012S2R7NT SWPA4012S3R3NT SWPA4012S3R6NT SWPA4012S4R3NT SWPA4012S4R7NT SWPA4012S5R1NT SWPA4012S5R6NT SWPA4012S6R8MT SWPA4012S100MT SWPA4012S120MT SWPA4012S150MT SWPA4012S180MT SWPA4012S220MT SWPA4012S270MT SWPA4012S330MT SWPA4012S360MT SWPA4012S390MT SWPA4012S470MT SWPA4012S560MT SWPA4012S680MT SWPA4012S820MT SWPA4012S101MT Sunlord @100kHz,1V μH L 0.82±30% 1.0±30% 1.5±30% 1.8±30% 2.2±30% 2.7±30% 3.3±30% 3.6±30% 4.3±30% 4.7±30% 5.1±30% 5.6±30% 6.8±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 36±20% 39±20% 47±20% 56±20% 68±20% 82±20% 100±20% Max. Typ. Ω DCR 0.065 0.050 0.065 0.050 0.085 0.065 0.104 0.080 0.104 0.080 0.117 0.090 0.143 0.110 0.143 0.110 0.182 0.140 0.163 0.125 0.201 0.155 0.182 0.140 0.257 0.198 0.345 0.265 0.377 0.290 0.442 0.340 0.611 0.470 0.763 0.587 0.936 0.720 1.053 0.810 1.170 0.90 1.430 1.10 1.430 1.10 1.625 1.250 2.535 1.950 2.782 2.140 2.873 2.210 Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 150 120 90 88 74 71 60 57 54 50 50 42 40 33 32 25 23 20 18 17 14 16 12 11 11 11 9.4 Max. Typ. Max. A Isat 3.02 2.61 2.10 2.12 1.76 1.90 1.72 1.20 1.58 1.15 1.55 1.00 0.85 0.80 0.66 0.56 0.55 0.46 0.50 0.42 0.40 0.55 0.35 0.33 0.38 0.28 0.25 Typ. A Irms 3.30 3.20 2.70 2.60 2.30 2.30 2.10 1.70 1.70 1.80 1.60 1.60 1.40 1.10 1.00 0.80 0.75 0.70 0.70 0.60 0.50 0.66 0.50 0.45 0.45 0.40 0.30 1.65 1.65 1.46 1.32 1.32 1.25 1.12 1.12 1.00 1.05 0.95 1.00 0.84 0.77 0.70 0.64 0.55 0.49 0.45 0.42 0.40 0.37 0.37 0.33 0.27 0.26 0.25 Specifications subject to change without notice. Please check our website for latest information. 2.50 2.50 2.20 1.90 1.90 1.70 1.60 1.60 1.50 1.50 1.50 1.20 1.20 1.00 0.95 0.85 0.80 0.75 0.60 0.58 0.56 0.50 0.50 0.46 0.45 0.36 0.35 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4018S Series Part Number Units Symbol SWPA4018SR47NT SWPA4018SR68NT SWPA4018S1R0NT SWPA4018S1R5NT SWPA4018S1R8NT SWPA4018S2R2MT SWPA4018S3R3MT SWPA4018S4R7MT SWPA4018S6R8MT SWPA4018S100MT SWPA4018S150MT SWPA4018S220MT SWPA4018S330MT SWPA4018S470MT SWPA4018S680MT SWPA4018S101MT SWPA4018S151MT SWPA4018S221MT Inductance DC Resistance @100kHz,1V μH L 0.47±30% 0.68±30% 1.0±30% 1.5±30% 1.8±30% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% 15±20% 22±20% 33±20% 47±20% 68±20% 100±20% 150±20% 220±20% Max. Typ. Ω DCR 0.018 0.014 0.026 0.020 0.033 0.025 0.039 0.030 0.044 0.034 0.059 0.045 0.091 0.070 0.117 0.090 0.143 0.110 0.234 0.180 0.325 0.250 0.468 0.360 0.689 0.530 0.845 0.650 1.30 1.0 2.275 1.750 3.250 2.50 5.20 4.0 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 155 128 80 65 54 52 44 34 29 24 19 16 12 10 8.3 6.5 5.5 4 Current*3 Current*4 Max. Typ. A Irms 4.00 4.50 3.30 3.80 2.00 3.30 1.80 3.20 2.00 2.80 1.65 2.60 1.23 2.10 1.20 1.80 1.06 1.50 0.84 1.20 0.65 1.00 0.59 0.85 0.49 0.72 0.42 0.65 0.32 0.52 0.25 0.41 0.22 0.36 0.17 0.27 Max. Typ. A Isat 4.30 4.90 4.80 3.35 3.00 2.70 2.45 1.70 1.45 1.30 0.94 0.80 0.56 0.57 0.47 0.40 0.31 0.27 5.20 5.60 5.20 4.00 3.40 3.20 2.90 2.20 2.00 1.60 1.10 0.88 0.75 0.70 0.51 0.44 0.34 0.30 SWPA4020S Series Part Number Units Symbol SWPA4020SR24MT SWPA4020SR33NT SWPA4020SR47NT SWPA4020SR68NT SWPA4020S1R0NT SWPA4020S1R2NT SWPA4020S1R5NT SWPA4020S2R2MT SWPA4020S3R3MT SWPA4020S3R6MT SWPA4020S4R7MT SWPA4020S5R1MT SWPA4020S5R6MT SWPA4020S6R2MT SWPA4020S6R8MT SWPA4020S7R5MT SWPA4020S8R2MT SWPA4020S100MT SWPA4020S120MT SWPA4020S150MT SWPA4020S220MT SWPA4020S270MT Sunlord @100kHz,1V μH L 0.24±20% 0.33±30% 0.47±30% 0.68±30% 1.0±30% 1.2±30% 1.5±30% 2.2±20% 3.3±20% 3.6±20% 4.7±20% 5.1±20% 5.6±20% 6.2±20% 6.8±20% 7.5±20% 8.2±20% 10±20% 12±20% 15±20% 22±20% 27±20% Max. Typ. Ω DCR 0.014 0.011 0.016 0.013 0.029 0.022 0.036 0.028 0.038 0.029 0.038 0.029 0.046 0.035 0.052 0.040 0.091 0.070 0.072 0.055 0.098 0.075 0.111 0.085 0.117 0.090 0.150 0.115 0.163 0.125 0.150 0.115 0.163 0.125 0.215 0.165 0.228 0.175 0.299 0.230 0.455 0.350 0.709 0.545 Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 283 223 160 120 75 72 71 49 44 49 42 42 30 36 33 30 27 26 26 24 15 14 Current*3 Current*4 Max. Typ. A Irms 4.50 5.20 3.30 4.90 3.30 3.70 2.80 3.30 2.15 3.20 2.15 3.20 1.98 3.00 1.85 2.80 1.40 2.50 1.54 2.50 1.34 2.00 1.27 1.80 1.22 1.80 1.08 1.60 1.04 1.60 1.08 1.50 1.04 1.40 0.90 1.20 0.88 1.20 0.77 1.10 0.62 0.87 0.50 0.70 Max. Typ. A Isat 10.5 7.50 7.00 6.40 4.78 5.10 4.45 3.40 3.20 2.80 2.35 2.30 2.20 2.15 2.20 1.85 1.75 1.60 1.50 1.35 1.05 1.02 12.5 8.50 7.50 6.60 5.20 5.60 4.90 3.70 3.50 3.00 2.50 2.50 2.40 2.30 2.40 2.00 1.90 1.70 1.60 1.50 1.10 1.10 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4020S Series Part Number Units Symbol SWPA4020S330MT SWPA4020S390MT SWPA4020S430MT SWPA4020S470MT SWPA4020S510MT SWPA4020S560MT SWPA4020S620MT SWPA4020S680MT SWPA4020S750MT SWPA4020S820MT SWPA4020S101MT Inductance DC Resistance @100kHz,1V μH L 33±20% 39±20% 43±20% 47±20% 51±20% 56±20% 62±20% 68±20% 75±20% 82±20% 100±20% Max. Typ. Ω DCR 0.715 0.550 0.845 0.650 0.858 0.660 0.923 0.710 0.975 0.750 1.040 0.80 1.170 0.90 1.380 1.060 1.510 1.160 1.520 1.170 2.020 1.550 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 11 11 10 10 10 10 9.6 7.7 7.7 7.2 6.3 Current*3 Current*4 Max. Typ. A Irms 0.49 0.68 0.46 0.64 0.45 0.63 0.44 0.61 0.42 0.59 0.41 0.57 0.39 0.52 0.36 0.50 0.35 0.49 0.34 0.47 0.31 0.43 Max. Typ. A Isat 0.85 0.82 0.77 0.74 0.70 0.66 0.65 0.61 0.70 0.50 0.48 0.93 0.90 0.85 0.81 0.77 0.72 0.71 0.67 0.77 0.55 0.53 SWPA4030S Series Part Number Units Symbol SWPA4030SR47NT SWPA4030SR68NT SWPA4030SR91NT SWPA4030S1R0NT SWPA4030S1R2NT SWPA4030S1R5NT SWPA4030S1R8NT SWPA4030S2R2NT SWPA4030S3R3MT SWPA4030S3R6MT SWPA4030S3R9MT SWPA4030S4R3MT SWPA4030S4R7MT SWPA4030S5R6MT SWPA4030S6R8MT SWPA4030S7R5MT SWPA4030S8R2MT SWPA4030S100MT SWPA4030S120MT SWPA4030S150MT SWPA4030S180MT SWPA4030S220MT SWPA4030S330MT SWPA4030S360MT SWPA4030S390MT SWPA4030S470MT SWPA4030S510MT SWPA4030S560MT SWPA4030S620MT SWPA4030S680MT Sunlord @100kHz,1V μH L 0.47±30% 0.68±30% 0.91±30% 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.2±30% 3.3±20% 3.6±20% 3.9±20% 4.3±20% 4.7±20% 5.6±20% 6.8±20% 7.5±20% 8.2±20% 10±20% 12±20% 15±20% 18±20% 22±20% 33±20% 36±20% 39±20% 47±20% 51±20% 56±20% 62±20% 68±20% Max. Typ. Ω DCR 0.0104 0.008 0.013 0.010 0.017 0.013 0.018 0.014 0.020 0.015 0.026 0.020 0.033 0.025 0.039 0.030 0.052 0.040 0.052 0.040 0.074 0.057 0.072 0.055 0.078 0.060 0.085 0.065 0.117 0.090 0.110 0.085 0.117 0.090 0.130 0.10 0.175 0.135 0.247 0.190 0.260 0.20 0.293 0.225 0.429 0.330 0.436 0.335 0.566 0.435 0.579 0.445 0.611 0.470 0.722 0.555 0.760 0.585 1.128 0.868 Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 184 130 100 70 80 62 60 52 38 37 32 37 31 30 24 26 26 21 18 16 10 10 10 9.8 10 8.4 8.4 8.4 7 7 Current*3 Current*4 Max. Typ. A Irms 5.20 5.90 4.56 5.10 4.15 4.70 4.15 4.70 3.82 4.20 3.34 3.60 3.20 3.30 2.95 3.20 2.40 2.60 2.40 2.60 2.10 2.30 2.10 2.30 2.00 2.30 1.95 2.10 1.60 1.70 1.65 1.80 1.60 1.70 1.50 1.60 1.30 1.40 1.11 1.20 1.10 1.20 1.00 1.20 0.84 0.92 0.83 0.91 0.73 0.80 0.72 0.80 0.70 0.80 0.65 0.71 0.63 0.70 0.52 0.57 Max. Typ. A Isat 7.80 6.80 6.25 5.26 5.80 4.84 5.40 4.90 3.30 3.00 3.00 2.95 2.90 2.60 2.75 2.20 2.10 1.95 1.70 1.65 1.40 1.30 1.10 1.05 1.03 0.95 0.90 0.85 0.80 0.72 9.80 8.00 6.80 5.70 6.30 5.30 5.80 5.80 3.60 3.50 3.30 3.20 3.20 2.80 3.00 2.40 2.30 2.40 1.80 1.80 1.50 1.40 1.20 1.10 1.10 1.00 1.13 0.94 0.99 0.80 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4030S Series Part Number Units Symbol SWPA4030S750MT SWPA4030S820MT SWPA4030S910MT SWPA4030S101MT SWPA4030S121MT SWPA4030S151MT SWPA4030S471KT SWPA4030S501MT SWPA4030S681MT Inductance DC Resistance @100kHz,1V μH L 75±20% 82±20% 91±20% 100±20% 120±20% 150±20% 470±10% 500±20% 680±20% Max. Typ. Ω DCR 1.326 1.020 1.378 1.060 1.430 1.10 1.495 1.150 1.755 1.350 2.340 1.80 9.360 7.20 9.027 6.944 9.854 7.580 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 6.3 5.6 5.6 5.6 5.4 4 2 2 1.2 Current*3 Current*4 Max. Typ. A Irms 0.48 0.53 0.47 0.52 0.46 0.50 0.45 0.49 0.42 0.46 0.30 0.35 0.20 0.23 0.15 0.20 0.14 0.18 Max. Typ. A Isat 0.70 0.66 0.65 0.60 0.55 0.50 0.30 0.28 0.19 0.88 0.72 0.71 0.73 0.60 0.55 0.35 0.30 0.20 SWPA5012S Series Part Number Units Symbol SWPA5012S1R0NT SWPA5012S1R5NT SWPA5012S2R2NT SWPA5012S3R3NT SWPA5012S4R7NT SWPA5012S6R8MT SWPA5012S100MT SWPA5012S150MT SWPA5012S220MT @100kHz,1V μH L 1.0±30% 1.5±30% 2.2±30% 3.3±30% 4.7±30% 6.8±20% 10±20% 15±20% 22±20% Max. Typ. Ω DCR 0.068 0.057 0.086 0.072 0.108 0.090 0.151 0.126 0.197 0.164 0.294 0.245 0.413 0.344 0.523 0.436 0.858 0.780 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 103 68 50 34 31 22 17 13 16 Current*3 Current*4 Max. Typ. A Irms 2.00 2.40 1.90 2.20 1.70 2.00 1.40 1.70 1.30 1.50 1.00 1.20 0.85 1.00 0.80 0.92 0.60 0.68 Max. Typ. A Isat 4.40 3.70 3.10 2.40 2.20 1.70 1.40 1.20 0.88 4.70 3.80 3.20 2.60 2.30 1.90 1.50 1.30 0.98 SWPA5020S Series Part Number Units Symbol SWPA5020SR22NT SWPA5020SR24NT SWPA5020SR47NT SWPA5020SR56NT SWPA5020SR68NT SWPA5020SR75NT SWPA5020S1R0NT SWPA5020S1R2NT SWPA5020S1R5NT SWPA5020S2R2NT SWPA5020S2R7NT SWPA5020S3R0NT SWPA5020S3R3NT SWPA5020S3R6NT Sunlord @100kHz,1V μH L 0.22±30% 0.24±30% 0.47±30% 0.56±30% 0.68±30% 0.75±30% 1.0±30% 1.2±30% 1.5±30% 2.2±30% 2.7±30% 3.0±30% 3.3±30% 3.6±30% Max. Typ. Ω DCR 0.011 0.009 0.011 0.009 0.017 0.013 0.022 0.017 0.022 0.017 0.022 0.017 0.026 0.020 0.029 0.022 0.034 0.026 0.042 0.032 0.049 0.038 0.049 0.038 0.056 0.043 0.056 0.043 Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 280 248 160 137 120 117 114 83 68 57 52 49 46 43 Current*3 Current*4 Max. Typ. A Irms 5.30 6.00 5.30 6.00 4.60 5.00 3.80 4.20 4.00 4.40 4.00 4.40 3.80 4.10 3.55 3.90 3.20 3.50 2.90 3.10 2.70 2.90 2.70 2.90 2.50 2.70 2.50 2.70 Max. Typ. A Isat 9.00 8.00 6.15 8.50 5.50 5.50 4.10 4.50 4.10 3.20 2.90 2.55 2.55 2.80 12.00 10.00 6.70 9.60 6.00 6.00 5.00 4.90 4.50 4.00 3.50 2.80 3.00 3.00 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA5020S Series Part Number Units Symbol SWPA5020S3R9NT SWPA5020S4R3MT SWPA5020S4R7MT SWPA5020S5R1MT SWPA5020S5R6MT SWPA5020S6R8MT SWPA5020S7R5MT SWPA5020S8R2MT SWPA5020S9R1MT SWPA5020S100MT SWPA5020S120MT SWPA5020S150MT SWPA5020S180MT SWPA5020S220MT SWPA5020S330MT SWPA5020S470MT SWPA5020S560MT SWPA5020S680MT SWPA5020S820MT SWPA5020S101MT SWPA5020S121MT SWPA5020S201MT Inductance DC Resistance @100kHz,1V μH L 3.9±30% 4.3±20% 4.7±20% 5.1±20% 5.6±20% 6.8±20% 7.5±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 18±20% 22±20% 33±20% 47±20% 56±20% 68±20% 82±20% 100±20% 120±20% 200±20% Max. Typ. Ω DCR 0.056 0.043 0.074 0.057 0.074 0.057 0.083 0.064 0.083 0.064 0.108 0.083 0.117 0.090 0.127 0.098 0.143 0.110 0.143 0.110 0.182 0.140 0.215 0.165 0.260 0.200 0.294 0.226 0.507 0.390 0.680 0.523 0.819 0.630 0.962 0.740 1.158 0.965 1.430 1.100 1.755 1.350 2.60 2.00 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 40 37 37 32 32 30 26 26 24 24 22 20 16 14 10 7 6 6 6 6 6 4.5 Current*3 Current*4 Max. Typ. A Irms 2.50 2.70 2.20 2.40 2.20 2.40 2.05 2.20 2.05 2.20 1.80 1.90 1.75 1.90 1.65 1.80 1.55 1.70 1.55 1.70 1.40 1.50 1.25 1.30 1.15 1.20 1.10 1.20 0.90 0.99 0.77 0.84 0.70 0.77 0.64 0.70 0.50 0.60 0.53 0.58 0.40 0.50 0.40 0.45 Max. Typ. A Isat 2.30 2.50 2.50 2.25 2.30 2.05 1.85 1.85 1.70 1.70 1.50 1.35 1.25 1.15 0.92 0.77 0.77 0.65 0.65 0.53 0.42 0.30 2.80 3.00 2.70 2.60 2.50 2.20 2.00 2.00 1.80 1.80 1.60 1.40 1.30 1.20 1.00 0.84 0.84 0.70 0.75 0.58 0.53 0.33 SWPA5040S Series Part Number Units Symbol SWPA5040SR22MT SWPA5040SR24NT SWPA5040SR47MT SWPA5040S1R0NT SWPA5040S1R2NT SWPA5040S1R5NT SWPA5040S1R8MT SWPA5040S2R2NT SWPA5040S2R7NT SWPA5040S3R0NT SWPA5040S3R3NT SWPA5040S3R6MT SWPA5040S3R9NT SWPA5040S3R9NT SWPA5040S4R7NT SWPA5040S5R6MT SWPA5040S6R8MT SWPA5040S8R2MT SWPA5040S100MT Sunlord @100kHz,1V μH L 0.22 ±20% 0.24 ±30% 0.47 ±20% 1.0±30% 1.2±30% 1.5±30% 1.8±20% 2.2±30% 2.7±30% 3.0±30% 3.3±30% 3.6±20% 3.9±30% 3.9±30% 4.7±30% 5.6±20% 6.8±20% 8.2±20% 10±20% Max. Typ. Ω DCR 0.008 0.006 0.008 0.006 0.009 0.007 0.016 0.012 0.021 0.016 0.020 0.015 0.021 0.016 0.025 0.019 0.029 0.022 0.029 0.022 0.031 0.024 0.031 0.026 0.035 0.027 0.035 0.027 0.039 0.030 0.046 0.035 0.056 0.043 0.062 0.048 0.083 0.064 Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 289 251 171 117 110 86 55 50 37 37 32 30 29 29 28 27 21 20 18 Current*3 Current*4 Max. Typ. A Irms 6.50 7.50 6.40 7.40 6.60 7.60 4.90 5.10 4.15 4.30 4.30 4.80 4.15 4.30 3.80 4.30 3.60 4.10 3.60 4.20 3.40 3.90 3.30 3.70 3.20 3.70 3.20 3.70 3.00 3.30 2.80 3.10 2.50 2.80 2.30 2.60 2.10 2.40 Max. Typ. A Isat 18.00 15.70 10.00 7.35 6.50 6.30 5.50 4.90 4.30 4.15 3.95 3.80 3.55 3.55 3.50 3.00 2.90 2.70 2.35 20.00 18.00 11.50 8.20 7.00 7.30 6.40 5.50 5.10 4.80 4.60 4.40 4.20 4.20 3.90 3.70 3.50 3.00 2.90 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA5040S Series Part Number Units Symbol SWPA5040S120MT SWPA5040S150MT SWPA5040S180MT SWPA5040S220MT SWPA5040S270MT SWPA5040S330MT SWPA5040S470MT SWPA5040S510MT SWPA5040S560MT SWPA5040S680MT SWPA5040S750MT SWPA5040S101MT SWPA5040S151MT SWPA5040S221MT SWPA5040S301MT SWPA5040S331MT SWPA5040S471MT SWPA5040S561MT SWPA5040S681MT Inductance DC Resistance @100kHz,1V μH L 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 47±20% 51±20% 56±20% 68±20% 75±20% 100±20% 150±20% 220±20% 300±20% 330±20% 470±20% 560±20% 680±20% Max. Typ. Ω DCR 0.100 0.077 0.112 0.086 0.155 0.119 0.168 0.129 0.244 0.188 0.244 0.188 0.354 0.272 0.494 0.380 0.494 0.380 0.520 0.40 0.585 0.450 0.728 0.560 0.975 0.750 1.820 1.400 2.600 2.000 2.730 2.100 3.900 3.000 4.914 3.780 5.070 3.900 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 14 13 12 11 9.8 9 7 6 6 6 6 5 3.7 3.0 2.7 2.7 2.7 1.52 1.60 Current*3 Current*4 Max. Typ. A Irms 2.00 2.10 2.00 2.10 1.45 1.65 1.50 1.60 1.10 1.25 1.20 1.40 1.00 1.10 1.00 1.10 0.80 0.90 0.80 0.90 0.72 0.80 0.70 0.80 0.60 0.70 0.40 0.50 0.35 0.40 0.40 0.50 0.35 0.40 0.31 0.35 0.25 0.30 Max. Typ. A Isat 2.20 2.00 1.70 1.60 1.52 1.30 1.10 1.00 1.05 0.90 0.85 0.75 0.65 0.48 0.50 0.42 0.37 0.31 0.30 2.50 2.30 2.00 1.90 1.75 1.50 1.30 1.20 1.20 1.10 0.95 0.85 0.67 0.55 0.58 0.47 0.43 0.36 0.35 SWPA5045S Series Part Number Units Symbol SWPA5045S1R5NT SWPA5045S2R2NT SWPA5045S3R3MT SWPA5045S100MT SWPA5045S220MT @100kHz,1V μH L 1.5±30% 2.2±20% 3.3±20% 10±20% 22±20% Max. Typ. Ω DCR 0.022 0.017 0.029 0.022 0.035 0.027 0.079 0.061 0.163 0.125 Inductance DC Resistance @100kHz,1V μH L 1.00±30% 1.50±30% 2.5±30% 3.3±30% 4.7±30% 5.3±30% 6.8±30% 10±20% 15±20% Typ. Ω DCR 0.055 0.075 0.090 0.105 0.125 0.125 0.165 0.200 0.295 Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 78 50 36 17 10 Current*3 Current*4 Typ. Typ. A Irms 5.20 5.90 4.70 5.40 4.20 4.85 2.50 2.90 1.55 1.80 Typ. Typ. A Isat 7.40 6.40 6.40 3.20 2.00 8.50 7.20 7.20 3.70 2.35 SWPA6012S Series Part Number Units Symbol SWPA6012S1R0NT SWPA6012S1R5NT SWPA6012S2R5NT SWPA6020SR68NT SWPA6012S3R3NT SWPA6012S4R7NT SWPA6012S5R3NT SWPA6012S6R8NT SWPA6012S100MT SWPA6012S150MT Sunlord Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 80 65 45 42 36 34 30 22 18 Current*3 Current*4 Typ. Typ. A Irms 2.30 2.00 1.80 1.70 1.55 1.55 1.35 1.20 0.80 Typ. Typ. A Isat 3.52 2.73 2.10 1.80 1.60 1.50 1.30 1.00 1.80 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA6012S Series Part Number Units Symbol SWPA6012S220MT SWPA6012S330MT SWPA6012S470MT SWPA6012S680MT SWPA6012S101MT Inductance DC Resistance @100kHz,1V μH L 22±20% 33±20% 47±20% 68±20% 100±20% Typ. Ω DCR 0.465 0.580 0.810 1.160 1.670 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 12 8 6 3 1 Current*3 Current*4 Typ. Typ. A Irms 0.65 0.55 0.46 0.41 0.32 Self-resonant Saturation Typ. Typ. A Isat 0.76 0.59 0.52 0.44 0.35 SWPA6020S Series Part Number Units Symbol SWPA6020SR50NT SWPA6020SR68NT SWPA6020SR82NT SWPA6020S1R0NT SWPA6020S1R2NT SWPA6020S1R5NT SWPA6020S1R8NT SWPA6020S2R0NT SWPA6020S2R2NT SWPA6020S2R7NT SWPA6020S3R3NT SWPA6020S3R9NT SWPA6020S4R3NT SWPA6020S4R7NT SWPA6020S5R6NT SWPA6020S6R2NT SWPA6020S6R8NT SWPA6020S8R2NT SWPA6020S100MT SWPA6020S120MT SWPA6020S150MT SWPA6020S180MT SWPA6020S220MT SWPA6020S330MT SWPA6020S470MT @100kHz,1V μH L 0.50±30% 0.68±30% 0.82±30% 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.0±30% 2.2±30% 2.7±30% 3.3±30% 3.9±30% 4.3±30% 4.7±30% 5.6±30% 6.2±30% 6.8±30% 8.2±30% 10±20% 12±20% 15±20% 18±20% 22±20% 33±20% 47±20% Max. Typ. Ω DCR 0.018 0.014 0.022 0.017 0.022 0.017 0.026 0.020 0.029 0.022 0.029 0.022 0.036 0.028 0.046 0.035 0.036 0.028 0.046 0.035 0.046 0.035 0.064 0.049 0.064 0.049 0.075 0.058 0.075 0.058 0.103 0.079 0.103 0.079 0.137 0.105 0.137 0.105 0.156 0.120 0.189 0.145 0.234 0.180 0.265 0.204 0.390 0.30 0.559 0.430 Inductance DC Resistance Frequency Min. MHz S.R.F 120 115 110 100 88 79 68 65 61 56 51 45 44 41 36 31 31 27 27 25 21 18 16 11 10 Current*3 Max. Typ. A Isat 4.50 6.00 6.55 7.80 5.30 6.30 4.15 5.00 5.90 7.00 4.25 5.10 4.85 5.80 4.10 4.90 3.75 4.50 3.90 4.60 3.15 3.70 3.25 3.90 2.70 3.20 3.00 3.60 2.40 2.90 2.30 2.70 2.20 2.60 2.10 2.50 1.75 2.10 1.45 1.70 1.20 1.40 1.20 1.40 1.05 1.20 0.95 1.10 0.70 0.90 Heat Rating Current*4 Max. Typ. A Irms 4.00 5.00 3.80 4.80 3.80 4.80 3.50 4.40 3.20 4.00 3.20 4.00 2.75 3.50 2.60 3.30 2.75 3.50 2.60 3.30 2.60 3.30 2.10 2.60 2.10 2.60 2.00 2.50 1.90 2.40 1.80 2.30 1.80 2.30 1.40 1.80 1.40 1.80 1.30 1.60 1.20 1.50 1.08 1.40 1.00 1.30 0.84 1.05 0.80 0.90 SWPA6028S Series Part Number Units Symbol SWPA6028SR82NT SWPA6028S1R0NT SWPA6028S1R2NT Sunlord @100kHz,1V μH L 0.82±30% 1.0±30% 1.2±30% Max. Typ. Ω DCR 0.016 0.012 0.013 0.010 0.017 0.013 Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 97 70 69 Current*3 Current*4 Max. Typ. A Irms 5.20 6.00 5.20 5.70 4.58 5.00 Max. Typ. A Isat 6.50 5.75 6.40 9.00 7.00 7.50 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA6028S Series Part Number Units Symbol SWPA6028S1R5NT SWPA6028S2R2NT SWPA6028S2R7NT SWPA6028S3R3NT SWPA6028S4R7NT SWPA6028S5R1NT SWPA6028S6R2MT SWPA6028S6R8MT SWPA6028S8R2MT SWPA6028S9R1MT SWPA6028S100MT SWPA6028S120MT SWPA6028S150MT SWPA6028S180MT SWPA6028S220MT SWPA6028S270MT SWPA6028S330MT SWPA6028S360MT SWPA6028S390MT SWPA6028S470MT SWPA6028S560MT SWPA6028S680MT SWPA6028S750MT SWPA6028S820MT SWPA6028S101MT SWPA6028S401MT Inductance DC Resistance @100kHz,1V μH L 1.5±30% 2.2±30% 2.7±30% 3.3±30% 4.7±30% 5.1±30% 6.2±20% 6.8±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 36±20% 39±20% 47±20% 56±20% 68±20% 75±20% 82±20% 100±20% 400±20% Max. Typ. Ω DCR 0.017 0.013 0.026 0.020 0.026 0.020 0.033 0.025 0.039 0.030 0.056 0.043 0.061 0.047 0.061 0.047 0.072 0.055 0.096 0.074 0.094 0.072 0.104 0.080 0.163 0.125 0.156 0.120 0.182 0.140 0.202 0.155 0.241 0.185 0.280 0.215 0.293 0.225 0.410 0.315 0.449 0.345 0.468 0.360 0.533 0.410 0.650 0.50 0.650 0.50 2.808 2.160 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Min. MHz S.R.F 65 48 48 41 35 32 30 27 24 24 23 18 18 15 14 13 12 11 11 9.5 8.2 7.7 7.7 7.7 7.1 2.8 Current*3 Current*4 Max. Typ. A Irms 4.58 5.00 3.75 4.10 3.75 4.10 3.48 3.80 3.08 3.40 2.60 2.80 2.40 2.60 2.40 2.60 2.25 2.50 2.15 2.40 1.95 2.40 1.85 2.00 1.45 1.60 1.45 1.60 1.40 1.60 1.32 1.40 1.22 1.30 1.13 1.20 1.10 1.20 1.06 1.10 0.89 1.00 0.86 0.95 0.81 0.90 0.70 0.77 0.70 0.77 0.40 0.45 Max. Typ. A Isat 6.00 5.10 3.80 4.15 3.00 3.20 3.05 2.60 2.30 2.55 2.04 1.80 1.75 1.52 1.45 1.50 1.35 1.25 1.25 1.15 1.05 0.80 0.90 0.80 0.65 0.30 6.60 5.60 4.10 4.50 3.30 3.50 3.30 3.00 2.50 2.80 2.50 2.00 1.90 1.80 1.80 1.60 1.50 1.40 1.40 1.30 1.20 0.95 0.99 0.88 0.71 0.33 SWPA6045S Series Part Number Units Symbol SWPA6045SR47NT SWPA6045SR56NT SWPA6045SR68NT SWPA6045SR82NT SWPA6045S1R0NT SWPA6045S1R2NT SWPA6045S1R3NT SWPA6045S1R5NT SWPA6045S1R8NT SWPA6045S2R2NT SWPA6045S2R3NT SWPA6045S2R7NT SWPA6045S3R0NT SWPA6045S3R3NT Sunlord @100kHz,1V μH L 0.47±30% 0.56±30% 0.68±30% 0.82±30% 1.0±30% 1.2±30% 1.3±30% 1.5±30% 1.8±30% 2.2±30% 2.3±30% 2.7±30% 3.0±30% 3.3±30% Max. Typ. Ω DCR 0.008 0.006 0.008 0.006 0.008 0.006 0.010 0.008 0.014 0.011 0.013 0.010 0.013 0.010 0.016 0.012 0.016 0.012 0.018 0.014 0.027 0.021 0.020 0.015 0.026 0.020 0.027 0.021 Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 155 142 99 140 100 100 100 65 74 52 60 38 35 32 Max. Typ. Max. A Isat 15.00 14.00 11.00 10.35 9.85 8.35 8.35 8.80 7.60 6.75 6.00 5.75 5.60 5.90 Typ. A Irms 16.50 15.00 12.00 11.00 10.00 9.10 9.10 9.70 8.40 7.40 6.60 6.30 6.20 6.20 6.50 6.50 5.70 5.90 5.14 5.40 5.40 4.95 4.95 4.60 3.50 4.30 3.80 3.70 Specifications subject to change without notice. Please check our website for latest information. 6.60 7.50 6.50 6.50 5.60 5.90 5.90 5.40 5.40 5.00 3.80 4.70 4.20 4.00 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA6045S Series Part Number Units Symbol SWPA6045S3R6NT SWPA6045S4R3MT SWPA6045S4R5MT SWPA6045S4R7MT SWPA6045S5R1MT SWPA6045S5R6MT SWPA6045S6R2MT SWPA6045S6R3MT SWPA6045S6R8MT SWPA6045S7R5MT SWPA6045S8R2MT SWPA6045S9R1MT SWPA6045S100MT SWPA6045S120MT SWPA6045S150MT SWPA6045S180MT SWPA6045S220MT SWPA6045S270MT SWPA6045S300MT SWPA6045S330MT SWPA6045S360MT SWPA6045S390MT SWPA6045S430MT SWPA6045S470MT SWPA6045S510MT SWPA6045S560MT SWPA6045S620MT SWPA6045S680MT SWPA6045S750MT SWPA6045S820MT SWPA6045S910MT SWPA6045S101MT SWPA6045S121MT SWPA6045S151MT SWPA6045S221MT SWPA6045S331MT SWPA6045S471MT SWPA6045S681MT Inductance DC Resistance @100kHz,1V μH L 3.6±30% 4.3±20% 4.5±20% 4.7±20% 5.1±20% 5.6±20% 6.2±20% 6.3±20% 6.8±20% 7.5±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 30±20% 33±20% 36±20% 39±20% 43±20% 47±20% 51±20% 56±20% 62±20% 68±20% 75±20% 82±20% 91±20% 100±20% 120±20% 150±20% 220±20% 330±20% 470±20% 680±20% Max. Typ. Ω DCR 0.027 0.021 0.030 0.023 0.034 0.026 0.034 0.026 0.034 0.026 0.038 0.029 0.040 0.031 0.040 0.031 0.040 0.031 0.044 0.034 0.056 0.043 0.056 0.043 0.062 0.048 0.075 0.058 0.088 0.068 0.105 0.081 0.116 0.089 0.133 0.102 0.172 0.132 0.178 0.137 0.225 0.173 0.234 0.180 0.260 0.20 0.260 0.20 0.269 0.207 0.287 0.221 0.306 0.235 0.376 0.289 0.397 0.305 0.443 0.341 0.467 0.359 0.563 0.433 0.629 0.484 0.754 0.580 1.084 0.834 1.651 1.270 2.340 1.80 3.250 2.50 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 28 23 24 24 23 23 26 26 20 18 21 17 15 13 12 10 10 9.2 7.8 7.8 7.8 7.8 7.7 6.4 6.4 6.4 6.4 6.4 5 4.9 4.9 4.2 4.2 4.2 3.5 2.8 2.0 1.7 Max. Typ. Max. A Isat 5.25 4.45 4.97 4.97 4.40 4.15 4.43 4.43 3.90 3.50 3.90 3.35 3.20 2.80 2.50 2.20 2.05 1.90 1.70 1.65 1.62 1.50 1.63 1.40 1.35 1.30 1.25 1.20 1.15 1.05 1.00 0.95 0.85 0.80 0.70 0.57 0.500 0.420 Typ. A Irms 5.70 4.90 5.50 5.50 4.80 4.60 4.80 4.70 4.30 3.80 4.30 3.70 3.50 3.00 2.70 2.40 2.20 2.10 1.80 1.80 1.80 1.60 1.80 1.50 1.50 1.40 1.40 1.30 1.20 1.10 1.10 1.00 0.94 0.88 0.77 0.63 0.560 0.460 3.70 3.50 3.30 3.30 3.30 3.15 3.00 3.00 3.00 2.90 2.60 2.60 2.45 2.20 2.05 1.85 1.80 1.65 1.50 1.45 1.40 1.25 1.20 1.20 1.15 1.10 1.10 1.00 0.95 0.90 0.85 0.80 0.77 0.70 0.59 0.57 0.420 0.330 4.00 3.80 3.60 3.60 3.60 3.40 3.30 3.30 3.30 3.20 2.80 2.80 2.70 2.40 2.20 2.00 2.00 1.80 1.60 1.60 1.50 1.40 1.30 1.30 1.20 1.20 1.20 1.10 1.00 0.99 0.94 0.88 0.85 0.77 0.65 0.63 0.480 0.380 SWPA8040S Series Part Number Units Symbol SWPA8040SR82NT SWPA8040S1R0NT SWPA8040S1R2NT Sunlord @100kHz,1V μH L 0.82±30% 1.0±30% 1.2±30% Max. Typ. Ω DCR 0.010 0.008 0.010 0.008 0.013 0.010 Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 94 89 59 Max. Typ. Max. A Isat 13.80 9.85 10.00 Typ. A Irms 16.00 14.00 14.00 6.30 6.30 5.65 Specifications subject to change without notice. Please check our website for latest information. 6.90 6.90 6.20 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA8040S Series Part Number Units Symbol SWPA8040S1R5NT SWPA8040S2R0NT SWPA8040S2R2NT SWPA8040S3R0NT SWPA8040S3R3NT SWPA8040S3R6NT SWPA8040S3R9NT SWPA8040S4R7NT SWPA8040S5R1NT SWPA8040S5R6NT SWPA8040S6R2NT SWPA8040S6R8MT SWPA8040S8R2MT SWPA8040S100MT SWPA8040S120MT SWPA8040S150MT SWPA8040S180MT SWPA8040S220MT SWPA8040S270MT SWPA8040S330MT SWPA8040S360MT SWPA8040S390MT SWPA8040S430MT SWPA8040S470MT SWPA8040S510MT SWPA8040S560MT SWPA8040S620MT SWPA8040S680MT SWPA8040S750MT SWPA8040S820MT SWPA8040S910MT SWPA8040S101MT SWPA8040S121MT SWPA8040S151MT SWPA8040S181MT SWPA8040S221MT SWPA8040S331MT SWPA8040S471MT Inductance DC Resistance @100kHz,1V μH L 1.5±30% 2.0±30% 2.2±30% 3.0±30% 3.3±30% 3.6±30% 3.9±30% 4.7±30% 5.1±30% 5.6±30% 6.2±30% 6.8±20% 8.2±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 36±20% 39±20% 43±20% 47±20% 51±20% 56±20% 62±20% 68±20% 75±20% 82±20% 91±20% 100±20% 120±20% 150±20% 180±20% 220±20% 330±20% 470±20% Max. Typ. Ω DCR 0.013 0.010 0.016 0.012 0.016 0.012 0.018 0.014 0.022 0.017 0.022 0.017 0.022 0.017 0.025 0.019 0.025 0.019 0.027 0.021 0.027 0.021 0.031 0.024 0.034 0.026 0.038 0.029 0.053 0.041 0.061 0.047 0.069 0.053 0.090 0.069 0.101 0.078 0.126 0.097 0.133 0.102 0.139 0.107 0.147 0.113 0.177 0.136 0.185 0.142 0.192 0.148 0.237 0.182 0.255 0.196 0.274 0.211 0.293 0.225 0.354 0.272 0.377 0.290 0.434 0.334 0.533 0.410 0.676 0.520 0.779 0.599 1.156 0.889 1.625 1.260 Inductance DC Resistance Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 67 43 41 32 27 30 26 24 22 24 20 20 17 15 13 12 11 9.5 9.2 7.8 7.8 7.8 7.8 6.4 6.4 6.4 6.4 4.9 4.9 5.9 4.9 4.2 3.5 3.5 3.5 3.5 2.8 2.1 Max. Typ. Max. A Isat 8.15 9.25 7.10 6.10 6.50 7.52 5.75 5.90 4.70 6.00 4.45 4.55 4.20 3.60 3.50 2.95 2.70 2.40 2.15 2.05 2.00 1.95 1.90 1.75 1.70 1.55 1.50 1.45 1.35 1.30 1.20 1.15 1.05 1.10 0.95 0.85 0.68 0.60 Typ. A Irms 11.00 10.00 8.00 7.00 7.00 8.50 6.50 6.50 5.40 6.90 5.10 5.20 4.80 4.10 4.00 3.40 3.10 2.70 2.50 2.40 2.30 2.20 2.20 2.00 1.90 1.70 1.60 1.60 1.50 1.40 1.30 1.30 1.10 1.20 1.15 0.94 0.75 0.70 5.65 5.15 5.15 4.70 4.40 4.35 4.35 4.10 4.05 3.85 3.85 3.60 3.45 3.30 2.80 2.60 2.40 2.10 2.00 1.80 1.75 1.70 1.65 1.55 1.50 1.45 1.30 1.25 1.20 1.15 1.05 1.00 0.95 0.85 0.83 0.80 0.64 0.50 6.20 5.60 5.60 5.20 4.80 4.80 4.80 4.50 4.40 4.20 4.20 4.00 3.80 3.60 3.00 2.80 2.60 2.30 2.20 2.00 1.90 1.90 1.80 1.70 1.60 1.60 1.40 1.40 1.30 1.20 1.10 1.10 1.00 0.94 0.92 0.88 0.70 0.60 SWPA8060S Series Part Number Units Symbol SWPA8060S681KTY01 Sunlord @100kHz,1V μH L 680±10% Max. Typ. Ω DCR 2.17 1.81 Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Min. MHz S.R.F 1.26 Max. Typ. Max. A Isat 0.72 Typ. A Irms 0.82 0.46 Specifications subject to change without notice. Please check our website for latest information. 0.53 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA8065S Series Part Number Units Symbol SWPA8065S1R0MT SWPA8065S3R3MT SWPA8065S4R7MT SWPA8065S5R6MT SWPA8065S6R8MT SWPA8065S8R2MT SWPA8065S100MT SWPA8065S220MT SWPA8065S101MT SWPA8065S151MT SWPA8065S221MT SWPA8065S331MT SWPA8065S431MT Inductance @100kHz,1V μH L 1.0±20% 3.3±20% 4.7±20% 5.6±20% 6.8±20% 8.2±20% 10±20% 22±20% 100±20% 150±20% 220±20% 330±20% 430±20% DC Resistance Self-resonant Saturation Heat Rating Frequency Current*3 Current*4 Max. Typ. Ω DCR 0.011 0.008 0.018 0.015 0.022 0.018 0.026 0.022 0.026 0.022 0.031 0.026 0.044 0.037 0.072 0.060 0.028 0.233 0.440 0.353 0.656 0.547 0.840 0.700 1.20 1.00 Min. MHz S.R.F 96 27 18 17 16 15 13 8 3.1 2.5 2.0 1.7 1.5 Max. Typ. Max. A Isat 20.0 9.50 8.50 8.00 7.50 7.00 8.00 4.30 2.00 1.60 1.20 1.00 0.95 Typ. A Irms 22.0 10.00 9.50 9.00 8.00 7.70 8.90 4.80 2.40 2.00 1.50 1.20 1.05 7.00 5.10 4.70 4.50 4.50 4.20 3.20 2.70 1.35 0.95 0.80 0.75 0.61 8.00 5.90 5.40 5.20 5.20 4.80 3.70 3.10 1.45 1.10 0.90 0.85 0.69 ※1: All test data is referenced to 20°C ambient; ※2: Rated current: Isat or Irms, whichever is smaller; ※*3: Isat: DC current at which the inductance drops approximate 30% from its value without current; ※*4: Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient. TYPICAL ELECTRICAL CHARACTERISTICS SWPA252010S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA252012S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA3010S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA3012S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA3015S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA4010S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristic 0.1 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA4012S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristic 0.1 SWPA4018S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA4020S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics SWPA4030S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA5012S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA5020S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA5040S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 Inductance vs. DC Current Characteristics 1000 100 90 80 70 60 50 40 30 20 10 0 100uH 0.0 0.5 Sunlord 1.0uH 10uH 1.0 inductance(uH) Temperature rise ( ℃) SWPA6012S Series Temperature vs. DC Current Characteristics 1.5 2.0 D.C.Current (A) 2.5 3.0 3.5 100 10 1 0 0.01 100uH 1.0uH 1.0uH 0.10 DC.Current(A) 1.00 Specifications subject to change without notice. Please check our website for latest information. 10.00 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA6020S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA6028S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA6045S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 SWPA8040S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 0.1 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA8065S Series Temperature vs. DC Current Characteristics DC. Current(A) Sunlord Inductance vs. DC Current Characteristics DC. Current(A) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
