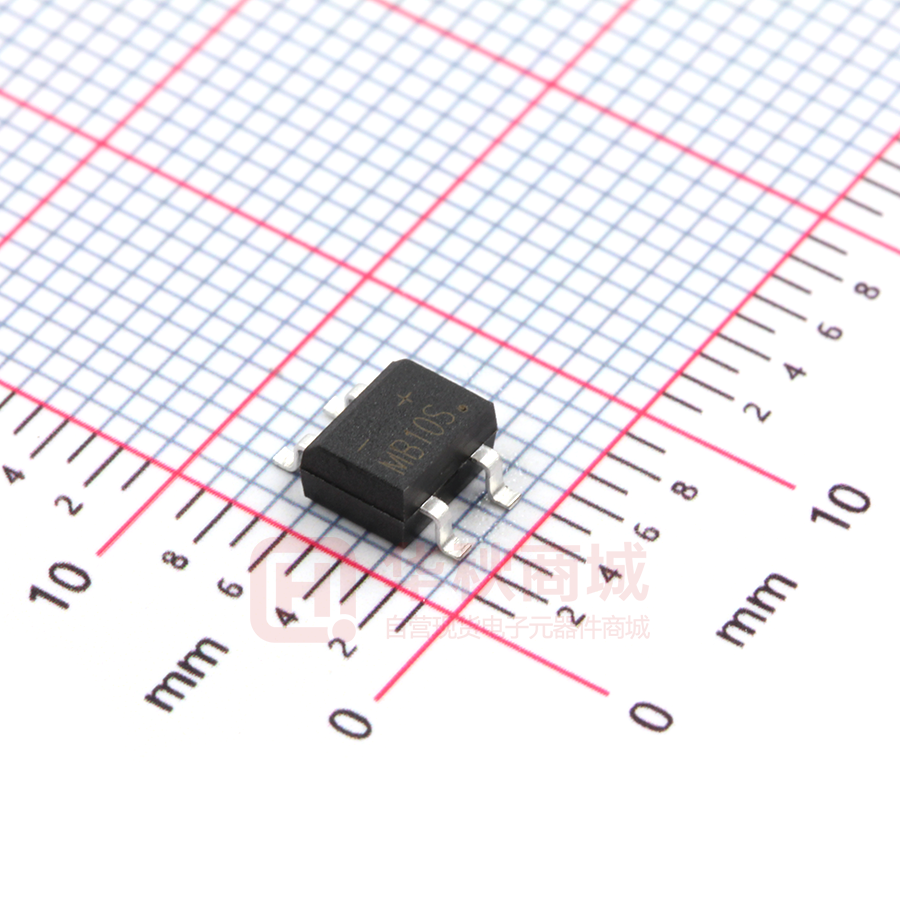

MB10S

MB1S-MB10S RECTIFIER Glass Passivated Bridge Rectifiers ROHS MBS Features B - + ~ ~ A L
























J K G MB-S Dim Min Max 4.50 4.95 A 3.60 4.10 B 0.15 0.35 C — 0.20 D 6.40 7.00 E

G





0.50







1.10



1.30 1.70 H 2.30 2.70 J 2.30 2.70 K — 3.00 L All Dimensions in mm      






Mechanical Data  Case: MB-S, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: As Marked on Case Weight: 0.22 grams (approx.) Mounting Position: Any Marking: Type Number Lead Free: For RoHS / Lead Free Version,      H D Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Surge Current Capability Designed for Surface Mount Application Plastic Material – UL Flammability 94V-O E C Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current (Note 1) @TA = 40°C Average Rectified Output Current (Note 2) @TA = 40°C Symbo MB1S MB2S MB4S MB6S MB8S MB10S Unit VRRM VRWM VR 100 200 400 600 800 1000 V VR(RMS) 70 140 280 420 560 700 V IO 0.5 0.8 A IFSM 30 A I2t 5.0 A2s @IF = 0.5A VFM 1.0 V @TA = 25°C @TA = 125°C IRM 5.0 500 µA Cj 13 pF Typical Thermal Resistance per leg (Note 1) R
JA R
JL 70 20 °C/W Operating and Storage Temperature Range Tj, TSTG -55 to +150 °C Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) I2t Rating for Fusing (t < 8.3ms) Forward Voltage per element Peak Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance per leg (Note 3) Note: 1. Mounted on glass epoxy PC board with 1.3mm2 solder pad. 2. Mounted on aluminum substrate PC board with 1.3mm2 solder pad. 3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C. Rev 8: Nov 2014 www.born-tw.com Page 1 of 2 MB1S-MB10S Glass Passivated Bridge Rectifiers 0.8 IF, INSTANTANEOUS FORWARD CURRENT (A) I(AV), AVERAGE FORWARD RECTIFIED CURRENT (A RECTIFIER 0.6 Al. Substrate PC Board 0.4 Glass Epoxy PC Board 0.2 0 Resistive or Inductive Load 0 40 80 120 10 1.0 0.1 Tj = 25°C Pulse Width = 300µs 0.01 0.2 160 0.4 0.6 0.8 1.0 1.2 1.4 1.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics (per leg) TA, AMBIENT TEMPERATURE (°C) Fig. 1 Output Current Derating Curve 35 100 Tj = 25°C f = 1.0MHz 30 Cj, JUNCTION CAPACITANCE (pF) IFSM, PEAK FORWARD SURGE CURRENT (A) ROHS 20 10 TA = 25°C Single Half Sine-Wave Pulse Width = 5.3ms (JEDEC Method) 0 10 1 1.0 1 10 10 IR, INSTANTANEOUS REVERSE CURRENT (µA) 100 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Junction Capacitance NUMBER OF CYCLES AT 60 Hz Fig. 3 Maximum Peak Forward Surge Current (per leg) 100 Tj = 125°C 10 1.0 Tj = 25°C 0.1 0.01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 5 Typical Reverse Characteristics (per element) Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
