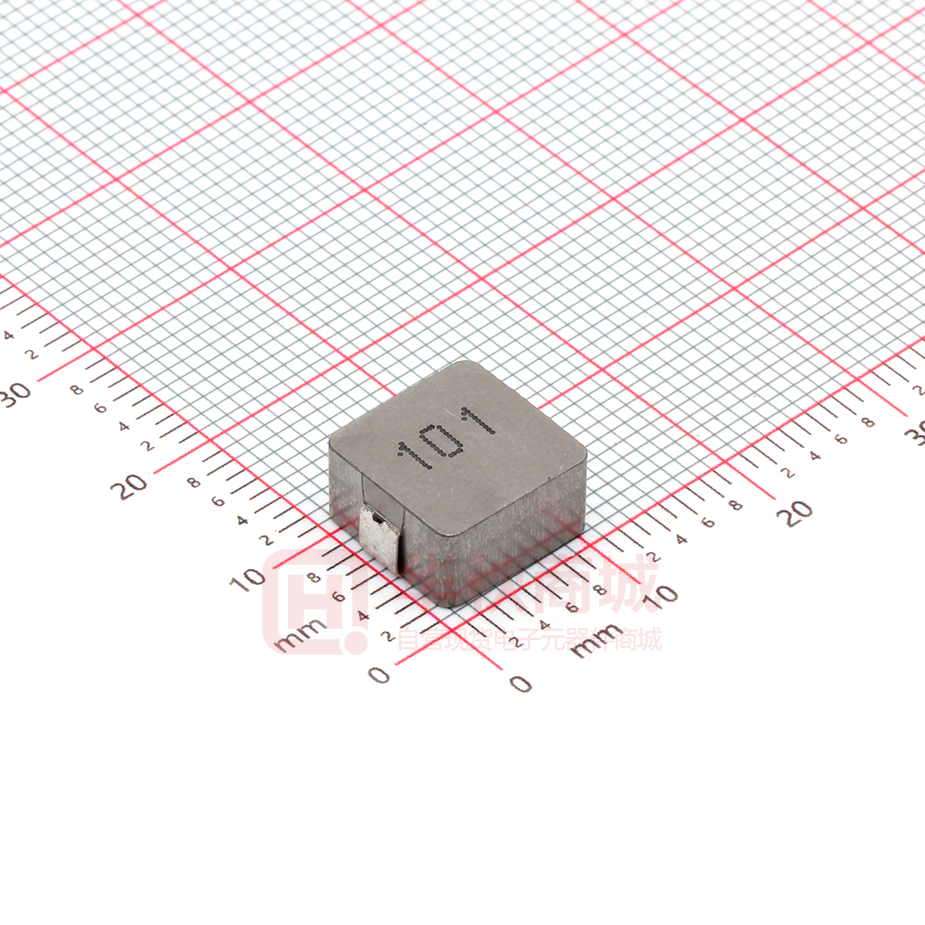

SMD Power Inductors
-YSPI1050 Series
■ Features
● Molding Inductor.
● Low Profile,Low Temp.
● Large Current(Over 15A).
● Customize For Different Need.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● General Electronic.
● Video Device,TV,TFT.
● Power Module for PC.
● NB/Lap Top Computer.
● Server,VGA Card/Module.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance:N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YSPI1050 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
H Ref.
YSPI1050
11.5±0.5
10.0±0.5
5.0
2.0±0.5
3.0±0.5
4.1
13.6
5.4
■ YSPI1050 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YSPI1050-R22□
0.22
0.58
0.80
30.0
55.0
YSPI1050-R68□
0.68
2.10
3.00
20.0
40.0
YSPI1050-1R0□
1.00
2.70
3.20
21.5
32.0
YSPI1050-1R5□
1.50
3.50
4.20
16.0
23.0
YSPI1050-2R2□
2.20
6.60
8.50
10.0
18.0
YSPI1050-3R3□
3.30
10.60
13.30
8.0
16.0
YSPI1050-4R7□
4.70
13.80
18.00
8.0
14.0
YSPI1050-5R6□
5.60
14.00
18.00
8.0
14.0
YSPI1050-6R8□
6.80
18.30
23.00
6.5
12.0
YSPI1050-100□
10.0
19.30
25.00
6.0
11.0
YSPI1050-150□
15.0
39.00
52.00
3.6
6.0
YSPI1050-220□
22.0
73.00
92.00
4.0
6.0
YSPI1050-330□
33.0
107.0
120.0
3.0
5.0
YSPI1050-470□
47.0
160.0
210.0
3.0
4.0
YSPI1050-680□
68.0
240.0
300.0
3.0
4.0
YSPI1050-101□
100
320.0
400.0
2.0
3.0
Part Number
Inductance
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YSPI1050 Series
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YSPI1050 Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K Ref
T
MPQ
YSPI1050
24±0.3
10.6±0.1
11.45±0.1
10.75
11.5±0.1
5.5±0.1
16±0.1
5.1
0.40±0.05
500
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YSPI1050
330±2.0
24.4±1.5
30.4MAX
23.9 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YSPI1050 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
