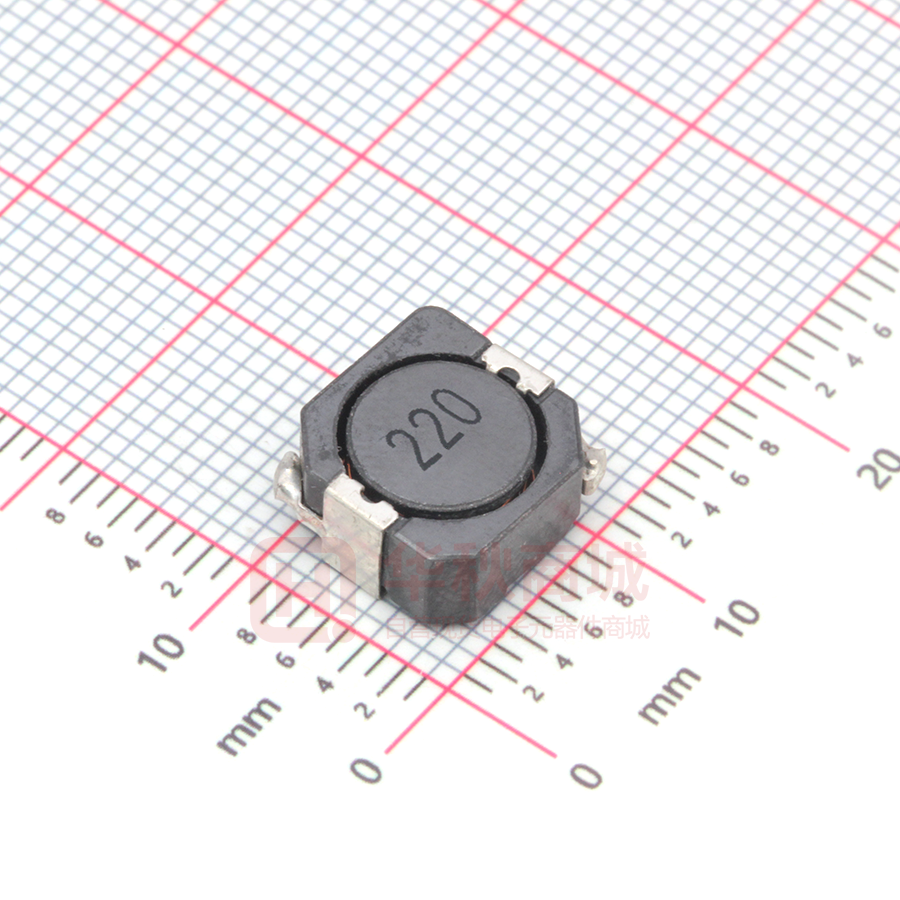

SWRH1005C-220MT

Wire Wound SMD Power Inductors-SWRH-C Series Operating Temperature: -40℃~ +105℃ (Including Self-heating) FEATURES  High saturation current, low DCR  Suitable for surface mounting equipment  Close magnetic circuit design reduce leakage APPLICATIONS  Power supply choke for small electrical equipments such as DVC, LCD display, notebook, communication equipment, OA equipment and so on. PRODUCT IDENTIFICATION SWRH 1003 C -1R0 N T ① ② ③ ④ ⑤ ⑥ Type ① SWRH External Dimensions ② Wire Wound SMD Type Power Inductors (With Metallic Base) 1003~1005 Nominal Inductance ④ Configuration ③ C Example Nominal Value 1R0 1.0μH 100 10μH 101 100μH C Type Base Inductance Tolerance ⑤ M ±20% N ±30% Packing ⑥ T Tape Carrier Package SHAPE AND DIMENSIONS Unit: mm Series A max. B max. C max. D typ. I typ. J typ. H typ. SWRH1003C 10.6 10.5 3.0 13.5 1.7 7.3 3.6 SWRH1004C 10.6 10.5 4.0 13.5 1.7 7.3 3.6 SWRH1005C 10.6 10.5 5.2 13.5 1.7 7.3 3.6 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWRH1003C TYPE Part Number Units Symbol SWRH1003C-1R0NT SWRH1003C-1R5NT SWRH1003C-2R2NT SWRH1003C-3R3NT SWRH1003C-4R7NT SWRH1003C-6R8NT SWRH1003C-8R2NT SWRH1003C-100MT SWRH1003C-150MT SWRH1003C-220MT SWRH1003C-330MT SWRH1003C-470MT SWRH1003C-560MT SWRH1003C-680MT SWRH1003C-820MT SWRH1003C-101MT SWRH1003C-121MT SWRH1003C-151MT SWRH1003C-221MT SWRH1003C-301MT SWRH1003C-331MT SWRH1003C-391MT SWRH1003C-102MT Inductance μH L 1.0±30% 1.5±30% 2.2±30% 3.3±30% 4.7±30% 6.8±30% 8.2±30% 10±20% 15±20% 22±20% 33±20% 47±20% 56±20% 68±20% 82±20% 100±20% 120±20% 150±20% 220±20% 300±20% 330±20% 390±20% 1000±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.009 0.011 0.017 0.021 0.030 0.035 0.050 0.059 0.091 0.143 0.202 0.299 0.325 0.429 0.494 0.683 0.754 0.878 1.625 1.700 1.700 1.900 4.500 Max. Rated Current A Ir 6.50 5.80 5.10 4.70 4.00 3.60 3.00 2.80 2.05 1.60 1.35 1.20 1.15 0.95 0.80 0.70 0.65 0.62 0.60 0.55 0.50 0.30 0.23 Inductance μH L 1.5±30% 2.5±30% 3.3±30% 3.8±30% 4.7±30% 5.2±30% 6.8±30% 7.0±30% 8.2±30% 10±20% 15±20% 22±20% 33±20% 47±20% 56±20% 68±20% 82±20% 100±20% 150±20% 220±20% 330±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.008 0.011 0.014 0.018 0.022 0.022 0.025 0.027 0.030 0.035 0.050 0.073 0.093 0.128 0.185 0.213 0.275 0.304 0.506 0.756 1.090 Max. Rated Current A Ir 6.5 6.1 5.6 5.5 5.4 5.4 5.0 4.5 4.1 3.8 3.1 2.5 2.2 1.9 1.6 1.42 1.32 1.25 0.85 0.70 0.52 SWRH1004C TYPE Part Number Units Symbol SWRH1004C-1R5NT SWRH1004C-2R5NT SWRH1004C-3R3NT SWRH1004C-3R8NT SWRH1004C-4R7NT SWRH1004C-5R2NT SWRH1004C-6R8NT SWRH1004C-7R0NT SWRH1004C-8R2NT SWRH1004C-100MT SWRH1004C-150MT SWRH1004C-220MT SWRH1004C-330MT SWRH1004C-470MT SWRH1004C-560MT SWRH1004C-680MT SWRH1004C-820MT SWRH1004C-101MT SWRH1004C-151MT SWRH1004C-221MT SWRH1004C-331MT Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWRH1005C TYPE Part Number Units Symbol SWRH1005C-3R3NT SWRH1005C-4R7NT SWRH1005C-6R8NT SWRH1005C-8R2NT SWRH1005C-100MT SWRH1005C-120MT SWRH1005C-150MT SWRH1005C-180MT SWRH1005C-220MT SWRH1005C-270MT SWRH1005C-330MT SWRH1005C-390MT SWRH1005C-470MT SWRH1005C-560MT SWRH1005C-680MT SWRH1005C-820MT SWRH1005C-101MT SWRH1005C-121MT SWRH1005C-151MT SWRH1005C-181MT SWRH1005C-221MT SWRH1005C-271MT SWRH1005C-331MT SWRH1005C-391MT SWRH1005C-471MT SWRH1005C-561MT SWRH1005C-681MT SWRH1005C-821MT Sunlord Inductance μH L 3.3±30% 4.7±30% 6.8±30% 8.2±30% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 39±20% 47±20% 56±20% 68±20% 82±20% 100±20% 120±20% 150±20% 180±20% 220±20% 270±20% 330±20% 390±20% 470±20% 560±20% 680±20% 820±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.013 0.016 0.020 0.023 0.026 0.033 0.041 0.046 0.061 0.069 0.084 0.106 0.130 0.149 0.201 0.227 0.253 0.303 0.370 0.419 0.500 0.672 0.812 0.953 1.290 1.430 1.600 1.770 Max. Rated Current A Ir 6.00 5.70 5.35 5.00 4.45 3.80 3.40 3.10 2.90 2.60 2.40 2.25 2.00 1.90 1.60 1.45 1.35 1.18 1.10 1.00 0.94 0.80 0.73 0.70 0.54 0.52 0.51 0.48 Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
