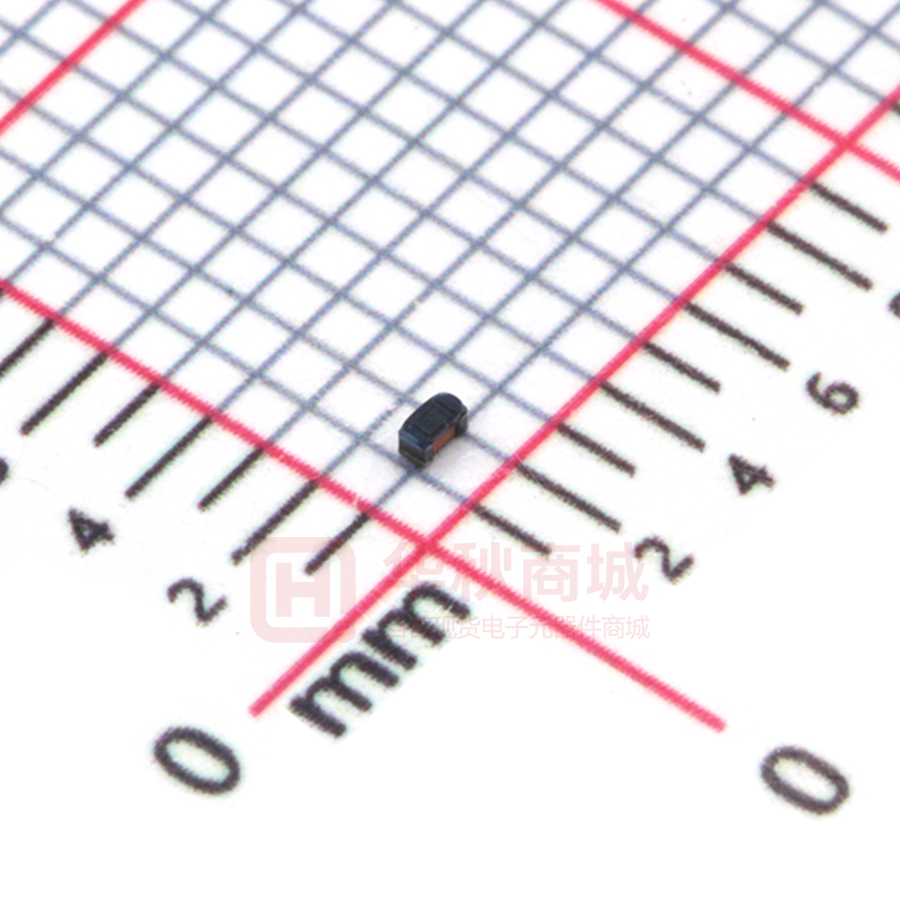

MWSD1005FR36JT

Wire Wound Chip Ferrite Inductor – MWSD-F Series Operating Temp. : -40℃~+85℃ FEATUREF Small chip suitable for surface mounting Large inductance with ferrite material Single-sided package, thinner than WL-FS series ● ●  APPLICATIONF  Mobile phones and other electronic devices PRODUCT IDENTIFICATION MWSD 1005 ① F ② ③ ① 18N J T □□□ ④ ⑤ ⑥ ⑦ ② ③ Type MWSD Material Code External Dimensions Wire Wound Chip Inductor F 0603[0201] Ferrite 0703[026011] ⑥ 1005[0402] Packing ④ Bulk Package T Tape & Reel ⑤ Nominal Inductance Example Nominal Value 1N0 1.0nH J ±5% 10N 10nH K ±10% R10 B ⑦ Inductance Tolerance 100nH M Design Code □□□ Design Code *Standard product is blank ±20% SHAPE AND DIMENSIONS Unit: mm Series A B C D Typ. E H Ref. I Ref. J Ref. MWSD0603F MWSD0703F MWSD1005F MWSD1005F-M01 0.53±0.05 0.76Max. 1.10±0.1 1.10±0.1 0.40±0.05 0.43Max. 0.60±0.1 0.60±0.1 0.40±0.05 0.57Max. 0.55±0.1 0.55±0.1 0.39±0.05 0.28±0.05 0.50±0.10 0.50±0.10 0.10±0.05 0.13±0.05 0.20±0.10 0.20±0.10 0.50 0.36 0.65 0.65 0.20 0.25 0.35 0.35 0.23 0.41 0.50 0.50 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSD0603F TYPE Part Number Inductance Tolerance L Test Freq. Min. Self-resonant Frequency Max. DC Resistance Max. Rated Current Units nH - MHz GHz Ω mA Symbol L - Freq. S.R.F DCR Ir MWSD0603F33N□T MWSD0603F51N□T MWSD0603F68N□T MWSD0603F91N□T MWSD0603FR11□T MWSD0603FR14□T MWSD0603FR17□T MWSD0603FR20□T 33 51 68 91 110 140 170 200 K K K K K K K K 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 3.4 2.9 2.6 2.35 2.1 2.0 1.85 1.7 0.15 0.30 0.33 0.37 0.48 0.65 0.86 1.25 340 280 220 200 170 160 140 110 Part Number Inductance Tolerance L Test Freq. Min. Self-resonant Frequency Max. DC Resistance Max. Rated Current Units nH - MHz GHz Ω mA MWSD0703F TYPE Symbol L - Freq. S.R.F DCR Ir MWSD0703F27N□T MWSD0703F72N□T MWSD0703FR10□T MWSD0703FR15□T MWSD0703FR27□T MWSD0703FR43□T MWSD0703FR56□T 27 72 100 150 270 430 560 J J J J J J J 7.9 7.9 7.9 7.9 7.9 7.9 7.9 3.9 2.6 2.3 1.8 1.6 0.9 1.0 0.11 0.4 0.5 0.6 1.15 1.85 2.8 480 210 200 190 130 100 90 Part Number Inductance Tolerance L Test Freq. Min. Self-resonant Frequency Max. DC Resistance Max. Rated Current Units nH - MHz GHz Ω mA MWSD1005F TYPE Symbol L - Freq. S.R.F DCR Ir MWSD1005F20N□T MWSD1005F22N□T MWSD1005F33N□T MWSD1005F36N□T MWSD1005F39N□T MWSD1005F51N□T MWSD1005F56N□T MWSD1005F72N□T MWSD1005F78N□T MWSD1005F85N□T MWSD1005F96N□T MWSD1005FR10□T MWSD1005FR14□T MWSD1005FR18□T 20 22 33 36 39 51 56 72 78 85 96 100 140 180 J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J J,K,M J,K,M J,K,M 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 100 7.9 7.9 7.9 2600 2500 2300 2300 2200 1930 1900 1650 1600 1600 1100 1400 1220 1150 0.050 0.065 0.060 0.075 0.115 0.070 0.095 0.100 0.130 0.130 0.160 0.160 0.260 0.280 1600 1300 1400 1300 830 1100 1000 1000 970 970 730 900 630 560 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSD1005F TYPE Part Number Inductance Tolerance L Test Freq. Min. Self-resonant Frequency Max. DC Resistance Max. Rated Current Units nH - MHz GHz Ω mA Symbol L - Freq. S.R.F DCR Ir MWSD1005FR20□T MWSD1005FR22□T MWSD1005FR25□T MWSD1005FR27□T MWSD1005FR30□T MWSD1005FR33□T MWSD1005FR36□T MWSD1005FR39□T MWSD1005FR42□T MWSD1005FR47□T MWSD1005FR56□T MWSD1005F2R2□T 200 220 250 270 300 330 360 390 420 470 560 2200 J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M K,M 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 1 1000 1150 900 860 860 820 810 760 700 650 600 100 0.440 0.530 0.450 0.550 0.410 0.560 0.575 0.750 0.700 0.730 0.920 1.8 400 380 520 360 420 350 360 300 340 310 200 170 Part Number Inductance Tolerance L Test Freq. Min. Self-resonant Frequency Max. DC Resistance Max. Rated Current Units nH - MHz GHz Ω mA Symbol L - Freq. S.R.F DCR Ir MWSD1005F18N□TM01 MWSD1005F20N□TM01 MWSD1005F33N□TM01 MWSD1005F34N□TM01 MWSD1005F48N□TM01 MWSD1005F53N□TM01 MWSD1005F68N□TM01 MWSD1005F70N□TM01 MWSD1005F77N□TM01 MWSD1005F96N□TM01 MWSD1005FR11□TM01 MWSD1005FR13□TM01 MWSD1005FR14□TM01 MWSD1005FR16□TM01 MWSD1005FR18□TM01 MWSD1005FR20□TM01 MWSD1005FR22□TM01 MWSD1005FR27□TM01 MWSD1005FR33□TM01 MWSD1005FR39□TM01 MWSD1005FR42□TM01 MWSD1005FR47□TM01 MWSD1005FR56□TM01 MWSD1005F2R2□TM01 18 20 33 34 48 53 68 70 77 96 106 130 140 160 180 200 220 270 330 390 420 470 560 2200 J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M J,K,M K,M K,M 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 10 10 10 1 3000 3000 1800 2500 1400 2000 1300 1300 2000 1100 1500 1000 1000 900 1000 800 1100 730 520 350 320 380 300 100 0.046 0.028 0.065 0.036 0.078 0.060 0.120 0.120 0.090 0.160 0.144 0.230 0.216 0.330 0.312 0.470 0.470 0.520 0.560 0.620 0.620 0.660 0.710 1.80 1400 2200 1300 1800 1100 1300 820 820 1100 730 850 640 650 480 560 390 450 420 390 370 370 350 300 170 MWSD1005F-M01 TYPE ※□: Please specify the inductance tolerance code (J=±5%, K=±10%, M=±20%). Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS MWSD0603F TYPE Inductance vs. Frequency Characteristics MWSD0703F TYPE Inductance vs. Frequency Characteristics MWSD0703F27NJT Ls（nH） Ls vs. Frequency MWSD0703F72NJT 600.00 560.00 520.00 480.00 440.00 400.00 360.00 320.00 280.00 240.00 200.00 160.00 120.00 80.00 40.00 0.00 MWSD0703FR10JT MWSD0703FR15JT MWSD0703FR27JT MWSD0703FR43JT MWSD0703FR56JT 1 10 100 1000 10000 Frequency(MHz) MWSD1005F TYPE Inductance vs. Frequency Characteristics Impedance vs. Frequency Characteristics MWSD1005F-M01 TYPE Inductance vs. Frequency Characteristics Impedance vs. Frequency Characteristics Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
