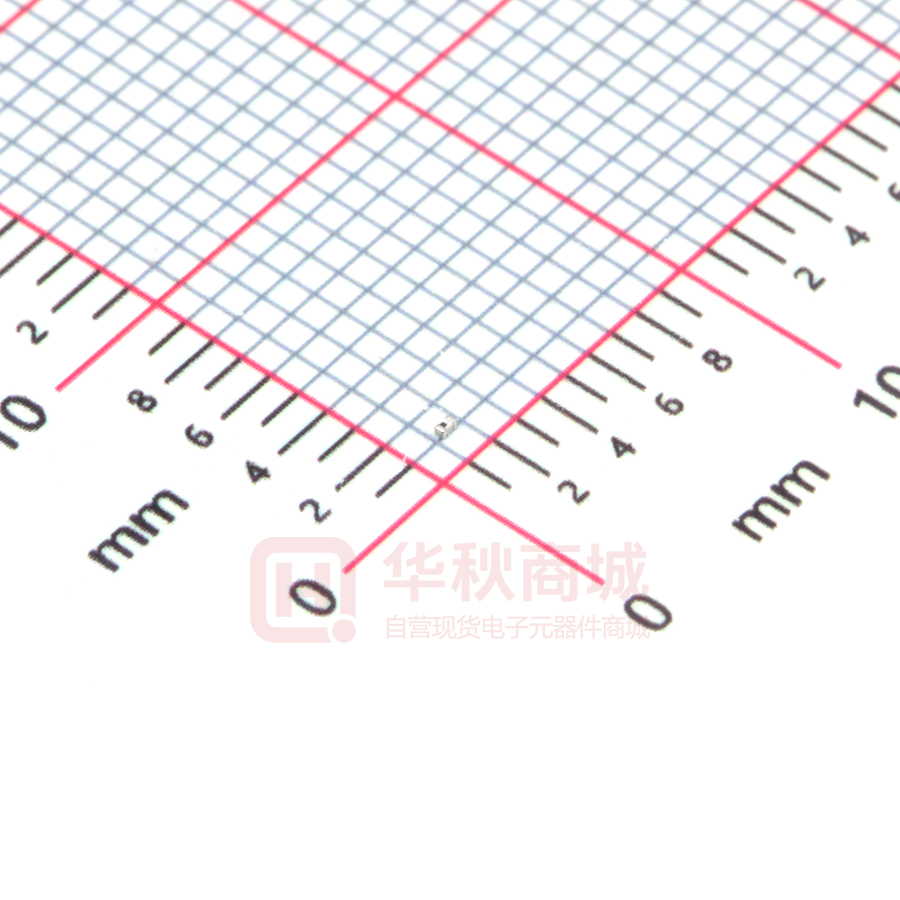

SDCL0603Q9N1HT02

Multilayer Chip Ceramic Inductor - SDCL0603Q-02 Series Operating Temp. : SDCL0603Q-02 series: -55℃~+125℃ FEATURES ● ● ● ● Monolithic structure for high reliability High self-resonant frequency Excellent solderability and high heat resistance High Q factor APPLICATIONS ● RF circuit in telecommunication and other equipments PRODUCT IDENTIFICATION SDCL 0603 Q 10N J T 02 ② ③ ④ ⑤ ⑥ ⑦ ① ① ② Type SDCL Chip Ceramic Inductor ③ 0603 [0201] 0.6×0.3 ⑤ ④ Nominal Inductance Example Nominal Value 3N9 3.9nH 10N 10nH ※R=，N=nH Characteristics Code Q External Dimensions (L×W) (mm) ⑥ Inductance Tolerance B ±0.1nH C ±0.2nH S ±0.3nH G ±2% H ±3% J ±5% T Packing Tape & Reel ⑦ Serial Code 02 SHAPE AND DIMENSIONS Unit: mm [inch] Type SDCL0603Q-02 [0201] Sunlord L 0.6±0.05 [.024±.002] W 0.3±0.05 [.012±.002] T 0.3±0.05 [.012±.002] Specifications subject to change without notice. Please check our website for latest information. a 0.12±0.05 [.0048±.002] Revised 2016/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDCL0603Q-02 Series Part Number Inductance Min. Quality Factor Units nH - MHz - MHz Ω mA Symbol L Q Freq Q S.R.F DCR Ir SDCL0603Q0N6□T02 SDCL0603Q0N7□T02 SDCL0603Q0N8□T02 SDCL0603Q0N9□T02 SDCL0603Q1N0□T02 SDCL0603Q1N1□T02 SDCL0603Q1N2□T02 SDCL0603Q1N3□T02 SDCL0603Q1N4□T02 SDCL0603Q1N5□T02 SDCL0603Q1N6□T02 SDCL0603Q1N7□T02 SDCL0603Q1N8□T02 SDCL0603Q1N9□T02 SDCL0603Q2N0□T02 SDCL0603Q2N1□T02 SDCL0603Q2N2□T02 SDCL0603Q2N3□T02 SDCL0603Q2N4□T02 SDCL0603Q2N5□T02 SDCL0603Q2N6□T02 SDCL0603Q2N7□T02 SDCL0603Q2N8□T02 SDCL0603Q2N9□T02 SDCL0603Q3N0□T02 SDCL0603Q3N1□T02 SDCL0603Q3N2□T02 SDCL0603Q3N3□T02 SDCL0603Q3N4□T02 SDCL0603Q3N5□T02 SDCL0603Q3N6□T02 SDCL0603Q3N7□T02 SDCL0603Q3N8□T02 SDCL0603Q3N9□T02 SDCL0603Q4N3□T02 SDCL0603Q4N7□T02 SDCL0603Q5N1□T02 SDCL0603Q5N6□T02 SDCL0603Q6N2□T02 SDCL0603Q6N8□T02 SDCL0603Q7N5□T02 SDCL0603Q8N2□T02 SDCL0603Q9N1□T02 SDCL0603Q10N□T02 SDCL0603Q12N□T02 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 12 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 9600 9400 9200 8900 8800 8600 8500 8200 8100 8000 7900 7700 7600 7500 7400 6800 6200 5900 5500 5100 4900 4700 4300 4100 3800 3400 0.06 0.06 0.07 0.07 0.08 0.11 0.12 0.12 0.11 0.12 0.13 0.15 0.15 0.18 0.23 0.24 0.25 0.20 0.22 0.20 0.20 0.22 0.24 0.26 0.26 0.28 0.28 0.30 0.30 0.34 0.38 0.40 0.42 0.42 0.44 0.45 0.46 0.46 0.48 0.50 0.50 0.56 0.72 0.80 0.80 600 550 550 550 520 440 420 420 440 420 410 380 380 350 300 300 290 330 310 330 330 310 300 280 280 270 270 270 270 250 240 230 230 230 220 220 210 210 210 200 200 190 170 160 160 Sunlord L, Q Test Typical Q @ Freq. (GHz) Min. Max. DC Freq. Self-resonant Resistance L/Q Frequency 0.5 0.8 1.8 2.0 2.4 >24 >24 >24 >24 24 19 19 19 19 19 19 19 19 18 17 17 17 17 17 17 17 17 17 17 17 17 17 18 17 17 16 16 16 16 16 16 17 16 18 17 16 16 16 16 16 >32 >32 >32 >32 32 26 25 25 24 24 24 24 24 24 24 24 24 24 23 23 22 22 22 22 22 22 22 23 23 23 23 23 22 22 21 22 22 21 23 22 21 21 20 20 20 >54 >54 >54 >54 54 45 43 40 39 39 39 39 39 38 38 37 38 37 36 35 34 34 34 34 34 34 33 34 33 33 33 33 33 33 32 33 34 33 34 32 31 31 30 28 27 >57 >57 >57 >57 57 47 44 42 41 41 41 41 41 40 39 39 40 39 38 36 35 35 35 35 35 35 35 36 35 35 35 35 35 35 34 35 36 34 35 33 33 32 31 29 28 >65 >65 >65 >65 65 55 52 47 47 46 46 46 46 45 44 44 43 43 42 40 39 39 39 39 39 39 39 40 39 39 39 38 38 38 37 38 38 37 37 35 34 34 32 31 28 Specifications subject to change without notice. Please check our website for latest information. Max. Rated Current Revised 2016/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDCL0603Q-02 Series Part Number Inductance Min. Quality Factor L, Q Test Typical Q @ Freq. (GHz) Min. Max. DC Freq. Self-resonant Resistance L/Q 0.5 0.8 1.8 2.0 2.4 Frequency Units nH - MHz - MHz Ω mA Symbol L Q Freq. Q S.R.F DCR Ir SDCL0603Q15N□T02 SDCL0603Q18N□T02 SDCL0603Q22N□T02 SDCL0603Q27N□T02 SDCL0603Q33N□T02 SDCL0603Q39N□T02 SDCL0603Q47N□T02 SDCL0603Q56N□T02 SDCL0603Q68N□T02 SDCL0603Q82N□T02 SDCL0603QR10□T02 SDCL0603QR12□T02 15 18 22 27 33 39 47 56 68 82 100 120 13 13 13 13 11 11 11 11 11 10 10 9 500 500 500 500 300 300 300 300 300 300 300 300 2600 2300 1900 1800 1800 1600 1500 1400 1200 1100 1000 1000 0.85 1.00 1.20 1.60 2.20 2.30 2.60 2.80 3.20 3.80 4.00 5.00 160 140 130 120 110 100 100 80 80 70 60 50 15 15 15 15 14 14 14 13 13 12 12 12 19 19 19 19 15 15 15 13 11 10 10 8 24 23 22 15 8 6 - 24 24 23 13 5 - 23 22 20 8 - Max. Rated Current ※□: Please specify the inductance tolerance. For L≤6.2nH, choose B=±0.1nH,C=±0.2nH or S=±0.3nH; For L>6.2nH, choose G=±2%, H=±3% or J=±5%. Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2016/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
