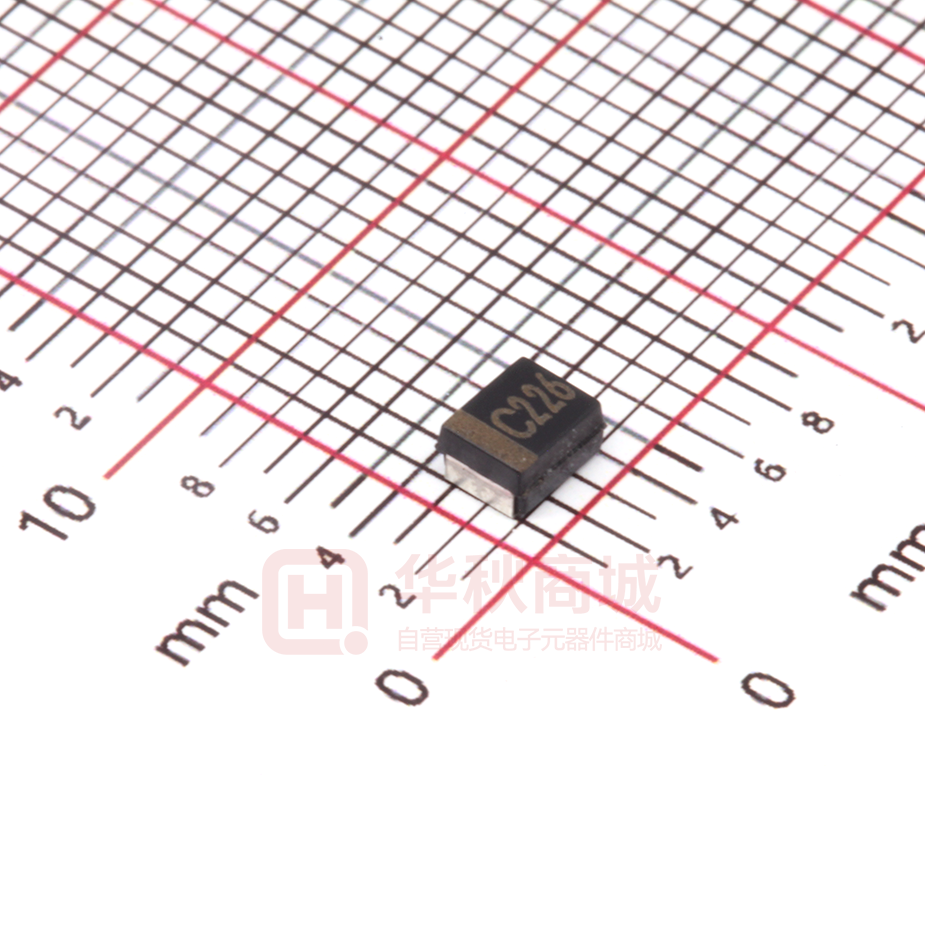

TC211B226K016A

Sunlord Solid Tantalum Chip Capacitors Page 1 of 20 S P E C I F I C AT I O N S Customer Solid Tantalum Chip Capacitors Product Name Sunlord Part Number TC Series Customer Part Number [ New Released, Revised] SPEC No.: TC08150000 【This SPEC is total 20 pages including specifications and appendix.】 【ROHS Compliant Parts】 Approved By Checked By Issued By Shenzhen Sunlord Electronics Co., Ltd. Address: Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 【For Customer approval Only】 Qualification Status: Full Approved By Comments: Verified By Date: Restricted Rejected Re-checked By Checked By Sunlord Solid Tantalum Chip Capacitors Page 2 of 20 【Version change history】 Rev. Effective Date Changed Contents Change reasons Approved By 01 / New release / Hai Guo Sunlord Solid Tantalum Chip Capacitors Page 3 of 20 1. Scope This specification applies to TC series of Solid Tantalum Chip Capacitors. 2. Reference EIA Standard 535BAAC-A GJB 2283-95 GJB 360A-96 IEC384-3-1 3. Fixed Tantalum Chip Capacitor Style 1 Protected (molded) Established reliability general specification for fixed solid electrolytic tantalum chip capacitor Test methods for electronic and electrical component parts Test Methods for Environmental Testing Product Description and Identification (Part Number) a) Description TC series of Solid Tantalum Chip Capacitors. b) Product Identification (Part Number) TC 211 ※ XXX ① ② ③ ④ ⑤ TC □ ⑥ ⑦ Series ② Type ① ③ XXX 〇 Chip Tantalum Capacitor 211 Industrial 212 Low ESR External Dimensions (L×W) (mm) A 3.2×1.6 B 3.5×2.8 C 6.0×3.2 D 7.3×4.3 E 7.3×4.3 Nominal Capacitance ④ Example Nominal Value 474 47×10 pF 105 10×10 pF 225 22×10 pF 4 5 5 Capacitance Tolerance ⑤ K ±10% M ±20% Rated DC Voltage ⑥ Example Rated DC Voltage 002 2.5V 006 6.3V 016 16V Internal Code ⑦ A Black Molded Case Y Yellow Molded Case B Black Molded Case、 Laser marking 3) Markings Rated Voltage Code Rated Voltage (V) 2.5 4 6.3 10 16 20 25 35 50 Code e G J A C D E V T Capacitance Code Capacitance (µF) Code (A/B/C/D/E Case) Capacitance (µF) Code (A/B/C/D/E Case) 0.1 0.15 0.22 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 104 154 224 334 474 684 105 155 225 335 475 685 10 15 22 33 47 68 100 220 330 470 680 106 156 226 336 476 686 107 227 337 477 687 Sunlord Solid Tantalum Chip Capacitors Page 4 of 20 Markings: A/B/C/D/E Case Marking 4. Electrical Characteristics 1) Operating and storage temperature range (individual chip without packing): -55℃~+125℃ 2) Storage temperature range (packaging conditions): -10℃~+40℃, RH70% (MAX). TC211 Series Leakage Capacita nce Current Case Sunlord P/N (µF) (µA) 25℃ Leakage DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. Max. 2.5V, +85℃（1.6V @ +125℃） Capacita nce Current Case Sunlord P/N (µF) (µA) 25℃ Max. DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. 33.0 C TC211C336◎ 004□ 1.3 6.0 1.8 10.0 A TC211A106◎002□ 0.5 6.0 5.0 47.0 A TC211A476◎ 004□ 1.9 6.0 3.0 15.0 A TC211A156◎002□ 0.5 6.0 6.0 47.0 B TC211B476◎ 004□ 1.9 6.0 3.0 15.0 B TC211B156◎002□ 0.5 6.0 4.0 47.0 C TC211C476◎ 004□ 1.9 6.0 1.8 22.0 A TC211A226◎002□ 0.6 6.0 4.0 68.0 B TC211B686◎ 004□ 2.7 6.0 3.5 33.0 A TC211A336◎002□ 0.8 6.0 4.0 68.0 C TC211C686◎ 004□ 2.7 6.0 1.6 47.0 A TC211A476◎002□ 1.2 10.0 4.0 68.0 D TC211D686◎004□ 2.7 6.0 0.8 68.0 A TC211A686◎002□ 1.7 10.0 3.0 100.0 A TC211A107◎004□ 4.0 18.0 5.0 68.0 B TC211B686◎002□ 1.7 6.0 2.0 100.0 B TC211B107◎004□ 4.0 8.0 2.0 100.0 A TC211A107◎002□ 2.5 20.0 2.5 100.0 C TC211C107◎004□ 4.0 8.0 1.3 100.0 B TC211B107◎002□ 2.5 8.0 1.5 100.0 D TC211D107◎004□ 4.0 8.0 0.8 150.0 B TC211B157◎002□ 3.8 10.0 2.0 150.0 B TC211B157◎004□ 6.0 15.0 2.0 220.0 B TC211B227◎002□ 5.5 18.0 2.0 150.0 C TC211C157◎004□ 6.0 8.0 1.2 150.0 D TC211D157◎004□ 6.0 8.0 0.8 4V, +85℃（2.5V @ +125℃） 2.2 A TC211A225◎004□ 0.5 6.0 8.0 220.0 B TC211B227◎004□ 8.8 18.0 0.5 3.3 A TC211A335◎004□ 0.5 6.0 8.0 220.0 C TC211C227◎004□ 8.8 8.0 1.0 4.7 A TC211A475◎004□ 0.5 6.0 8.0 220.0 D TC211D227◎004□ 8.8 8.0 0.8 6.8 A TC211A685◎004□ 0.5 6.0 6.0 330.0 B TC211B337◎004□ 13.2 18.0 1.2 10.0 A TC211A106◎004□ 0.5 6.0 6.0 330.0 C TC211C337◎004□ 13.2 8.0 1.2 10.0 B TC211B106◎004□ 0.5 6.0 3.5 330.0 D TC211D337◎004□ 13.2 8.0 0.7 15.0 A TC211A156◎004□ 0.6 6.0 4.0 330.0 E TC211E337◎004□ 13.2 8.0 0.8 15.0 B TC211B156◎004□ 0.6 6.0 3.5 470.0 E TC211E477◎004□ 18.8 8.0 0.8 22.0 A TC211A226◎004□ 0.9 6.0 4.0 680.0 E TC211E687◎004□ 27.2 8.0 0.5 22.0 B TC211B226◎004□ 0.9 6.0 3.5 33.0 A TC211A336◎004□ 1.3 6.0 4.0 1.0 A TC211A105◎006□ 0.5 6.0 14.0 33.0 B TC211B336◎004□ 1.3 6.0 3.5 1.5 A TC211A155◎006□ 0.5 6.0 8.0 2.2 A TC211A225◎006□ 0.5 6.0 8.0 3.3 A TC211A335◎006□ 0.5 6.0 8.0 4.7 A TC211A475◎006□ 0.5 6.0 6.0 6.3V, +85℃（4.0V @ +125℃） Sunlord Solid Tantalum Chip Capacitors Capacit ance Case Sunlord P/N (µF) Leakage DF Current (%) (µA) +25℃ 25℃ 120Hz Max. Max. ESR(Ω) +25℃ 100kHz Max. Page 5 of 20 Leakage Current Capacita nce Case Sunlord P/N (µF) (µA) 25℃ Max. DF(%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. 6.8 A TC211A685◎006□ 0.5 6.0 6.0 1.5 A TC211A155◎ 010□ 0.5 6.0 8.0 6.8 B TC211B685◎006□ 0.5 6.0 3.5 2.2 A TC211A225◎ 010□ 0.5 6.0 8.0 10.0 A TC211A106◎006□ 0.6 6.0 4.0 3.3 A TC211A335◎ 010□ 0.5 6.0 6.0 10.0 B TC211B106◎006□ 0.6 6.0 3.5 4.7 A TC211A475◎ 010□ 0.5 6.0 6.0 15.0 A TC211A156◎006□ 0.9 6.0 4.0 4.7 B TC211B475◎ 010□ 0.5 6.0 3.5 15.0 B TC211B156◎006□ 0.9 6.0 3.5 6.8 A TC211A685◎ 010□ 0.7 6.0 6.0 22.0 A TC211A226◎006□ 1.3 6.0 4.0 6.8 B TC211B685◎ 010□ 0.7 6.0 3.5 22.0 B TC211B226◎006□ 1.3 6.0 3.5 10.0 A TC211A106◎ 010□ 1.0 6.0 4.0 33.0 A TC211A336◎006□ 2.1 8.0 4.5 10.0 B TC211B106◎ 010□ 1.0 6.0 3.5 33.0 B TC211B336◎006□ 2.1 6.0 3.0 10.0 C TC211C106◎ 010□ 1.0 6.0 1.8 33.0 C TC211C336◎006□ 2.1 6.0 1.8 15.0 A TC211A156◎ 010□ 1.5 6.0 6.0 47.0 A TC211A476◎006□ 3.0 8.0 3.5 15.0 B TC211B156◎ 010□ 1.5 6.0 3.5 47.0 B TC211B476◎006□ 3.0 6.0 3.0 15.0 C TC211C156◎ 010□ 1.5 6.0 1.8 47.0 C TC211C476◎006□ 3.0 6.0 1.6 22.0 A TC211A226◎ 010□ 2.2 8.0 4.0 68.0 B TC211B686◎006□ 4.3 10.0 1.2 22.0 B TC211B226◎ 010□ 2.2 6.0 3.0 68.0 C TC211C686◎006□ 4.3 6.0 1.2 22.0 C TC211C226◎010□ 2.2 6.0 1.8 68.0 D TC211D686◎006□ 4.3 6.0 0.8 33.0 A TC211A336◎010□ 3.3 15 6.0 100.0 A TC211A107◎006□ 6.3 20.0 4.0 33.0 B TC211B336◎010□ 3.3 6.0 3.5 100.0 B TC211B107◎006□ 6.3 10.0 3.0 33.0 C TC211C336◎010□ 3.3 6.0 1.6 100.0 C TC211C107◎006□ 6.3 8.0 1.2 33.0 D TC211D336◎010□ 3.3 6.0 0.8 100.0 D TC211D107◎006□ 6.3 8.0 0.8 47.0 A TC211A476◎010□ 4.7 15.0 4.0 150.0 B TC211B157◎006□ 9.5 15 1.0 47.0 B TC211B476◎010□ 4.7 6.0 1.0 150.0 C TC211C157◎006□ 9.5 8.0 1.2 47.0 C TC211C476◎010□ 4.7 6.0 1.2 150.0 D TC211D157◎006□ 9.5 8.0 0.8 47.0 D TC211D476◎010□ 4.7 6.0 0.8 220.0 B TC211B227◎006□ 13.9 18.0 1.0 68.0 B TC211B686◎010□ 6.8 10.0 3.0 220.0 C TC211C227◎006□ 13.9 8.0 1.2 68.0 C TC211C686◎010□ 6.8 6.0 1.2 220.0 D TC211D227◎006□ 13.9 8.0 0.7 68.0 D TC211D686◎010□ 6.8 6.0 0.8 220.0 E TC211E227◎006□ 13.9 8.0 0.5 100.0 B TC211B107◎010□ 10.0 15.0 1.5 330.0 D TC211D337◎006□ 20.8 8.0 0.5 100.0 C TC211C107◎010□ 10.0 8.0 1.2 330.0 E TC211E337◎006□ 20.8 8.0 0.5 100.0 D TC211D107◎010□ 10.0 8.0 0.7 470.0 D TC211D477◎006□ 29.6 12.0 0.4 150.0 C TC211C157◎010□ 15.0 10.0 0.9 470.0 E TC211E477◎006□ 29.6 10.0 0.5 150.0 D TC211D157◎010□ 15.0 8.0 0.7 150.0 E TC211E157◎010□ 15.0 8.0 0.5 10V, +85℃（6.3V @ +125℃） 1.0 A TC211A105◎010□ 0.5 4.0 13.0 Sunlord Solid Tantalum Chip Capacitors Leakage Capacita nce (µF) Ca se Current Sunlord P/N (µA) 25℃ Max. 220.0 DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. Page 6 of 20 Leakage Current Capacita nce Case Sunlord P/N (µF) (µA) 25℃ Max. DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. D TC211D227◎010□ 22.0 8.0 0.5 47.0 D TC211D476◎016□ 7.5 6.0 0.8 E TC211E227◎010□ 22.0 8.0 0.5 68.0 D TC211D686◎016□ 10.8 6.0 0.8 330.0 D TC211D337◎010□ 33.0 10.0 0.5 100.0 C TC211C107◎016□ 16.0 10.0 1.0 330.0 E TC211E337◎010□ 33.0 10.0 0.5 100.0 D TC211D107◎016□ 16 8.0 0.7 470.0 E TC211E477◎010□ 47.0 10.0 0.5 150.0 D TC211D157◎016□ 24.0 12.0 0.7 150.0 E TC211E157◎016□ 24 8.0 0.5 220.0 16V, +85℃（10V @ +125℃） 1.0 A TC211A105◎016□ 0.5 4.0 10.0 220.0 D TC211D227◎016□ 35.2 15.0 0.9 1.5 A TC211A155◎016□ 0.5 6.0 8.0 220.0 E TC211E227◎016□ 35.2 10.0 0.5 2.2 A TC211A225◎016□ 0.5 6.0 6.0 330.0 E TC211E337◎016□ 52.8 10.0 0.5 2.2 B TC211B225◎016□ 0.5 6.0 4.0 3.3 A TC211A335◎016□ 0.52 6.0 6.0 0.68 A TC211A684◎020□ 0.5 4.0 12.0 3.3 B TC211B335◎016□ 0.5 6.0 3.5 1.0 A TC211A105◎020□ 0.5 4.0 10.0 4.7 A TC211A475◎016□ 0.8 6.0 6.0 1.5 A TC211A155◎020□ 0.5 6.0 8.0 4.7 B TC211B475◎016□ 0.8 6.0 3.5 1.5 B TC211B155◎020□ 0.5 6.0 5.0 4.7 C TC211C475◎016□ 0.8 6.0 2.4 2.2 A TC211A225◎020□ 0.5 6.0 7.0 6.8 A TC211A685◎016□ 1.1 6.0 7.0 2.2 B TC211B225◎020□ 0.5 6.0 3.5 6.8 B TC211B685◎016□ 1.1 6.0 3.5 3.3 A TC211A335◎020□ 0.7 6.0 7.0 6.8 C TC211C685◎016□ 1.1 6.0 2.0 3.3 B TC211B335◎020□ 0.7 6.0 3.5 10.0 A TC211A106◎016□ 1.6 8.0 7.0 4.7 A TC211A475◎020□ 0.9 6.0 4.0 10.0 B TC211B106◎016□ 1.6 6.0 2.8 4.7 B TC211B475◎020□ 0.9 6.0 3.5 10.0 C TC211C106◎016□ 1.6 6.0 1.8 4.7 C TC211C475◎020□ 0.9 6.0 2.4 15.0 B TC211B156◎016□ 2.4 6.0 3.0 6.8 A TC211A685◎020□ 1.4 8.0 6.0 15.0 C TC211C156◎016□ 2.4 6.0 1.8 6.8 B TC211B685◎020□ 1.4 6.0 3.5 22.0 A TC211A226◎016□ 3.5 15.0 4.0 6.8 C TC211C685◎020□ 1.4 6.0 2.0 22.0 B TC211B226◎016□ 3.5 8.0 2.2 6.8 D TC211D685◎020□ 1.4 6.0 1.9 22.0 C TC211C226◎016□ 3.5 6.0 1.6 10.0 B TC211B106◎020□ 2.0 6.0 3.0 22.0 D TC211D226◎016□ 3.5 6.0 0.8 10.0 C TC211C106◎020□ 2.0 6.0 1.8 33.0 B TC211B336◎016□ 5.3 8.0 2.0 10.0 D TC211D106◎020□ 2.0 6.0 1.0 33.0 C TC211C336◎016□ 5.3 6.0 1.2 15.0 C TC211C156◎020□ 3.0 6.0 1.7 33.0 D TC211D336◎016□ 5.3 6.0 0.8 15.0 D TC211D156◎020□ 3.0 6.0 1.0 47.0 B TC211B476◎016□ 7.5 18.0 1.0 22.0 B TC211B226◎020□ 4.4 8.0 4.0 47.0 C TC211C476◎016□ 7.5 6.0 1.2 22.0 C TC211C226◎020□ 4.4 6.0 1.2 22.0 D TC211D226◎020□ 4.4 6.0 0.8 33.0 C TC211C336◎020□ 6.6 6.0 1.2 20V, +85℃（13V @ +125℃） Sunlord Solid Tantalum Chip Capacitors Leakage Capacita nce (µF) Cas e Current Sunlord P/N (µA) 25℃ Max. DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. Page 7 of 20 Leakage Current Capacita nce Case Sunlord P/N (µF) (µA) 25℃Max . DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. 33.0 D TC211D336◎020□ 6.6 6.0 0.8 15.0 C TC211C156◎025□ 3.8 6.0 1.5 47.0 C TC211C476 ◎ 020 □ 9.4 10.0 1.0 15.0 D TC211D156◎025□ 3.8 6.0 1.0 47.0 D TC211D476◎020□ 9.4 6.0 0.8 22.0 C TC211C226◎025□ 5.5 6.0 1.4 47.0 E TC211E476◎020□ 9.4 6.0 0.8 22.0 D TC211D226◎025□ 5.5 6.0 0.8 68.0 D TC211D686◎020□ 13.6 6.0 0.8 33.0 D TC211D336◎025□ 8.3 6.0 0.8 68.0 E TC211E686◎020□ 13.6 6.0 0.8 33.0 E TC211E336◎025□ 8.3 6.0 0.7 100.0 D TC211D107◎ 020□ 20.0 8.0 0.6 47.0 D TC211D476◎025□ 11.7 6.0 0.8 100.0 E TC211E107◎020□ 20.0 8.0 0.5 47.0 E TC211E476◎025□ 11.7 6.0 0.7 150.0 E TC211E157◎020□ 30.0 8.0 0.5 68.0 E TC211E686◎025□ 17.0 6.0 0.7 100.0 D TC211D107◎025□ 25.0 10.0 1.2 25V, +85℃（16V @ +125℃） 35V, +85℃（20V @ +125℃） 0.33 A TC211A334◎025□ 0.5 4.0 15.0 0.47 A TC211A474◎025□ 0.5 4.0 14.0 0.33 A TC211A334◎035□ 0.5 4.0 15.0 0.68 A TC211A684◎025□ 0.5 4.0 10.0 0.47 A TC211A474◎035□ 0.5 4.0 14.0 1.0 A TC211A105◎025□ 0.5 4.0 8.0 0.47 B TC211B474◎035□ 0.5 4.0 8.0 1.0 B TC211B105◎025□ 0.5 4.0 5.0 0.68 A TC211A684◎035□ 0.5 4.0 10.0 1.5 A TC211A155◎025□ 0.5 6.0 10.0 0.68 B TC211B684◎035□ 0.5 4.0 6.5 1.5 B TC211B155◎025□ 0.5 6.0 5.0 1.0 A TC211A105◎035□ 0.5 4.0 10.0 2.2 A TC211A225◎025□ 0.6 6.0 6.0 1.0 B TC211B105◎035□ 0.5 4.0 5.0 2.2 B TC211B225◎025□ 0.6 6.0 4.5 1.5 B TC211B155◎035□ 0.5 6.0 5.0 2.2 C TC211C225◎025□ 0.6 6.0 3.5 1.5 C TC211C155◎035□ 0.5 6.0 4.5 3.3 A TC211A335◎025□ 0.8 6.0 7.0 2.2 A TC211A225◎035□ 0.8 6.0 6.0 3.3 B TC211B335◎025□ 0.8 6.0 3.5 2.2 B TC211B225◎035□ 0.8 6.0 4.0 3.3 C TC211C335◎025□ 0.8 6.0 2.5 2.2 C TC211C225◎035□ 0.8 6.0 3.5 4.7 A TC211A475◎025□ 1.2 8.0 6.0 3.3 B TC211B335◎035□ 1.2 6.0 3.5 4.7 B TC211B475◎025□ 1.2 6.0 2.0 3.3 C TC211C335◎035□ 1.2 6.0 2.5 4.7 C TC211C475◎025□ 1.2 6.0 2.4 4.7 B TC211B475◎035□ 1.6 6.0 3.0 6.8 B TC211B685◎025□ 1.7 6.0 3.0 4.7 C TC211C475◎035□ 1.6 6.0 2.5 6.8 C TC211C685◎025□ 1.7 6.0 1.9 4.7 D TC211D475◎035□ 1.6 6.0 1.5 6.8 D TC211D685◎025□ 1.7 6.0 1.2 6.8 C TC211C685◎035□ 2.4 6.0 2.0 10.0 B TC211B106◎025□ 2.5 6.0 3.0 6.8 D TC211D685◎035□ 2.4 6.0 1.5 10.0 C TC211C106◎025□ 2.5 6.0 1.5 10.0 C TC211C106◎035□ 3.5 6.0 2.0 10.0 D TC211D106◎025□ 2.5 6.0 1.0 10.0 D TC211D106◎035□ 3.5 6.0 1.0 15.0 B TC211B156◎025□ 3.8 8.0 4.0 10.0 E TC211E106◎035□ 3.5 6.0 1.0 15.0 D TC211D156◎035□ 5.3 6.0 1.0 Sunlord Solid Tantalum Chip Capacitors Leakage Current Capacita nce Case Sunlord P/N (µF) (µA) 25℃Max . DF (%) ESR(Ω) Capacita +25℃ +25℃ nce 120Hz 100kHz Max. Max. (µF) Page 8 of 20 Leakage Current Case Sunlord P/N (µA) 25℃Max . DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. 15.0 E TC211E156◎035□ 5.3 6.0 0.9 4.7 D TC211D475◎050□ 2.4 6.0 1.5 22.0 D TC211D226◎035□ 7.7 6.0 0.8 6.8 D TC211D685◎050□ 3.4 6.0 1.2 22.0 E TC211E226◎035□ 7.7 6.0 0.7 10.0 D TC211D106◎050□ 5.0 6.0 1.0 33.0 E TC211E336◎035□ 11.0 6.0 0.6 10.0 E TC211E106◎050□ 5.0 6.0 0.7 47.0 E TC211E476◎035□ 16.5 8.0 0.6 15.0 E TC211E156◎050□ 7.5 6.0 0.7 50V, +85℃（32V @ +125℃） 0.15 B TC211B154◎050□ 0.5 4.0 16.0 0.22 A TC211A224◎050□ 0.5 4.0 18.0 0.22 B TC211B224◎050□ 0.5 4.0 14.0 0.33 A TC211A334◎050□ 0.5 4.0 15.0 0.33 B TC211B334◎050□ 0.5 4.0 10.0 0.47 A TC211A474◎050□ 0.5 4.0 12.0 0.47 B TC211B474◎050□ 0.5 4.0 9.0 0.47 C TC211C474◎050□ 0.5 4.0 8.0 0.68 A TC211A684◎050□ 0.5 4.0 10.0 0.68 B TC211B684◎050□ 0.5 4.0 8.0 0.68 C TC211C684◎050□ 0.5 4.0 7.0 1.0 B TC211B105◎050□ 0.5 6.0 6.0 1.0 C TC211C105◎050□ 0.5 4.0 5.5 1.5 B TC211B155◎050□ 0.8 6.0 4.5 1.5 C TC211C155◎050□ 0.8 6.0 3.5 2.2 B TC211B225◎050□ 1.1 6.0 2.0 2.2 C TC211C225◎050□ 1.1 6.0 3.5 2.2 D TC211D225◎050□ 1.1 6.0 2.5 3.3 B TC211B335◎050□ 1.7 6.0 5.0 3.3 C TC211C335◎050□ 1.7 6.0 3.0 3.3 D TC211D335◎050□ 1.7 6.0 2.0 Sunlord Solid Tantalum Chip Capacitors Page 9 of 20 TC212 Series Leakage Capacita nce (µF) Ca se Current Sunlord P/N (µA) 25℃ Max. DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. 2.5V, +85℃（1.6V @ +125℃） Leakage Capacita nce Current Case Sunlord P/N (µF) (µA) 25℃ DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. Max. 33.0 C TC212C336◎004□ 1.3 6.0 0.8 10.0 A TC212A106◎002□ 0.5 6.0 4.0 47.0 A TC212A476◎004□ 1.9 6.0 2.0 15.0 A TC212A156◎002□ 0.5 6.0 4.0 47.0 B TC212B476◎004□ 1.9 6.0 0.8 15.0 B TC212B156◎002□ 0.5 6.0 3.0 47.0 C TC212C476◎004□ 1.9 6.0 1.0 22.0 A TC212A226◎002□ 0.6 6.0 3.0 68.0 B TC212B686◎004□ 2.7 6.0 2.5 33.0 A TC212A336◎002□ 0.8 6.0 3.0 68.0 C TC212C686◎004□ 2.7 6.0 0.5 47.0 A TC212A476◎002□ 1.2 10.0 3.0 68.0 D TC212D686◎004□ 2.7 6.0 0.5 68.0 A TC212A686◎002□ 1.7 10.0 2.5 100.0 A TC212A107◎004□ 4.0 18.0 3.0 68.0 B TC212B686◎002□ 6.0 1.8 100.0 B TC212B107◎004□ 4.0 8.0 1.0 100.0 A TC212A107◎002□ 2.5 20.0 2.0 100.0 C TC212C107◎004□ 4.0 8.0 0.35 100.0 B TC212B107◎002□ 2.5 8.0 1.0 100.0 D TC212D107◎ 004□ 4.0 8.0 0.2 150.0 B TC212B157◎002□ 3.8 10.0 1.5 150.0 B TC212B157◎004□ 6.0 15.0 1.0 220.0 B TC212B227◎002□ 5.5 18.0 1.5 150.0 C TC212C157◎004□ 6.0 8.0 0.3 150.0 D TC212D157◎004□ 6.0 8.0 0.2 1.7 4V, +85℃（2.5V @ +125℃） 2.2 A TC212A225◎004□ 0.5 6.0 6.0 220.0 B TC212B227◎004□ 8.8 18.0 0.4 3.3 A TC212A335◎004□ 0.5 6.0 6.0 220.0 C TC212C227◎004□ 8.8 8.0 0.5 4.7 A TC212A475◎004□ 0.5 6.0 5.0 220.0 D TC212D227◎004□ 8.8 8.0 0.3 6.8 A TC212A685◎004□ 0.5 6.0 4.0 330.0 B TC212B337◎004□ 13.2 18.0 0.7 10.0 A TC212A106◎004□ 0.5 6.0 3.0 330.0 C TC212C337◎004□ 13.2 8.0 0.8 10.0 B TC212B106◎004□ 0.5 6.0 1.5 330.0 D TC212D337◎004□ 13.2 8.0 0.2 15.0 A TC212A156◎004□ 0.6 6.0 1.5 330.0 E TC212E337◎004□ 13.2 8.0 0.2 15.0 B TC212B156◎004□ 0.6 6.0 1.2 470.0 E TC212E477◎004□ 18.8 8.0 0.2 22.0 A TC212A226◎004□ 0.9 6.0 1.5 680.0 E TC212E687◎004□ 27.2 8.0 0.2 22.0 B TC212B226◎004□ 0.9 6.0 0.6 33.0 A TC212A336◎004□ 1.3 6.0 2.5 1.0 A TC212A105◎006□ 0.5 6.0 10.0 33.0 B TC212B336◎004□ 1.3 6.0 0.5 1.5 A TC212A155◎006□ 0.5 6.0 6.0 2.2 A TC212A225◎006□ 0.5 6.0 6.0 3.3 A TC212A335◎006□ 0.5 6.0 6.0 4.7 A TC212A475◎006□ 0.5 6.0 4.0 6.3V, +85℃（4.0V @ +125℃） Sunlord Capacit ance (µF) Solid Tantalum Chip Capacitors Leakage Cas e Sunlord P/N Current (µA) 25℃ Max. DF (%) +25℃ 120Hz Max. ESR(Ω) +25℃ 100kHz Max. Page 10 of 20 Leakage Capacit ance Current Case Sunlord P/N (µA) 25℃ (µF) Max. DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. 6.8 A TC212A685◎006□ 0.5 6.0 3.5 1.5 A TC212A155◎010□ 0.5 6.0 6.0 6.8 B TC212B685◎006□ 0.5 6.0 3.0 2.2 A TC212A225◎010□ 0.5 6.0 6.0 10.0 A TC212A106◎006□ 0.6 6.0 2.0 3.3 A TC212A335◎010□ 0.5 6.0 4.0 10.0 B TC212B106◎006□ 0.6 6.0 1.0 4.7 A TC212A475◎010□ 0.5 6.0 3.0 15.0 A TC212A156◎006□ 0.9 6.0 2.0 4.7 B TC212B475◎010□ 0.5 6.0 1.5 15.0 B TC212B156◎006□ 0.9 6.0 0.7 6.8 A TC212A685◎010□ 0.7 6.0 3.0 22.0 A TC212A226◎006□ 1.4 6.0 2.5 6.8 B TC212B685◎010□ 0.7 6.0 1.2 22.0 B TC212B226◎006□ 1.4 6.0 0.8 10.0 A TC212A106◎010□ 1.0 6.0 1.8 33.0 A TC212A336◎006□ 2.1 8.0 1.5 10.0 B TC212B106◎010□ 1.0 6.0 0.8 33.0 B TC212B336◎006□ 2.1 6.0 0.8 10.0 C TC212C106◎010□ 1.0 6.0 0.6 33.0 C TC212C336◎006□ 6 0.3 15.0 A TC212A156◎010□ 1.5 6.0 4.0 47.0 A TC212A476◎006□ 2.9 8.0 2.5 15.0 B TC212B156◎010□ 1.5 6.0 0.7 47.0 B TC212B476◎006□ 2.9 6.0 0.5 15.0 C TC212C156◎010□ 1.5 6.0 0.5 47.0 C TC212C476◎006□ 2.9 6.0 0.3 22.0 A TC212A226◎010□ 2.2 8.0 2.5 68.0 B TC212B686◎006□ 4.3 10.0 0.65 22.0 B TC212B226◎010□ 2.2 6.0 1.0 68.0 C TC212C686◎006□ 4.3 6.0 0.3 22.0 C TC212C226◎010□ 2.2 6.0 0.4 68.0 D TC212D686◎006□ 4.3 6.0 0.2 33.0 A TC212A336◎010□ 3.3 15 4.0 100.0 A TC212A107◎006□ 6.3 20.0 2.0 33.0 B TC212B336◎010□ 3.3 6.0 1.0 100.0 B TC212B107◎006□ 6.3 10.0 1.5 33.0 C TC212C336◎010□ 3.3 6.0 0.4 100.0 C TC212C107◎006□ 6.3 8.0 0.3 33.0 D TC212D336◎010□ 3.3 6.0 0.25 100.0 D TC212D107◎006□ 6.3 8.0 0.2 47.0 A TC212A476◎010□ 4.7 15.0 1.5 150.0 B TC212B157◎006□ 9.5 15 0.6 47.0 B TC212B476◎010□ 4.7 6.0 0.65 150.0 C TC212C157◎006□ 9.5 8.0 0.3 47.0 C TC212C476◎010□ 4.7 6.0 0.30 150.0 D TC212D157◎006□ 9.5 8.0 0.2 47.0 D TC212D476◎010□ 4.7 6.0 0.22 220.0 B TC212B227◎006□ 13.9 18.0 0.7 68.0 B TC212B686◎010□ 6.8 10.0 1.5 220.0 C TC212C227◎006□ 13.9 8.0 0.3 68.0 C TC212C686◎010□ 6.8 6.0 0.30 220.0 D TC212D227◎006□ 13.9 8.0 0.15 68.0 D TC212D686◎010□ 6.8 6.0 0.20 220.0 E TC212E227◎006□ 13.9 8.0 0.15 100.0 B TC212B107◎010□ 10.0 15.0 1.0 330.0 D TC212D337◎006□ 20.8 8.0 0.15 100.0 C TC212C107◎010□ 10.0 8.0 0.30 330.0 E TC212E337◎006□ 20.8 8.0 0.15 100.0 D TC212D107◎010□ 10.0 8.0 0.15 470.0 D TC212D477◎006□ 29.6 12.0 0.15 150.0 C TC212C157◎010□ 15.0 10.0 0.70 470.0 E TC212E477◎006□ 29.6 10.0 0.12 150.0 D TC212D157◎010□ 15.0 8.0 0.15 150.0 E TC212E157◎010□ 15.0 8.0 0.15 2.1 10V, +85℃（6.3V @ +125℃） 1.0 A TC212A105◎010□ 0.5 4.0 8.0 Sunlord Solid Tantalum Chip Capacitors Leakage Capaci tance Current Case Sunlord P/N (µF) (µA) 25℃ DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. Max. Page 11 of 20 Leakage Current Capaci tance Case Sunlord P/N (µF) (µA) 25℃ Max. DF (%) ESR(Ω) +25℃ +25℃ 120Hz 100kHz Max. Max. 220.0 D TC212D227◎010□ 22.0 8.0 0.15 47.0 D TC212D476◎016□ 7.5 6.0 0.5 220.0 E TC212E227◎010□ 22.0 8.0 0.15 68.0 D TC212D686◎016□ 10.8 6.0 0.5 330.0 D TC212D337◎010□ 33.0 10.0 0.15 100.0 C TC212C107◎016□ 16.0 10.0 0.7 330.0 E TC212E337◎010□ 33.0 10.0 0.2 100.0 D TC212D107◎016□ 16.0 8.0 0.5 470.0 E TC212E477◎010□ 47.0 10.0 0.2 150.0 D TC212D157◎016□ 24.0 12.0 0.4 150.0 E TC212E157◎016□ 24.0 8.0 0.15 16V, +85℃（10V @ +125℃） 1.0 A TC212A105◎016□ 0.5 4.0 8.0 220.0 D TC212D227◎016□ 35.2 15.0 0.6 1.5 A TC212A155◎016□ 0.5 6.0 6.0 220.0 E TC212E227◎016□ 35.2 10.0 0.2 2.2 A TC212A225◎016□ 0.5 6.0 4.0 330.0 E TC212E337◎016□ 52.8 10.0 0.2 2.2 B TC212B225◎016□ 0.5 6.0 3.0 3.3 A TC212A335◎016□ 0.5 6.0 5.0 0.68 A TC212A684◎020□ 0.5 4.0 10.0 3.3 B TC212B335◎016□ 0.5 6.0 2.5 1.0 A TC212A105◎020□ 0.5 4.0 8.0 4.7 A TC212A475◎016□ 0.8 6.0 5.0 1.5 A TC212A155◎020□ 0.5 6.0 4.5 4.7 B TC212B475◎016□ 0.8 6.0 2.5 1.5 B TC212B155◎020□ 0.5 6.0 1.5 4.7 C TC212C475◎016□ 0.8 6.0 1.5 2.2 A TC212A225◎020□ 0.5 6.0 4.0 6.8 A TC212A685◎016□ 1.1 6.0 5.0 2.2 B TC212B225◎020□ 0.5 6.0 3.0 6.8 B TC212B685◎016□ 1.1 6.0 2.5 3.3 A TC212A335◎020□ 0.7 6.0 6.0 6.8 C TC212C685◎016□ 1.1 6.0 1.0 3.3 B TC212B335◎020□ 0.7 6.0 2.5 10.0 A TC212A106◎016□ 1.6 8.0 3.0 4.7 A TC212A475◎020□ 0.9 6.0 3.5 10.0 B TC212B106◎016□ 1.6 6.0 0.8 4.7 B TC212B475◎020□ 0.9 6.0 2.5 10.0 C TC212C106◎016□ 1.6 6.0 1.5 4.7 C TC212C475◎020□ 0.9 6.0 1.2 15.0 B TC212B156◎016□ 2.4 6.0 2.0 6.8 A TC212A685◎020□ 1.4 8.0 3.0 15.0 C TC212C156◎016□ 2.4 6.0 1.2 6.8 B TC212B685◎020□ 1.4 6.0 2.5 22.0 A TC212A226◎016□ 3.5 15.0 2.0 6.8 C TC212C685◎020□ 1.4 6.0 1.2 22.0 B TC212B226◎016□ 3.5 8.0 1.5 6.8 D TC212D685◎020□ 1.4 6.0 0.8 22.0 C TC212C226◎016□ 3.5 6.0 1.2 10.0 B TC212B106◎020□ 2.0 6.0 2.0 22.0 D TC212D226◎016□ 3.5 6.0 0.6 10.0 C TC212C106◎020□ 2.0 6.0 1.2 33.0 B TC212B336◎016□ 5.3 8.0 1.0 10.0 D TC212D106◎020□ 2.0 6.0 0.8 33.0 C TC212C336◎016□ 5.3 6.0 1.0 15.0 C TC212C156◎020□ 3.0 6.0 1.2 33.0 D TC212D336◎016□ 5.3 6.0 0.5 15.0 D TC212D156◎020□ 3.0 6.0 0.8 47.0 B TC212B476◎016□ 7.5 18.0 0.7 22.0 B TC212B226◎020□ 4.4 8.0 3.0 47.0 C TC212C476◎016□ 7.5 6.0 0.8 22.0 C TC212C226◎020□ 4.4 6.0 0.4 22.0 D TC212D226◎020□ 4.4 6.0 0.5 33.0 C TC212C336◎020□ 6.6 6.0 0.6 20V, +85℃（13V @ +125℃） Sunlord Solid Tantalum Chip Capacitors Leakage Capaci tance Case Sunlord P/N (µF) Current (µA) 25℃ Max. DF (%) +25℃ 120Hz Max. ESR(Ω) +25℃ 100kHz Max. Page 12 of 20 Leakage Capacit ance Case Sunlord P/N (µF) Current (µA) 25℃Max. DF (%) +25℃ 120Hz Max. ESR(Ω) +25℃ 100kHz Max. 33.0 D TC212D336◎020□ 6.6 6.0 0.4 15.0 C TC212C156◎025□ 3.8 6.0 1.2 47.0 C TC212C476◎020□ 9.4 10.0 0.8 15.0 D TC212D156◎025□ 3.8 6.0 0.8 47.0 D TC212D476◎020□ 9.4 6.0 0.6 22.0 C TC212C226◎025□ 5.5 6.0 1.0 47.0 E TC212E476◎020□ 9.4 6.0 0.3 22.0 D TC212D226◎025□ 5.5 6.0 0.6 68.0 D TC212D686◎020□ 13.6 6.0 0.4 33.0 D TC212D336◎025□ 8.3 6.0 0.6 68.0 E TC212E686◎020□ 13.6 6.0 0.3 33.0 E TC212E336◎025□ 8.3 6.0 0.5 100.0 D TC212D107◎020□ 20.0 8.0 0.2 47.0 D TC212D476◎025□ 11.7 6.0 0.4 100.0 E TC212E107◎020□ 20.0 8.0 0.2 47.0 E TC212E476◎025□ 11.7 6.0 0.4 150.0 E TC212E157◎020□ 30.0 8.0 0.2 68.0 E TC212E686◎025□ 17.0 6.0 0.3 100.0 D TC212D107◎025□ 25.0 10.0 0.7 25V, +85℃（16V @ +125℃） 0.33 A TC212A334◎025□ 0.5 4.0 12.0 0.47 A TC212A474◎025□ 0.5 4.0 10.0 0.33 A TC212A334◎035□ 0.5 4.0 12.0 0.68 A TC212A684◎025□ 0.5 4.0 6.0 0.47 A TC212A474◎035□ 0.5 4.0 10.0 1.0 A TC212A105◎025□ 0.5 4.0 6.0 0.47 B TC212B474◎035□ 0.5 4.0 6.0 1.0 B TC212B105◎025□ 0.5 4.0 4.0 0.68 A TC212A684◎035□ 0.5 4.0 6.0 1.5 A TC212A155◎025□ 0.5 6.0 5.0 0.68 B TC212B684◎035□ 0.5 4.0 6.0 1.5 B TC212B155◎025□ 0.5 6.0 3.5 1.0 A TC212A105◎035□ 0.5 4.0 8.0 2.2 A TC212A225◎025□ 0.6 6.0 4.0 1.0 B TC212B105◎035□ 0.5 4.0 2.0 2.2 B TC212B225◎025□ 0.6 6.0 3.0 1.5 B TC212B155◎035□ 0.5 6.0 4.0 2.2 C TC212C225◎025□ 0.6 6.0 2.0 1.5 C TC212C155◎035□ 0.5 6 3.0 3.3 A TC212A335◎025□ 0.8 6.0 3.0 2.2 A TC212A225◎035□ 0.8 6.0 3.0 3.3 B TC212B335◎025□ 0.8 6.0 2.5 2.2 B TC212B225◎035□ 0.8 6.0 3.0 3.3 C TC212C335◎025□ 0.8 6.0 2.0 2.2 C TC212C225◎035□ 0.8 6.0 2.5 4.7 A TC212A475◎025□ 1.2 8.0 3.0 3.3 B TC212B335◎035□ 1.2 6.0 3.0 4.7 B TC212B475◎025□ 1.2 6.0 1.0 3.3 C TC212C335◎035□ 1.2 6.0 2.0 4.7 C TC212C475◎025□ 1.2 6.0 0.6 4.7 B TC212B475◎035□ 1.6 6.0 2.0 6.8 B TC212B685◎025□ 1.7 6.0 1.2 4.7 C TC212C475◎035□ 1.6 6.0 2.0 6.8 C TC212C685◎025□ 1.7 6.0 0.8 4.7 D TC212D475◎035□ 1.6 6.0 1.0 6.8 D TC212D685◎025□ 1.7 6.0 0.5 6.8 C TC212C685◎035□ 2.4 6.0 1.2 10.0 B TC212B106◎025□ 2.5 6.0 2.0 6.8 D TC212D685◎035□ 2.4 6.0 0.8 10.0 C TC212C106◎025□ 2.5 6.0 1.4 10.0 C TC212C106◎035□ 3.5 6.0 1.5 10.0 D TC212D106◎025□ 2.5 6.0 0.8 10.0 D TC212D106◎035□ 3.5 6.0 0.6 15 B TC212B156◎025□ 3.8 8.0 3.0 10.0 E TC212E106◎035□ 3.5 6.0 0.6 15.0 D TC212D156◎035□ 5.25 6.0 0.8 35V, +85℃（20V @ +125℃） Sunlord Solid Tantalum Chip Capacitors Leakage Capacit ance Case Sunlord P/N (µF) Current (µA) 25℃Max. DF (%) +25℃ 120Hz Max. Page 13 of 20 ESR(Ω) +25℃ 100kHz Max. 15.0 E TC212E156◎035□ 5.3 6.0 0.6 22.0 D TC212D226◎035□ 7.7 6.0 0.6 22.0 E TC212E226◎035□ 7.7 6.0 0.3 33.0 E TC212E336◎035□ 11.0 6.0 0.5 47.0 E TC212E476◎035□ 16.5 8.0 0.5 50V, +85℃（32V @ +125℃） 0.15 B TC212B154◎050□ 0.5 4.0 12.0 0.22 A TC212A224◎050□ 0.5 4.0 15.0 0.22 B TC212B224◎050□ 0.5 4.0 12.0 0.33 A TC212A334◎050□ 0.5 4.0 12.0 0.33 B TC212B334◎050□ 0.5 4.0 2.5 0.47 A TC212A474◎050□ 0.5 4.0 8.0 0.47 B TC212B474◎050□ 0.5 4.0 6.0 0.47 C TC212C474◎050□ 0.5 4.0 5.0 0.68 A TC212A684◎050□ 0.5 4.0 8.0 0.68 B TC212B684◎050□ 0.5 4.0 5.0 0.68 C TC212C684◎050□ 0.5 4.0 4.0 1.0 B TC212B105◎050□ 0.5 6.0 4.0 1.0 C TC212C105◎050□ 0.5 4.0 3.5 1.5 B TC212B155◎050□ 0.8 6.0 3.5 1.5 C TC212C155◎050□ 0.8 6.0 2.5 2.2 B TC212B225◎050□ 1.1 6.0 1.5 2.2 C TC212C225◎050□ 1.1 6.0 3.0 2.2 D TC212D225◎050□ 1.1 6.0 2.0 3.3 B TC212B335◎050□ 1.7 6.0 3.0 3.3 C TC212C335◎050□ 1.7 6.0 2.0 3.3 D TC212D335◎050□ 1.7 6.0 1.0 Leakage Capacit ance Case Sunlord P/N (µF) Current (µA) 25℃Max. DF (%) +25℃ 120Hz Max. ESR(Ω) +25℃ 100kHz Max. 4.7 D TC212D475◎050□ 2.4 6.0 0.8 6.8 D TC212D685◎050□ 3.4 6.0 0.7 10.0 D TC212D106◎050□ 5.0 6.0 0.7 10.0 E TC212E106◎050□ 5.0 6.0 0.4 15.0 E TC212E156◎050□ 7.5 6.0 0.4 ◎ Please: specify the capacitance tolerance code (K=±10%，M=±20%) □ Please: specify the internal code (A=black molded case，Y= yellow molded case，B=black molded case，Laser marking) Sunlord 5. Solid Tantalum Chip Capacitors Page 14 of 20 Shape and Dimensions c) Dimensions and recommended PCB pattern for reflow soldering: See Fig.5-1, Fig.5-2 and Table 5-1 d) Structure: See Fig. 5-3 Solder-resist Chip inductor C Land pattern B A B Fig. 5-2 Fig.5-1 Unit: mm [inch] Tab.5-1 Case Code Type L A 3216-18 B 3528-21 C 6032-28 D 7343-31 E 7343-43 W H F(±0.10) S(±0.30) [±.004] [±.012] 3.2±0.20 1.6±0.20 1.6±0.20 1.2 0.8 [.126±.008] [.063±.008] [.063±.008] [.047] [.031] 3.5±0.2 2.8±0.2 1.9±0.2 2.2 0.8 [0.134±0.008] [0.11±0.008] [0.075±0.008] [.087] [.031] 6.0±0.30 3.2±0.30 2.5±0.30 2.2 1.3 [.236±.012] [.126±.012] [.098±.012] [.087] [.051] 7.3±0.30 4.3±0.30 2.8±0.30 2.4 1.3 [.287±.012] [.169±.012] [.110±.012] [.094] [.051] 7.3±0.30 4.3±0.30 4.0±0.30 2.4 1.3 [.287±.012] [.169±.012] [.158±.012] [.094] [.051] Fig.5-3 6. Test and Measurement Procedures 6.1 Test Conditions Unless other specified, the standard atmospheric conditions for measurement/test as: ① Ambient Temperature: 25±10℃ ② Relative Humidity: 50±30% ③ Air Pressure: 86kHz ~106kPa If any doubt on the results, measurements/tests should be made within the following limits: a. Ambient Temperature: 25±1℃ b. Relative Humidity: 50±2% c. Air Pressure: 86kHz ~ 106kPa 6.2 Visual Examination Inspection Equipment: visual; A B C 1.1 1.35 1.5 1.4 1.35 2.7 2.9 2.0 2.7 4.1 2.05 2.9 4.1 2.05 2.9 Sunlord Solid Tantalum Chip Capacitors Page 15 of 20 6.3 Electrical Test 6.3.1 Equivalent Series Resistance (ESR) ① Test frequency: 100±5kHz, Refer to Electrical Characteristics ② Test equipment (Analyzer): HP4263B or equal ESR Tester 6.3.2 Capacitance (C) ① Test frequency :120±5Hz, Refer to Electrical Characteristics ② Test equipment: HP4263B or equal capacitance tester ③ Test signal: 1000mV 6.3.3 Dissipation Factor (tanδ) a. Test frequency: 120±5Hz, Refer to Electrical Characteristics b. Test equipment: HP4263B or equal capacitance tester c. Test signal: 1000mV 6.3.4 Leakage Current (I0) a. Refer to Electrical Characteristics b. Test equipment: TH2686 or equivalent I0 test equipment. c. Measurement method: 1) The chip shall be charged for 5min at most at rated voltage at 25℃ 2) Current decreases as time passes, but gets into a stable situation at a certain value which shall be recorded as I0. 6.3.5 Rated Voltage (UR) Rated voltage is the maximum DC operating voltage for continuous duty at -55℃~85℃. Capacitor may be operated at 125℃ with voltage derating to two-thirds of rated voltage. The derated voltages at different operating temperatures are listed in the table below. Surge voltage is the maximum voltage to which capacitors may be subjected under any momentary conditions, including the maximum AC pulse voltage, DC bias voltage and any momentary voltage. Refer to the table below for detail data. Rated Voltage (UR) 2.5V 4V 6.3V 10V 16V 20V 25V 35V 50V @-55℃~85℃ Derated voltage (UC) 1.6V 2.5V 4V 6.3V 10V 13V 16V 20V 32V @125℃ Surge Voltage (US) 3.3V 5.2V 8V 13V 20V 26V 32V 46V 65V @-55℃~85℃ Surge Voltage (US) 2.2V 3.4V 5V 8V 13V 16V 20V 28V 40V @125℃ Sunlord Solid Tantalum Chip Capacitors Page 16 of 20 6.4 Reliability Test Item Requirements Test Methods and Remarks 6.4.1 No removal or split of the termination or other defects Terminal shall occur. a. Strength 6.4.2 Solder the capacitor inductor to the testing jig (glass epoxy board shown in Fig. 6.4.1-1) using eutectic solder. Then apply a force in the direction of the arrow. No visible mechanical damage. b. 5N force c. Keep time: 10±1s d. Speed: 1.0mm/s ① Solder the capacitor to the test jig (glass epoxy board shown Resistance to in Tab. 5-1) Using a eutectic solder. Then apply a force in the Flexure direction shown in Fig. 6.4.2-1~Fig. 6.4.2-2 Unit: mm ② Flexure:1 mm; ③ Pressurizing Speed: 0.5mm/sec. ④ Keep time: 10 sec. 20 Φ4.5 10 40 R230 Flexure 100 Fig.6.4.2-1 45 45 Fig.6.4.2-2 6.4.3 No visible mechanical damage. ① Solder the capacitor to the testing jig (glass epoxy board ② The capacitor shall be subjected to a simple harmonic Vibration shown in Fig.6.4.3-1) using eutectic solder. Cu pad motion having total amplitude of 1.5mm, the frequency being Solder mask varied uniformly between the approximate limits of 10 and 55 Hz. ③ The frequency range from 10 to 55 Hz and return to 10 Hz shall be traversed in approximately 1 minute. This motion shall be applied for a period of 2 hours in each 3mutually Glass Epoxy Board Fig.6.4.3-1 perpendicular directions (total of 6 hours). Sunlord Solid Tantalum Chip Capacitors Page 17 of 20 6.4.4 ① No visible mechanical damage. ① Solder temperature: 240±2℃ Solderability ② Wetting shall exceed 95% coverage. ② Duration: 3 sec. ③ Solder: Sn/3.0Ag/0.5Cu ④ Flux: 25% Resin and 75% ethanol in weight. Reflow soldering: please refer to Fig. 8-1. 6.4.5 a. No visible mechanical damage. ① Resistance to b. Wetting shall exceed 95% coverage. ② Soldering Heat c. Capacitance change: within ±5%. d. The chip shall be stabilized at normal condition for 1~2 hours before measuring. tanδ shall not exceed 150% of the initial requirement. e. LC shall not exceed the initial I0. 6.4.6 ① At -55℃ ① Temperature ① No visible mechanical damage. ② ② Capacitance change: within - 10%. ③ tanδ shall not exceed 150% of the initial +4 Drying 30 min at 125℃ The chip shall be stabilized at normal condition for 1~2 hours after drying, and measured at 25℃ as initial data. ③ The chip shall be measured at -55℃ requirement. ② At 85℃ ① After Step A, the chip shall cool to room temperature. ① No visible mechanical damage. ② Measure at 85℃. ② Capacitance change: within 10% ③ tanδ shall not exceed 150% of the initial ① After Step B, the chip shall be measured at 125℃. requirement. ④ ＬＣ shall not exceed 10 I0 ③ At 125℃ ① No visible mechanical damage. ② Capacitance change: within 12%. ③ tanδ shall not exceed 150% of the initial requirement. ④ LC shall not exceed 12.5 I0. 6.4.7 ① Capacitance change: within ±5%. ① Temperature, Time (Fig.6.4.7) Thermal Shock ② tanδ shall not exceed the initial ② -55℃, 30±3 min→125℃, 30±3min. requirement. ③ Transforming interval: Max.5min. LC shall not exceed the initial I0. ④ Tested cycle: 5 cycles. ⑤ The chip shall be stabilized at normal condition for 1~2 hours ③ before measuring. Fig.6.4.7 6.4.8 ① No visible mechanical damage. ① Temperature: 40±2℃. Moisture ② Capacitance change: ±10%. ② Relative Humidity: 90%~95%RH. Resistance ③ tanδ shall not exceed 150% of the initial ③ Duration: 500 requirement. ④ The chip shall be stabilized at normal condition for 1~2 hours ④ +24 hours. before measuring. ＬＣshall not exceed 2I0. 6.4.9 6. No visible mechanical damage. ① Temperature: 85±2℃; Rated Voltage Life Test 7. Capacitance change: ±10%. ② Duration: 2000 8. tanδ shall not exceed the initial ③ The chip shall be stabilized at normal condition for 1~2 hours requirement. 9. ＬＣshall not exceed 1.25 I0. +24 hours before measuring. Sunlord Solid Tantalum Chip Capacitors Page 18 of 20 7. Packaging, Storage and Transportation 7.1 Packaging 7.1.1 Tape Carrier Packaging: Refer to Fig.7.1-1~3 for detail. Tape carrier packaging quantity is listed in the following table: Case code EIA size Package quantity A 3216 2000 B 3528 2000 C 6032 500 D 7343 500 E 7343 500 (1) Taping Drawings (Unit: mm) Fig.7.1-1 Remark: The sprocket holes are to the right as the tape is pulled toward the user. (2) Taping Dimensions (Unit: mm) Fig.7.1-2 Case W A0 B0 P0 F K max T max A 8.0±0.3 1.90±0.20 3.50±0.20 4.0±0.1 3.5±0.05 2.1 0.3 B 8.0±0.3 3.10±0.20 3.80±0.20 4.0±0.1 3.5±0.05 2.3 0.3 C 12.0±0.3 3.60±0.20 6.40±0.20 8.0±0.1 5.5±0.05 3.1 0.3 D 12.0±0.3 4.60±0.20 7.60±0.20 8.0±0.1 5.5±0.05 3.3 0.3 E 12.0±0.3 4.60±0.20 7.60±0.20 8.0±0.1 5.5±0.05 4.3 0.3 Sunlord Solid Tantalum Chip Capacitors Page 19 of 20 (3) Reel Dimensions (Unit: mm) 4.3±0.2mm W 2.45±0.2mm 4.0±0.1mm 5.0±0.1mm 58±2.0mm 13.5±0.2mm 3.0±0.1mm Fig. 7.1-3 178±2.0mm Case code Tape width W A. B. 8mm 10mm C. D. E 12mm 13mm 7.2 Storage a) The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to high humidity. b) The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to dust of harmful gas Package must be stored at 40℃ or less and 70% RH or less. (e.g. HCl, sulfurous gas of H2S). c) Packaging material may be deformed if package are stored where they are exposed to heat of direct sunlight. d) The minimum package and polyethylene package should not be opened until the capacitors are used; once they were opened, use the e) Solderability specified shall be guaranteed for 3 months from the date of delivery on condition that they are stored at the environment capacitors as soon as possible. specified in Clause 4. For those parts, which passed more than 3 months shall be checked solder-ability before use. 7.3 Transportation Package should not be destroyed or get wet. 7.4 Precautionary measures a) Put on electrostatic prevention to avoid ESD. b) Equipments involved in capacitor application (such as soldering tip and tester) should be well grounded. c) Avoid touching electrode directly by hand or metal (such as metal table). 7.5 Cautions for Using Tantalum Capacitor 7.5.1 Operating voltage The ratio of operating voltage to rated voltage has a great influence on capacitor failures. Please take all specified reliabilities into account and derate operating voltage appropriately when a practical circuit is designed. a. The operating voltage of tantalum capacitors used in low impedance circuits, such as filters for power supplies (particularly switching power supplies), should be derated to less than one-third of rated voltage. In other case, keep the operating voltage below tow thirds of rated voltage. Refer to Fig.7.5-1 for detail: Fig.7.5-1 b. In low impedance circuits, connecting capacitors in parallel will increase the risk of the failure caused by DC surge current. Please pay attention to the electric charge in capacitor with parallel connection which can be discharged by other capacitors. c. Connecting a resistor in series with capacitor is suggested to alleviate the shock caused by excessive momentary current. Please connect a protecting resistor of 3Ω/V or higher in series with the capacitor to keep current below 300mA.If protecting resistors could not be applied; please make sure operating voltage is below one-third of rated voltage (Fig.7.5-1). Sunlord Solid Tantalum Chip Capacitors Page 20 of 20 7.5.2 Reverse voltage Since tantalum capacitor has polarity, do not apply a reverse voltage to it. Do not apply capacitor to a circuit which only has alternating current. ① If there is no alternation, applying a low reverse voltage which is listed below to capacitor in a short time is approved: At 25℃: ≤10%UR (rated voltage) or 1V (whichever is lower); At 85℃: ≤5%UR (rated voltage) or 0.5V (whichever is lower); At 125℃: 1% of rated voltage, 0.1V for max. ① In principle, testing a circuit with tantalum capacitor or capacitor itself by using a resistor gear of millimeters in ignorance of polarity is forbidden. ② During measurement and application, if the tantalum capacitor is subjected to an undesirable reverse voltage due to carelessness, please dispose it, even if its electrical characteristics are still qualified. 7.5.3 Ripple voltage Please use the capacitor within permissible ripple voltage. a. The sum of DC bias voltage and the maximum AC branch voltage should not exceed rated voltage during operation. b. The sum of negative peak AC value and DC bias voltage should not exceed the specified reverse voltage. c. Ripple current applied to capacitor will generate active power loss, which will raise the rate of the failure caused by heat due to self-heat generation of capacitor. Therefore, ripple current and permissible power loss must be in control. 7.5.4 Mounting In mounting, if the capacitor has underwent excessive mechanical and thermal shock which may cause deterioration of electrical characteristics, open circuits and short circuits, please confirm the practical mounting conditions before usage. 8. Recommended Soldering Technologies 8.1 Reflowing Profile( Fig. 8-1): △Preheat condition: 150 ~200℃/60~120sec. Peak 260℃ max 260℃ △ Allowed time above 217C: 60~90sec. △ Max temp: 260℃ △ Max time at max temp: 10sec. △ Solder paste: Sn/3.0Ag/0.5Cu △ Allowed Reflow time: 2x max 217℃ Max Ramp Up Rate=3℃/sec. Max Ramp Down Rate=6℃/sec. 60～90sec. 200℃ 150℃ [Note: The reflow profile in the above table is only for qualification and is not meant to specify board assembly profiles. Actual board assembly profiles must be based on 60～120sec. 25℃ Time 25℃ to Peak =8 min max the customer's specific board design, solder paste and process, and should not exceed the parameters as the Reflow profile shows.] Fig. 8-1 3sec. Max. 8.2 Iron Soldering Profile (Fig. 8-2): 1. Iron soldering power: Max.30W 2. Pre-heating: 150 ℃/60sec. 3. Soldering Tip temperature: 350℃Max. 4. Soldering time: 3sec. Max. 5. Solder paste: Sn/3.0Ag/0.5Cu 6. Max.1 times for iron soldering [Note: Take care not to apply the tip of 350℃ Soldering Iron Power: max. 30W Diameter of Soldering Iron: 1.0mm max. Tc ℃ the soldering iron to the terminal electrodes.] Fig. 8-2 ① Supplier Information 1. Supplier: Shenzhen Sunlord Electronics Co., Ltd. b) Manufacturer: Shenzhen Sunlord Electronics Co., Ltd. c) Manufacturing Address: Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China Zip: 518110
